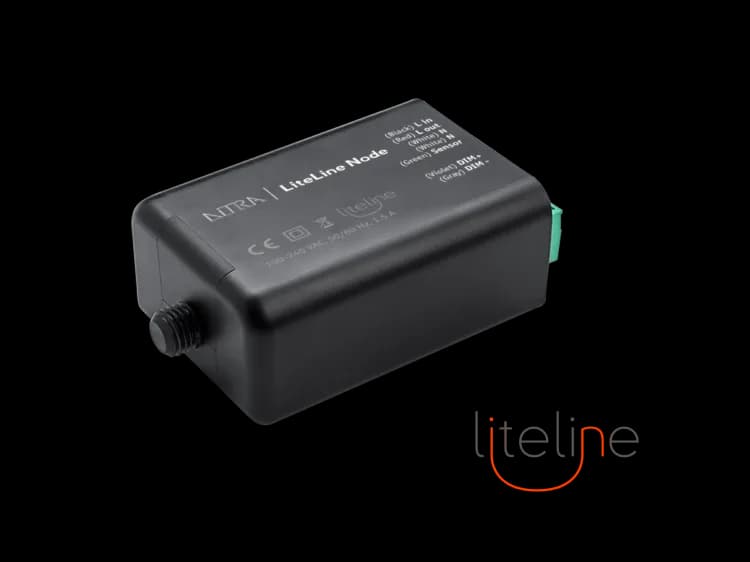

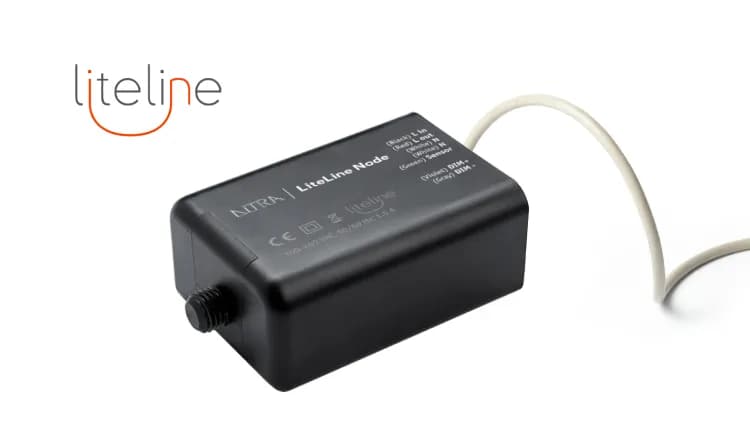

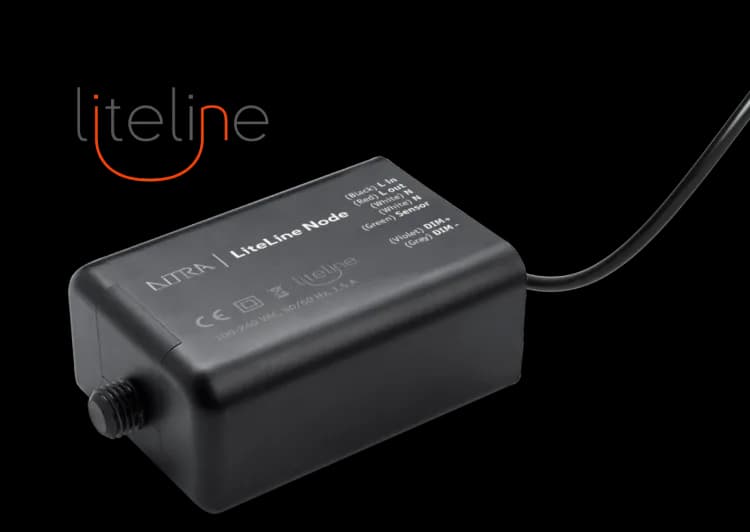

The Wire LiteLINE Node is a wired PLC (Power Line Communication) control and dimming module designed for managing a single luminaire or a group of luminaires.It is fully compatible with third-party motion sensors.The Wire LiteLINE Node supports multiple interfaces, including DALI, DALI 2.0, PWM, 1-10V, and 0-10V, as well as independent load control (on/off).Operating on a voltage range of 110-230 V, the device supports luminaires with power ratings of up to 1000 W.Control is provided individually through the DITRA CORE PRO, PRO-2, or LIGHT Central Gateways or via DITRA LiteLINE over 110-230 V power lines. LiteLINE technology operates at a frequency of 132.5 kHz, in compliance with CENELEC EN 50065-1 (band-C) standards.The unit is designed for flexible installation inside a luminaire, within its housing, or inside a lighting pole using wired connections. It also features an IP68 rating for dust and moisture protection.

large_LiteLine Node .png

medium_LiteLine Node .png

small_LiteLine Node .png

thumbnail_LiteLine Node .png

LiteLine Node .png






Wire LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, acelerometer, load 250 W

Wire LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, acelerometer, load 800 W

Wire LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, load 250 W

Wire LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, load 800 W

Wire LiteLINE Node, load switch, 0-10V/PWM, load 250 W

Wire LiteLINE Node, load switch, 0-10V/PWM, load 800 W

Wire LiteLINE Node, 0-10V/PWM, load 250 W

Wire LiteLINE Node, 0-10V/PWM, load 800 W

Pole-mounted outdoor streetlight luminaire controller with wired connection for Power Line Communication (PLC).

Mechanical

Power & Electrical

Environment

Interfaces and Protocols

Inputs / Outputs

Configuration / Indication

Package Contents

Wire LiteLINE Node

large_LiWAVE Node CS wire.png

medium_LiWAVE Node CS wire.png

small_LiWAVE Node CS wire.png

thumbnail_LiWAVE Node CS wire.png

LiWAVE Node CS wire.png

large_Wire LiWAVE Node.png

medium_Wire LiWAVE Node.png

small_Wire LiWAVE Node.png

thumbnail_Wire LiWAVE Node.png

Wire LiWAVE Node.png

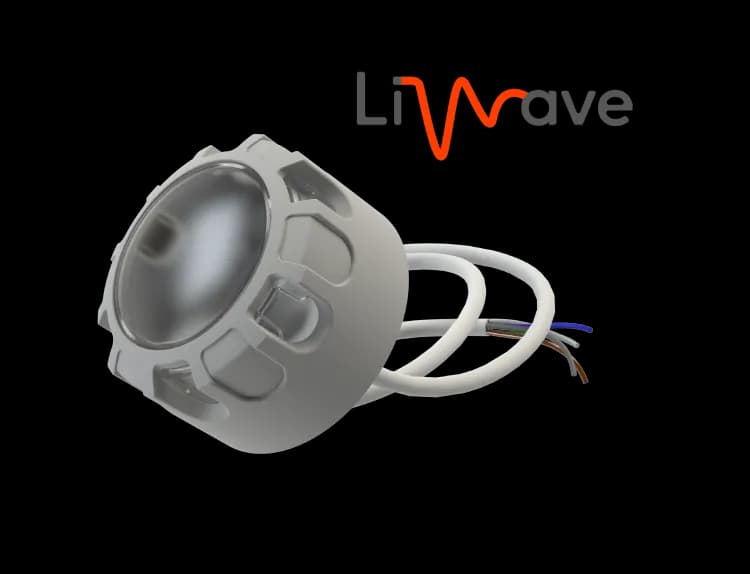

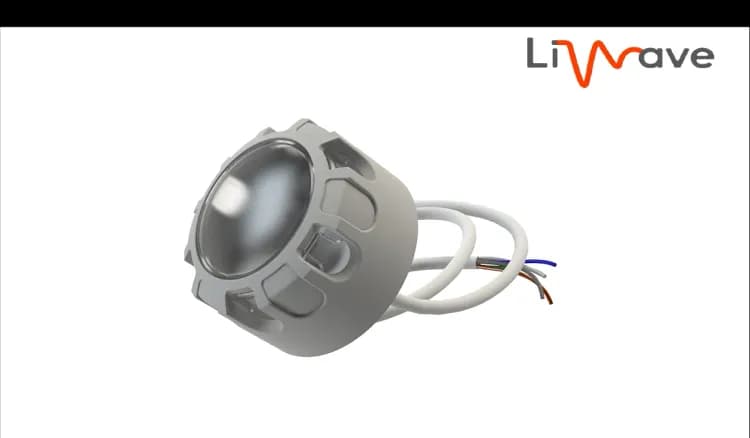

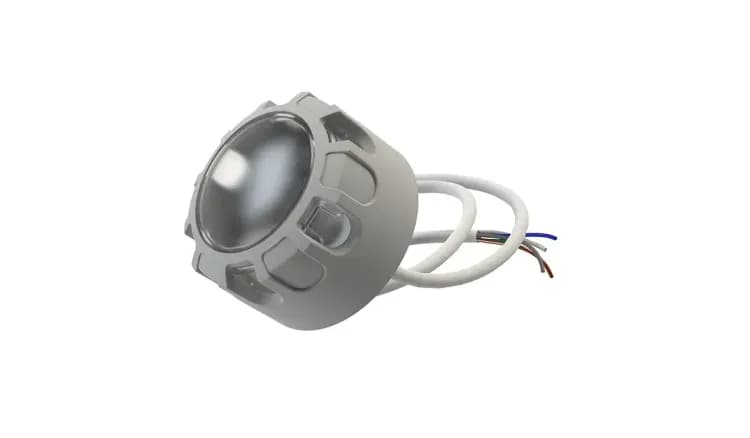

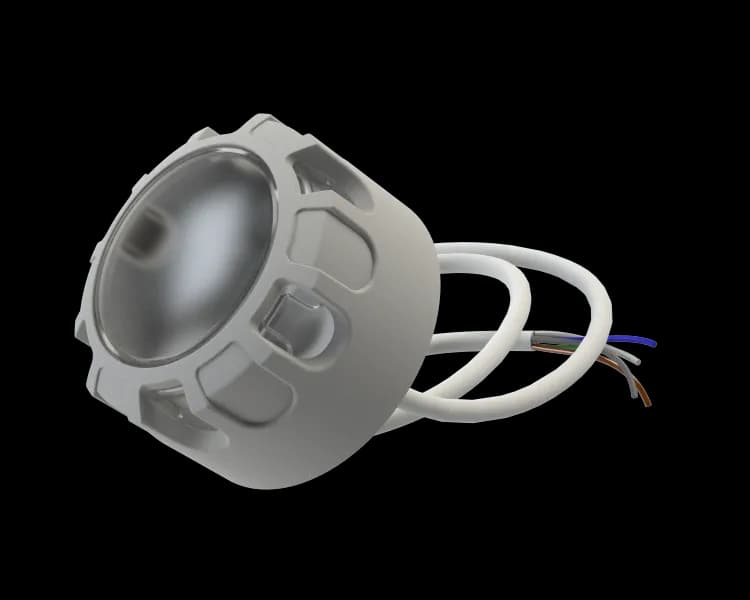

Wire LiWAVE Node is a module for wireless luminaire control via radio communication. It is designed for individual control, diagnostics, and dimming.This individual control module is part of the LiWAVE wireless lighting management system (868/915 MHz) and can be connected to the system through a wired interface. It supports individual control of lighting systems and operates on both 868 MHz and 915 MHz frequency bands. With the LiWAVE system, users can efficiently manage their lighting network wirelessly, eliminating the need for additional wiring. The device is designed for quick installation and can be mounted in various locations.The module supports DALI, DALI 2.0, PWM, 1-10V, and 0-10V interfaces, along with individual load control (on/off). Certain versions also come equipped with a GPS receiver for enhanced functionality.Wire LiWAVE Node is configured and controlled via an 800-950 MHz radio channel through DITRA Base Stations.The device is intended for installation inside a lighting fixture housing and connects via a wired interface.

large_LiWAVE Node Dimensions.png

medium_LiWAVE Node Dimensions.png

small_LiWAVE Node Dimensions.png

thumbnail_LiWAVE Node Dimensions.png

LiWAVE Node Dimensions.png






Wire LiWAVE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, light sensor, Region: E

Wire LiWAVE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, light sensor, Region: A

Wire LiWAVE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, light sensor, Region: E

Wire LiWAVE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, light sensor, Region: A

Wire LiWAVE Node, load switch, 0-10V/PWM, light sensor, Region: E

Wire LiWAVE Node, load switch, 0-10V/PWM, light sensor, Region: A

Wire LiWAVE Node, 0-10V/PWM, Region: E

Wire LiWAVE Node, 0-10V/PWM, Region: A

LiWAVE wireless (868/915 MHz) street light luminaire controller with wired connection support

Wire LiWAVE Node

large_Wire Node Connection.png

medium_Wire Node Connection.png

small_Wire Node Connection.png

thumbnail_Wire Node Connection.png

Wire Node Connection.png

large_Wire Node 2.png

medium_Wire Node 2.png

small_Wire Node 2.png

thumbnail_Wire Node 2.png

Wire Node 2.png

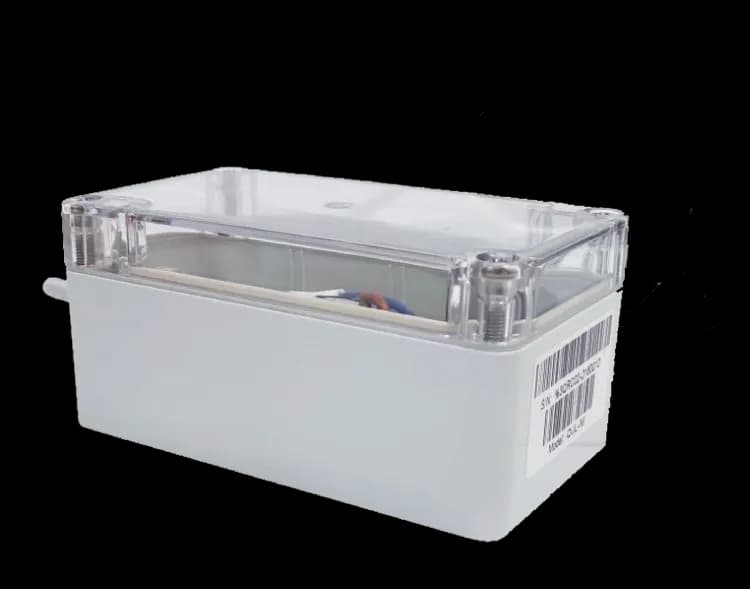

Wire GSM Node is a wired street light controller that supports individual luminaire control, diagnostics, and dimming via wireless 2G/4G/NB-IoT cellular networks.It is compatible with multiple luminaire control interfaces, including DALI, DALI 2.0, PWM, 1-10V, and 0-10V. Data exchange between the device and the server is carried out through cellular networks, ensuring reliable communication.The unit features a built-in GPS receiver for geo-positioning, internal clock synchronization, and an accelerometer for detecting vibration, acceleration, and tilt. It can be controlled by an integrated light sensor or a third-party sensor.Powered by 110/220 V, the Wire GSM Node supports luminaires with power ratings up to 1000 W.Configuration is done directly through Ditra software.Designed for mounting directly on lighting poles or luminaires, the Wire GSM Node offers IP66-rated dust and water resistance, ensuring durability in outdoor environments. Installation is performed via wired connections.

large_Wire Node Dimensions.png

medium_Wire Node Dimensions.png

small_Wire Node Dimensions.png

thumbnail_Wire Node Dimensions.png

Wire Node Dimensions.png

large_Wire Node 1.webp

medium_Wire Node 1.webp

small_Wire Node 1.webp

thumbnail_Wire Node 1.webp

Wire Node 1.webp

large_Wire Node 2.webp

medium_Wire Node 2.webp

small_Wire Node 2.webp

thumbnail_Wire Node 2.webp

Wire Node 2.webp

Wire GSM Node, 2G, load switch 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer

Wire GSM Node, 2G, load switch, 0-10V/PWM/DALI/DALI 2.0

Wire GSM Node, 2G, load switch, 0-10V/PWM

Wire GSM Node, 2G, 0-10V/PWM

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer, Region: E

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer, Region: A

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, Region: E

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, Region: A

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM, Region: E

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM, Region: A

Wire GSM Node, 2G/4G, 0-10V/PWM, Region: E

Wire GSM Node, 2G/4G, 0-10V/PWM, Region: A

Wire GSM Node, NB-IoT, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer

Wire GSM Node, NB-IoT, load switch, 0-10V/PWM/DALI/DALI 2.0

Wire GSM Node, NB-IoT, load switch, 0-10V/PWM

Wire GSM Node, NB-IoT, 0-10V/PWM

2G/4G/NB-IoT Street Light Luminaire Controller with Wired Connectivity

Wire GSM Node

medium_Nema LiteLINE Node Connection.png

small_Nema LiteLINE Node Connection.png

thumbnail_Nema LiteLINE Node Connection.png

Nema LiteLINE Node Connection.png

medium_Nema LiteLINE Node 2.png

small_Nema LiteLINE Node 2.png

thumbnail_Nema LiteLINE Node 2.png

Nema LiteLINE Node 2.png

NEMA LiteLINE Node is a module designed for individual control, diagnostics, and dimming of luminaires.NEMA LiteLINE Node functions as a PLC (Power Line Communication) control and dimming module, suitable for managing a single luminaire or a group of luminaires.NEMA LiteLINE Node is compatible with third-party motion sensors.It supports DALI, DALI 2.0, PWM, 1-10V, 0-10V interfaces, and offers individual load control (on/off).The unit operates on 110-230 V, supports luminaires with power ratings up to 1000 W.NEMA LiteLINE Node is managed individually through Central Gateway DITRA CORE PRO, PRO-2, LIGHT and Ditra LiteLINE via 110-230 V power lines. LiteLINE technology operates within the 132.5 kHz frequency range, complying with CENELEC EN 50065-1 (band-C).The device is designed for installation on luminaires using a NEMA socket and features an IP66 rating for dust and moisture protection.

large_Nema LiteLINE Node Dimensions.png

medium_Nema LiteLINE Node Dimensions.png

small_Nema LiteLINE Node Dimensions.png

thumbnail_Nema LiteLINE Node Dimensions.png

Nema LiteLINE Node Dimensions.png

small_Nema LiteLINE Node 4.webp

thumbnail_Nema LiteLINE Node 4.webp

Nema LiteLINE Node 4.webp

large_Nema LiteLINE Node 1.webp

medium_Nema LiteLINE Node 1.webp

small_Nema LiteLINE Node 1.webp

thumbnail_Nema LiteLINE Node 1.webp

Nema LiteLINE Node 1.webp

large_Nema LiteLINE Node .webp

medium_Nema LiteLINE Node .webp

small_Nema LiteLINE Node .webp

thumbnail_Nema LiteLINE Node .webp

Nema LiteLINE Node .webp

large_Nema LiteLINE Node 3.webp

medium_Nema LiteLINE Node 3.webp

small_Nema LiteLINE Node 3.webp

thumbnail_Nema LiteLINE Node 3.webp

Nema LiteLINE Node 3.webp

NEMA LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, light sensor

NEMA LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, light sensor

NEMA LiteLINE Node, load switch, 0-10V/PWM, light sensor

NEMA LiteLINE Node, 0-10V/PWM

PLC (Power Line Communication) NEMA Street Light Luminaire Controller

NEMA LiteLINE Node

medium_Nema Connection.png

small_Nema Connection.png

thumbnail_Nema Connection.png

Nema Connection.png

large_NEMA GSM Node, NEMA LoRa Node .png

medium_NEMA GSM Node, NEMA LoRa Node .png

small_NEMA GSM Node, NEMA LoRa Node .png

thumbnail_NEMA GSM Node, NEMA LoRa Node .png

NEMA GSM Node, NEMA LoRa Node .png

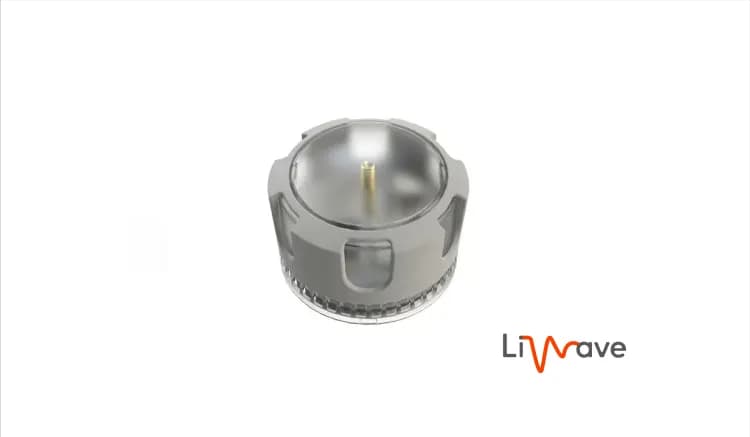

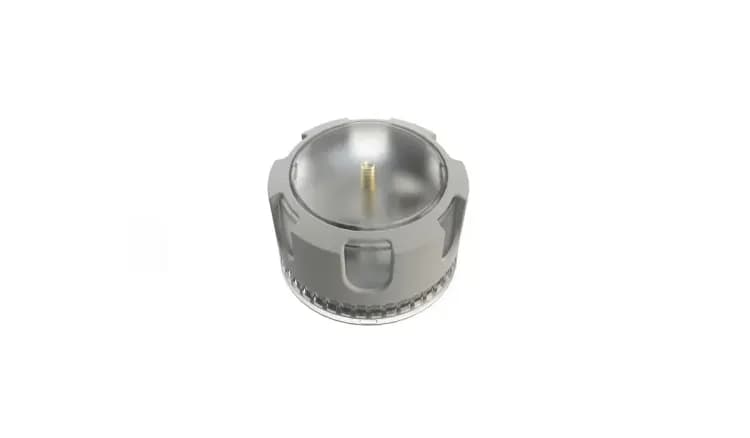

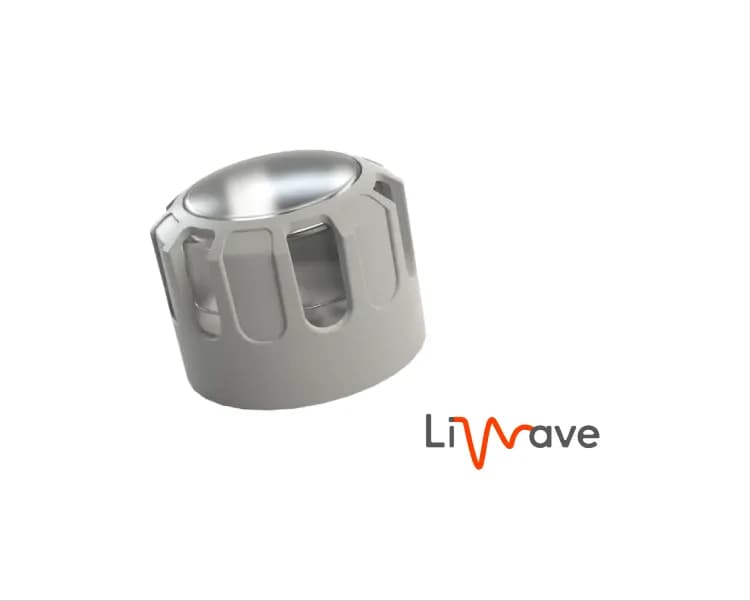

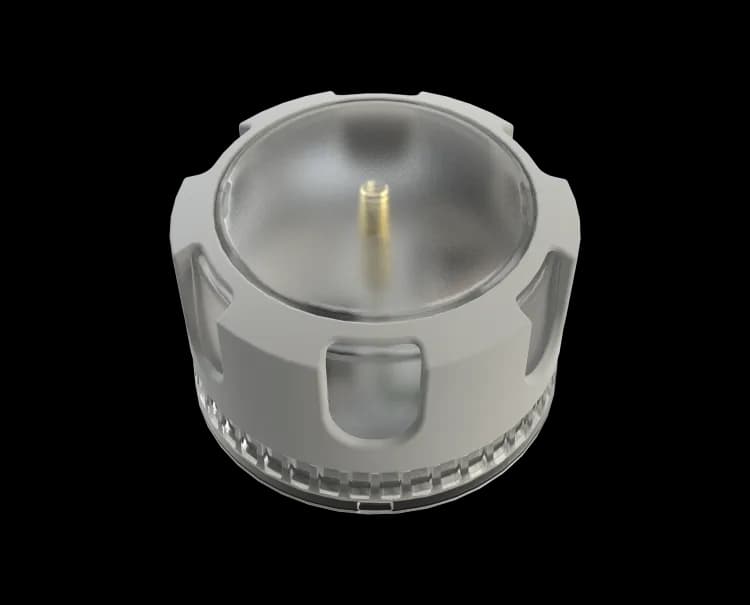

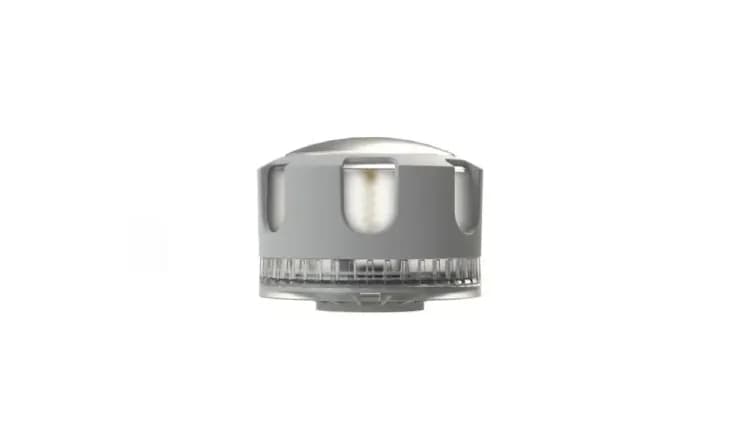

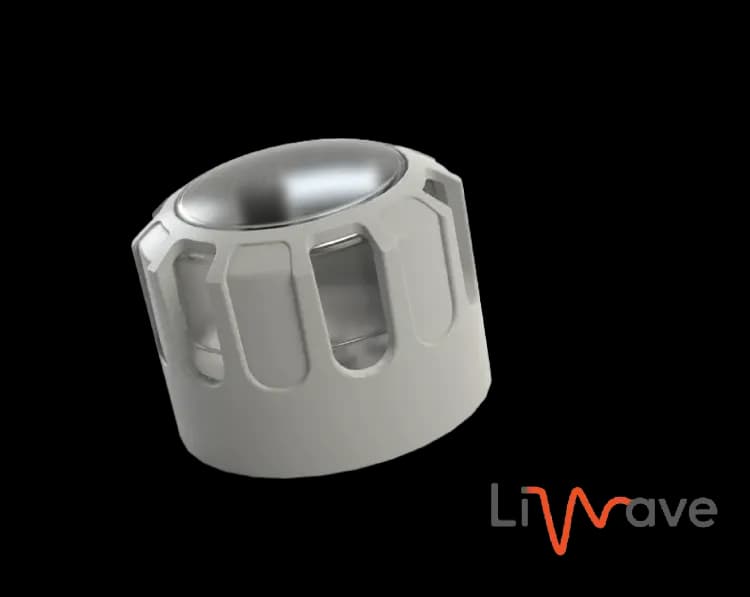

The NEMA LiWAVE Node is a module for wireless control of luminaires via radio, providing individual control, diagnostics, and dimming.This individual control module is part of the LiWAVE wireless lighting management system (868/915 MHz) and connects seamlessly through a NEMA C136.41 connector. It enables wireless lighting control without additional wiring, offering compatibility with both 868 MHz and 915 MHz frequency bands. The device is designed for easy installation and can be mounted in various locations.The NEMA LiWAVE Node supports multiple luminaire control interfaces, including DALI, DALI 2.0, PWM, 1-10V, and 0-10V, as well as individual load control (on/off). Select versions are equipped with a GPS receiver for geo-positioning and synchronization.Configuration and control of the NEMA LiWAVE Node are performed via an 800–950 MHz radio channel through LiWAVE Base Stations.Designed for integration into lighting fixtures, the device uses a NEMA C136.41 connector and features an IP66-rated enclosure, ensuring durability and protection in outdoor environments.

PROfessional lighting control hardware

Wire LiteLINE Node

Wire LiWAVE Node

Wire GSM Node

NEMA LiteLINE Node

NEMA LiWAVE Node

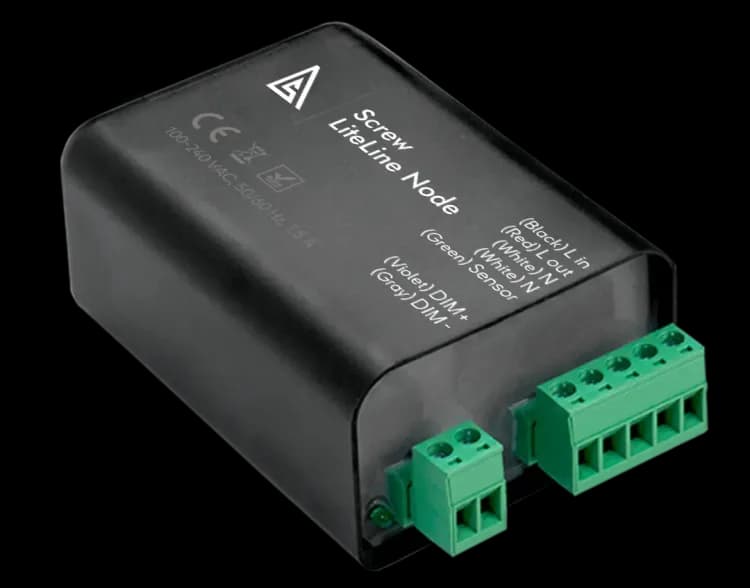

Screw LiteLINE Node
