Wire-LiteLINE-Node

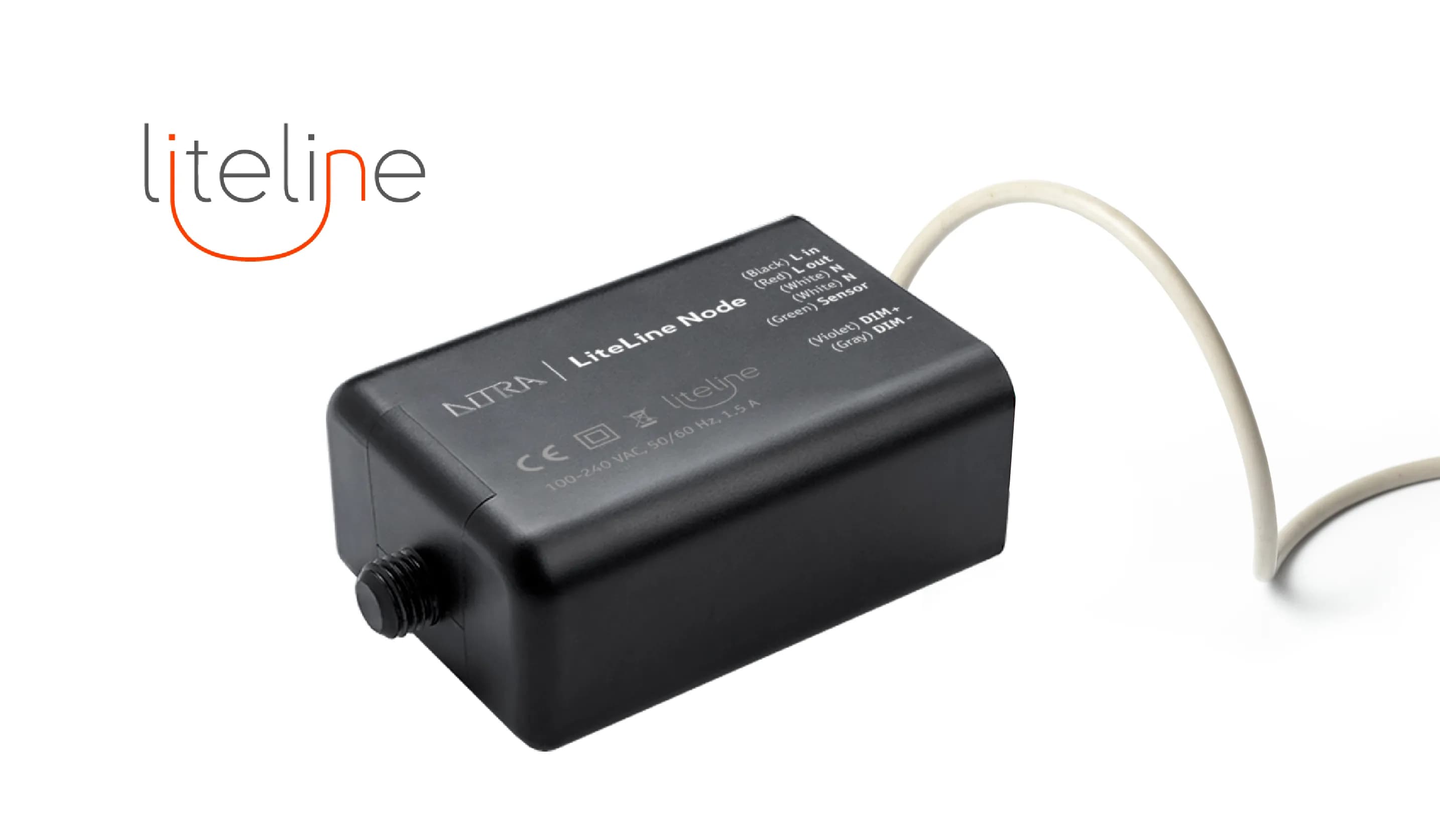

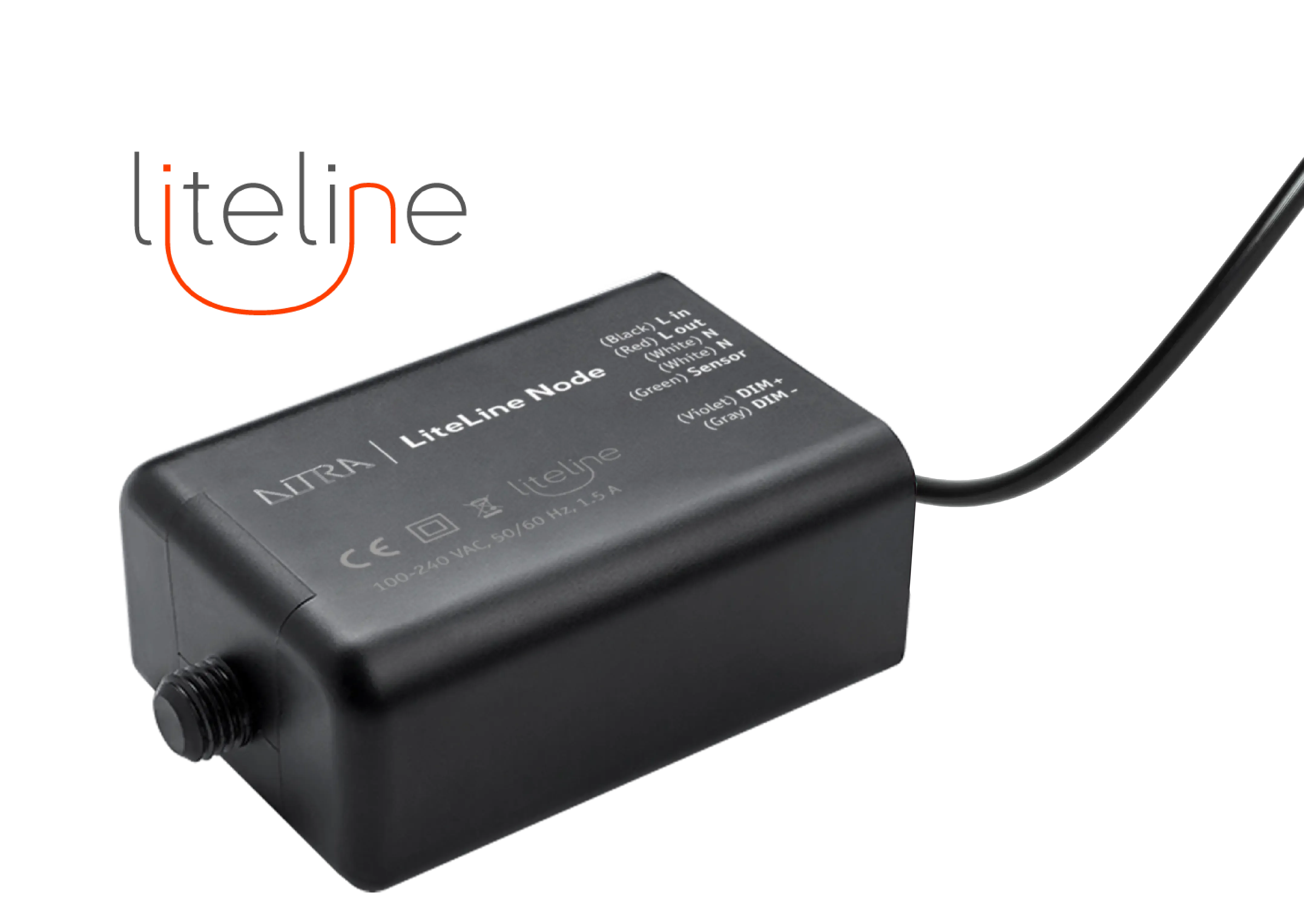

Wire LiteLINE Node

Pole-mounted outdoor streetlight luminaire controller with wired connection for Power Line Communication (PLC).

The Wire LiteLINE Node is a wired PLC (Power Line Communication) control and dimming module designed for managing a single luminaire or a group of luminaires.

It is fully compatible with third-party motion sensors.

The Wire LiteLINE Node supports multiple interfaces, including DALI, DALI 2.0, PWM, 1-10V, and 0-10V, as well as independent load control (on/off).

Operating on a voltage range of 110-230 V, the device supports luminaires with power ratings of up to 1000 W.

Control is provided individually through the DITRA CORE PRO, PRO-2, or LIGHT Central Gateways or via DITRA LiteLINE over 110-230 V power lines. LiteLINE technology operates at a frequency of 132.5 kHz, in compliance with CENELEC EN 50065-1 (band-C) standards.

The unit is designed for flexible installation inside a luminaire, within its housing, or inside a lighting pole using wired connections. It also features an IP68 rating for dust and moisture protection.

  • Suitable for installation in any luminaire housing

    Supports luminaire or pole mounting

    Enables individual lighting control without additional wiring

    Includes input for a motion sensor

    Features a built-in triac for load switching (on/off)

    Compatible with luminaires up to 1000W

    Operates with voltages up to 305V

    Equipped with an integrated accelerometer

  • Mechanical:

    Housing: plastic
    Material: metal, plastic
    Dimensions, mm: 94(L) x 37,2(H) x 61,2(W)
    Mass: 0.3 kg
    Mounting: luminaire case or pole mounting

  • Power & Electrical:

    Input Voltage: ~100-250 V, 50/60 Hz
    Max current: 3A
    Anti-Jamming Filter: integrated (load power
    20-250 W), external (load power 250-800 W)
    Max load Power: 300 W (integrated anti-jamming
    filter); 850 W (external anti-jamming filter)

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP 68
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Control output interface: DALI, DALI 2.0, PWM, 1-10V, 0-10V
    Communication with controller: CENELEC EN
    50065-1 (band C)

  • Inputs / Outputs:

    Connectors: Wire
    Sensors: Motion sensor input

  • Configuration / Indication:

    Setup: remote via DITRA CORE PRO, PRO-2, LIGHT and DITRA LiteLINE
    Indication: LED

  • Package Contents:

    Wire LiteLINE Node

Wire LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, acelerometer, load 250 W
  • : DIT-PLC-W-250-A
Wire LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, acelerometer, load 800 W
  • : DIT-PLC-W-800-A
Wire LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, load 250 W
  • : DIT-PLC-W-250-B
Wire LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, load 800 W
  • : DIT-PLC-W-800-B
Wire LiteLINE Node, load switch, 0-10V/PWM, load 250 W
  • : DIT-PLC-W-250-C
Wire LiteLINE Node, load switch, 0-10V/PWM, load 800 W
  • : DIT-PLC-W-800-C
Wire LiteLINE Node, 0-10V/PWM, load 250 W
  • : DIT-PLC-W-250-D
Wire LiteLINE Node, 0-10V/PWM, load 800 W
  • : DIT-PLC-W-800-D
