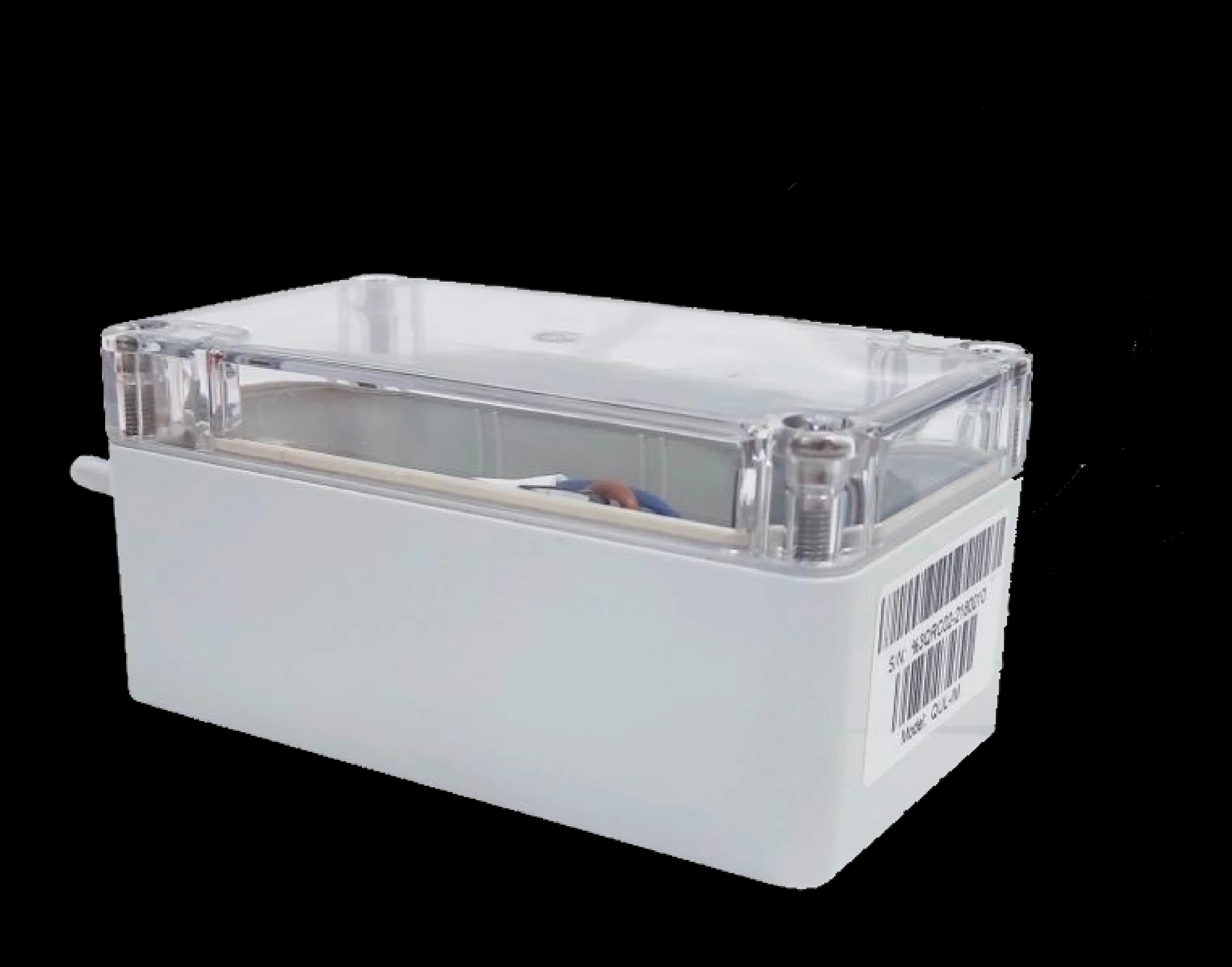

DITRA PowerTrack Module

Luminaire Monitoring Module for Real-Time Power Line Integrity Control

The DITRA PowerTrack Module is designed for installation at line integrity monitoring points and provides real-time monitoring of cable lines when the standard operating voltage is absent.

The device communicates with the DITRA PowerTrack controller installed in the power cabinet, operating at a DC voltage of 24-48 V. When standard operating voltage for luminaires (100-270 V AC) is applied, the PowerTrack Module switches to a protection mode, safeguarding its internal circuits against overvoltage.

  • Communication with PowerTRACK controller

    Protection mode to safeguard internal circuits from overvoltage

  • Mechanical:

    Housing: aluminum DIN mounted case
    Material: metal, plastic
    Dimensions, mm: 115(L) x 55(H) x 65(W)
    Mounting: on the surface

  • Power & Electrical:

    Input Voltage: ~100-270 VAC, 50/60 Hz
    Input Power (max): 5 W
    Mains Fuse: 0.5 A

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 95%
    IP Rating: IP 65
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Inputs / Outputs:

    Wire connection

  • Configuration / Indication:

    Wire connection

  • Package Contents:

    DITRA PowerTrack
    Connector set

DITRA PowerTrack Module
  • : DIT-PWT-2
