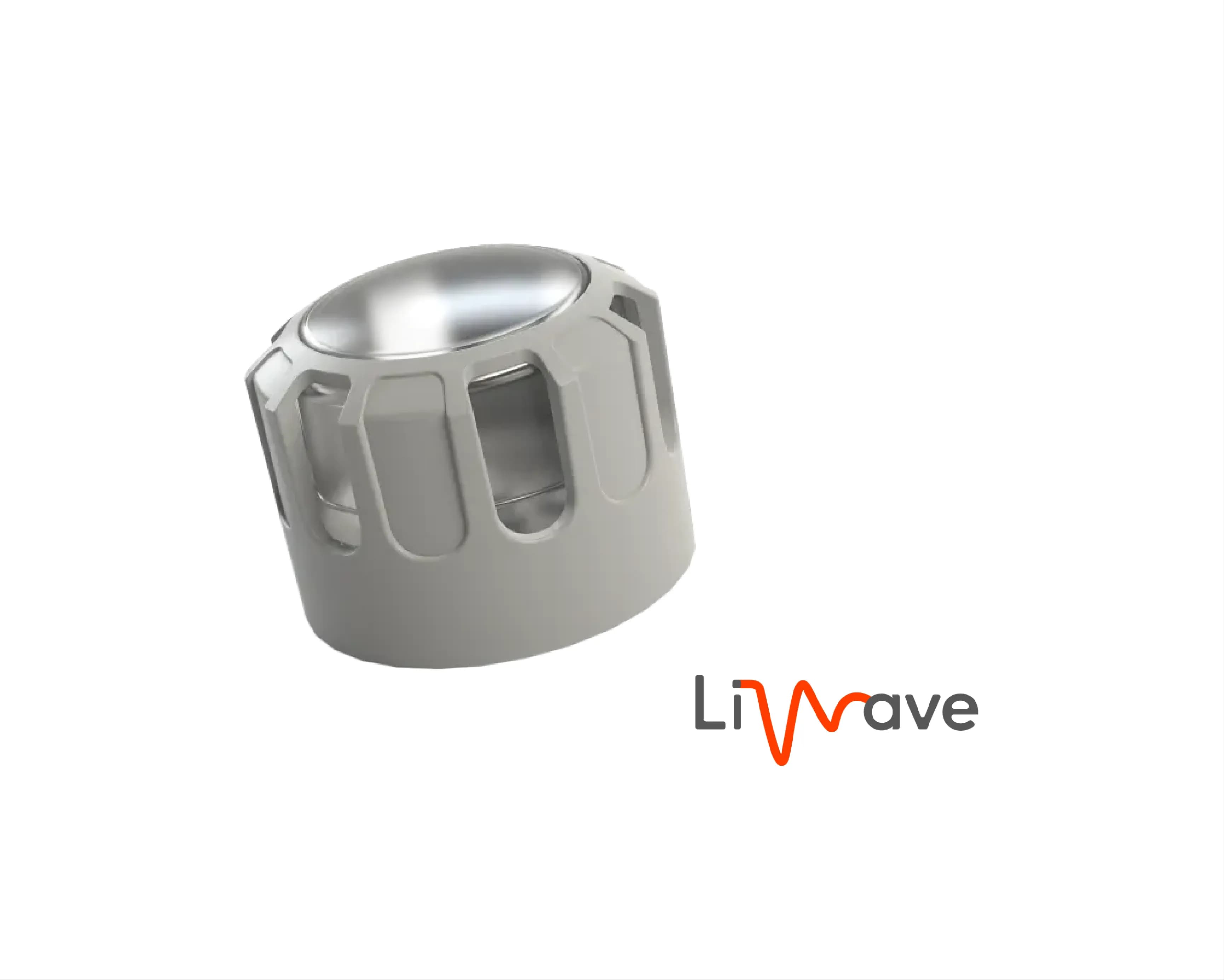

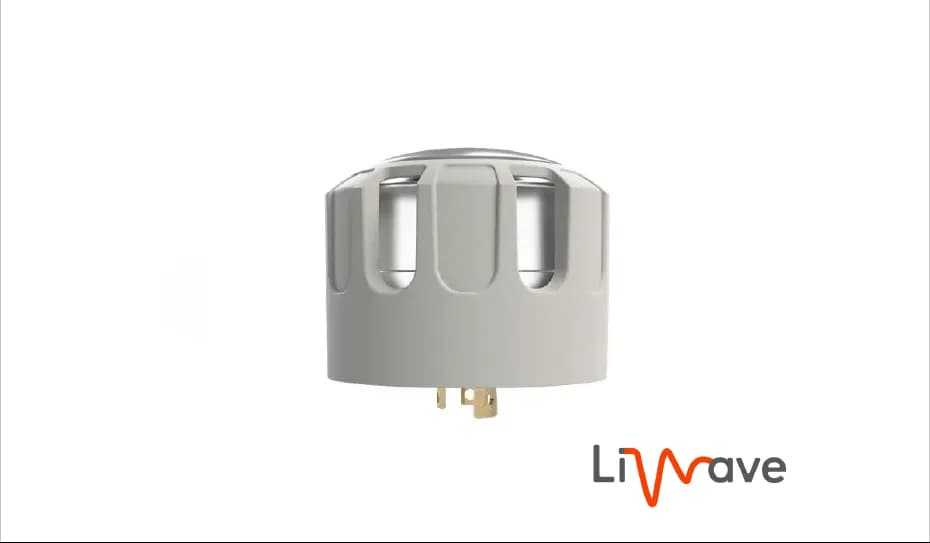

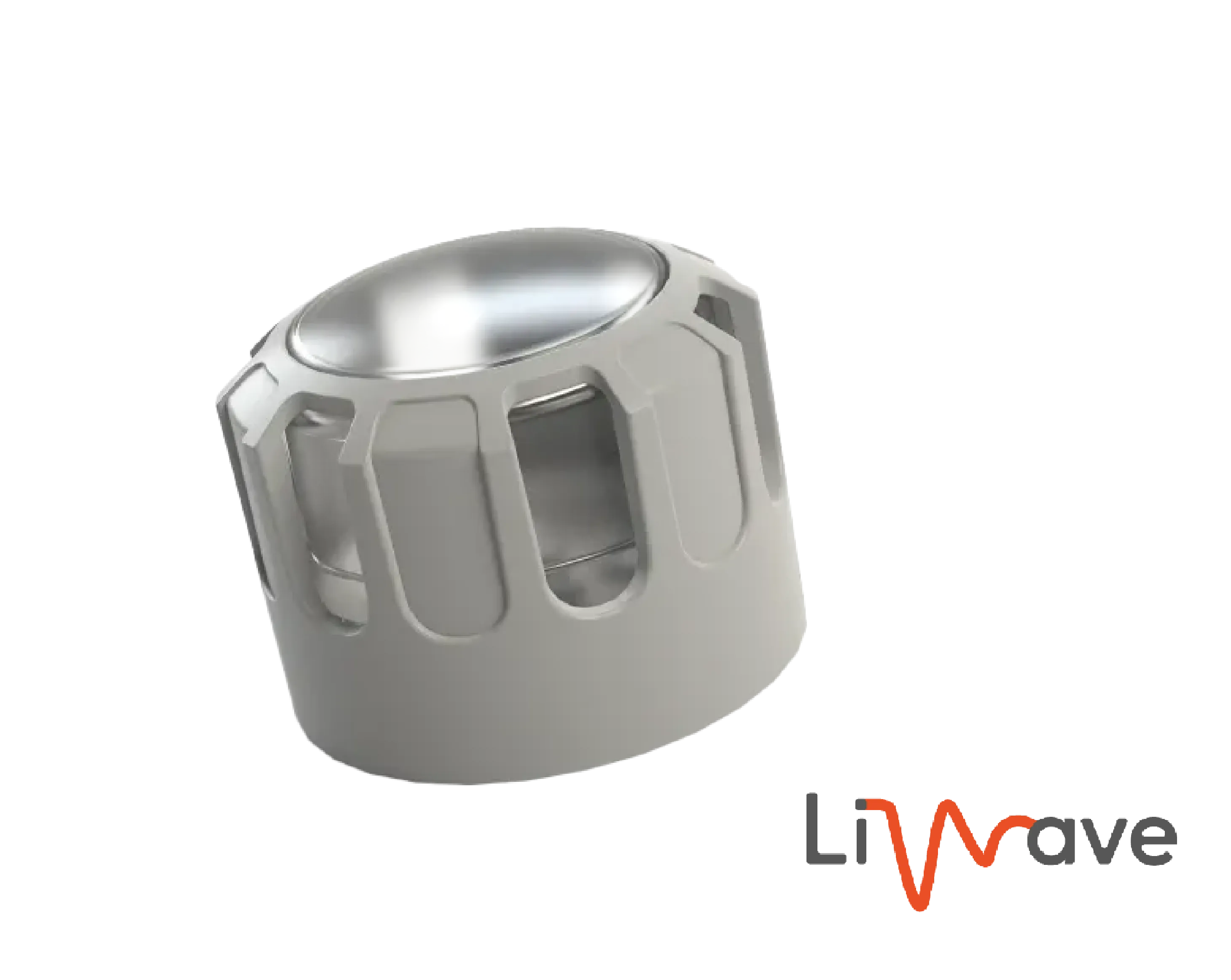

NEMA LiWAVE Node

LiWave – Wireless (868/915 MHz) NEMA Street Light Luminaire Controller

The NEMA LiWAVE Node is a module for wireless control of luminaires via radio, providing individual control, diagnostics, and dimming.

This individual control module is part of the LiWAVE wireless lighting management system (868/915 MHz) and connects seamlessly through a NEMA C136.41 connector. It enables wireless lighting control without additional wiring, offering compatibility with both 868 MHz and 915 MHz frequency bands. The device is designed for easy installation and can be mounted in various locations.

The NEMA LiWAVE Node supports multiple luminaire control interfaces, including DALI, DALI 2.0, PWM, 1-10V, and 0-10V, as well as individual load control (on/off). Select versions are equipped with a GPS receiver for geo-positioning and synchronization.

Configuration and control of the NEMA LiWAVE Node are performed via an 800–950 MHz radio channel through LiWAVE Base Stations.

Designed for integration into lighting fixtures, the device uses a NEMA C136.41 connector and features an IP66-rated enclosure, ensuring durability and protection in outdoor environments.

  • Quick and easy connection via NEMA connector

    Individual lighting control without the need for additional wiring

    Compatible with installation in any luminaire housing

    Embedded light sensor for automated lighting control

    Optional GPS receiver for precise positioning and synchronization

    Optional triac for reliable on/off load switching

    Motion sensor input for enhanced functionality

    Automatic node positioning on the map for simplified monitoring

    Tilt and vibration sensor to diagnose pole state and failures

    Supports DITRA eco monitoring sensors via DALI 2.0 interface

  • Mechanical:

    Housing: solid case
    Material: plastic
    Dimensions, mm: 87(D) x 82,8(69,3)(H)
    Mass: 0.3 kg
    Mounting: luminaire case

  • Power & Electrical:

    Input Voltage: ~100-250 VAC, 50/60 Hz
    Input Power (max): 5 W
    Max load Power: 1000 W

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP 66
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Control output interface: DALI, DALI 2.0, PWM, 1-10V, 0-10V
    Navigation: GPS
    Communication with controller: ISM band 868/915 MHz

  • Inputs / Outputs:

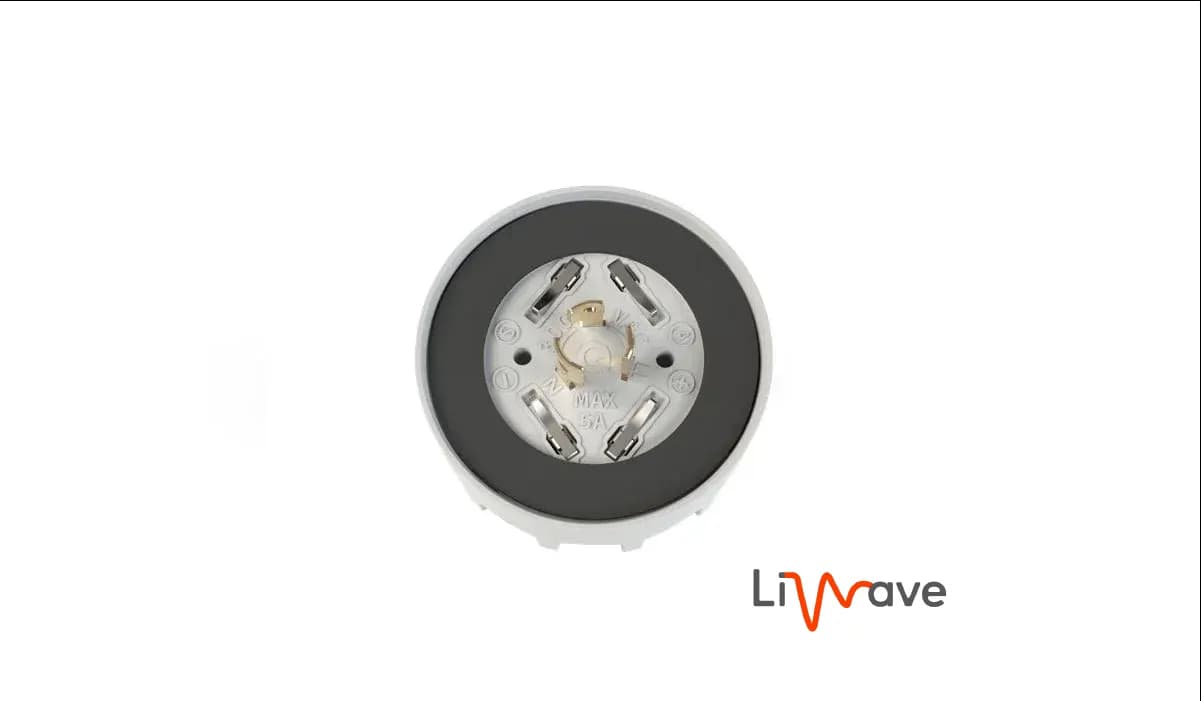

    Connectors: NEMA C136.41 plug
    Sensors: motion sensor input, embedded light sensor

  • Configuration / Indication:

    Setup: remote via Base station
    Indication: LED

  • Package Contents:

    NEMA LiWave Node

NEMA LiWave Node, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, light sensor,Region: E
  • : DIT-LT-868-N-A
NEMA LiWave Node, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, light sensor, Region: A
  • : DIT-LT-915-N-A
NEMA LiWave Node, load switch, 0-10V/PWM/DALI/DALI 2.0, light sensor, Region: E
  • : DIT-LT-868-N-B
NEMA LiWave Node, load switch, 0-10V/PWM/DALI/DALI 2.0, light sensor, Region: A
  • : DIT-LT-915-N-B
NEMA LiWave Node, load switch, 0-10V/PWM, light sensor, Region: E
  • : DIT-LT-868-N-C
NEMA LiWave Node, load switch, 0-10V/PWM, light sensor, Region: A
  • : DIT-LT-915-N-C
NEMA LiWave Node, 0-10V/PWM, Region: E
  • : DIT-LT-868-N-D
NEMA LiWave Node, 0-10V/PWM, Region: A
  • : DIT-LT-915-N-D
