Wire LoRa Node

LoRa Street Light Luminaire Controller with Wired Connection

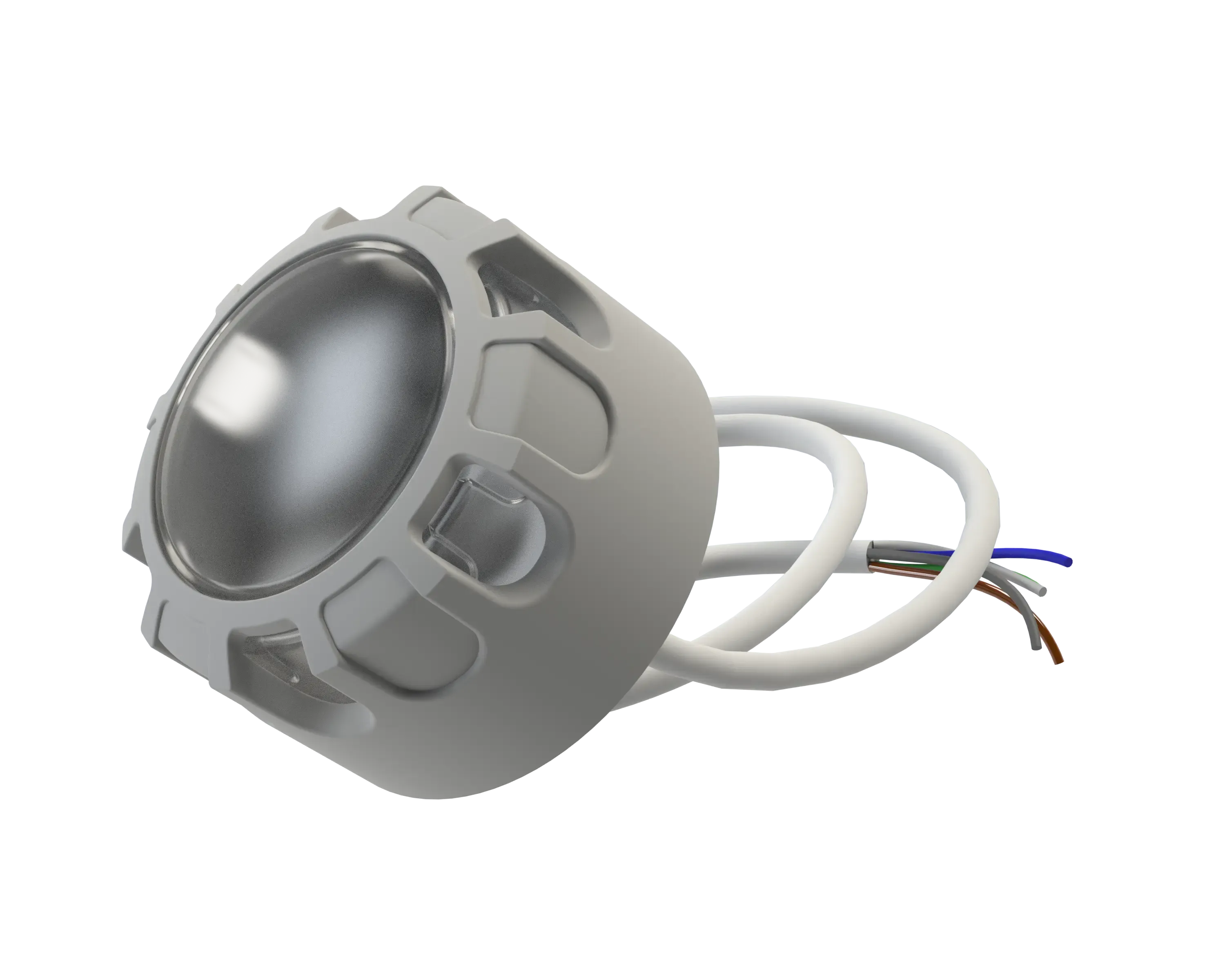

The Wire LoRa Node is a wireless LoRa-enabled street light controller designed for individual luminaire control, diagnostics, and dimming, with a wired connection for power and operation.

It supports multiple luminaire control interfaces, including DALI, DALI 2.0, PWM, 1-10V, and 0-10V. Data communication with the server is conducted  via LoRa cellular networks. The luminaire can be managed using a built-in light sensor or an optional third-party light sensor for added flexibility.

Equipped with a built-in GPS receiver, the device provides geo-positioning, internal clock synchronization, and features an accelerometer to monitor vibration, acceleration, and tilt for pole status diagnostics.

The unit operates on a 110/220 V power supply and supports luminaires with power ratings of up to 1000 W.

Configuration is performed directly through DITRA software for seamless integration and setup.

The Wire LoRa Node is designed for direct mounting on lighting poles or luminaires and features an IP66-rated enclosure, ensuring durability and protection against dust and water. Installation is carried out via a wired connection, providing a robust and reliable setup.

  • Ultra-compact waterproof IP66 case

    Quick and convenient connection via wire

    Supports voltage levels up to 305V

    Compatible with luminaires up to 1000W

    Integrated daylight sensor for automated lighting control

    Built-in triac for reliable load switching (on/off)

    Motion sensor input for third-party sensors

    DALI 2.0 input for DITRA’s motion and eco sensors

    Embedded GPS module for positioning and synchronization

    Integrated accelerometer for monitoring pole status, vibration, and tilt detection

    LED indicators for quick node status monitoring

  • Mechanical:

    Housing: solid case
    Material: plastic
    Dimensions, mm: 87(D) x 91,3(69,3)(H)
    Mass: 0.2 kg
    Mounting: luminaire case, pillar, etc

  • Power & Electrical:

    Input Voltage: ~100-240 V, 50/60 Hz
    Input Power (max): 5 W
    Max load Power: 1000 W

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP 66
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Control output interface: DALI, DALI 2.0, PWM,1-10V, 0-10V
    Navigation: GPS
    Radio Channel: LoRa

  • Inputs / Outputs:

    Connectors: wires
    Sensors: embedded daylight sensor,
    Motion sensor input, Accelerometer

  • Configuration / Indication:

    Setup: remote via the DITRA
    Indication: LED

  • Package Contents:

    Wire LoRa Node

Wire LoRa Node, LoRa, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer
  • : DIT-LW-W-LO-A
Wire LoRa Node, LoRa, load switch, 0-10V/PWM/DALI/DALI 2.0
  • : DIT-LW-W-LO-B
Wire LoRa Node, LoRa, load switch, 0-10V/PWM
  • : DIT-LW-W-LO-C
Wire LoRa Node, LoRa, 0-10V/PWM
  • : DIT-LW-W-LO-D
