Screw LiteLine Node

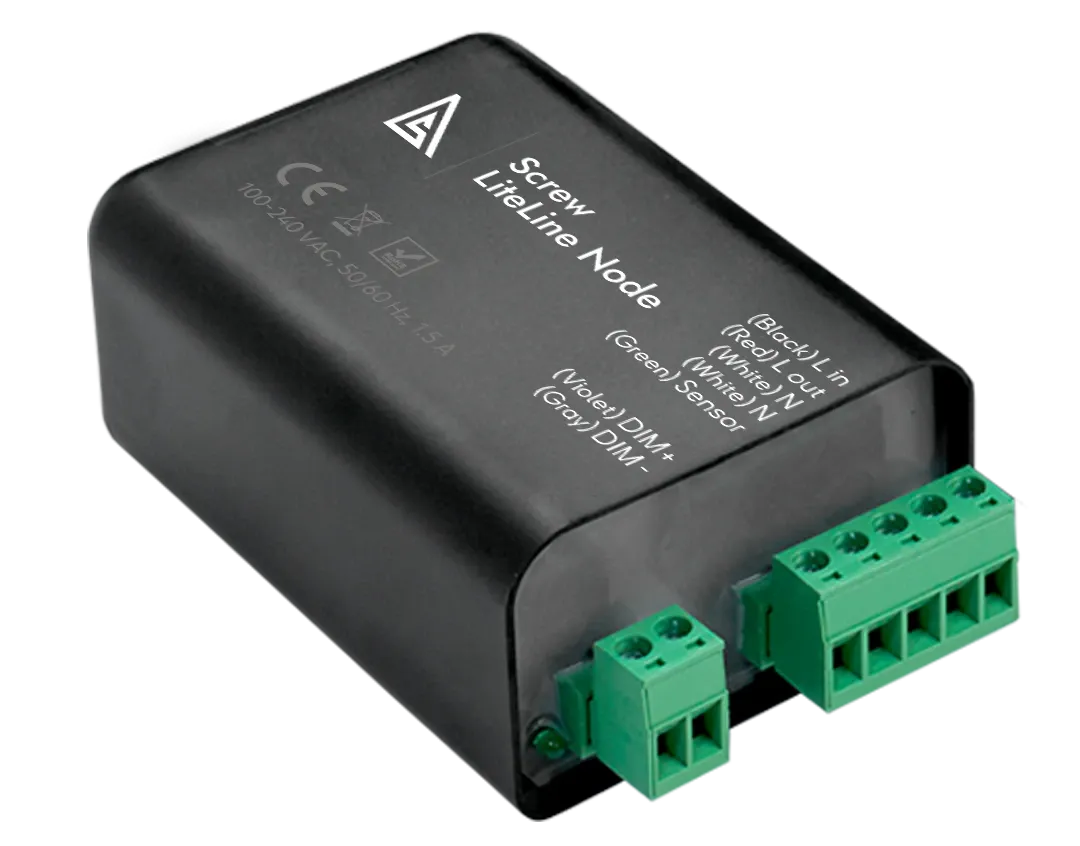

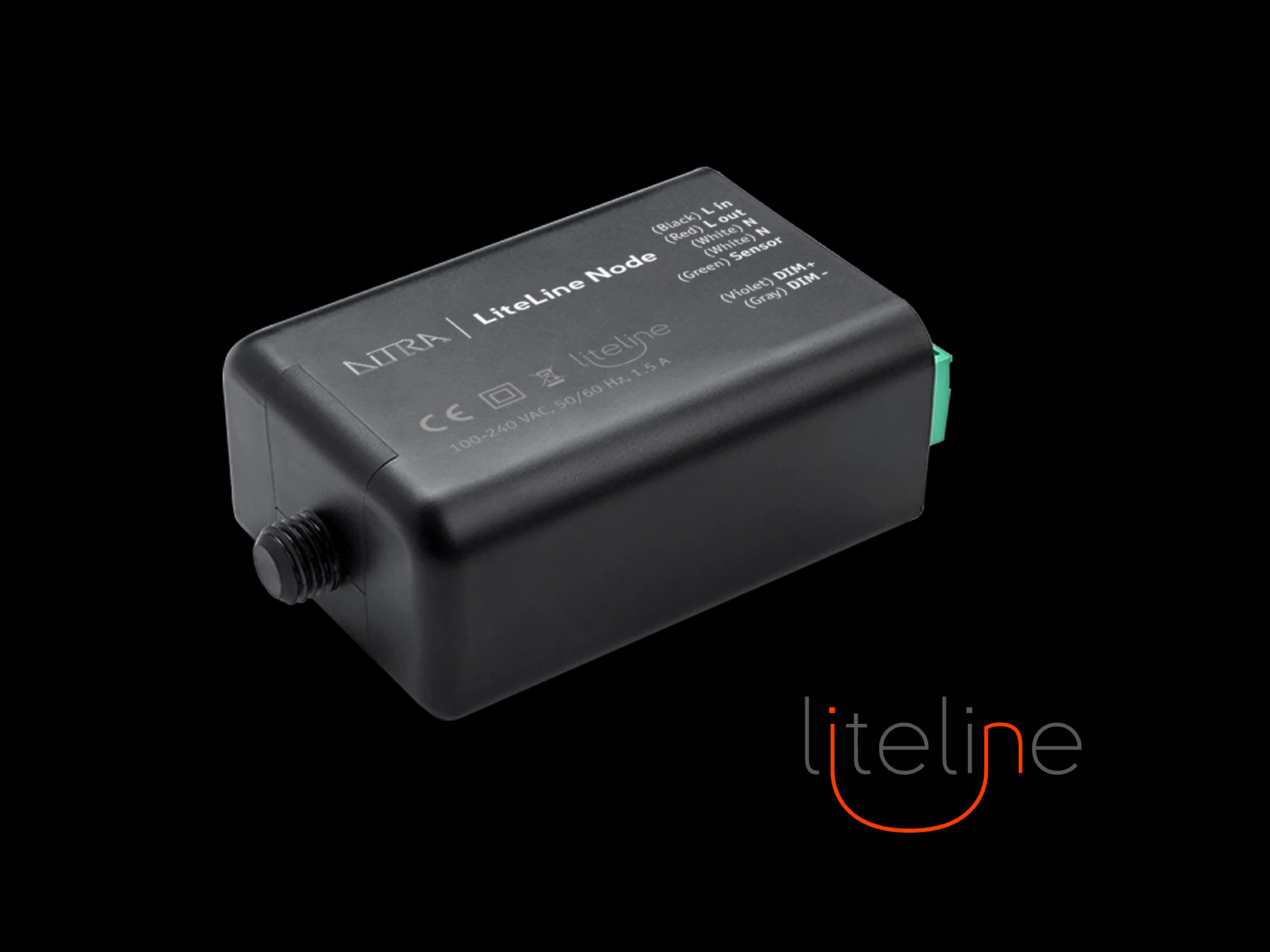

Screw LiteLINE Node

PLC (Power Line Communication) Embedded Street Light Luminaire Controller with Screw Terminal Connection

The Screw LiteLINE Node is a PLC-based control and dimming module designed for managing individual luminaires or groups of luminaires.

It is compatible with third-party motion sensors and supports DALI, DALI 2.0, PWM, 1-10V, and 0-10V interfaces, along with individual load control (on/off).

The unit operates on 110-230 V and supports luminaires with power ratings up to 1000 W.

The Screw LiteLINE Node is controlled individually through Central Gateway DITRA CORE PRO, PRO-2, LIGHT and DITRA LiteLINE via 110-230 V power lines. The LiteLINE technology operates at 132.5 kHz, compliant with CENELEC EN 50065-1 (band-C) standards.

Designed for installation inside luminaires, luminaire housings, or lighting poles using screw terminals, the device features IP68-rated dust and moisture protection, ensuring durability in challenging environments.

  • Version with Screw

    Available for installation in any luminaire housing

    Supports luminaire or pole mounting

    Enables individual lighting control without additional wiring

    Includes motion sensor input

    Features an embedded triac for load switching (on/off)

    Compatible with luminaires up to 1000W

    Operates at voltages up to 305V

    Equipped with an embedded accelerometer

  • Mechanical:

    Housing: plastic
    Material: metal, plastic
    Dimensions, mm: 94(L) x 37,2(H) x 61,2(W)
    Mass: 0.3 kg
    Mounting: luminaire case or pole mounting

  • Power & Electrical:

    Input Voltage: ~100-250 V, 50/60 Hz
    Max current: 3A
    Anti-Jamming Filter: integrated (load power
    20-250 W), external (load power 250-800 W)
    Max load Power: 300 W (integrated anti-jamming
    filter); 850 W (external anti-jamming filter)

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP 68
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Control output interface: DALI, DALI 2.0, PWM, 1-10V, 0-10V
    Communication with controller: CENELEC EN
    50065-1 (band C)

  • Inputs / Outputs:

    Connectors: Terminal blocks 2EDGVС
    Sensors: motion sensor input

  • Configuration / Indication:

    Setup: remote via DITRA CORE PRO, PRO-2, LIGHT and DITRA LiteLINE
    Indication: LED

  • Package Contents:

    Screw LiteLINE Node

Screw LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, acelerometer, load 250 W
  • : DIT-PLC-T-250-A
Screw LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, acelerometer, load 800 W
  • : DIT-PLC-T-800-A
Screw LiteLINE Node, load switchf, 0-10V/PWM/DALI/DALI 2.0, load 250 W
  • : DIT-PLC-T-250-B
Screw LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, load 800 W
  • : DIT-PLC-T-800-B
Screw LiteLINE Node, load switch, 0-10V/PWM, load 250 W
  • : DIT-PLC-T-250-C
Screw LiteLINE Node, load switch, 0-10V/PWM, load 800 W
  • : DIT-PLC-T-800-C
Screw LiteLINE Node, 0-10V/PWM, load 800 W
  • : DIT-PLC-T-800-D
Screw LiteLINE Node, 0-10V/PWM, load 250 W
  • : DIT-PLC-T-250-D
