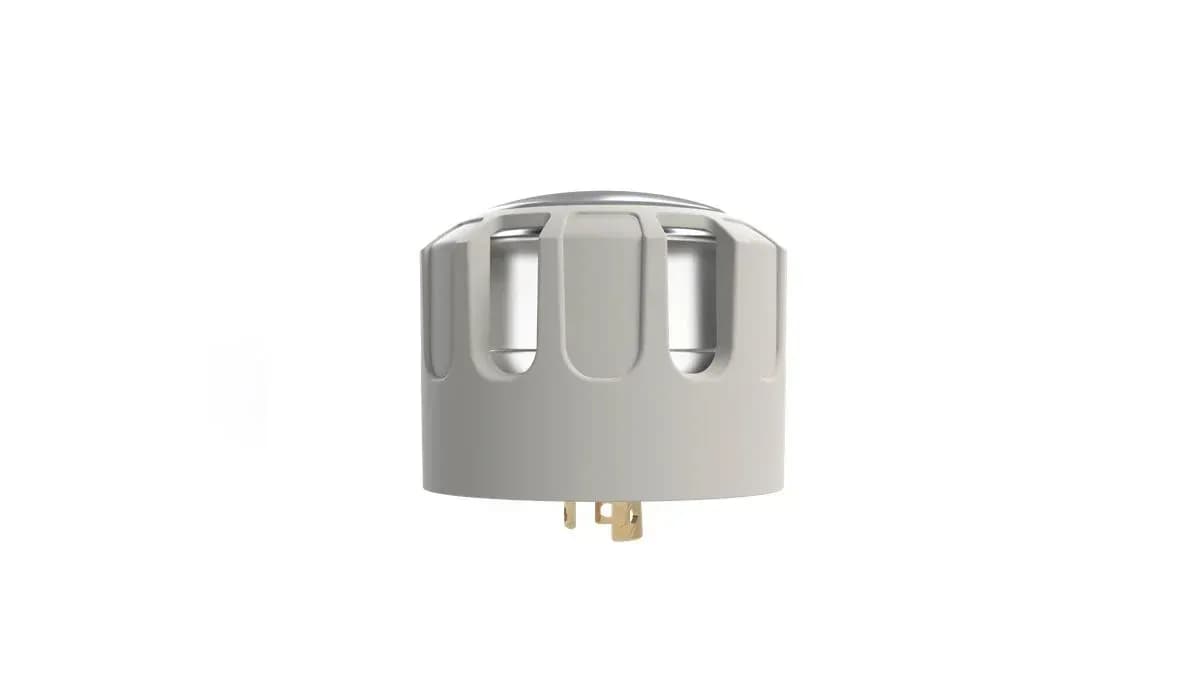

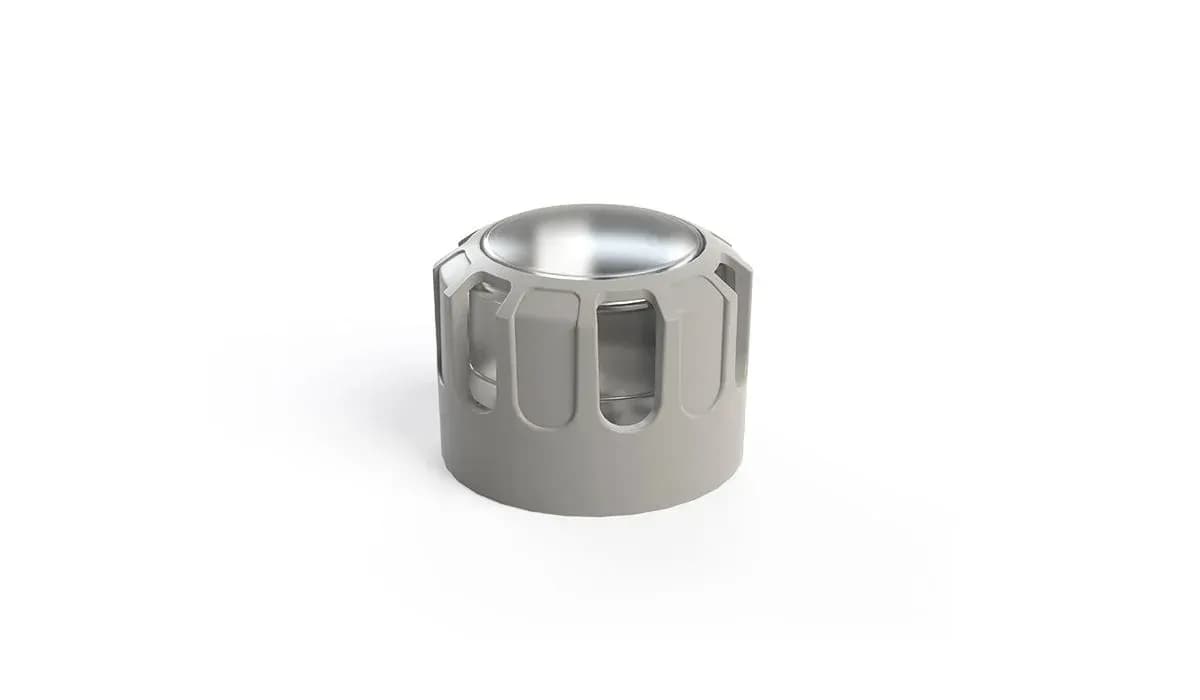

NEMA GSM Node
Wireless Control, Diagnostic, and Dimming for Modern Urban Lighting
Upgrade your city’s street lighting infrastructure with the NEMA GSM Node—a compact, waterproof, and wireless luminaire controller.
Designed for advanced functionality and seamless compatibility, it provides precise control and real-time diagnostics for every luminaire.
Harnessing state-of-the-art technology, the NEMA GSM Node optimizes street lighting performance. It supports luminaires up to 1000W across a wide voltage range (up to 305V), ensuring both efficiency and reliability.
With motion sensor inputs, it seamlessly integrates with third-party sensors to enhance responsiveness to environmental changes.
From light control and tilt monitoring to GPS-based alignment, the NEMA GSM Node delivers exceptional precision and performance.
Advanced 2G/4G/NB-IoT connectivity for precise individual light management
Supports multiple protocols including DALI, DALI 2.0, PWM, 1-10V, and 0-10V
Integrated light sensor, GPS, and accelerometer for detailed diagnostics and monitoring
Simple installation with a NEMA connector and IP66 weatherproof design
Seamless configuration and monitoring via DITRA software
- Mechanical:
Housing: solid case
Material: plastic
Dimensions, mm: 87(D) x 82,8(69,3)(H)
Mass: 0.2 kg
Mounting: luminaire case, pillar, etc - Power & Electrical:
Input Voltage: ~100-240 V, 50/60 Hz
Input Power (max): 5 W
Max load Power: 1000 W - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 66
Certification: CE compliant, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Control output interface: DALI, DALI 2.0, PWM, 1-10V, 0-10V
Navigation: GPS
Radio Channel: GSM 850/900/1800/1900,
WCDMA 900/2100 (optional) - Inputs / Outputs:

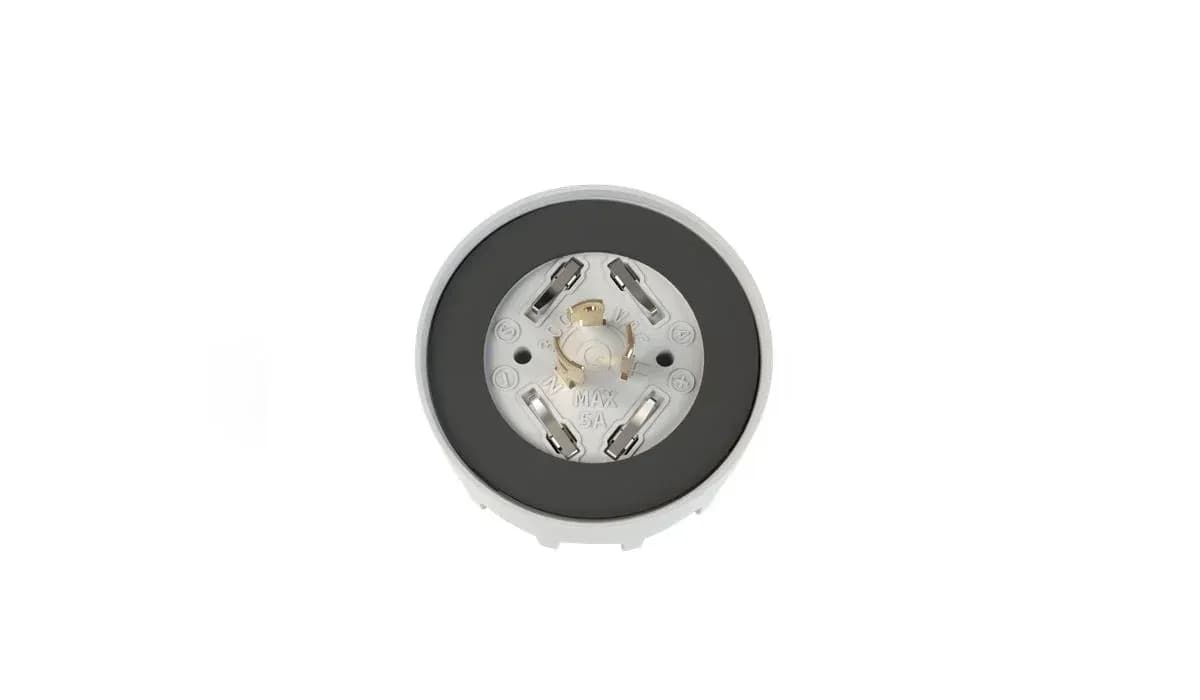

Connectors: NEMA C136.41 plug
Sensors: embedded Daylight sensor,
Motion sensor input, Accelerometer - Configuration / Indication:
Setup: remote via the DITRA CMS
Indication: LED - Package Contents:
NEMA GSM Node
- NEMA GSM Node, 2G, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer
- : DIT-GSM-N-2G-A
- NEMA GSM Node, 2G, load switch, 0-10V/PWM/DALI/DALI 2.0
- : DIT-GSM-N-2G-B
- NEMA GSM Node, 2G, load switch, 0-10V/PWM
- : DIT-GSM-N-2G-C
- NEMA GSM Node, 2G, 0-10V/PWM
- : DIT-GSM-N-2G-D
- NEMA GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, Region: E
- : DIT-GSM-N-4G-A
- NEMA GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, Region: A
- : DIT-GSM-N-4GA-A
- NEMA GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, Region: E
- : DIT-GSM-N-4G-B
- NEMA GSM Node, 2G/4G, load switchf, 0-10V/PWM/DALI/DALI 2.0, Region: A
- : DIT-GSM-N-4GA-B
- NEMA GSM Node, 2G/4G, load switch, 0-10V/PWM, Region: E
- : DIT-GSM-N-4G-C
- NEMA GSM Node, 2G/4G, load switch, 0-10V/PWM, Region: A
- : DIT-GSM-N-4GA-C
- NEMA GSM Node, 2G/4G, 0-10V/PWM, Region: E
- : DIT-GSM-N-4G-D
- NEMA GSM Node, 2G/4G, 0-10V/PWM, Region: A
- : DIT-GSM-N-4GA-D
- NEMA GSM Node, NB-IoT, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer
- : DIT-GSM-N-NB-A
- NEMA GSM Node, NB-IoT, load switch, 0-10V/PWM/DALI/DALI 2.0
- : DIT-GSM-N-NB-B
- NEMA GSM Node, NB-IoT, load switch, 0-10V/PWM
- : DIT-GSM-N-NB-C
- NEMA GSM Node, NB-IoT, 0-10V/PWM
- : DIT-GSM-N-NB-D
