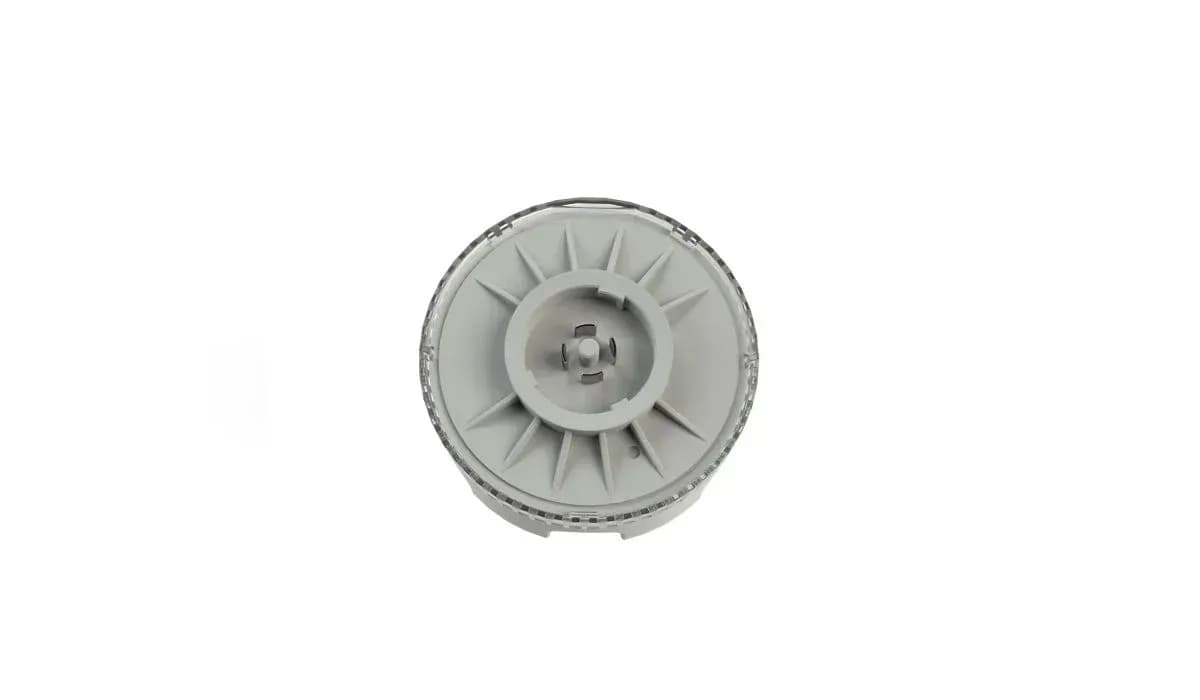

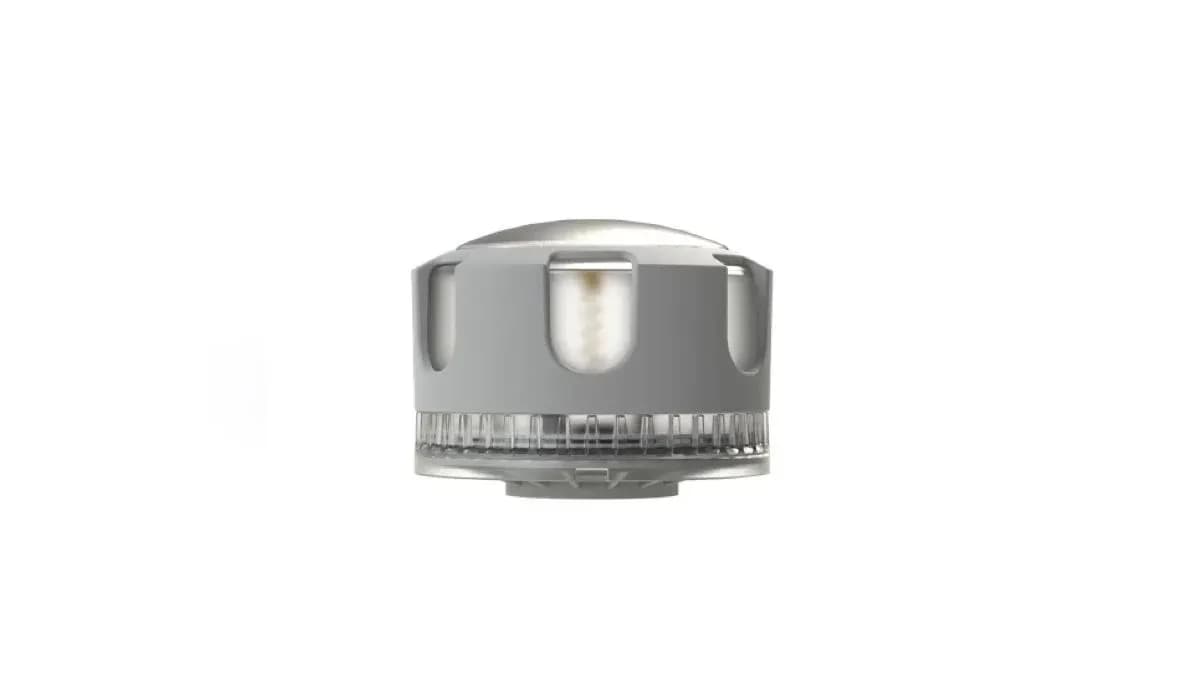

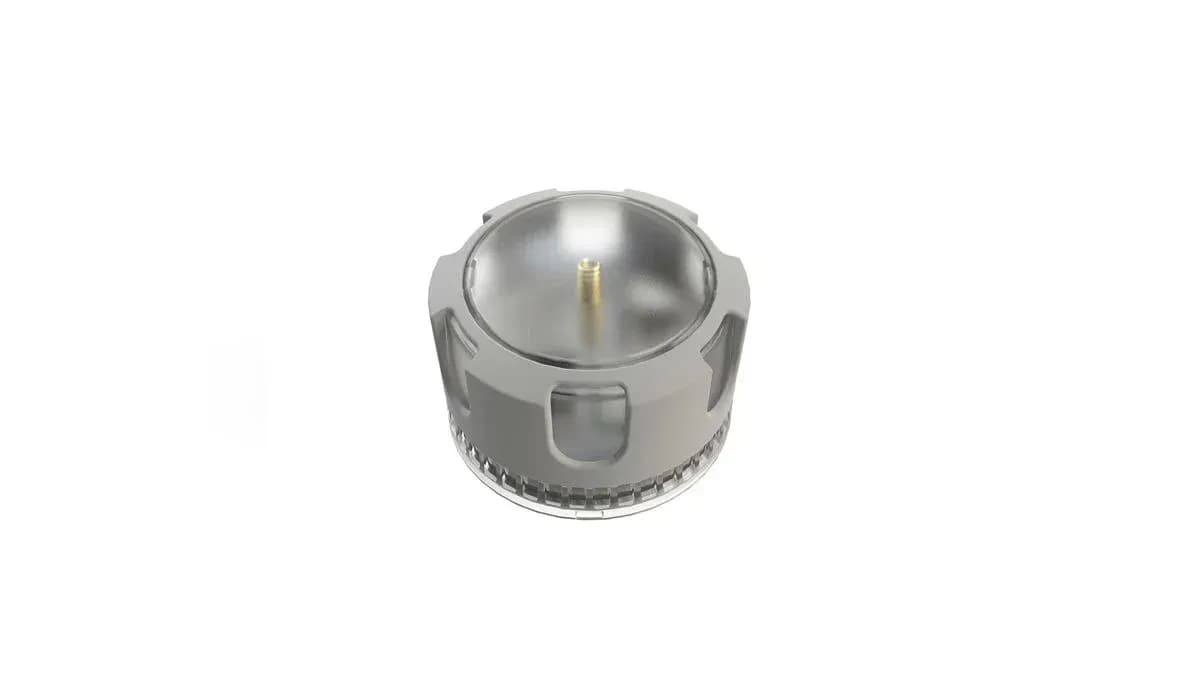

GSM Node (Zhaga-type connector)

2G/4G/NB-IoT Zhaga-type connection Street Light Luminaire Controller

The GSM Node (Zhaga-type connector) is a wireless 2G/4G/NB-IoT street light controller designed for individual luminaire control, diagnostics, and dimming.

It supports DALI 2.0 interfaces for flexible luminaire management. Data communication between the device and the server is carried out via 2G/4G/NB-IoT cellular networks. The luminaire can be controlled using either a built-in light sensor or a third-party light sensor.

Equipped with a built-in GPS receiver, the device enables geo-positioning, internal clock synchronization, and includes an accelerometer for monitoring vibration, acceleration, and tilt.

The unit operates on 12-30 V DC power supply and is configured directly through DITRA software.

Designed for direct mounting on luminaires, the GSM Node features a Zhaga-type connection and comes with an IP66 dust and water resistance rating, ensuring durability in outdoor environments.

  • Ultra-compact waterproof IP66 case

    Quick and convenient connection via Zhaga-type connector

    Built-in daylight sensor for automated lighting control

    Input for DALI 2.0 motion sensors and eco sensors from DITRA

    Integrated GPS module for positioning and synchronization

    Embedded accelerometer for monitoring pole status and detecting tilt or vibration

    LED indicators for displaying node status

  • Mechanical:

    Housing: solid case
    Material: plastic
    Dimensions, mm: 79,8(D) x 61,6(56,6)(H)
    Mass: 0.2 kg
    Mounting: luminaire case, pillar, etc

  • Power & Electrical:

    Input Voltage: 12-30 V DC
    Input Power (max): 5 W

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP 66
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Control output interface: DALI 2.0
    Navigation: GPS
    Radio Channel: GSM 850/900/1800/1900,
    WCDMA 900/2100 (optional)

  • Inputs / Outputs:

    Connectors: Zhaga-type connector
    Sensors: embedded Daylight sensor, Accelerometer

  • Configuration / Indication:

    Setup: remote via the DITRA
    Indication: LED

  • Package Contents:

    GSM Node (Zhaga-type connector)

GSM Node (Zhaga-type connector), 2G, DALI 2.0, GPS, acelerometer
  • : DIT-LW-Z-2G-A
GSM Node (Zhaga-type connector), 2G, DALI 2.0
  • : DIT-LW-Z-2G-B
GSM Node (Zhaga-type connector), 2G/4G, DALI 2.0, GPS, acelerometer, Region: E
  • : DIT-LW-Z-4G-A
GSM Node (Zhaga-type connector), 2G/4G, DALI 2.0, GPS, acelerometer, Region: A
  • : DIT-LW-Z-4GA-A
GSM Node (Zhaga-type connector), 2G/4G, DALI 2.0, Region: E
  • : DIT-LW-Z-4G-B
GSM Node (Zhaga-type connector), 2G/4G, DALI 2.0, Region: A
  • : DIT-LW-Z-4GA-B
GSM Node (Zhaga-type connector), NB-IoT, DALI 2.0, GPS, accelerometer
  • : DIT-LW-Z-NB-A
GSM Node (Zhaga-type connector), NB-IoT, DALI 2.0
  • : DIT-LW-Z-NB-B
