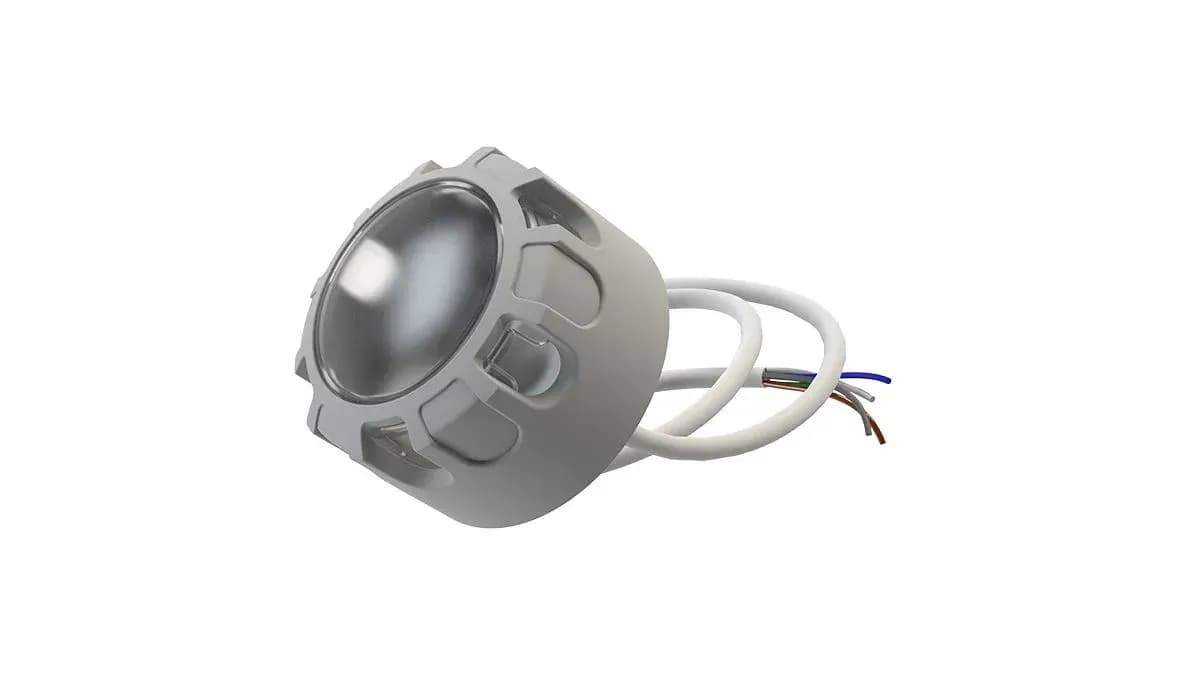

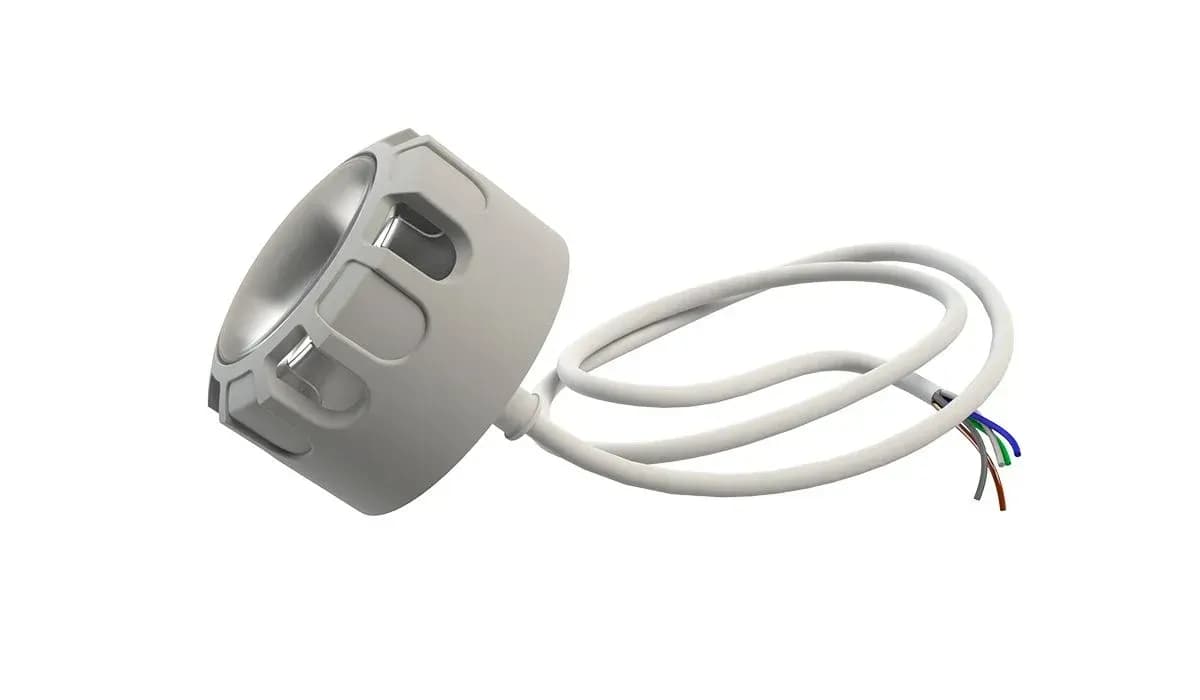

Wire GSM Node

2G/4G/NB-IoT Street Light Luminaire Controller with Wired Connectivity

Wire GSM Node is a wired street light controller that supports individual luminaire control, diagnostics, and dimming via wireless 2G/4G/NB-IoT cellular networks.

It is compatible with multiple luminaire control interfaces, including DALI, DALI 2.0, PWM, 1-10V, and 0-10V. Data exchange between the device and the server is carried out through cellular networks, ensuring reliable communication.

The unit features a built-in GPS receiver for geo-positioning, internal clock synchronization, and an accelerometer for detecting vibration, acceleration, and tilt. It can be controlled by an integrated light sensor or a third-party sensor.

Configuration is done directly through Ditra software.

Designed for mounting directly on lighting poles or luminaires, the Wire GSM Node offers IP66-rated dust and water resistance, ensuring durability in outdoor environments. Installation is performed via wired connections.

Ultra-Compact Waterproof Controller with Advanced Features
IP66-rated waterproof housing for durability and protection
Quick and convenient wired connection for easy installation
Supports voltages up to 305V for versatile applications
Compatible with luminaires up to 1000W
Built-in daylight sensor for automated lighting control
Integrated triac for reliable load switching (on/off)
Motion sensor input supporting third-party sensors
DALI 2.0 input for DITRA motion and eco sensors
Embedded GPS module for geo-positioning and synchronization
Built-in accelerometer to monitor lighting pole status and detect tilt or vibration
Compatible with DITRA Eco monitoring station for advanced system integration
LED indicators for quick status monitoring and diagnostics

Mechanical:
Housing: solid case
Material: plastic
Dimensions, mm: 87(D) x 91,3(69,3)(H)
Mass: 0.2 kg
Mounting: luminaire case, pillar, etc
Power & Electrical:
Input Voltage: ~100-240 VAC, 50/60 Hz
Input Power (max): 5 W
Max load Power: 1000 W
Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 66
Certification: CE compliant, RoHS
Warranty: 36 Month
Interfaces and Protocols:
Control output interface: DALI, DALI 2.0, PWM, 1-10V, 0-10V
Navigation: GPS
Radio Channel: GSM 850/900/1800/1900,
WCDMA 900/2100 (optional)
Inputs / Outputs:
Connectors: wires
Sensors: embedded Daylight sensor,
Motion sensor input, Accelerometer
Configuration / Indication:
Setup: remote via the DITRA
Indication: LED
Package Contents:
Wire GSM Node

Wire GSM Node, 2G, load switch 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer

: DIT-LW-W-2G-A

Wire GSM Node, 2G, load switch, 0-10V/PWM/DALI/DALI 2.0

: DIT-LW-W-2G-B

Wire GSM Node, 2G, load switch, 0-10V/PWM

: DIT-LW-W-2G-C

Wire GSM Node, 2G, 0-10V/PWM

: DIT-LW-W-2G-D

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer, Region: E

: DIT-LW-W-4G-A

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer, Region: A

: DIT-LW-W-4GA-A

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, Region: E

: DIT-LW-W-4G-B

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, Region: A

: DIT-LW-W-4GA-B

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM, Region: E

: DIT-LW-W-4G-C

Wire GSM Node, 2G/4G, load switch, 0-10V/PWM, Region: A

: DIT-LW-W-4GA-C

Wire GSM Node, 2G/4G, 0-10V/PWM, Region: E

: DIT-LW-W-4G-D

Wire GSM Node, 2G/4G, 0-10V/PWM, Region: A

: DIT-LW-W-4GA-D

Wire GSM Node, NB-IoT, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer

: DIT-LW-W-NB-A

Wire GSM Node, NB-IoT, load switch, 0-10V/PWM/DALI/DALI 2.0

: DIT-LW-W-NB-B

Wire GSM Node, NB-IoT, load switch, 0-10V/PWM

: DIT-LW-W-NB-C

Wire GSM Node, NB-IoT, 0-10V/PWM

: DIT-LW-W-NB-D
