Wire LiWAVE Node

Wire LiWAVE Node

LiWAVE wireless (868/915 MHz) street light luminaire controller with wired connection support

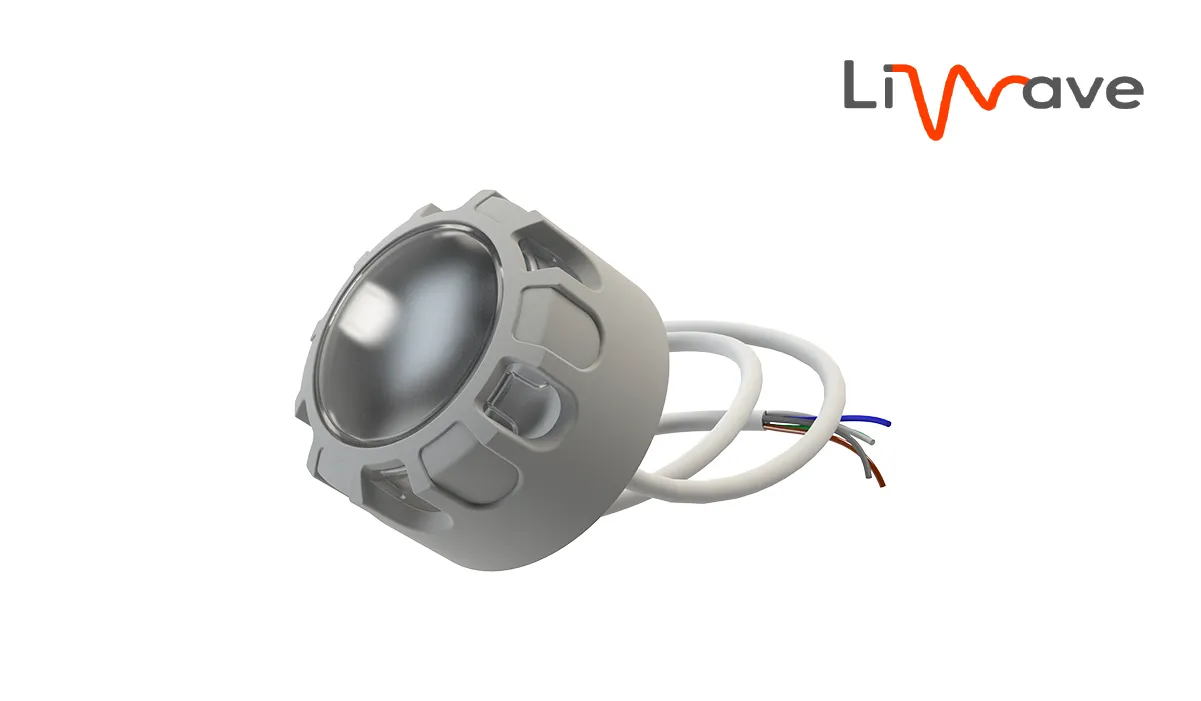

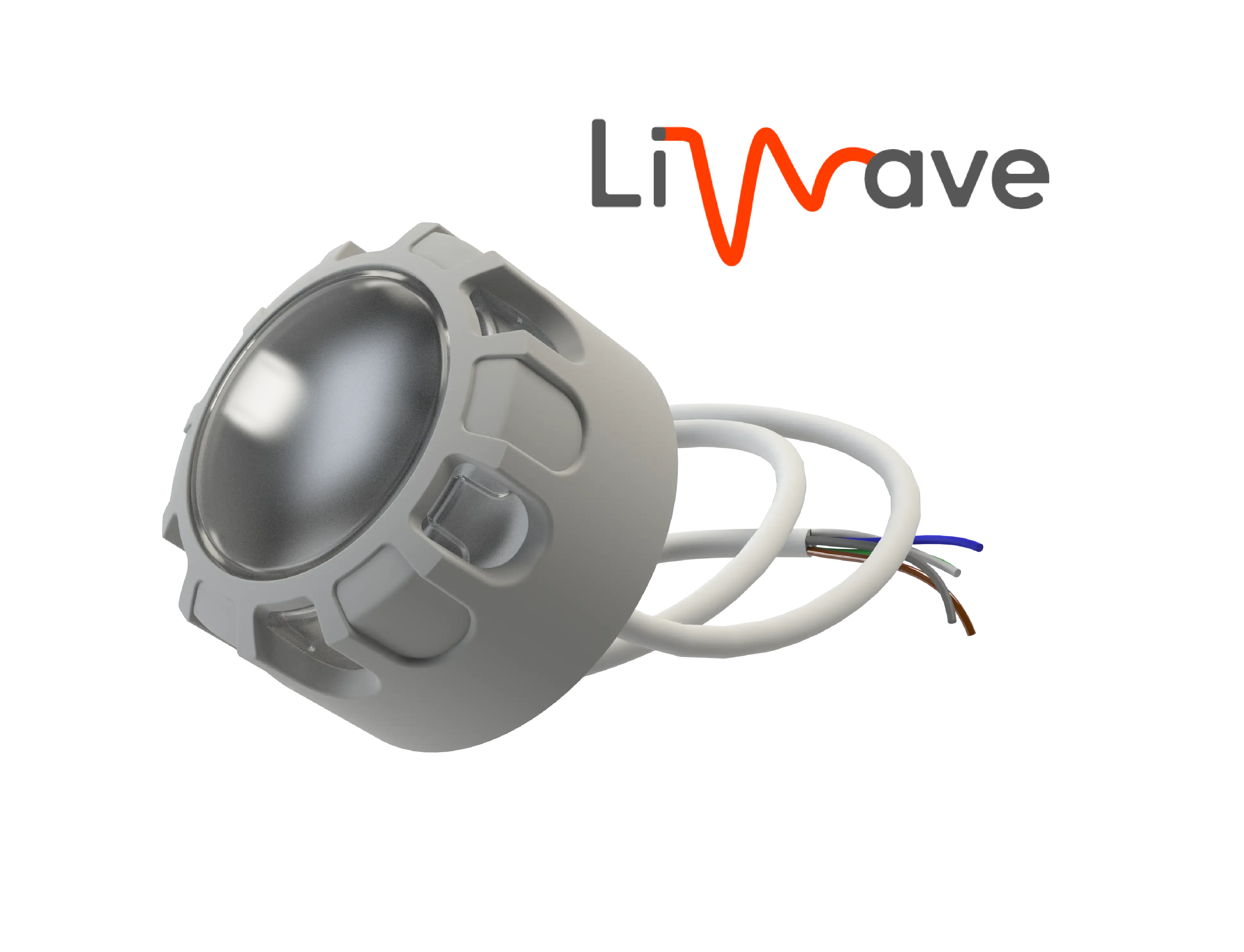

Wire LiWAVE Node is a module for wireless luminaire control via radio communication. It is designed for individual control, diagnostics, and dimming.

This individual control module is part of the LiWAVE wireless lighting management system (868/915 MHz) and can be connected to the system through a wired interface. It supports individual control of lighting systems and operates on both 868 MHz and 915 MHz frequency bands. With the LiWAVE system, users can efficiently manage their lighting network wirelessly, eliminating the need for additional wiring. The device is designed for quick installation and can be mounted in various locations.

The module supports DALI, DALI 2.0, PWM, 1-10V, and 0-10V interfaces, along with individual load control (on/off). Certain versions also come equipped with a GPS receiver for enhanced functionality.

Wire LiWAVE Node is configured and controlled via an 800-950 MHz radio channel through DITRA Base Stations.

The device is intended for installation inside a lighting fixture housing and connects via a wired interface.

Key Features

  • Convenient and fast wired connection

    Independent lighting control without extra wiring

    Compatible with installation in any luminaire housing

    Integrated light sensor

    Optional built-in GPS receiver

    Optional TRIAC for on/off load switching

    Motion sensor input supported

    Automatic node mapping and positioning

    Tilt and vibration sensor for monitoring pole condition and detecting failures

    Supports connection to DITRA eco monitoring sensors via DALI 2.0

  • Mechanical:

    Housing: solid case
    Material: plastic
    Dimensions, mm: 87(D) x 91,3(69,3)(H)
    Mass: 0.3 kg
    Mounting: luminaire case

  • Power & Electrical:

    Input Voltage: ~100-250 V, 50/60 Hz
    Input Power (max): 5 W
    Max load Power: 1000 W

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP 66
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Control output interface: DALI, DALI 2.0, PWM, 1-10V, 0-10V
    Navigation: GPS
    Communication with controller: ISM band 868/915 MHz

  • Inputs / Outputs:

    Connectors: wire
    Sensors: motion sensor input, embedded light sensor

  • Configuration / Indication:

    Setup: remote via Base station
    Indication: LED

  • Package Contents:

    Wire LiWAVE Node

Wire LiWAVE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, light sensor, Region: E
  • Product Code: DIT-LW-868-W-A
Wire LiWAVE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, light sensor, Region: A
  • Product Code: DIT-LW-915-W-A
Wire LiWAVE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, light sensor, Region: E
  • Product Code: DIT-LW-868-W-B
Wire LiWAVE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, light sensor, Region: A
  • Product Code: DIT-LW-915-W-B
Wire LiWAVE Node, load switch, 0-10V/PWM, light sensor, Region: E
  • Product Code: DIT-LW-868-W-C
Wire LiWAVE Node, load switch, 0-10V/PWM, light sensor, Region: A
  • Product Code: DIT-LW-915-W-C
Wire LiWAVE Node, 0-10V/PWM, Region: E
  • Product Code: DIT-LW-868-W-D
Wire LiWAVE Node, 0-10V/PWM, Region: A
  • Product Code: DIT-LW-915-W-D
