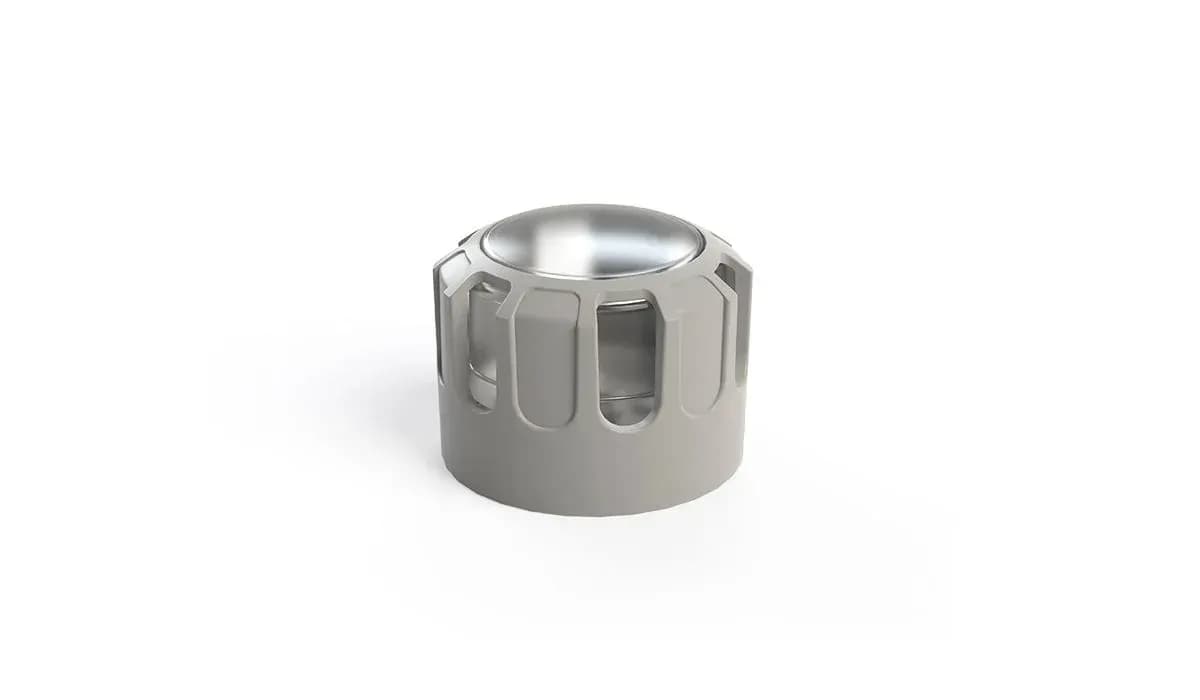

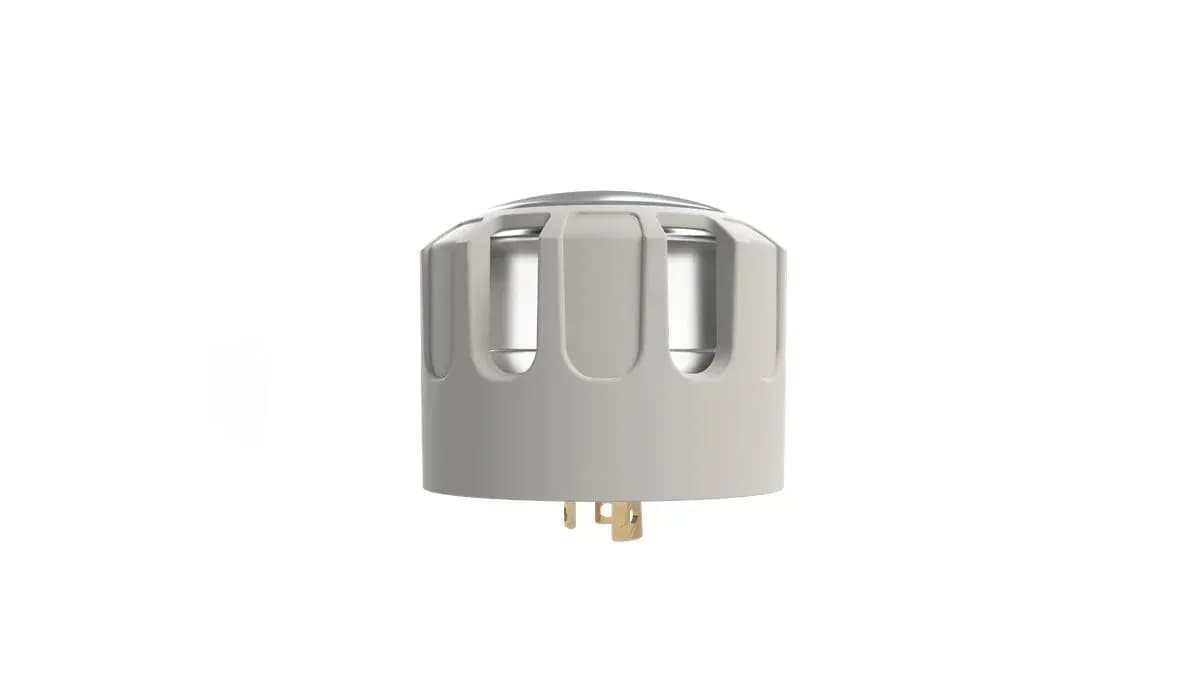

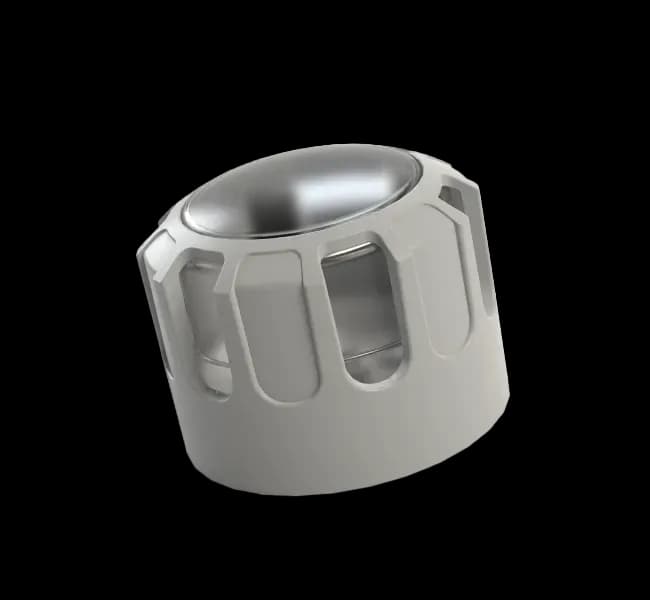

NEMA LoRa Node

Wireless LoRa Connectivity for Advanced Luminaire Management

Illuminate the Future with the NEMA LoRa Node

Experience effortless streetlight management with the NEMA LoRa Node—a wireless solution designed for smart city applications. Offering diagnostic capabilities, dimming functions, and long-range LoRa connectivity, it redefines efficiency and control in urban lighting.

Engineered to seamlessly manage lighting fixtures up to 1000W, the NEMA LoRa Node delivers a cost-effective and energy-efficient solution for cities and municipalities.

Its compact, durable design supports high voltage operation and ensures easy installation using a standard NEMA connector.

Paired with DITRA software, this system allows quick configuration and monitoring of each unit, enabling a responsive, adaptive, and intelligent street lighting network.

  • Flexible control options supporting DALI, DALI 2.0, PWM, 1-10V, and 0-10V for adaptable luminaire operation

    Reliable LoRa communication for stable and efficient data exchange

    Advanced features including daylight sensing and GPS positioning for precise performance

    Built-in accelerometer to monitor pole condition and detect movement or tilt

    Durable IP66 casing with a user-friendly NEMA connector for easy installation and long-lasting protection

  • Mechanical:

    Housing: solid case
    Material: plastic
    Dimensions, mm: 87(D) x 82,8(69,3)(H)
    Mass: 0.2 kg
    Mounting: luminaire case, pillar, etc

  • Power & Electrical:

    Input Voltage: ~100-240 VAC, 50/60 Hz
    Input Power (max): 5 W
    Max load Power: 1000 W

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP 66
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Control output interface: DALI, DALI 2.0, PWM, 1-10V, 0-10V
    Navigation: GPS
    Radio Channel: LoRa

  • Inputs / Outputs:

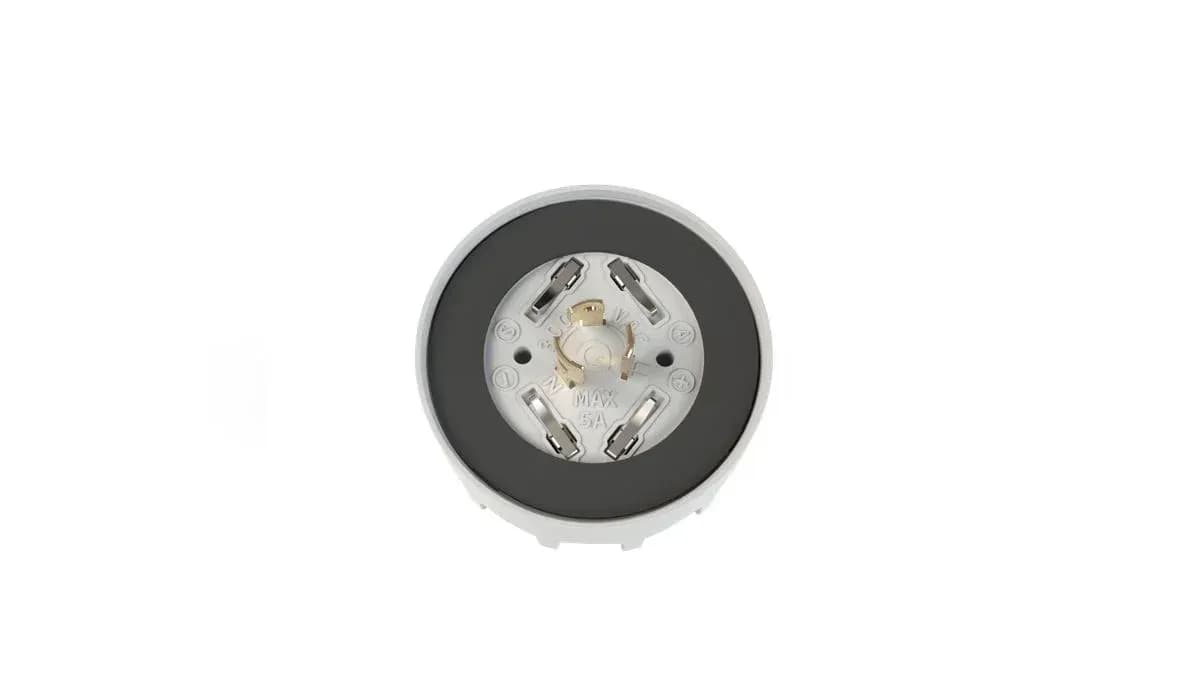

    Connectors: NEMA C136.41 plug
    Sensors: embedded daylight sensor,
    Motion sensor input, Accelerometer

  • Configuration / Indication:

    Setup: remote via the DITRA
    Indication: LED

  • Package Contents:

    NEMA LoRa Node

NEMA LoRa Node, LoRa, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer
  • : DIT-LW-N-LO-A
NEMA LoRa Node, LoRa, load switch, 0-10V/PWM/DALI/DALI 2.0
  • : DIT-LW-N-LO-B
NEMA LoRa Node, LoRa, load switch, 0-10V/PWM
  • : DIT-LW-N-LO-C
NEMA LoRa Node, LoRa, 0-10V/PWM
  • : DIT-LW-N-LO-D
