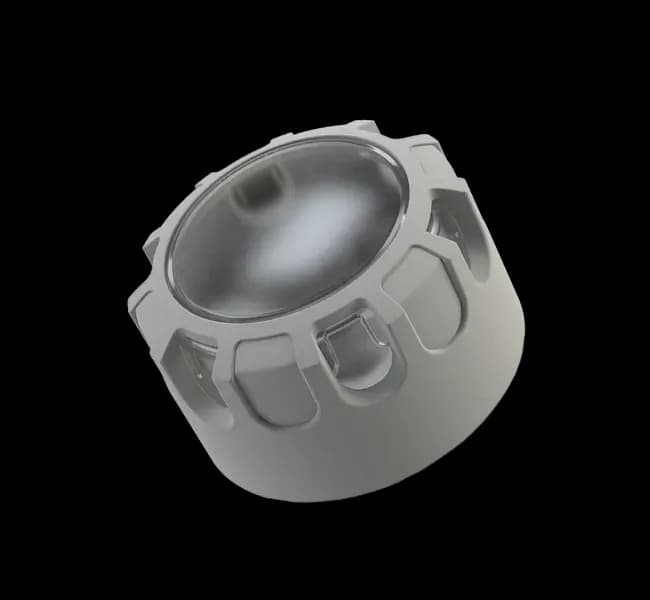

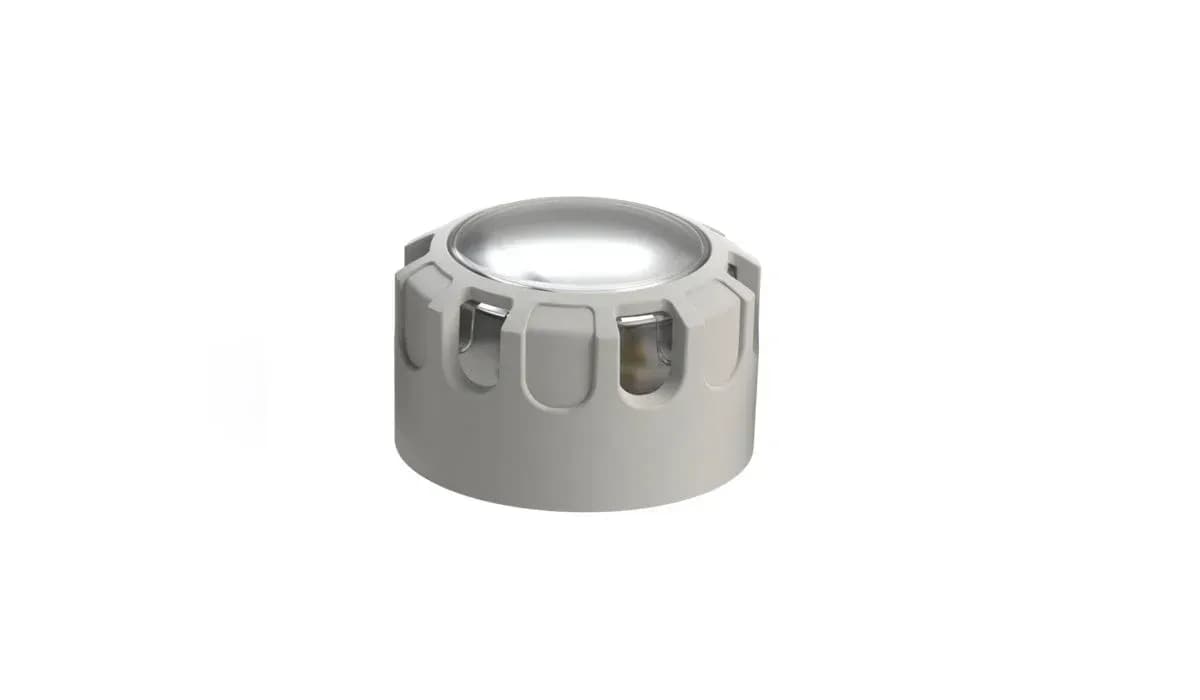

NEMA LiteLINE Node

PLC (Power Line Communication) NEMA Street Light Luminaire Controller

NEMA LiteLINE Node is a module designed for individual control, diagnostics, and dimming of luminaires.

NEMA LiteLINE Node functions as a PLC (Power Line Communication) control and dimming module, suitable for managing a single luminaire or a group of luminaires.

NEMA LiteLINE Node is compatible with third-party motion sensors.

It supports DALI, DALI 2.0, PWM, 1-10V, 0-10V interfaces, and offers individual load control (on/off).

The unit operates on 110-230 V, supports luminaires with power ratings up to 1000 W.

NEMA LiteLINE Node is managed individually through Central Gateway DITRA CORE PRO, PRO-2, LIGHT and Ditra LiteLINE via 110-230 V power lines. LiteLINE technology operates within the 132.5 kHz frequency range, complying with CENELEC EN 50065-1 (band-C).

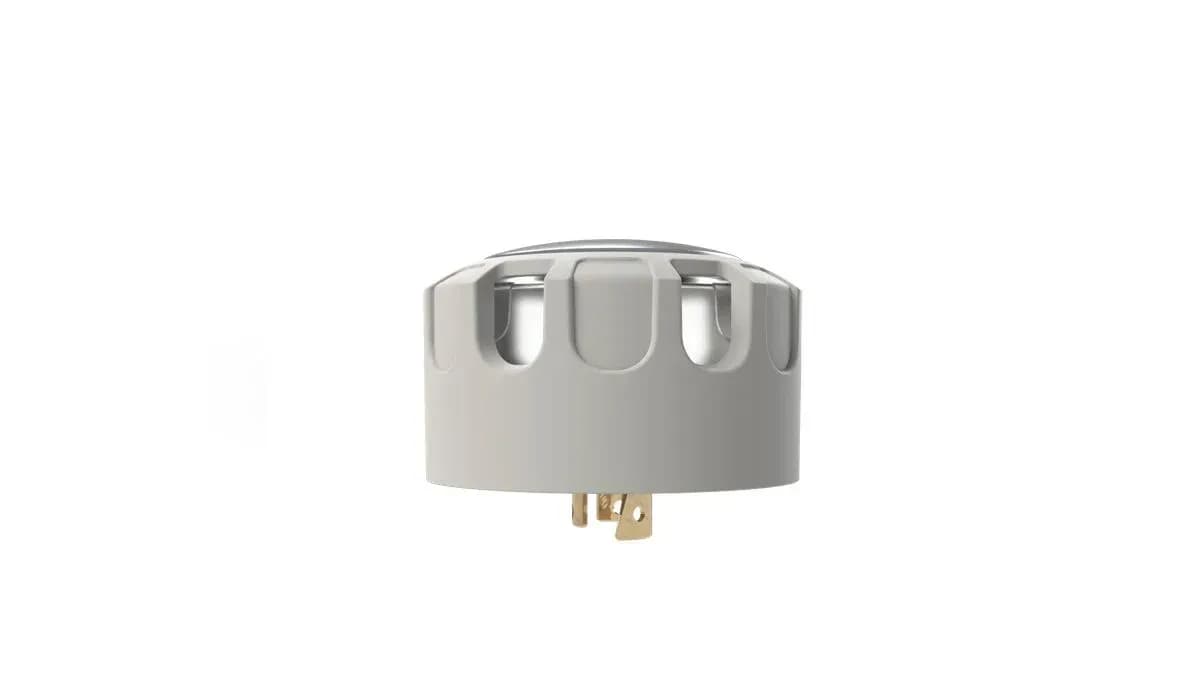

The device is designed for installation on luminaires using a NEMA socket and features an IP66 rating for dust and moisture protection.

  • New Version with NEMA Mounting

    • Suitable for installation in any luminaire housing
    • Supports luminaire or pole mounting options
    • Enables individual lighting control without the need for additional wiring
    • Includes input support for motion sensors
    • Features an embedded triac for on/off load switching
    • Compatible with luminaires up to 1000W
    • Operates at voltages up to 305V
    • Equipped with a built-in accelerometer

  • Mechanical:

    Housing: plastic
    Material: plastic
    Dimensions, mm: 87(D) x 70,1(55,3)(H)
    Mass: 0.3 kg
    Mounting: luminaire case

  • Power & Electrical:

    Input Voltage: ~100-250 V, 50/60 Hz
    Input Power (max): 5 W
    Max load Power: 250 W

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP 66
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Control output interface: DALI, DALI 2.0, PWM, 1-10V, 0-10V
    Navigation: GPS
    Communication with controller: CENELEC EN 50065-1 (band C)

  • Inputs / Outputs:

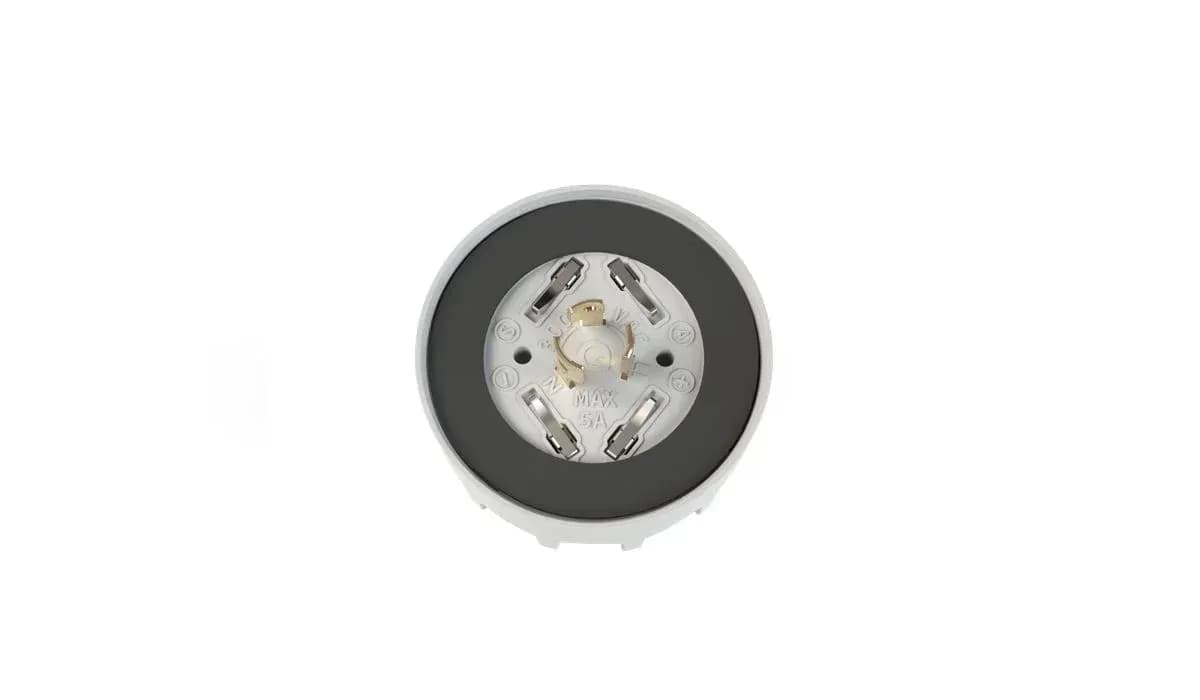

    Connectors: NEMA C136.41 plug
    Sensors: motion sensor input

  • Configuration / Indication:

    Setup: remote via DITRA CORE PRO or DITRA LiteLINE
    Indication: LED

  • Package Contents:

    LiteLINE Node NEMA

NEMA LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, light sensor
  • : DIT-PLC-N-A
NEMA LiteLINE Node, load switch, 0-10V/PWM/DALI/DALI 2.0, light sensor
  • : DIT-PLC-N-B
NEMA LiteLINE Node, load switch, 0-10V/PWM, light sensor
  • : DIT-PLC-N-C
NEMA LiteLINE Node, 0-10V/PWM
  • : DIT-PLC-N-D
