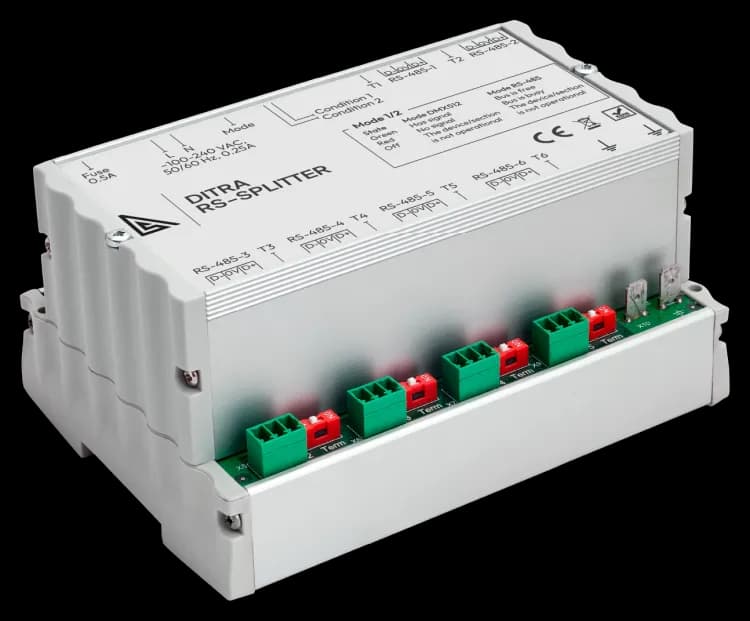

<h2>The DITRA RS-Splitter is a DIN-rail mounted expansion module designed to increase the number of RS-485 communication lines within the DITRA Control System.</h2>&nbsp;It supports two selectable operating modes: &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;Single-channel mode: 1 RS-485 input is split into 5 galvanically isolated outputs &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;Dual-channel mode: 2 RS-485 inputs are each split into 2 isolated outputsMode selection is configured via a DIP switch located on the housing.The module allows for efficient signal distribution across multiple branches of a lighting control system, while maintaining electrical isolation for improved protection and reliability. It supports up to 305 V input voltage and uses industrial-grade pluggable terminals (15EDGVC) for quick installation.Designed for DIN-rail mounting, the RS-Splitter can be used in both new and existing control cabinets as a communication line expander for connecting additional devices to the DITRA Control System.

large_Splitter Duo Rail dimensions.png

medium_Splitter Duo Rail dimensions.png

small_Splitter Duo Rail dimensions.png

thumbnail_Splitter Duo Rail dimensions.png

Splitter Duo Rail dimensions.png

large_DITRA RS-SPLITTER.webp

medium_DITRA RS-SPLITTER.webp

small_DITRA RS-SPLITTER.webp

thumbnail_DITRA RS-SPLITTER.webp

DITRA RS-SPLITTER.webp

RS-485 splitter module for the DITRA Control System. Provides 5 outputs from 1 input, or 2 outputs per input in dual-channel mode

Mechanical

Power & Electrical

Environment

Interfaces and Protocols

Inputs / Outputs

Configuration / Indication

Package Contents

DITRA RS-Splitter

large_DITRA PLX Connection.png

medium_DITRA PLX Connection.png

small_DITRA PLX Connection.png

thumbnail_DITRA PLX Connection.png

DITRA PLX Connection.png

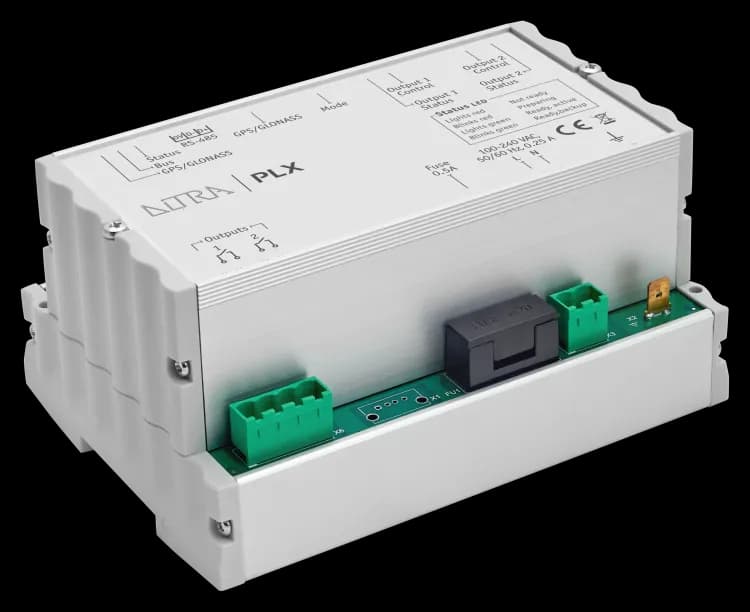

<h2>DITRA PLX is an advanced solution for managing scheduled lighting equipment, capable of operating in stand-alone mode or as a backup controller for a lighting control system.&nbsp;</h2>Equipped with a built-in GPS module, it ensures precise synchronization with GNSS while minimizing maintenance requirements.The unit supports the RS-485 interface, operates on a 100-240 V AC power supply, and can be configured locally via USB or remotely using the cabinet controller.Designed for installation in a DIN-rail lighting control cabinet, it features an IP20-rated enclosure, providing reliable protection against dust and moisture for indoor environments.

large_DITRA PLX Dimensions.png

medium_DITRA PLX Dimensions.png

small_DITRA PLX Dimensions.png

thumbnail_DITRA PLX Dimensions.png

DITRA PLX Dimensions.png











DITRA PLX

Modbus-RTU Timer Switch Relay for Scheduled Lighting Control

large_DITRA MultiConnect Connection.png

medium_DITRA MultiConnect Connection.png

small_DITRA MultiConnect Connection.png

thumbnail_DITRA MultiConnect Connection.png

DITRA MultiConnect Connection.png

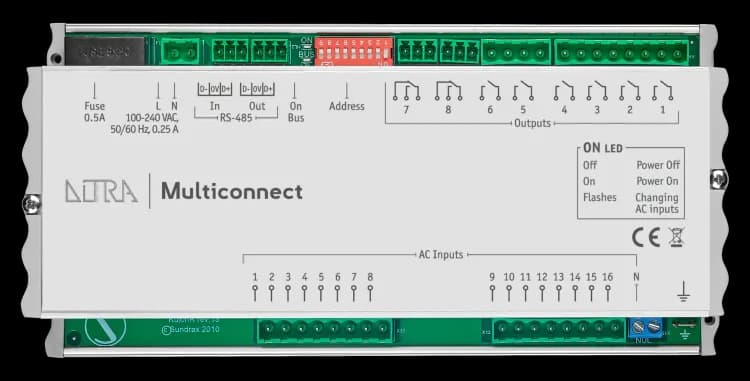

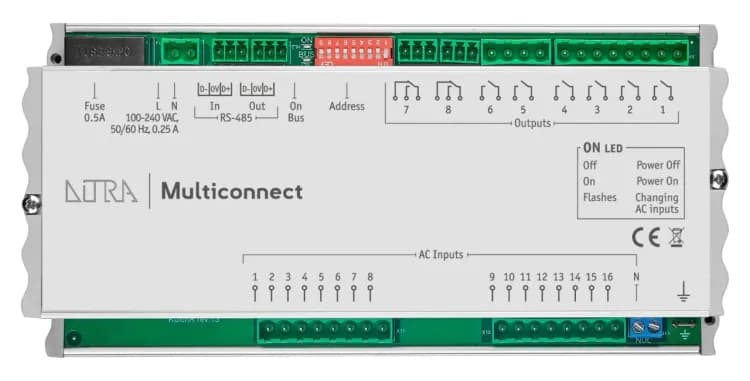

<h2>DITRA MultiConnect is a versatile expansion module that adds 16 independent inputs and 8 independent relays to lighting control systems, enhancing the functionality of cabinet controllers.</h2>Communication and lighting control are facilitated through the RS-485 interface. The unit supports power supply options of AC 100-240 V or DC 12-30 V, depending on the model.Configuration is flexible and can be performed remotely via cabinet controllers or locally using the DIP switches on the device.Designed for DIN-rail installation, DITRA MultiConnect is the ideal solution for expanding the capabilities of lighting control cabinets.

large_Ditra MultiConnect Dimensions.png

medium_Ditra MultiConnect Dimensions.png

small_Ditra MultiConnect Dimensions.png

thumbnail_Ditra MultiConnect Dimensions.png

Ditra MultiConnect Dimensions.png











DITRA MultiConnect, AC, 8 relays, 16 inputs

DITRA MultiConnect, DC, 8 relays, 16 inputs

DITRA MultiConnect, AC, 16 inputs

DITRA MultiConnect, DC, 16 inputs

Modbus-RTU I/O Expansion Module for Enhanced Lighting Control

DITRA MultiConnect

DITRA PulseProtect Connection.png

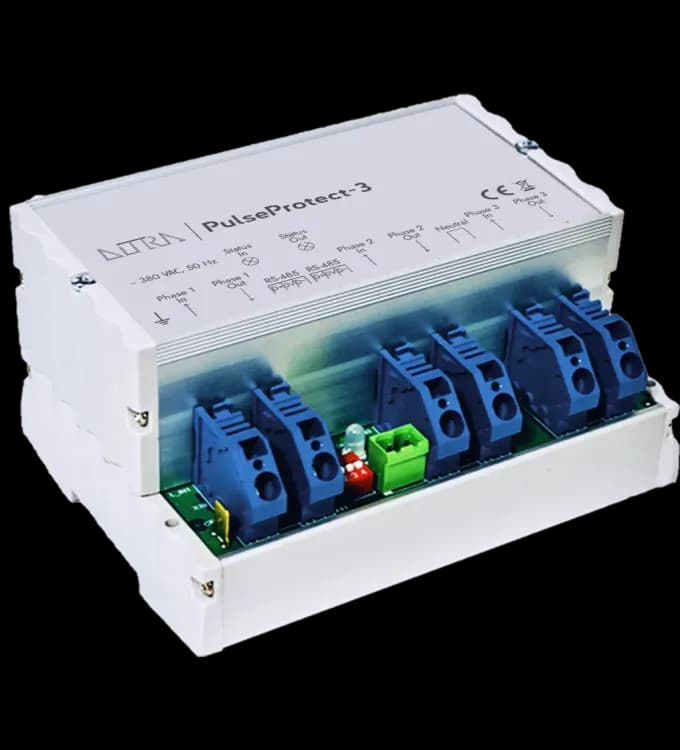

<h2>The DITRA PulseProtect-3 is a specialized device designed to limit inrush currents in three-phase networks, minimizing the destructive effects caused by switching on capacitive loads.&nbsp;</h2>It protects the switching contacts of control devices and prevents false tripping of circuit breakers, making it ideal for pulse power supplies, LED lamps, strips, and other capacitive loads.The unit operates on three-phase (380 V) networks and is configured using DIP switches. Equipped with input/output LED indicators, it ensures easy monitoring and setup.Specifically designed for DIN-rail installation in lighting control cabinets, the DITRA PulseProtect-3 provides reliable protection and performance for modern lighting systems.

large_DITRA PulseProtect Dimensions.png

medium_DITRA PulseProtect Dimensions.png

small_DITRA PulseProtect Dimensions.png

thumbnail_DITRA PulseProtect Dimensions.png

DITRA PulseProtect Dimensions.png






DITRA PulseProtect-3, three-phase, up to 10 A

DITRA PulseProtect-3, three-phase, up to 16 A

DITRA PulseProtect-3, three-phase, up to 20 A

DITRA PulseProtect-3, three-phase, up to 25 A

DITRA PulseProtect-3, three-phase, up to 32 A

Advanced Inrush Current Limiter for Three-Phase Networks

Inputs/Outputs

Settings/Indicators

DITRA PulseProtect-3

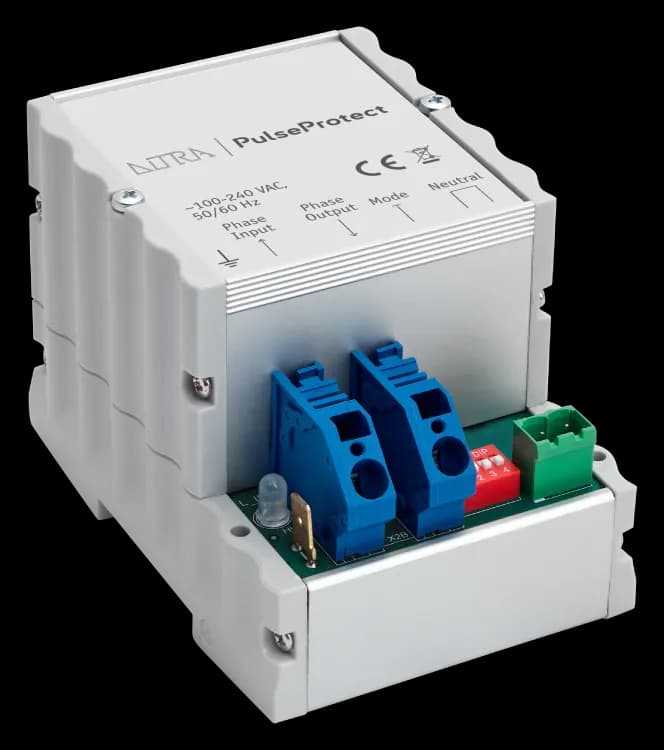

<h2>The DITRA PulseProtect is a specialized device designed to limit inrush currents in three-phase networks, minimizing the destructive effects caused by switching on capacitive loads.</h2>&nbsp;It protects the switching contacts of control devices and prevents false tripping of circuit breakers, making it ideal for pulse power supplies, LED lamps, strips, and other capacitive loads.The unit operates on single-phase (100-240 V) AC networks and is configured using DIP switches. Equipped with input/output LED indicators, it ensures easy monitoring and setup.Specifically designed for DIN-rail installation in lighting control cabinets, the DITRA PulseProtect provides reliable protection and performance for modern lighting systems.






DITRA PulseProtect, single-phase, up to 10 A

DITRA PulseProtect, single-phase, up to 16 A

DITRA PulseProtect, single-phase, up to 20 A

DITRA PulseProtect, single-phase, up to 25 A

DITRA PulseProtect, single-phase, up to 32 A

Advanced Inrush Current Limiter for Single-Phase Networks

DITRA PulseProtect

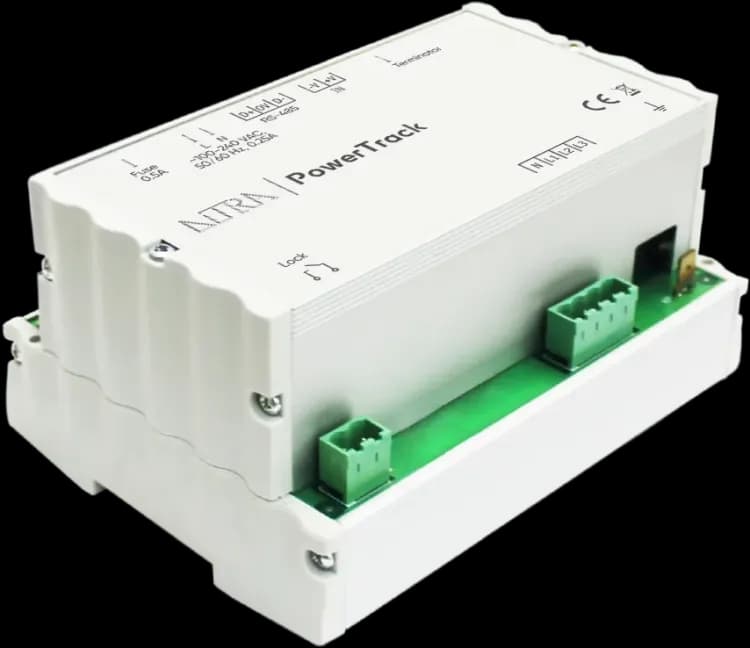

<h2>DITRA PowerTrack controller monitors line integrity at designated control points equipped with line integrity monitoring modules (<a target="_blank" rel="noopener noreferrer" href="https://ditra-solutions.com/products/PowerTrackModule">PowerTrack Modules</a>).</h2>&nbsp;It operates by addressably polling the modules with a 24-48V DC voltage when power is off, preventing luminaire activation





DITRA PowerTrack

Monitoring Controller for Real-Time Power Line Integrity Control

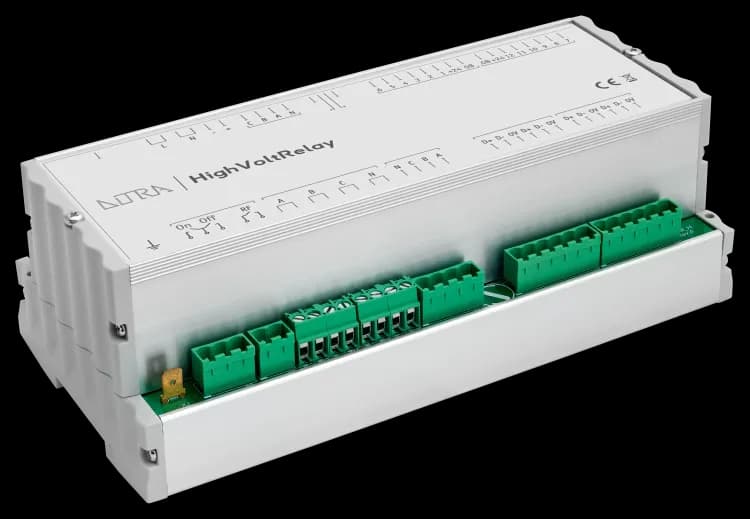

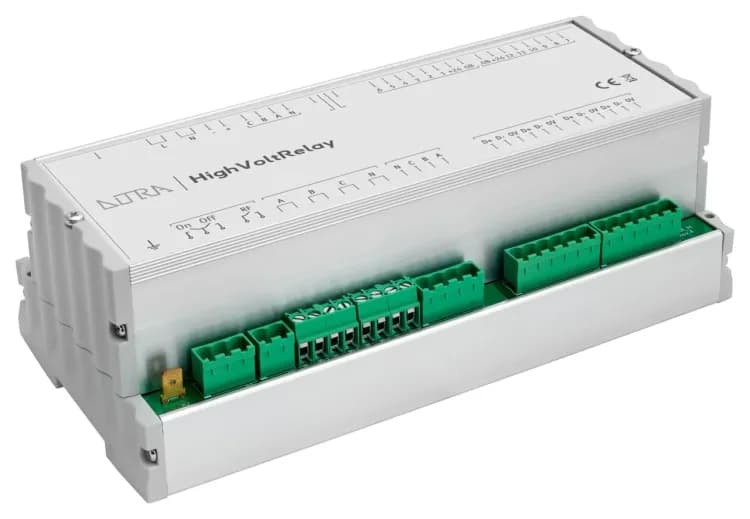

<h2>DITRA HighVoltRelay is an auxiliary module for the central <a target="_blank" rel="noopener noreferrer" href="https://ditra-solutions.com/products/DitraCorePro">DITRA CORE PRO</a> module.</h2>Designed for:• Telemeasurement (TI) of real-time and integrated parameter values, including current, voltage, active, reactive, and apparent power, frequency, and power factor (cosφ) in three-phase three-wire and four-wire AC networks.• Telemetry signaling (TS) for monitoring the discrete status of objects.• Remote control (TU) of objects.• Data transmission via telemechanical communication networks.The device operates as part of a switchgear (KRU) cell in distribution, connection, and transformer substations of electrical networks with voltage classes 6, 10, and 20 kV, as well as in substation telemechanics panels with voltage classes ranging from 35 to 750 kV.






DITRA HighVoltRelay, AC

DITRA HighVoltRelay, DC

DITRA HighVoltRelay module for remote measurement, telemetry signaling, and remote control in electrical networks and substations.

DITRA HighVoltRelay






Explore our range of smart lighting control products — from controllers and communication modules to gateways and luminaire nodes. Designed for flexibility, reliability, and integration into modern Smart City systems, our solutions cover every scenario from individual to group control, wired or wireless

PROfessional lighting control hardware
