What Is Media Façade Lighting

A media façade is an architectural surface that functions as a low- to high-resolution visual display, using lighting fixtures as pixels. Instead of static or slowly changing illumination, the building envelope is used to show video, generative graphics, animations, or data-driven content.

In media façade systems, each fixture, pixel node, or LED segment corresponds to an element of a digital canvas. Visual content is created in specialized software, mapped to the geometry of the façade, and streamed in real time using high-bandwidth lighting protocols such as Art-Net, sACN, KiNet, or SPI-based data links.

Media façades are typically installed on:

  • high-visibility commercial buildings,
  • stadiums and arenas,
  • transport hubs and airports,
  • shopping centres and retail complexes,
  • urban landmarks and public installations.



Media Facade vs. Dynamic Architectural Lighting

Media façade lighting represents the most advanced tier of façade control, extending beyond static or “classic” dynamic lighting:

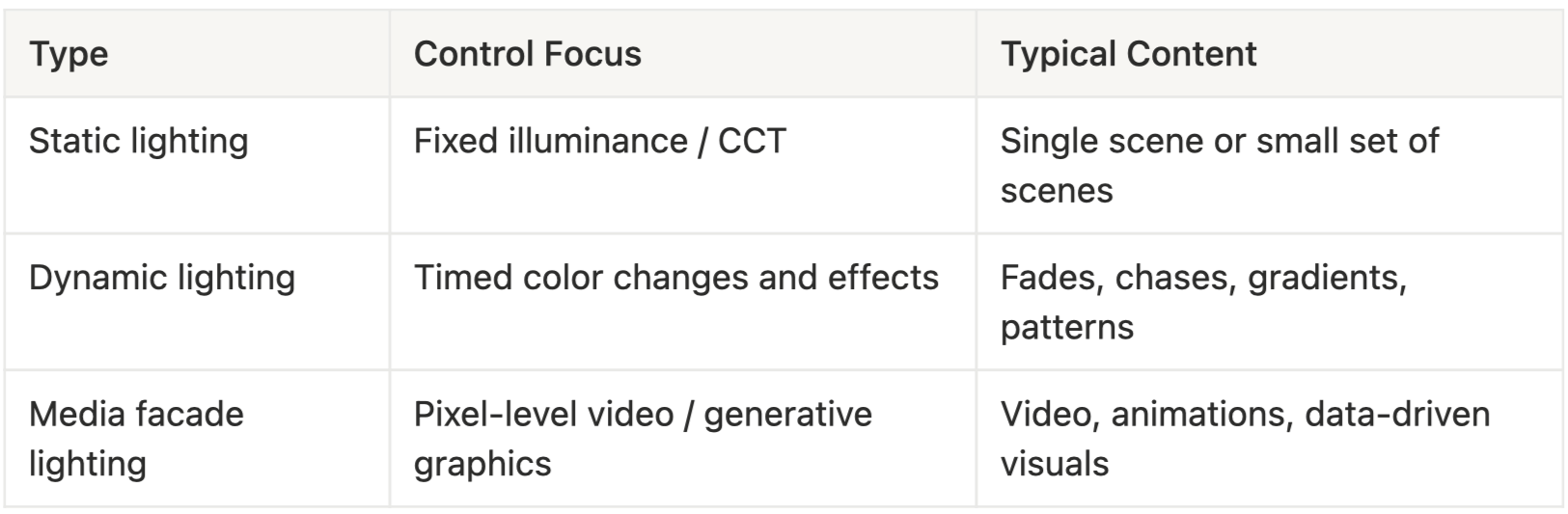

Architectural Lighting Comparison

Key differences of media façades:

  • Pixel density and addressing on a per-node or per-segment basis,
  • continuous frame-based playback (e.g., 25–60 fps),
  • high universe counts (often hundreds to thousands of DMX universes),
  • reliance on media servers / pixel-mapping software rather than only scene controllers.



Protocols Used in Media Facade Control

Media façades use a combination of traditional lighting and network protocols optimized for large data volumes.

DMX512

DMX512 is often used at the fixture or segment level:

  • transports intensity and color data for RGB/RGBW pixels,
  • commonly used in conjunction with Art-Net or sACN as “DMX over Ethernet”,
  • suitable for local runs but not alone for high-universe large façades.

Art-Net

Art-Net is a widely used protocol for transmitting DMX512-A (and optionally RDM) over UDP/IP networks. It is common in pixel mapping environments due to:

  • straightforward implementation over Ethernet,
  • support for multiple universes,
  • compatibility with a broad range of controllers and media servers.

sACN (E1.31)

Streaming ACN (sACN) is a standards-based protocol designed for large-scale entertainment and architectural systems:

  • optimized multicast/unicast distribution of DMX data,
  • high scalability for many universes,
  • designed as part of the ACN family for entertainment control networks.

KiNet

KiNet is an Ethernet protocol commonly used in pixel-based LED systems (e.g., some Color Kinetics architectures):

  • transports channel data and configuration information for LED nodes,
  • often used when fixtures and power/data devices are from the same ecosystem.

SPI / Native Pixel Protocols

For dense media façades built from LED strips, nodes, or dots, SPI-class protocols and related native LED chip protocols (e.g., WS281x families) are frequently used downstream:

  • carry per-pixel data at high speed over short distances,
  • usually driven by controllers that receive Art-Net/sACN and convert to SPI.



System Architecture

A media façade control system is typically structured in layers.

Pixel Fixtures

Media façades use a variety of pixel-capable luminaires, including:

  • LED dots and nodes arranged in grids or lines,
  • linear pixel bars and tubes,
  • flexible meshes and nets,
  • custom fixtures following building geometry.

Each element is mapped to coordinates on the virtual canvas and addressed by universe/channel or pixel index.

Controllers and Gateways

Between the content source and fixtures, systems use:

  • Ethernet-to-DMX/sACN/Art-Net nodes,
  • KiNet or similar pixel controllers,
  • SPI drivers for LED strips/dots,
  • DMX splitters, repeaters, and isolation devices.

Controllers handle data conversion, signal regeneration, power distribution, and often environmental protection for outdoor deployments.

Network Infrastructure

Media façades require a robust network backbone:

  • managed Ethernet switches (often with VLANs and QoS),
  • fiber links for long distances between building sections,
  • dedicated control networks to avoid congestion,
  • proper IP addressing and universe mapping strategy.

Media Servers and Pixel-Mapping Software

At the top of the stack is the content engine, which can be:

  • dedicated media server software (e.g., pixel-mapping controllers),
  • VJ / visual performance tools configured for LED output,
  • custom engines generating real-time or data-driven content.

Core functions typically include:

  • 2D / 3D pixel mapping of the façade,
  • playlist and timeline control,
  • real-time effect generation and compositing,
  • integration with external triggers (OSC, HTTP, DMX, timecode).



Content and Playback Workflow

A typical media façade workflow includes:

  1. Geometric modelling
    - creating a 2D or 3D representation of the building and fixture positions,
    - defining pixel coordinates and groups based on façade structure.

  2. Content creation
    - designing video loops, animations, generative graphics, or data-driven visuals,
    - applying branding or thematic guidelines.

  3. Pixel mapping
    - assigning segments of the content to physical pixels on the façade,
    - aligning virtual coordinates with real-world fixture layout.

  4. Playback configuration
    - setting frame rates, output universes, and protocol settings (Art-Net, sACN, KiNet),
    - defining playlists, schedules, and show timelines.
  5. Live and automated control
    - scheduled playback (e.g., by time of day, calendar, events),
    - manual triggering for special events,
    - optional interaction via sensors, audio input, or live data feeds.



Synchronization and Performance Considerations

Because media façades operate like large video displays, synchronization and performance are critical.

Key factors:

  • Frame rate: often 25–60 fps for smooth motion.
  • Universe count: high-resolution façades may require hundreds or thousands of DMX universes; data must be distributed efficiently.
  • Latency and jitter: networks and controllers should maintain low and predictable latency to keep content aligned across the entire surface.
  • Clocking and timecode: some systems use timecode (e.g., SMPTE, Art-Net timecode) or centralized clock sources to keep multiple controllers in sync.

Performance tuning often includes:

  • segmenting the façade into controller zones,
  • using multicast where appropriate (sACN),
  • offloading processing to dedicated media servers,
  • isolating lighting traffic from general IT networks.



Use Cases and Integration Scenarios

Common use cases include:

  • Branding and communication: displaying logos, colour schemes, or campaign visuals on building exteriors.
  • Event and show extension: synchronizing facade content with events inside the building (sport matches, concerts, festivals).
  • Data-driven art: reacting to live data streams such as social media feeds, environmental parameters, or traffic data.
  • Interactive installations: using sensors (motion, sound, cameras) to allow the public to influence façade visuals in real time.

Media façades are frequently integrated with:

  • architectural lighting control systems for base illumination,
  • city-wide scheduling and smart city platforms,
  • audio systems and show control frameworks.



Design and Operational Considerations

When planning a media façade, typical engineering aspects include:

  • Optical design: pixel pitch, viewing distance, brightness, contrast, and colour rendering.
  • Environmental robustness: IP rating, UV resistance, thermal management, wind loads.
  • Maintenance strategy: access to fixtures, modular replacement, monitoring of failures.
  • Energy use: power budgeting and average vs peak load management.
  • Regulation and light pollution: compliance with local standards, brightness limits, content policies.
