Stage Lighting Control Overview

Entertainment lighting control refers to the technologies, protocols, and system architectures used to operate lighting equipment in:

• theatres and opera houses,
• concert venues and live shows,
• TV studios and film sets,
• festivals and outdoor events,
• theme parks and interactive attractions,
• touring environments and rental productions.

These systems are built for real-time performance, high precision, redundancy, and interoperability, allowing operators to control conventional fixtures, intelligent lights (moving heads), LED systems, pixel fixtures, and special-effects equipment through unified control networks.

Entertainment lighting systems rely heavily on deterministic timing, consistent refresh rates, and standardized protocols (DMX512-A, RDM, Art-Net, sACN), ensuring predictable show execution under demanding conditions.

Types of Entertainment Lighting Systems

1. Conventional (Tungsten / LED Fixtures)

• Basic on/off and dimming control.
• Historically via dimmer racks; now often LED with internal drivers.
• Controlled primarily through DMX512 or dimmer curves.

2. Automated and Intelligent Fixtures

• Moving heads (spot, wash, beam),
• LED profiles and hybrid fixtures,
• fixtures with pan/tilt, zoom, iris, gobos, animation wheels.

  Controlled using multiple DMX channels for all parameters.

3. LED and Pixel-Based Systems

• LED bars, battens, pixels, grids, tubes.
• Require multi-universe streaming via Art-Net or sACN.
• Used for concerts, set pieces, immersive experiences.

4. Media and Video Integration

• Pixel mapping and video-to-light conversion for visual synchronization.
• Often handled by media servers connected to lighting networks.

Core Protocols in Entertainment Lighting

Entertainment lighting depends on robust, low-latency protocols standardized for show environments.

DMX512-A

The global standard for lighting control:

• 512 channels per universe,
• fixed refresh (~44 Hz),
• deterministic timing,
• widely supported by all fixtures,
• daisy-chain topology with shielded twisted-pair cabling

Defined by ANSI E1.11 (USITT DMX512-A).

RDM (Remote Device Management)

ANSI E1.20 extension to DMX that enables:

• fixture discovery,
• parameter reading/writing,
• monitoring and diagnostics.

Used extensively in theatres and touring rigs for quick setup.

Art-Net

Lighting data over Ethernet (DMX-over-IP):

• transports many universes across standard networks,
• supports broadcast or unicast,
• widely used for LED and pixel-heavy shows.

sACN (E1.31)

Streaming ACN, designed for:

• high-universe-count systems,
• more efficient multicast routing,
• prioritized source management (multiple controllers).

Often preferred for large venues and modern touring shows.

OSC / MIDI / Timecode (SMPTE / MTC)

Used for:

• show synchronization,
• triggering cues from audio, video, or automation systems.

ESSENTIAL for time-locked productions (theatre, concerts, broadcast).

System Architecture

Entertainment lighting systems typically include:

Lighting Consoles

Primary control devices used in:

• concerts, theatres, live broadcasts,
• touring setups and cue-driven productions.

Consoles output DMX directly or via Art-Net/sACN gateways.

Popular features:

• cue stacks,
• executor faders,
• palettes (color/position/beam),
• effects engines,
• pixel mapping modules (in modern consoles).

Gateways and Nodes

Art-Net/sACN → DMX nodes placed:

• on trusses,
• under stages,
• inside set pieces,
• near LED/tube/pixel systems.

Used for distribution, isolation, and reliability.

Splitters, Repeaters, and Isolators

Required in DMX networks to:

• prevent signal degradation,
• isolate failures,
• multiply universe outputs,
• extend cable reach.

Media Servers

Software engines generating:

• video content,
• pixel visuals,
• projection mapping,
• hybrid video/lighting outputs.

Often integrated via Art-Net, sACN, or NDI/screen capture.

Fixture Infrastructure

Entertainment rigs include:

• truss systems,
• flight-case mounted controllers,
• power distribution (PDUs),
• rugged cabling for touring environments.

Functional Capabilities of Entertainment Lighting Control

Cues and Timelines

Shows are structured using:

• cue stacks,
• fade times,
• triggers,
• load/stomp/override logic.

Used heavily in theatre and scripted events.

Live Busking / Real-Time Performance

Concert operators often use:

• executor faders,
• momentary buttons,
• live effects engines,
• BPM syncing.

Effects and Pixel Engines

Modern fixtures support:

• movement effects,
• color waves and chases,
• pixel-level patterns,
• generative effects.

Synchronization

Performed using:

• SMPTE timecode (film/TV),
• MIDI timecode,
• OSC triggers,
• network clocking (NTP),
• audio-reactive modules.

Diagnostics and Monitoring

RDM or Ethernet monitoring provides:

• lamp hours,
• temperatures,
• pan/tilt errors,
• power faults,
• network health.

Applications

Entertainment lighting control is used in:

• theatres and performing arts centers,
• touring concerts and music festivals,
• corporate events and conventions,
• TV studios and broadcast facilities,
• immersive art installations,
• theme parks and show attractions.

Many installations blend architectural lighting with entertainment systems — especially in hotels, malls, escape rooms, experience centers, and hybrid performance venues.

Integration With Other Systems

Entertainment lighting often integrates with:

1. Show Control Systems, e.g. QLab, Watchout, Medialon, TPi, Resolume.

2. Media Servers, e.g. Disguise, Hippotizer, Catalyst, Madrix, Smode, TouchDesigner.

3. Automation & Rigging Shows requiring motion control use:
   - TAIT Navigator,
   - Kinesys,
   - CyberMotion systems.
   Integration ensures synchronized motion + light.

4. Audio & FX

Through:

• MIDI triggers,
• OSC messages,
• timecode from DAWs,
• pyro/FX control endpoints.

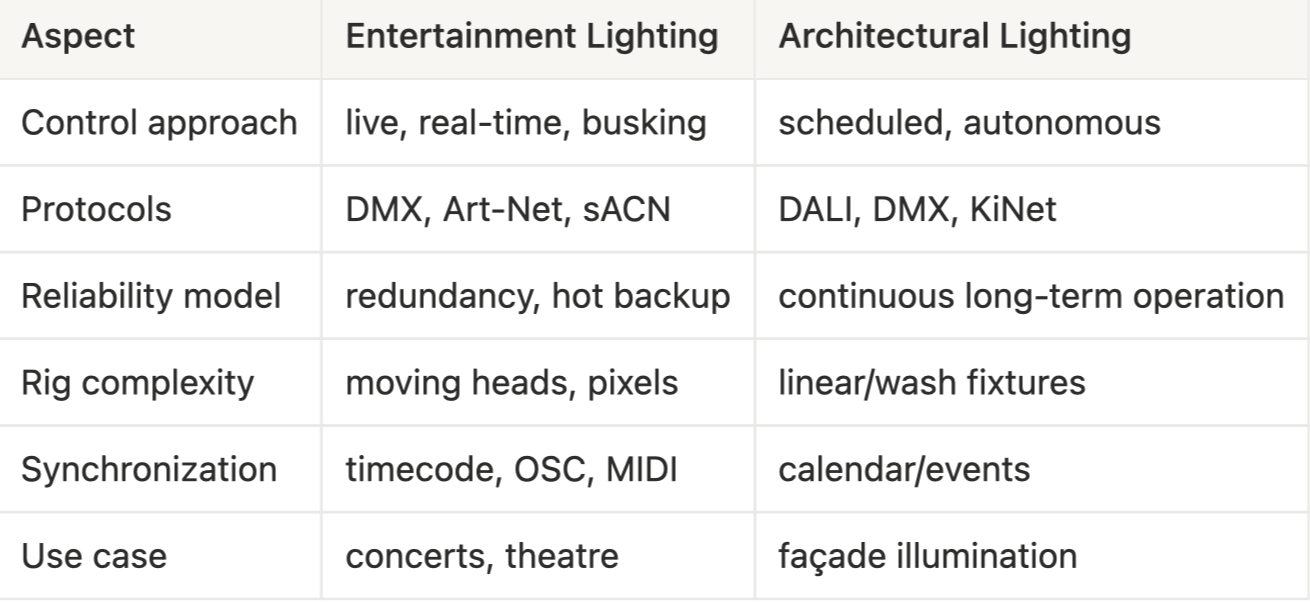

Differences From Architectural Lighting
