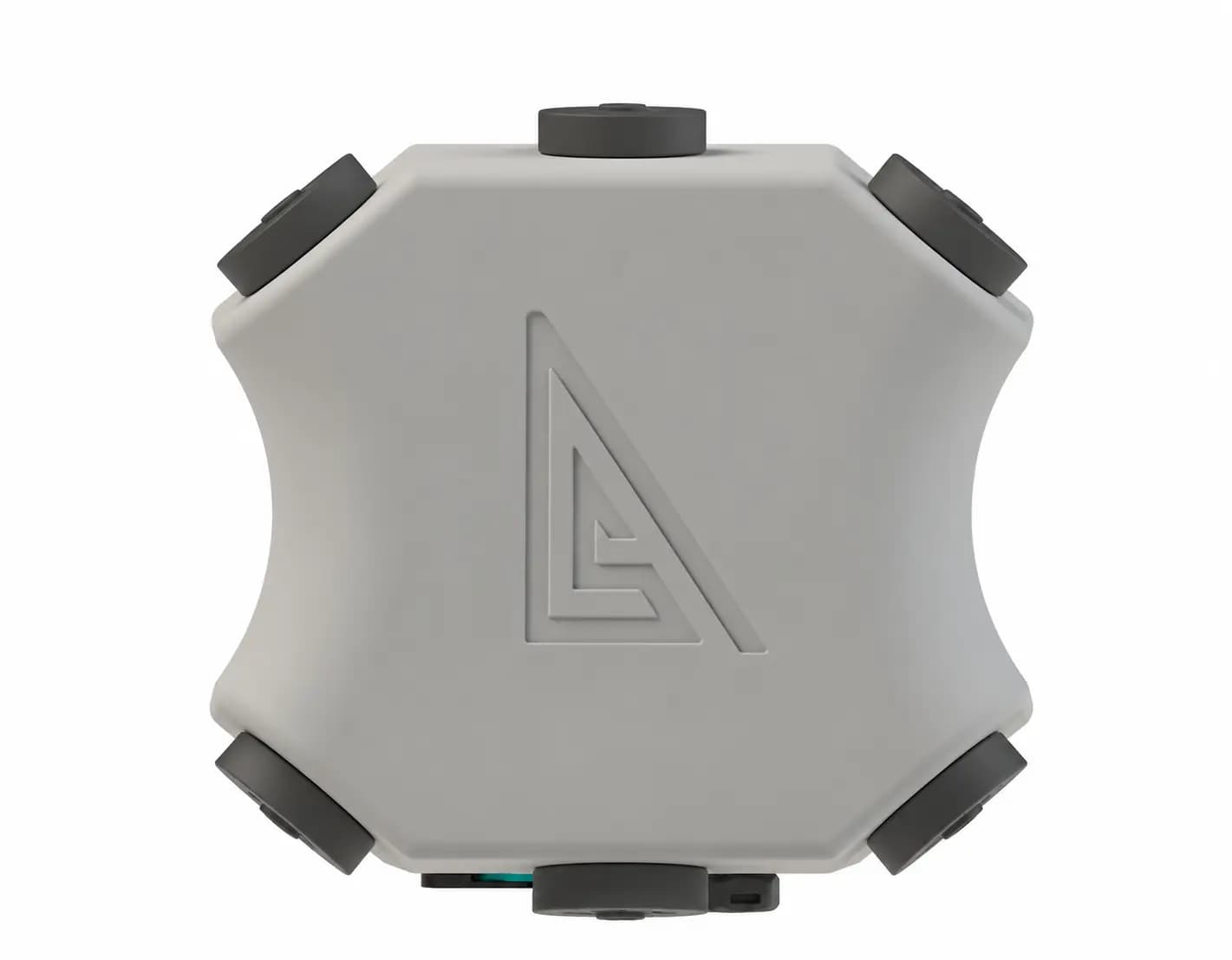

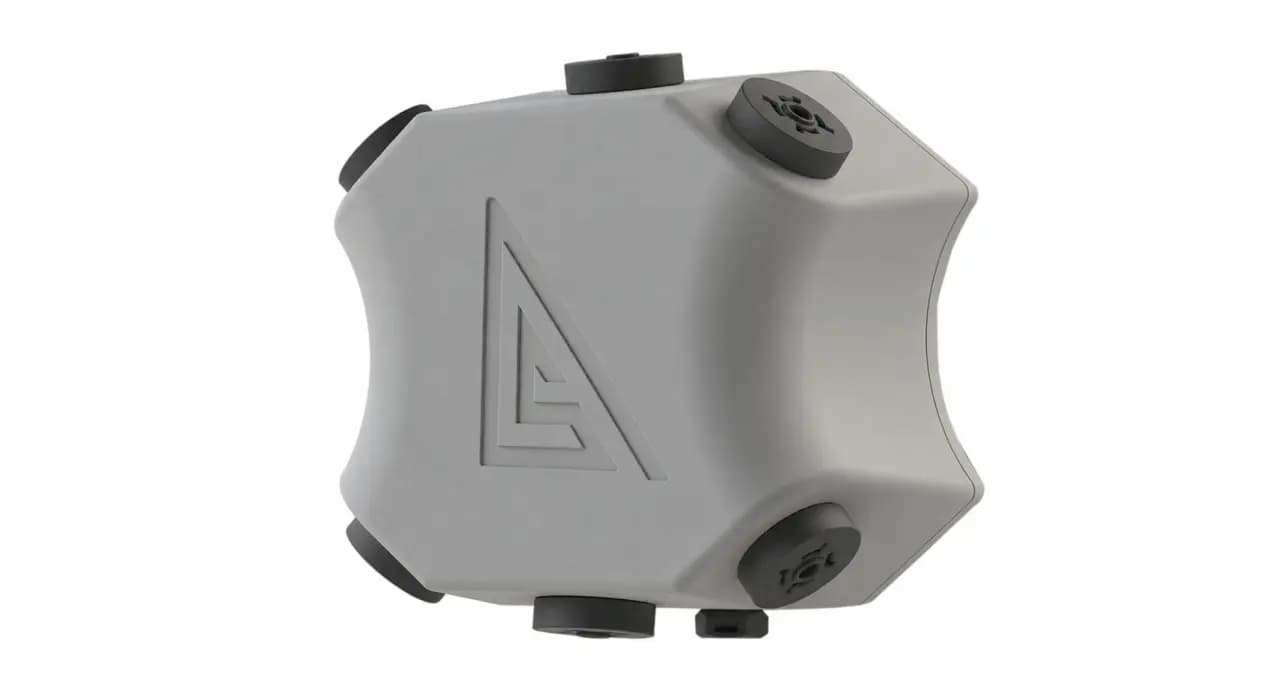

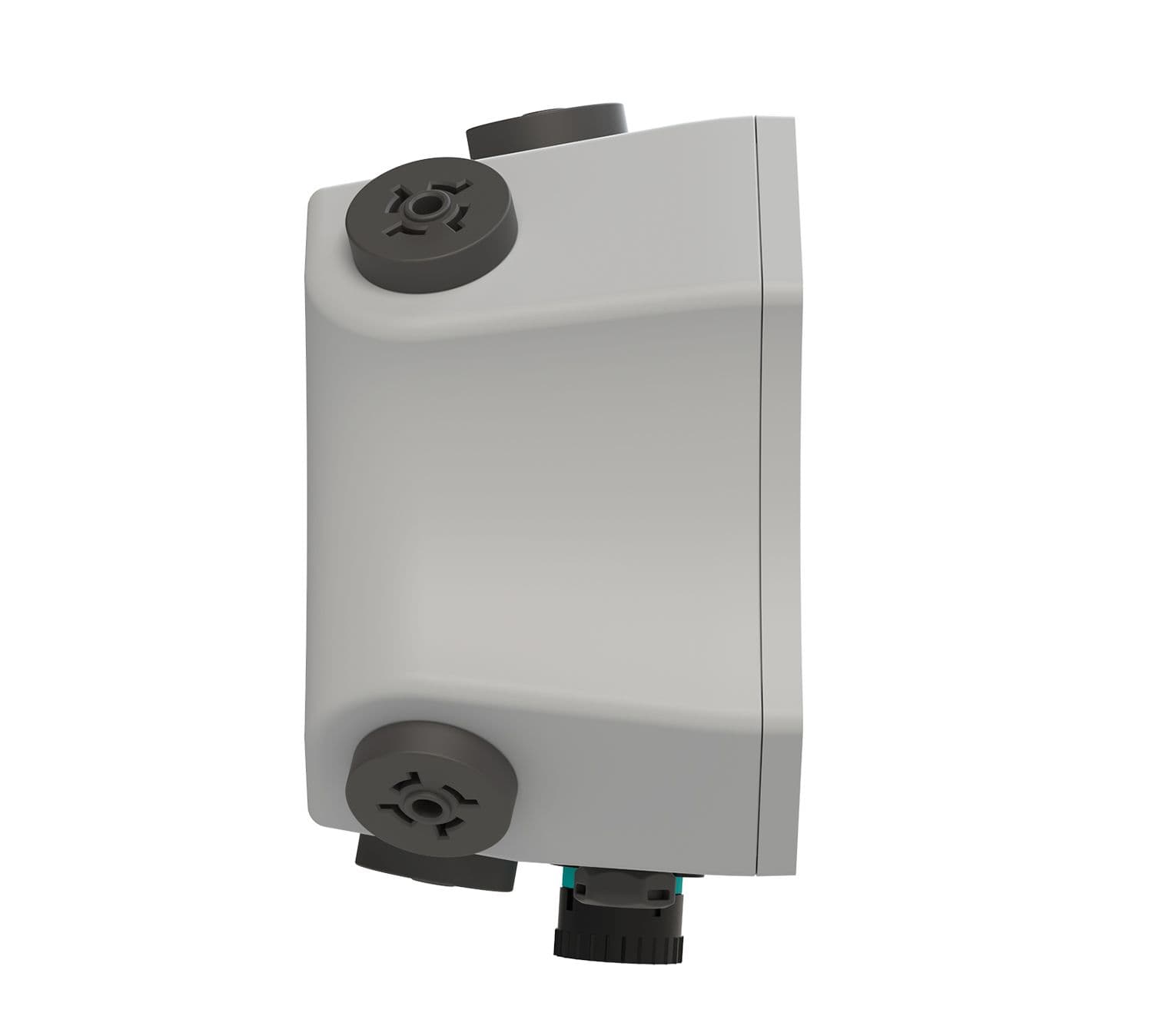

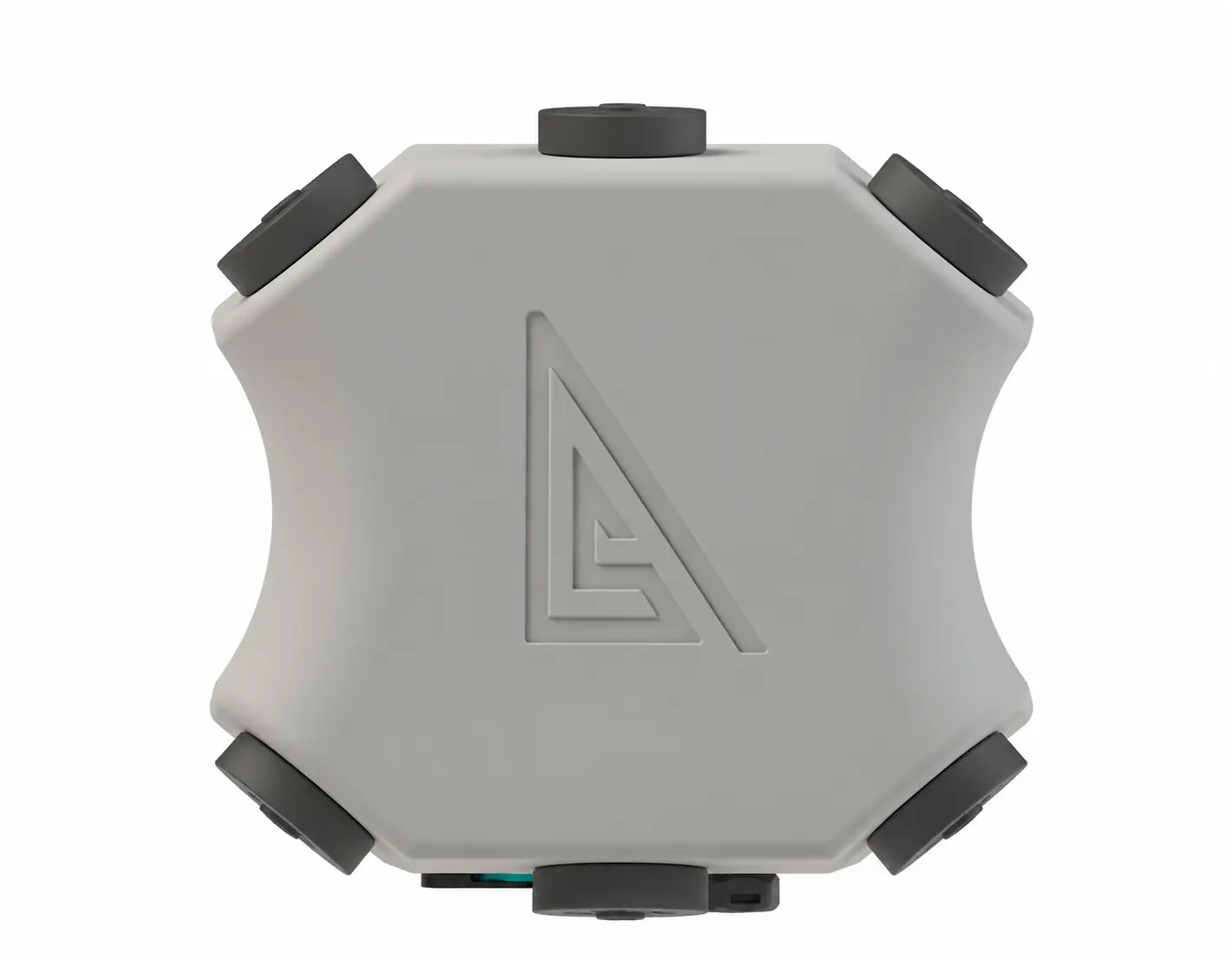

External Zhaga Hub Docking Station
Smart Pole Hub for Connecting Sensors and Modules
External Zhaga Hub Docking Station is a hub designed to be the foundational unit for an array of Smart Pole modules and sensors.
This compact station excels in eco and weather monitoring, providing reliable data transmission to the DITRA server, and seamless management ofyour smart
systems.
Smart Pole Ecosystem Expansion
This hub station acts as a core component in the Smart Pole ecosystem, facilitating easy and efficient installation of sensors and modules, and supporting real-time environmental surveillance.
- Versatile Module Integration - Six Zhaga connectors for connecting a variety of sensors and modules to enhance monitoring and
control capabilities. - Advanced Weatherproofing - IP65 rated plastic casing delivers superior protection against dust and moisture ingress, allowing for
worry-free outdoor installation. - Real-time Data Transmission - Utilizes a Zhaga GSM Node for seamless mobile network communication, ensuring timely alerts and
data-driven decisions.
- Mechanical
Housing: protected
Material: plastic
Dimensions, mm: 173(L) x 138(H) x 99(W)
Mass: 1 kg
Mass(wich stand): 1.2 kg
Mounting: on a support, a wall, etc- Power & Electrical
Input Voltage: ~100-277 V AC, 50/60 Hz
Input Power (max): 3 W
Input Power (max) with all sensors: 21 W
Sensor Power and central controller: –12-24 V- Environment
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 65- Compliance & Standards
Certification: CE, RoHS
- Control & Data Connections
Control output interface: DALI 2.0
- Inputs / Outputs
Connectors: Zhaga book 18, TH387
Sensors: ECO & Meteo sensors- Configuration / Indication
Setup: Remote using the DITRA
- Package Contents
External Zhaga Hub Docking Station
Warranty: 36 Month
