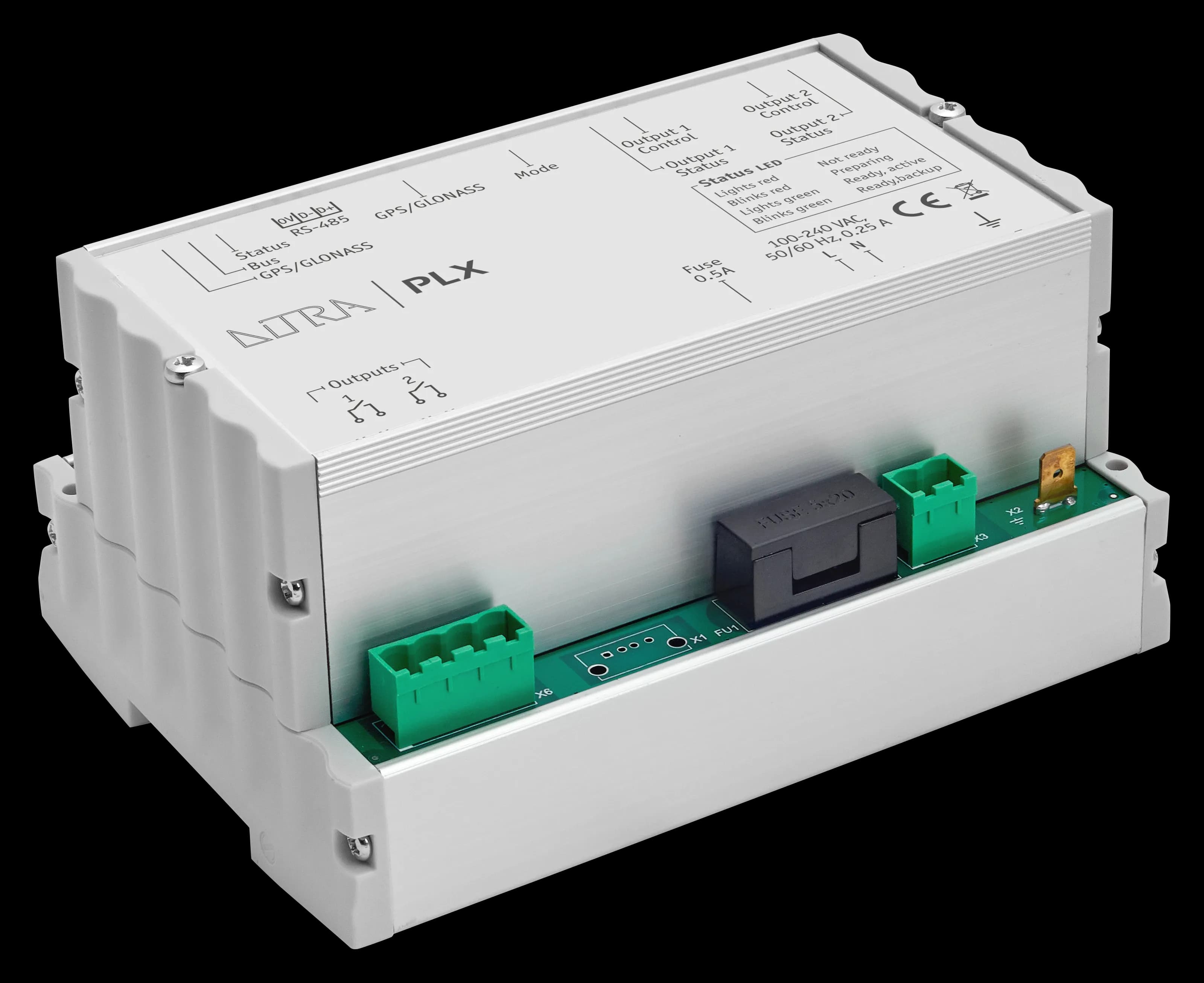

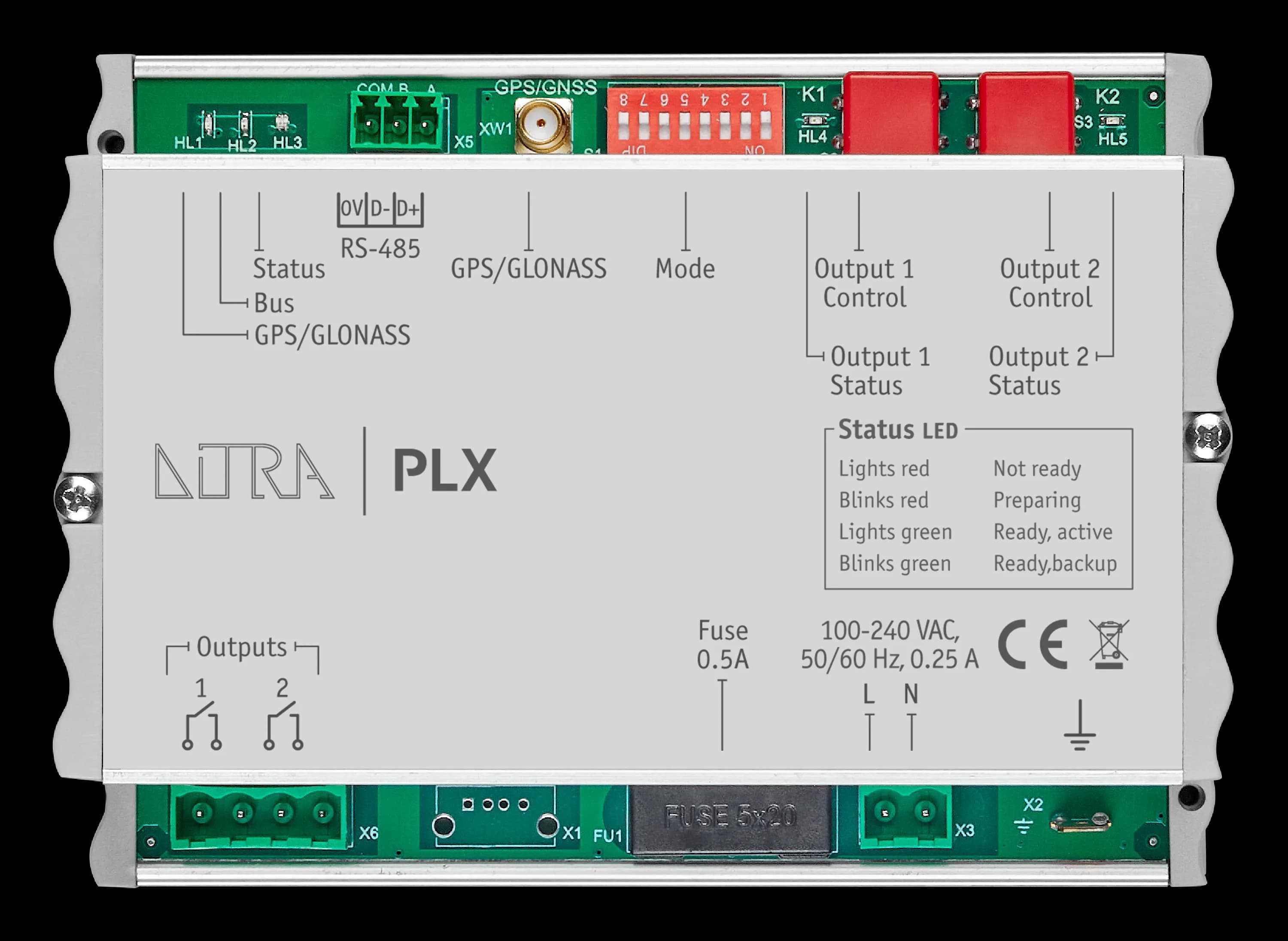

DITRA PLX
Modbus-RTU Timer Switch Relay for Scheduled Lighting Control
DITRA PLX is an advanced solution for managing scheduled lighting equipment, capable of operating in stand-alone mode or as a backup controller for a lighting control system. Equipped with a built-in GPS module, it ensures precise synchronization with GNSS while minimizing maintenance requirements.
The unit supports the RS-485 interface, operates on a 100-240 V AC power supply, and can be configured locally via USB or remotely using the cabinet controller.
Designed for installation in a DIN-rail lighting control cabinet, it features an IP20-rated enclosure, providing reliable protection against dust and moisture for indoor environments.
Compact Design with Built-in GPS and High Clock Accuracy
Features automatic schedule generation, operates as a backup controller, and supports DIN rail mounting for space-efficient installation.
- Mechanical:
Housing: aluminum DIN mounted case
Material: metal, plastic
Dimensions, mm: 142(L) x 74,5(H) x 105(W)
Mass: 0.55 kg
Mounting: DIN (4 modules) rail - Power & Electrical:
Input Voltage: ~100-240 VAC, 50/60 Hz
Input Power (max): 5 W
Mains Fuse: 0.5 A - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certification: CE compliant, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Navigation: GPS
Serial interface: RS-485
Max length of RS-485 line: 1500 m - Inputs / Outputs:
Relay outputs: 2
Max voltage and current at outputs: 240 V, 5 A
Connectors: terminal blocks 15EDGVC - Configuration / Indication:
Setup: DIP switchers, remote via cabinet controllers
Indication: LEDs - Package Contents:
DITRA PLX
Connector set
- DITRA PLX
- : DIT-PLX-2
