DITRA HMI TS 10.1 Display
HYDRA HMI MODBUS TS 10.1 Panel

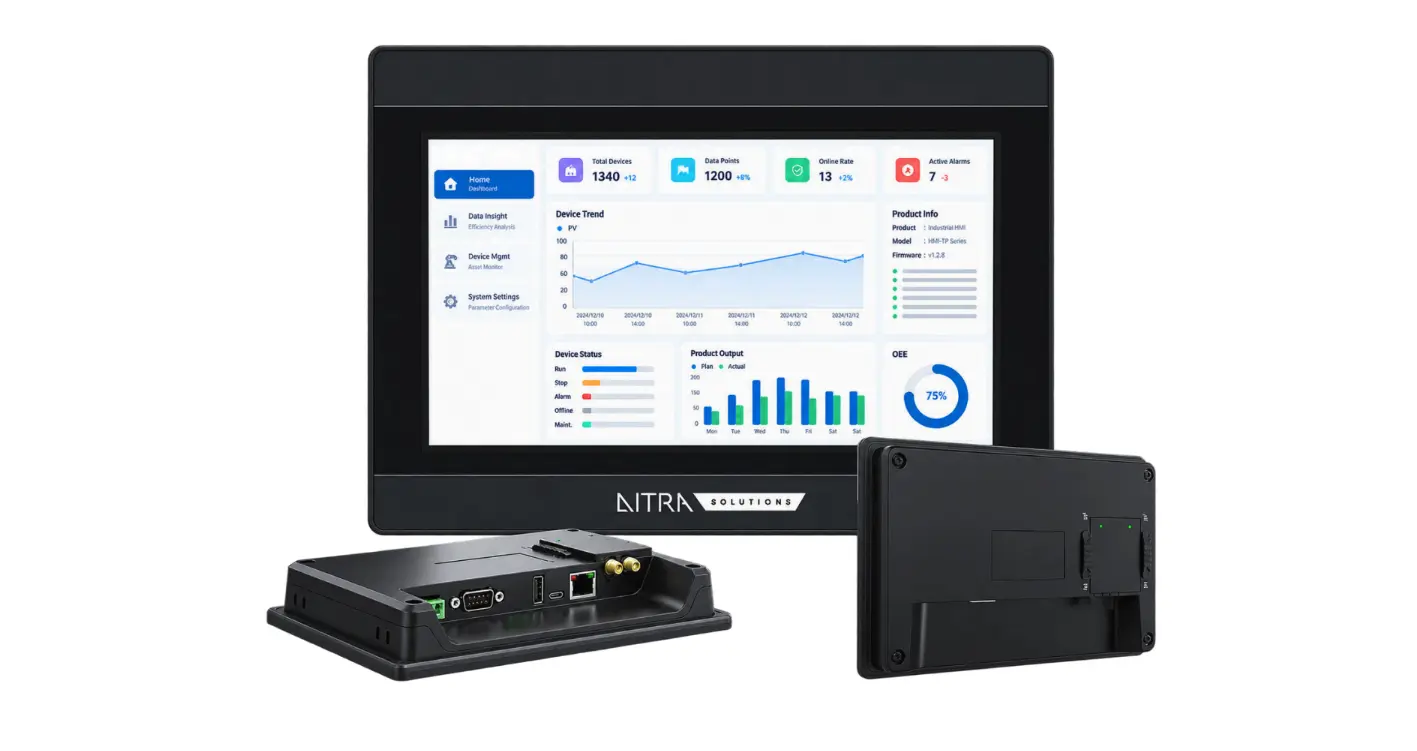

10.1-inch industrial human-machine interface for local visualization, control and monitoring of automation equipment.It provides direct Modbus RTU and Modbus TCP connectivity through serial and Ethernet interfaces and is configured using FStudio engineering software.
- 10.1-inch 16:9 TFT LCD with 1024 × 600 resolution and 400 cd/m2 brightness
- 4-wire resistive touchscreen for reliable industrial operation• 1 GHz dual-coreCortex-A7 processor
- 4 GB eMMC + 256 MB DDR3 memory platform• Built-in 10/100 Mbps Ethernet interface
- Three serial channels supporting RS-232, RS-485 and RS-422
- Direct Modbus RTU and Modbus TCP communication
- FStudio graphical configuration software with simulation and project download tools
- USB Type-C OTG and USB Type-A interfaces
- Built-in real-time clock (RTC)
- Wide DC input range: 9–28 V DC, nominal 24 V DC
- Front panel protection level IP65 and natural cooling
- Mechanical
Enclosure: Engineering plastic, gray
Dimensions: 273 × 213 × 36 mm
Panel cutout: 260 × 202 mm
Weight: approx. 0.9 kg- Display & Touch
Display: 10.1-inch 16:9 TFT LCD
Resolution: 1024 × 600
Colors: 24-bit
Brightness: 400 cd/m2
Backlight: LEDLCD
lifetime: 50,000 h
Touch panel: 4-wire resistive touchscreen- Control & Data Connections
Ethernet: 1 × RJ45, 10/100 Mbps
USB: 1 × USB Type-C OTG; 1 × USB Type-A
COM1: RS-232 / RS-485 / RS-422
COM2: RS-485
COM3: RS-232
Protocols: Modbus RTU; Modbus TCP- Compliance & Standards
Compliance: CE, RoHS
- Processing & Memory
CPU: 1 GHz dual-core Cortex-A7
Memory: 256 MB DDR3
Storage: 4 GB eMMC
RTC: Built-in- Power & Environment
Rated power: < 10 W
Input voltage: 24 V DC nominal; 9–28 V DC
working range
Operating temperature: 0...+55 °C
Storage temperature: −20...+65 °C
Humidity: 10–90% RH, non-condensing
Protection: Front IP65; rear IP20
Cooling: Natural cooling- Configuration
Engineering software: DStudio
Project download: USB / Ethernet
Simulation: Offline and online simulation supported
