DITRA PLC Filter Choke

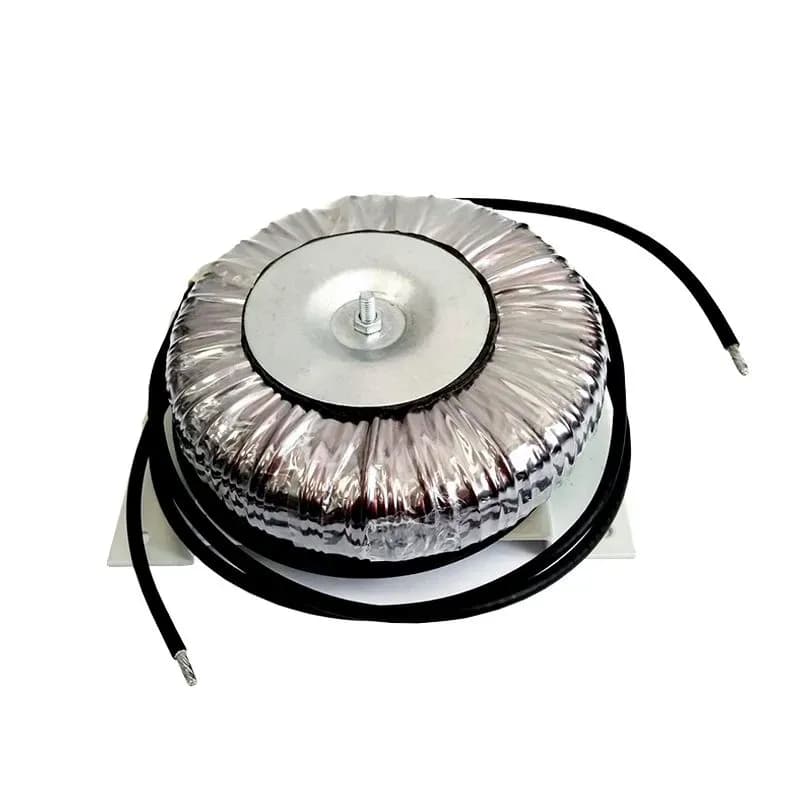

Anti-Jamming filter
PLC Line Filter for Power Line Communication
Maximum Load: 20, 40 and 60 A
PLC FilterChoke are designed to prevent the influence of electrical characteristics of the feeder line on PLC signal transmission, as well as to eliminate high-frequency interference generated by power-supply and power-conversion equipment.
- Mechanical
Dimensions, mm:
150 (D) × 80 (H) × 150 (W)(for the 60 A line filter)
115 (D) × 65 (H) × 115 (W)(for the 40 A line filter)
120 (D) × 40 (H) × 120 (W)(for the 20 A line filter)
Mounting: DIN rail
Weight:
5.9 kg (for the 60 A line filter)
2.8 kg (for the 40 A line filter)
2 kg (for the 20 A line filter)- Power & Electrical
Power supply: ~100–250 V, 50/60 Hz
Maximum current: 20, 40, 60 A- Environment
Operating Temperature: -40...+70°C Storage
Temperature: -50...+80°C Operating Relative
Humidity (max): 99%
IP Rating: IP 20- Compliance & Standards
Certification: CE compliant, RoHS
- Inputs / Outputs
Connection: Wire
- Configuration / Indication
Settings: DIP switch
Indicators: LEDs, for L (input), L (output)- Package Contents
PLC Filter Choke
Warranty: 60 Month
