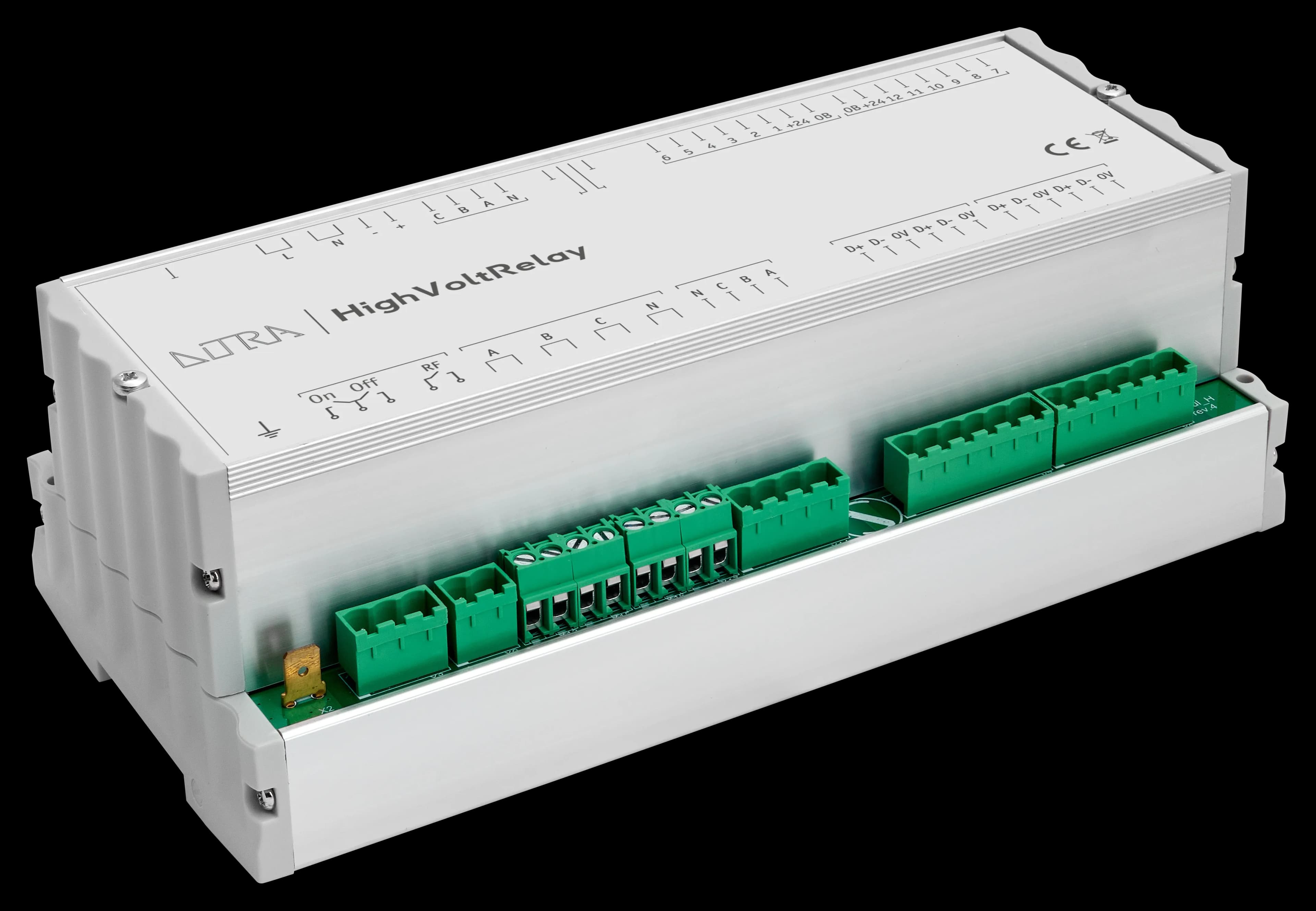

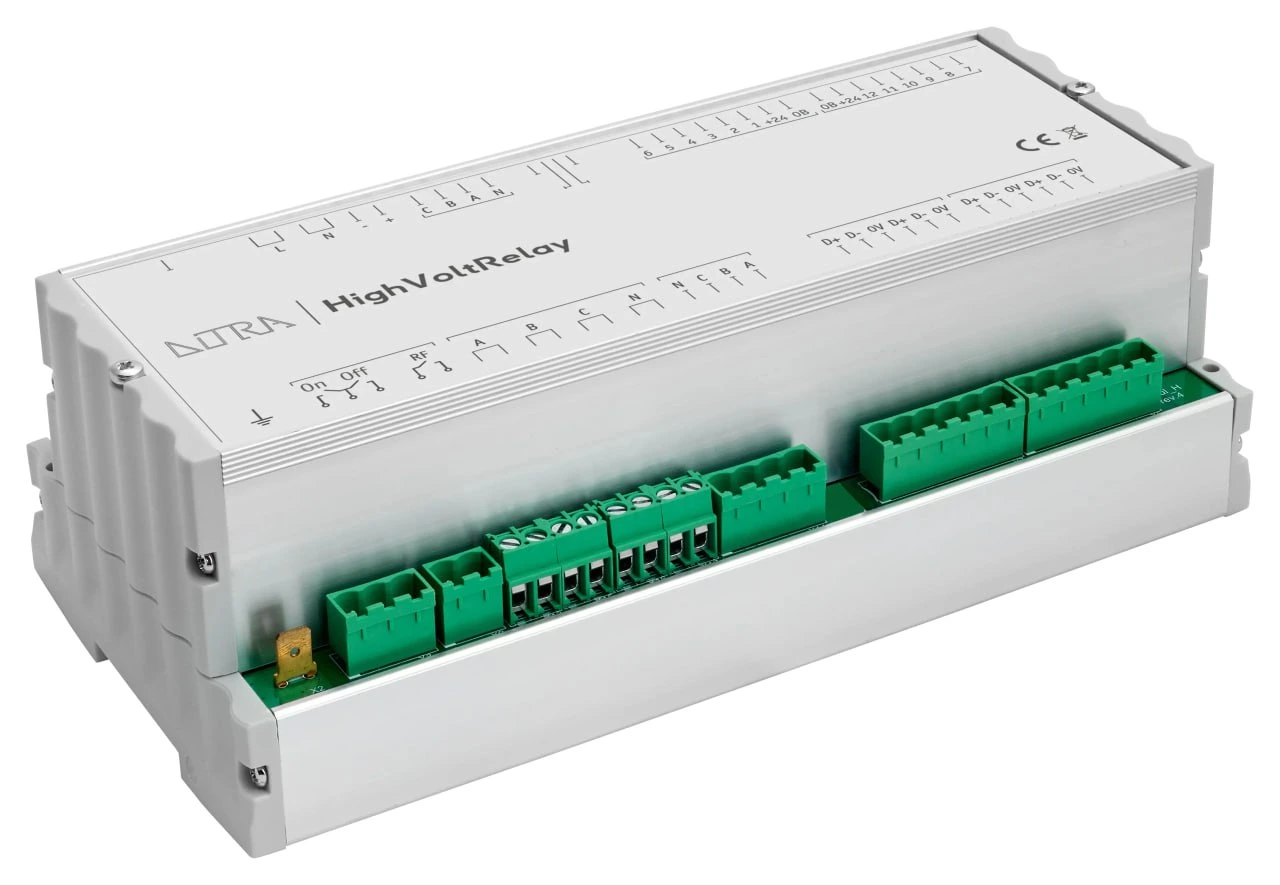

DITRA HighVoltRelay module for remote measurement, telemetry signaling, and remote control in electrical networks and substations.

    DITRA HighVoltRelay is an auxiliary module for the central DITRA CORE PRO module, designed for:

    • Telemeasurement (TI) of real-time and integrated parameter values, including current, voltage, active, reactive, and apparent power, frequency, and power factor (cosφ) in three-phase three-wire and four-wire AC networks.

    • Telemetry signaling (TS) for monitoring the discrete status of objects.

    • Remote control (TU) of objects.

    • Data transmission via telemechanical communication networks.

    The device operates as part of a switchgear (KRU) cell in distribution, connection, and transformer substations of electrical networks with voltage classes 6, 10, and 20 kV, as well as in substation telemechanics panels with voltage classes ranging from 35 to 750 kV.

    • • Real-time and Integrated Parameter Telemeasurement

      • Telemetry Signaling of Object Status

      • Remote Control of Equipment

      • Data Transmission via Telemechanical Network Channels

    • Mechanical:

      • Housing: DIN-rail mounted case (12 modules)

      • Material: Metal, plastic

      • Dimensions, mm: 210(L) x 105(H) x 75(W)

      • Mass: 0.6 kg

      • Mounting: Power supply cabinet installation

    • Power & Electrical:

      • Input Voltage: ~100-270V 50/60 Hz; 12/24V

      • Input Power (max): 5 W

      • Mains Fuse: 0.5 A

    • Environment:

      Operating Temperature: -40…+70°C

      Storage Temperature: -50…+80°C

      Operating Relative Humidity (max): 95%

      IP Rating: IP20

      Certification: CE compliant, RoHS

      Warranty: 36 Months

    • Interfaces and Protocols:

      Serial Interface: 2 × RS-485

      Max RS-485 Line Length: 1500 m

    • Inputs / Outputs:

      Remote Measurement (TI) – Current Channels: 4

      Remote Measurement (TI) – Voltage Channels: 3

      Remote Signaling (TS) – Dry Contact Channels: 12 (2 × 6)

      Phase Control Channels: 3

      Connectors: Removable terminal blocks 15EDGVC



      Теперь перевод точнее передает смысл.

    • Configuration / Indication:

      Setup: Remote via DITRA CORE PRO, DIP switch

      Indication: LED indicators

    • Package Contents:

      DITRA HighVoltRelay
      Connector set

    DITRA HighVoltRelay, AC
    • : DIT-RTU
    DITRA HighVoltRelay, DC
    • : DIT-RTU-DC
