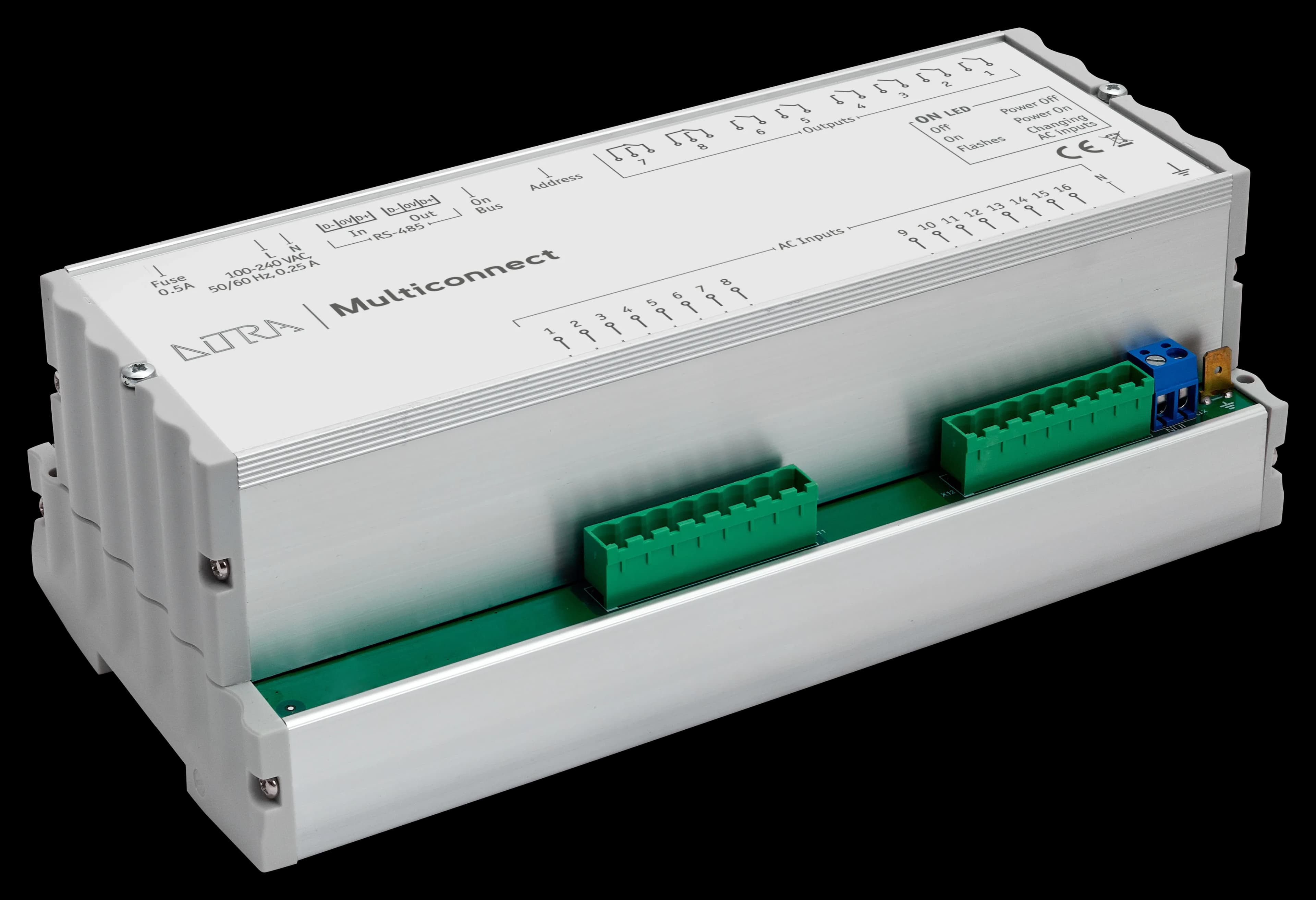

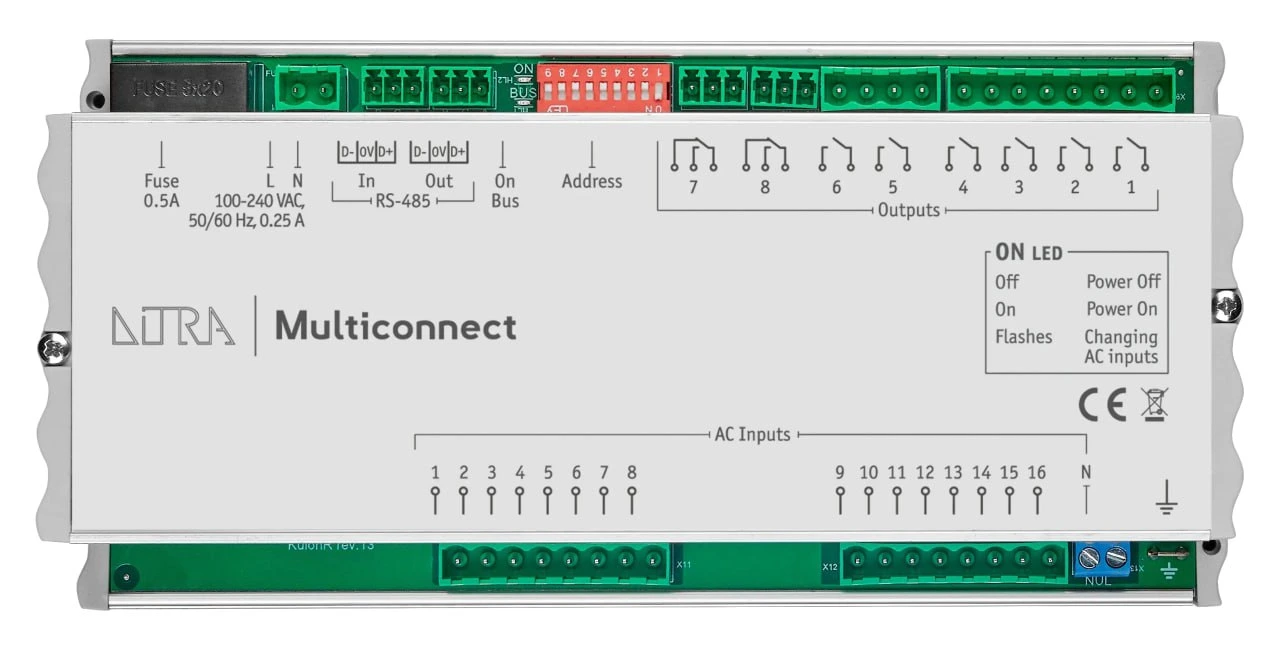

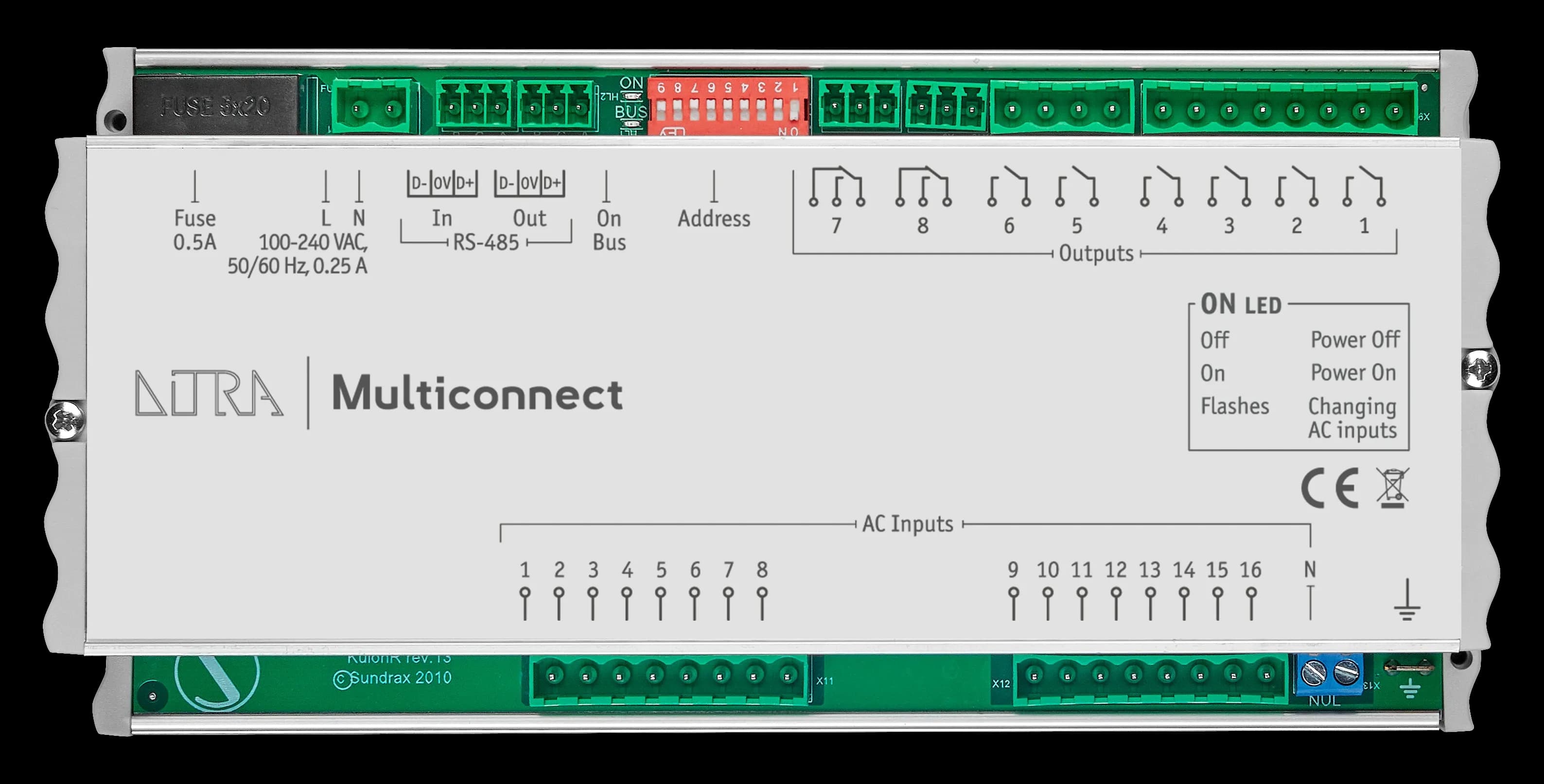

Modbus-RTU I/O Expansion Module for Enhanced Lighting Control

DITRA MultiConnect is a versatile expansion module that adds 16 independent inputs and 8 independent relays to lighting control systems, enhancing the functionality of cabinet controllers.

Communication and lighting control are facilitated through the RS-485 interface. The unit supports power supply options of AC 100-240 V or DC 12-30 V, depending on the model.

Configuration is flexible and can be performed remotely via cabinet controllers or locally using the DIP switches on the device.

Designed for DIN-rail installation, DITRA MultiConnect is the ideal solution for expanding the capabilities of lighting control cabinets.

  • • Connection to central controller DITRA CORE PRO via RS-485

    • Fully galvanically isolated RS-485 interface for reliable communication

    • Features 16 independent inputs for enhanced functionality

    • Equipped with 8 independent relay outputs for versatile control

    • Includes a built-in power supply for streamlined installation

  • Mechanical:

    Housing: aluminum DIN mounted case
    Material: metal, plastic
    Dimensions, mm: 212(L) x 74,5(H) x 105(W)
    Mass: 0.6 kg
    Mounting: DIN (12 modules) rail

  • Power & Electrical:

    Input Voltage: ~100-240V 50/60 Hz; –12-30V
    Input Power (max): 5 W
    Mains Fuse: 0.5 A

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 95%
    IP Rating: IP 20
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Serial interface: RS-485
    Max length of RS-485 line: 1500 m

  • Inputs / Outputs:

    Relay outputs: 8 (6 on/off, 2 changeover)
    Voltage control inputs: 16
    Max voltage and current at outputs: 240 V, 5 A
    Max voltage at inputs: 240 V
    Connectors: terminal blocks 2EDGVC, 15EDGVС

  • Configuration / Indication:

    Setup: remote via cabinet controllers, DIP switcher
    Indication: LEDs

  • Package Contents:

    DITRA MultiConnect
    Connector set

DITRA MultiConnect, AC, 8 relays, 16 inputs
  • : DIT-R-EXT-816
DITRA MultiConnect, DC, 8 relays, 16 inputs
  • : DIT-R-EXT-816-DC
DITRA MultiConnect, AC, 16 inputs
  • : DIT-R-EXT-016
DITRA MultiConnect, DC, 16 inputs
  • : DIT-R-EXT-016-DC
