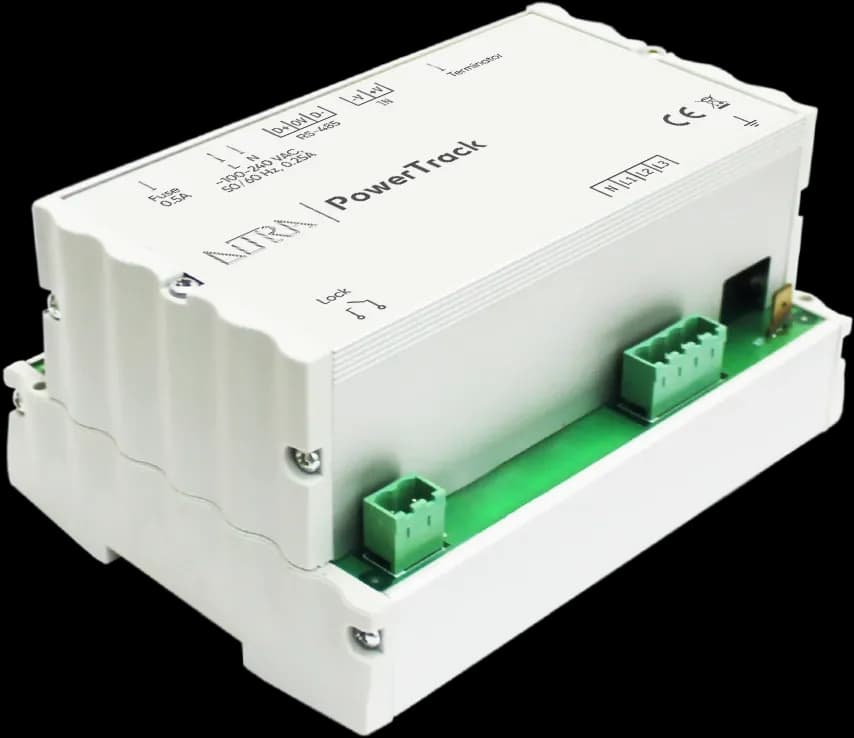

DITRA PowerTrack

DITRA PowerTrack

Monitoring Controller for Real-Time Power Line Integrity Control

DITRA PowerTrack controller monitors line integrity at designated control points equipped with line integrity monitoring modules (PowerTrack Modules). It operates by addressably polling the modules with a 24-48V DC voltage when power is off, preventing luminaire activation

  • RS-485 interface connection to DITRA CORE PRO

    Fully isolated RS-485 interface

    Built-in 220V power supply

    Monitors power line status at up to 100 points

  • Mechanical:

    Housing: aluminum DIN mounted case
    Material: metal, plastic
    Dimensions, mm: 142(L) x 105(H) x 75(W)
    Mounting: DIN (4 modules) rail

  • Power & Electrical:

    Input Voltage: ~100-270 VAC, 50/60 Hz
    Input Power (max): 5 W
    Mains Fuse: 0.5 A

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 95%
    IP Rating: IP 20
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Navigation: GPS
    Serial interface: RS-485
    Max length of RS-485 line: 1500 m

  • Inputs / Outputs:

    Relay outputs: 1
    Linear outputs: 3
    Max voltage and current at outputs: 270 V, 5 A
    Connectors: terminal blocks 15EDGVC and 2EDGVC

  • Configuration / Indication:

    Setup: DIP switchers, remote via cabinet controllers
    Indication: LEDs

  • Package Contents:

    DITRA PowerTrack
    Connector set

DITRA PowerTrack
  • : DIT-PWT-1
