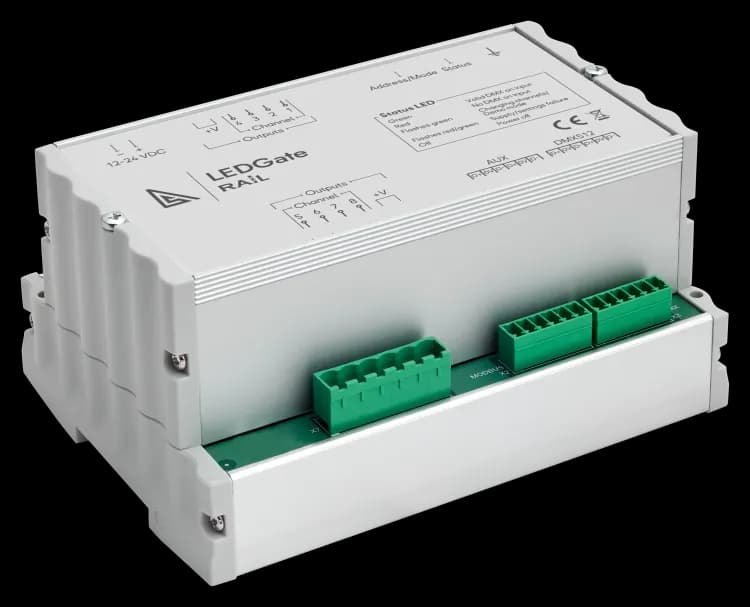

LEDGATE Rail is a compact, high-precision LED driver for DMX512-based lighting control systems, designed to interface directly with low-voltage LED fixtures such as duralight, LED strips, and driverless luminaires. The unit offers either 4 or 8 PWM output channels, each with individual short-circuit protection, and operates from a 12–36 VDC power source.The device ensures flicker-free dimming across the full range of brightness thanks to embedded smoothing algorithms and supports both 8-bit and 16-bit resolution modes, allowing for seamless, high-fidelity intensity transitions.LEDGATE Rail features galvanically isolated DMX input, supports RDM (ANSI E1.20) for remote configuration and monitoring, and can be alternatively configured via DIP switches. Additional smart functions include restart protection when operating on battery power, eliminating strobing effects during voltage dips.The unit is housed in a laser-engraved aluminum enclosure, optimized for DIN rail installation and compact enough to fit into 8 standard modules. Its fanless passive cooling design ensures quiet and reliable performance even in dense control cabinets.






Lightweight and compact RAIL Series are the best choice for fixed cabinet based installations with DIN RAIL mounting available. All the advantages of standard converters, designed in RAIL cases. Space saving enclosures with resistant LaserText engraving. Natural heat convection. All DMX ports are bidirectional i.e. may be configured as inputs or outputs. All ports are galvanically isolated. UltraStart Technology guarantees ready device in less than 3 seconds after power supply. 15EDGV Terminal Blocks provide ultrafast dismount opportunities (UltraLock).

Rail

DIN rail-mounted LED driver with DMX/RDM input, 4 or 8 PWM outputs, short-circuit protection per channel, and smooth, flicker-free dimming

Mechanical

Power & Electrical

Environment

Control / Data Connections

Inputs / Outputs

Configuration / Indication

Package Contents

LEDGATE Rail

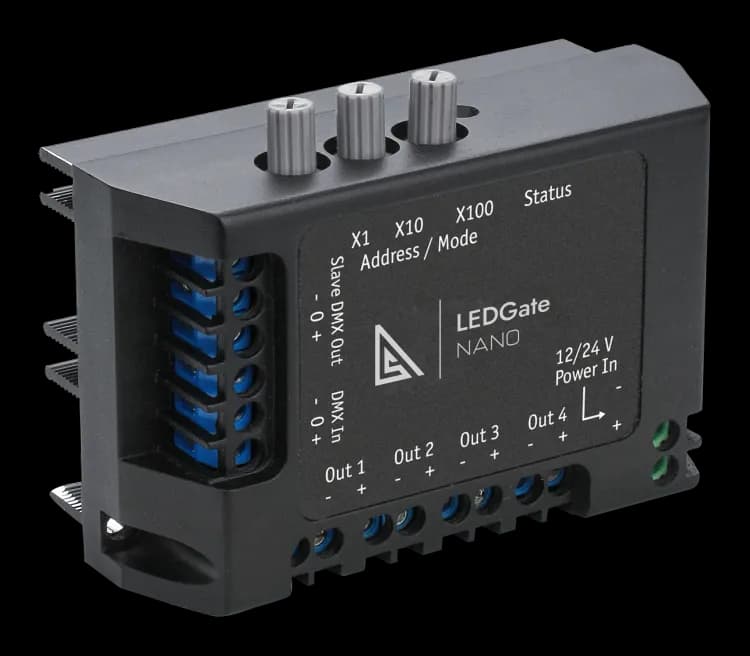

LEDGATE Nano is a space-saving LED driver designed for direct control of low-voltage LED equipment through the DMX512 protocol. It supports either 2 or 4 PWM output channels, enabling dimming and on/off control of LED strips, duralight, driverless luminaires, and other 12–24 V DC LED products.Despite its miniature size, the unit delivers precise dimming with flicker-free operation, made possible through optimized embedded algorithms. Both 8-bit and 16-bit resolution modes are supported for smooth and high-resolution light transitions.Each output features independent short-circuit protection, and the driver is compatible with RDM (ANSI E1.20) for remote configuration and monitoring. Alternatively, the unit can be set up using rotary switches, making it adaptable even without network configuration tools.LEDGATE Nano is powered from a 12–24 V DC source, depending on the LED load. Thanks to its ultra-compact footprint and low weight, it can be installed virtually anywhere — inside stage sets, walls, LED signage, props, or embedded directly into lighting systems.






Unique Nano Series converters are the smallest on the market yet they provide a fair bit of premium bidirectional ArtNet/sACN to DMX and DMX to LED converting options. Nano series include ArtGates Nano that are installed into standard socket wall or floor plates, or into fixtures as OEM boards. LEDGates Nano are tiny DMX to LED drivers with wireless option available in OEM version as well. All DMX ports are bidirectional i.e. may be configured as inputs or outputs. All ports are galvanically isolated. UltraStart Technology guarantees ready device in less than 3 seconds after power supply. RDM support. Some devices feature PoE power supply (802.15f)

Nano

Ultra-compact DMX LED driver with 2 or 4 PWM channels, short-circuit protection, 8/16-bit dimming, and RDM support

LEDGATE Nano

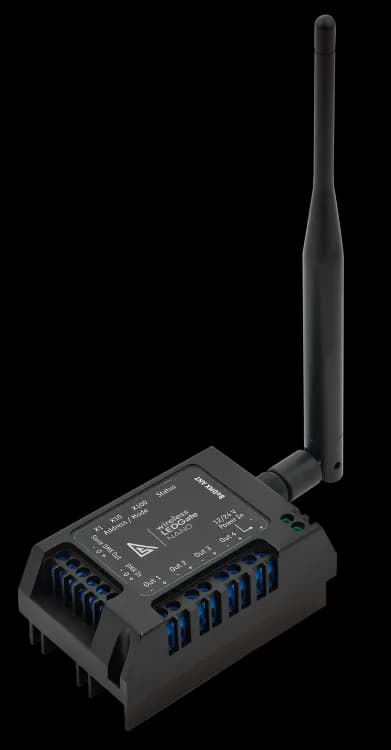

LEDGATE Wireless Nano is a miniature, high-performance wireless LED driver designed for direct DMX control of low-voltage LED equipment such as LED strips, duralight, and driverless luminaires. It features 2 coaxial RP-SMA antenna connectors for seamless reception of BeDMX wireless signals, based on Bluetooth 5.0 with Adaptive Frequency Hopping (AFH), offering stable operation even in RF-congested environments.The unit can control 2 or 4 PWM channels, each with independent short-circuit protection, and supports both 8-bit and 16-bit resolution, ensuring smooth and flicker-free dimming performance across the full intensity range.LEDGATE Wireless Nano automatically switches between wired DMX512 and wireless BeDMX input modes, enabling redundancy and flexible deployment. It is compatible with RDM (ANSI E1.20) for remote configuration and diagnostics, or can be manually set via rotary switches when needed.Powered from a 12–24 V DC supply, the compact and lightweight design allows for easy integration into stage sets, mobile scenery, event décor, or architectural niches — where cable routing is limited or wireless control is preferred.






Ultra-compact wireless DMX LED driver with 2 or 4 PWM outputs, BeDMX reception, flicker-free dimming, and RDM support

LEDGATE Wireless Nano

large_LEDGate Board (2).png

medium_LEDGate Board (2).png

small_LEDGate Board (2).png

thumbnail_LEDGate Board (2).png

LEDGate Bare (2).png

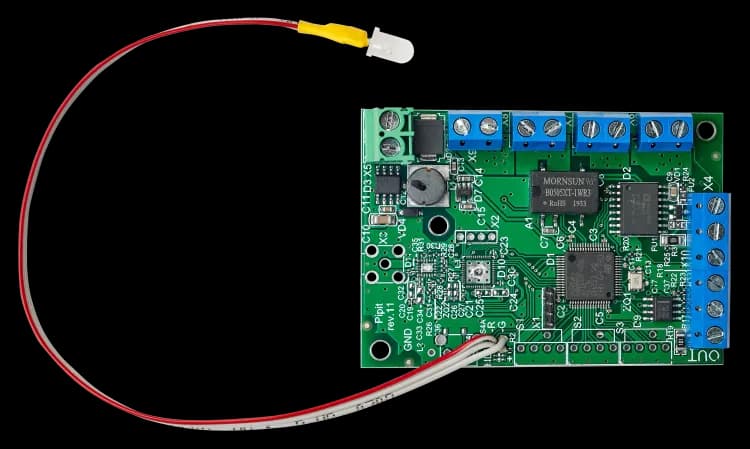

LEDGATE Bare is a compact, enclosureless LED driver board designed for direct PWM control of up to 4 LED channels via DMX512 protocol. Developed for seamless integration into third-party equipment or concealed installation environments, it is ideal for use in stage design, light furniture, embedded lighting, or custom architectural builds.The unit offers precise dimming, flicker-free light output, and supports both 8-bit and 16-bit resolution. Each channel includes independent short-circuit protection, and the device provides a smooth output curve across the entire dimming range.LEDGATE Bare supports RDM (ANSI E1.20) for remote configuration and monitoring, and includes a restart protection feature for battery-powered scenarios, preventing strobing during undervoltage conditions.It operates from a 12–24 V DC power source and is equipped with galvanically isolated DMX input for safe, interference-free operation. Its framed PCB format allows for flexible installation into enclosures, recesses, or any custom structure where space and simplicity are critical.

large_LEDGate Board.webp

medium_LEDGate Board.webp

small_LEDGate Board.webp

thumbnail_LEDGate Board.webp

LEDGate Bare.webp

large_LEDGate Bare (2).webp

medium_LEDGate Bare (2).webp

small_LEDGate Bare (2).webp

thumbnail_LEDGate Bare (2).webp

LEDGate Bare (2).webp

Performance optimised OEM boards ready for integration into your &nbsp;installations and equipment. Same functionality and advantages as classic DITRA products, cheaper prices and bulk ordering available.

Bare

Frameless 4-channel DMX LED driver board with PWM output, short-circuit protection, RDM support, and flicker-free dimming

LEDGATE Bare

large_LEDGate Wireless Bare.png

medium_LEDGate Wireless Bare.png

small_LEDGate Wireless Bare.png

thumbnail_LEDGate Wireless Bare.png

LEDGate Wireless Bare.png

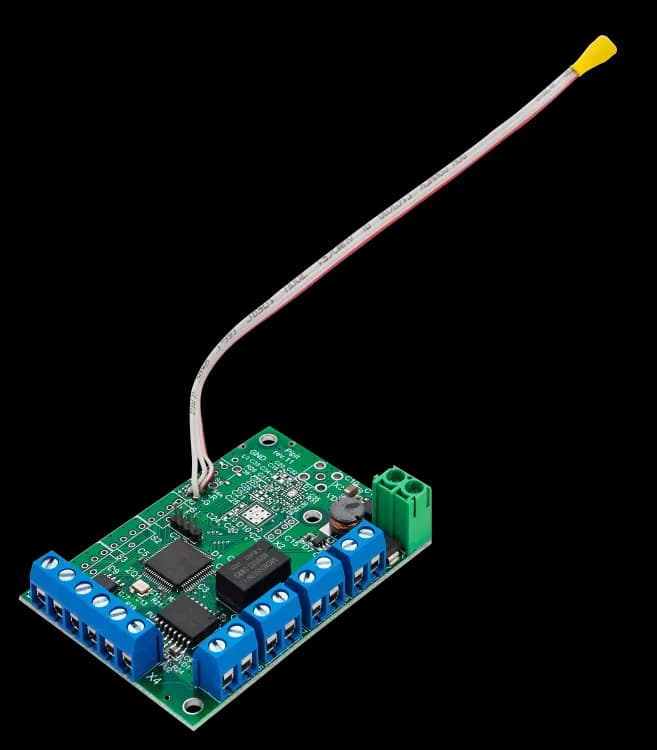

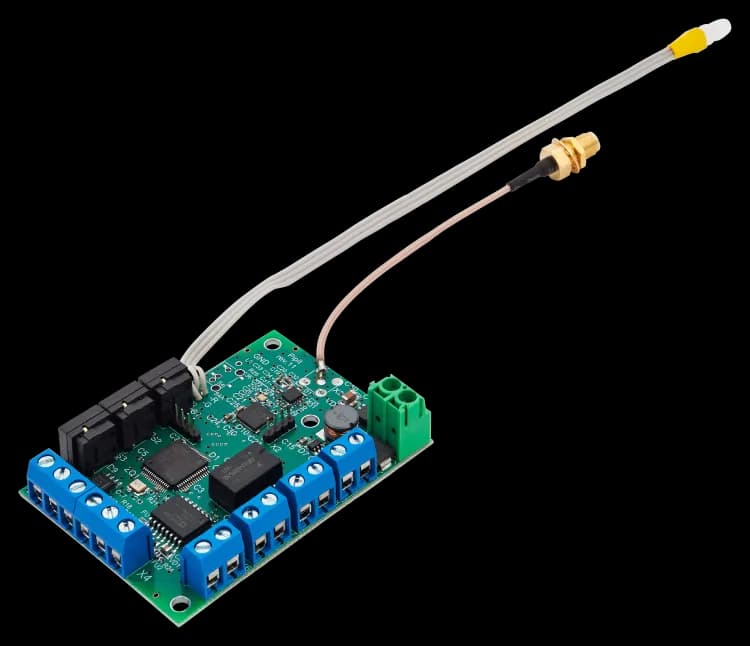

LEDGATE Wireless Bare is a compact wireless LED driver board designed for integration into custom fixtures, light structures, or scenery elements where space, performance, and wireless control are critical.Equipped with an onboard BeDMX wireless transceiver, it supports bidirectional communication over the 2.4 GHz band with Adaptive Frequency Hopping (AFH) for interference-free transmission. The device seamlessly switches between wired DMX512 and wireless BeDMX input modes, ensuring redundant and reliable control in dynamic lighting environments.It provides PWM control of up to 4 LED channels, each protected from short circuits, and delivers precise, flicker-free dimming using optimized internal algorithms. Both 8-bit and 16-bit control modes are supported for fine-resolution applications.RDM (ANSI E1.20) compatibility allows for remote monitoring and configuration, and status indication is provided via onboard indicators. The unit is powered from a 12–24 V DC source and is designed for concealed installation, with no housing — ideal for integration into manholes, scenery, furniture, or LED panels.

large_LEDGate Wireless Bare2.webp

medium_LEDGate Wireless Bare2.webp

small_LEDGate Wireless Bare2.webp

thumbnail_LEDGate Wireless Bare2.webp

LEDGate Wireless Bare2.webp

large_LEDGate Wireless Bare.webp

medium_LEDGate Wireless Bare.webp

small_LEDGate Wireless Bare.webp

thumbnail_LEDGate Wireless Bare.webp

LEDGate Wireless Bare.webp

Frameless 4-channel wireless DMX LED driver board with BeDMX reception, short-circuit protection, RDM support, and flicker-free 8/16-bit PWM dimming

LEDGATE Wireless Bare

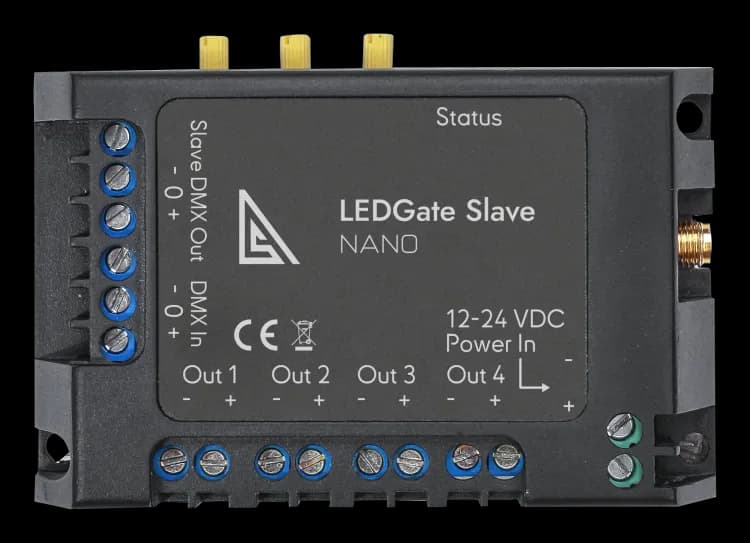

LEDGATE Slave Nano is a compact PWM LED driver expansion module designed to extend the channel capacity of LEDGATE Nano, Wireless Nano, and Bare devices. Operating over DMX512, it allows seamless integration of additional channels while maintaining precise dimming control and flicker-free operation.With 4 individually protected PWM outputs, this unit is ideal for powering LED strips, duralight, or driverless LED luminaires in systems that require more output channels than a single controller can provide.The device supports 8-bit and 16-bit dimming, making it suitable for applications requiring both basic and high-resolution light control. Configuration is possible via rotary switches or through RDM (ANSI E1.20), enabling remote access and system feedback.Powered from a 12–24 V DC source, the lightweight, housing-free design makes it easy to install in stage sets, props, light furniture, and enclosures. LEDGATE Slave Nano is an ideal OEM component for scalable LED systems.






4-channel PWM expansion driver for LEDGATE Nano, Wireless Nano, and Bare — flicker-free dimming, RDM support, and short-circuit protection in an ultra-compact 12–24V DC module

LEDGATE Slave Nano

LEDGATE Slave Bare is a compact, enclosureless PWM LED driver expansion module that adds four additional output channels to LEDGATE Nano, Wireless Nano, and Bare devices. Ideal for concealed or OEM integration, it delivers reliable performance in space-constrained lighting setups.The unit supports DMX512 and RDM (ANSI E1.20) protocols, offering 8-bit and 16-bit resolution for smooth and high-precision dimming. It provides short-circuit protection on each channel, ensuring equipment safety and extended LED lifespan. Advanced dimming algorithms eliminate flickering and support seamless light intensity control.Designed for 12–24 V DC constant voltage systems, LEDGATE Slave Bare includes a restart protection feature for battery-powered environments, preventing unwanted behavior during voltage dips.Its frameless design allows it to be embedded in manholes, lighting furniture, lightboxes, or third-party enclosures, making it an excellent choice for scenic builds, architectural elements, and embedded lighting control.

Frameless 4-channel DMX LED driver expansion board with RDM support, short-circuit protection, and flicker-free PWM dimming — designed for integration with LEDGATE Nano series

LEDGATE Slave Bare






Explore our range of smart lighting control products — from controllers and communication modules to gateways and luminaire nodes. Designed for flexibility, reliability, and integration into modern Smart City systems, our solutions cover every scenario from individual to group control, wired or wireless

PROfessional lighting control hardware
