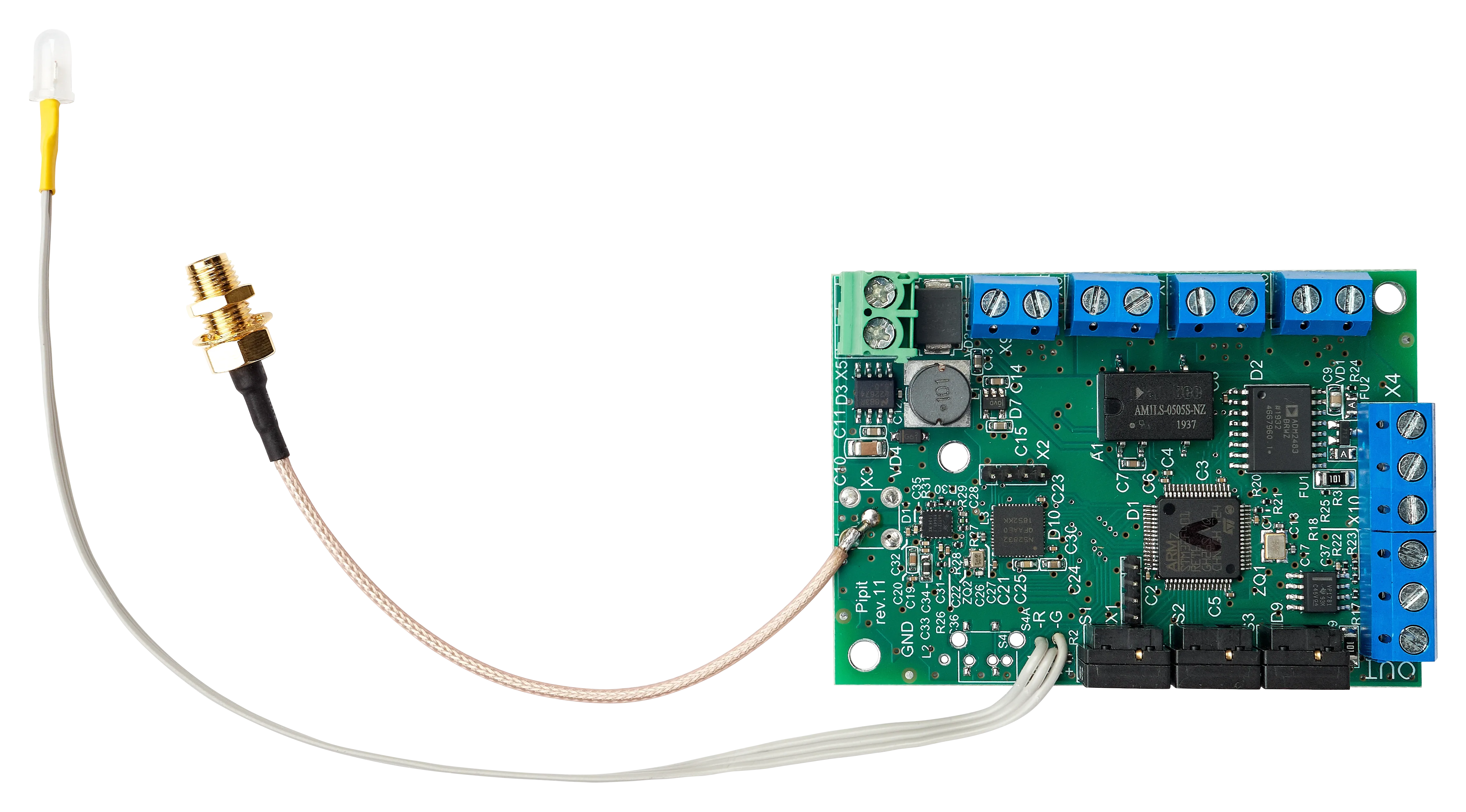

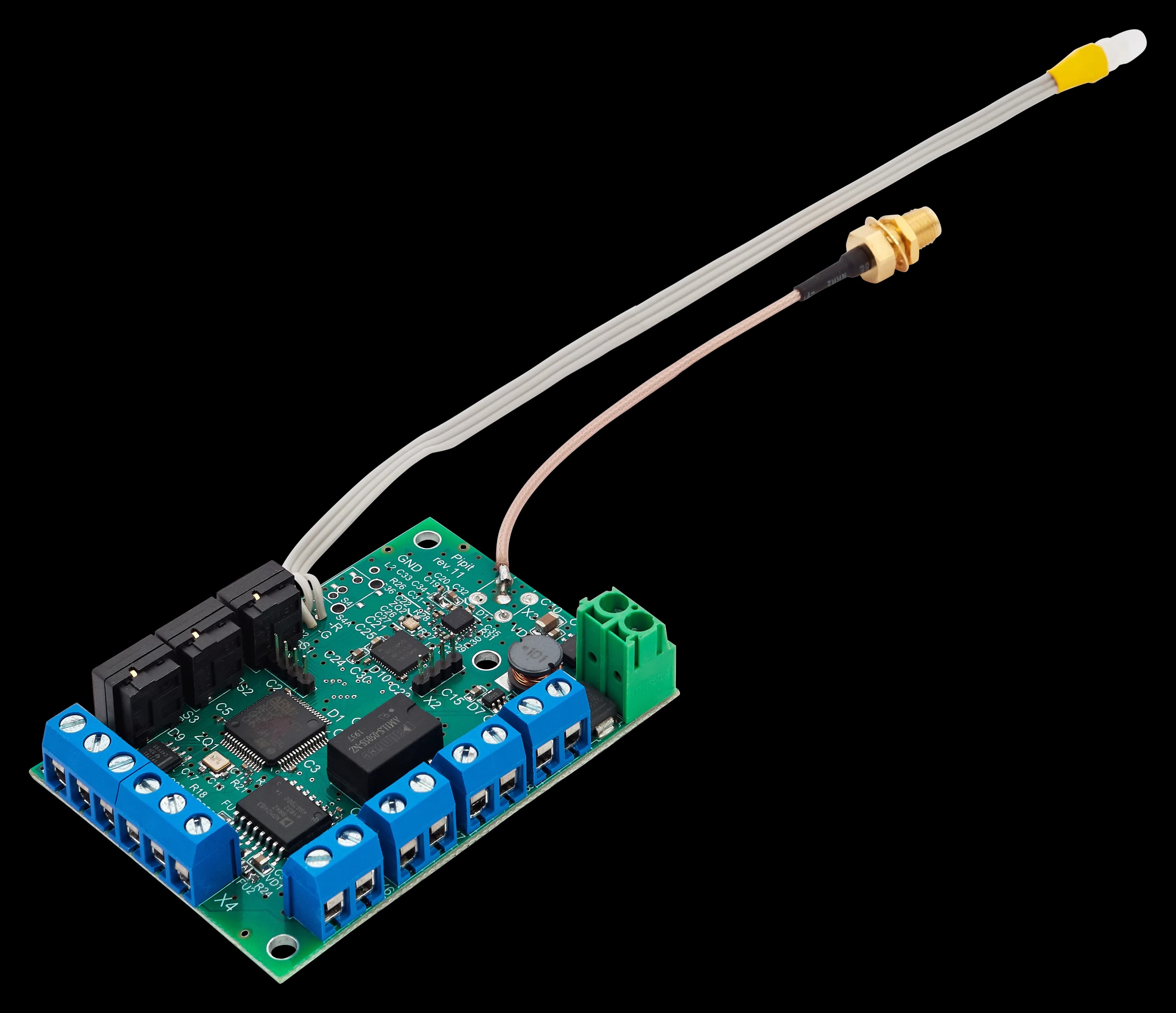

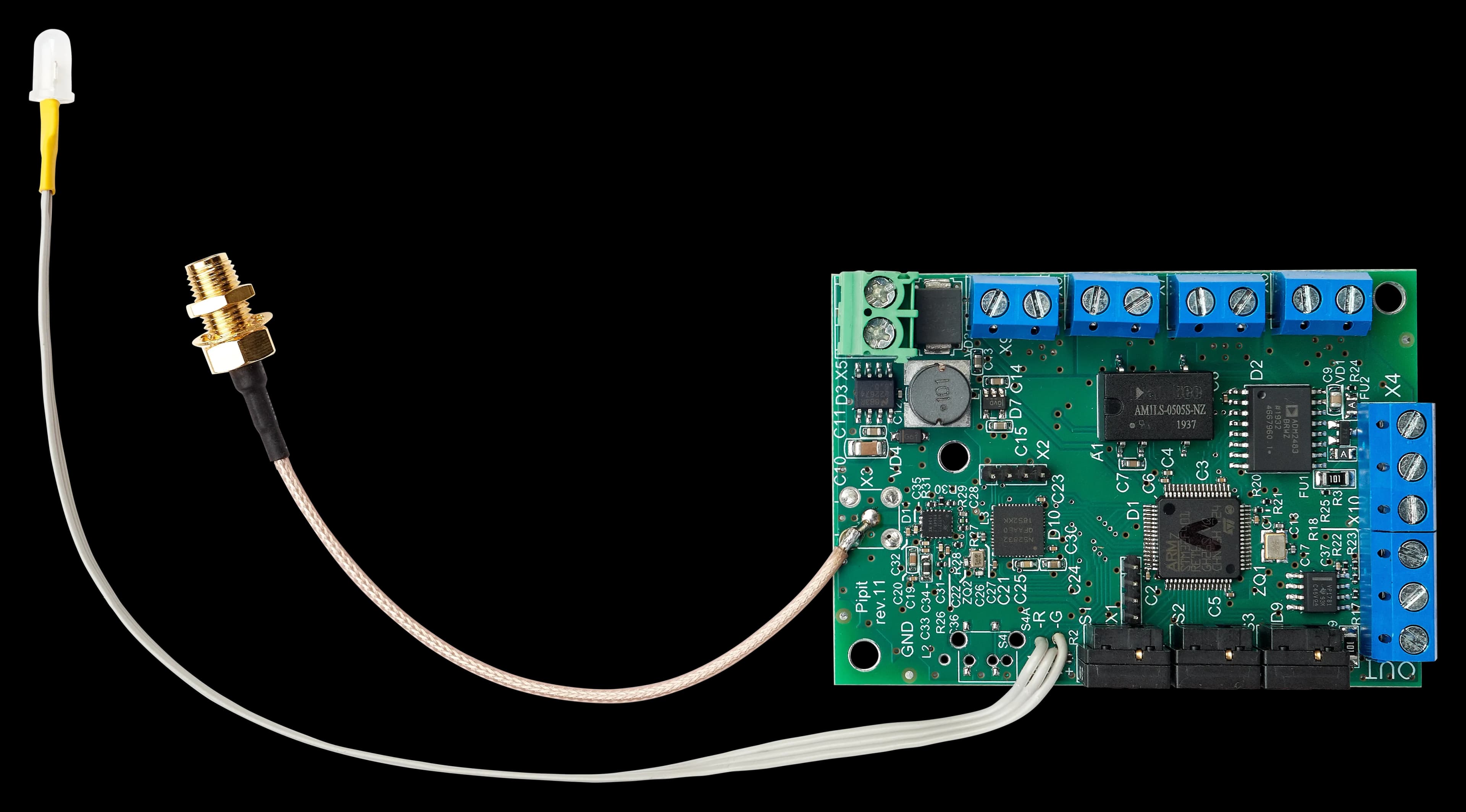

LEDGATE Wireless Bare
Frameless 4-channel wireless DMX LED driver board with BeDMX reception, short-circuit protection, RDM support, and flicker-free 8/16-bit PWM dimming
LEDGATE Wireless Bare is a compact wireless LED driver board designed for integration into custom fixtures, light structures, or scenery elements where space, performance, and wireless control are critical.
Equipped with an onboard BeDMX wireless transceiver, it supports bidirectional communication over the 2.4 GHz band with Adaptive Frequency Hopping (AFH) for interference-free transmission. The device seamlessly switches between wired DMX512 and wireless BeDMX input modes, ensuring redundant and reliable control in dynamic lighting environments.
It provides PWM control of up to 4 LED channels, each protected from short circuits, and delivers precise, flicker-free dimming using optimized internal algorithms. Both 8-bit and 16-bit control modes are supported for fine-resolution applications.
RDM (ANSI E1.20) compatibility allows for remote monitoring and configuration, and status indication is provided via onboard indicators. The unit is powered from a 12–24 V DC source and is designed for concealed installation, with no housing — ideal for integration into manholes, scenery, furniture, or LED panels.
4 PWM channels with individual short-circuit protection
Integrated BeDMX wireless transceiver with AFH (Bluetooth 5.0 based)
Automatic fallback between DMX512 and wireless BeDMX control
Supports DMX512 and RDM (ANSI E1.20) protocols
8-bit and 16-bit dimming resolution for smooth, flicker-free transitions
Restart protection in battery-operated environments
Galvanic isolation on DMX ports
Frameless design for integration into OEM products or confined spaces
Power input: 12–24 V DC
Ideal for stage design, LED signage, décor, and portable light modules
- Mechanical:
Housing: no
Dimensions, mm: 70 (L) x 14,6 (H) x 50 (W)
Weight: 0.18 kg
Installation: stage equipment, lamps, etc. - Power & Electrical:
Power supply: 12-36V
Max. current per output: 5 A
Max. input power: 500 W - Environment:
Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: no
Certificates: CE compliant, RoHS
Warranty: 36 months - Control / Data Connections:
Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz
Transmission range (standard antenna): 200m
Connection protocol: Bluetooth 5.0
RF band: 2.4GHz - Inputs / Outputs:
DMX ports: 1
DMX connectors: terminal block DG306-5.0-03P
Slave ports: 1
Slave connectors: terminal block DG306-5.0-03P
Power In: terminal block PT_2,5 / 2-5,0-H-1935776
Outputs for driving LEDs:
4 terminals DG306-5.0-02P
Antenna output: 1 - Configuration / Indication:
Setting: rotary switches
Indicators: LED, for DMX streams - Package Contents:
LEDGATE Wireless Bare
2.4GHz antenna
