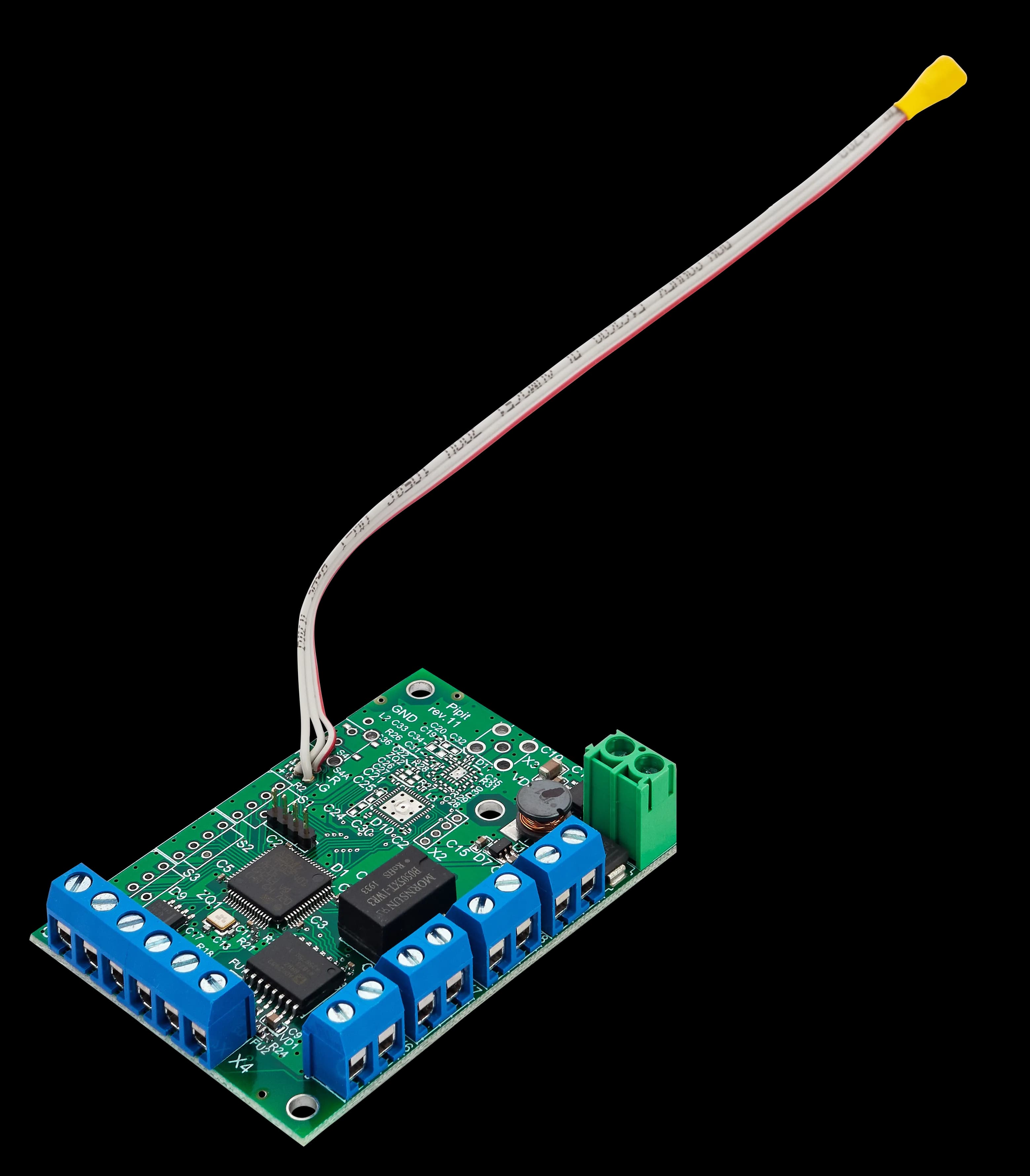

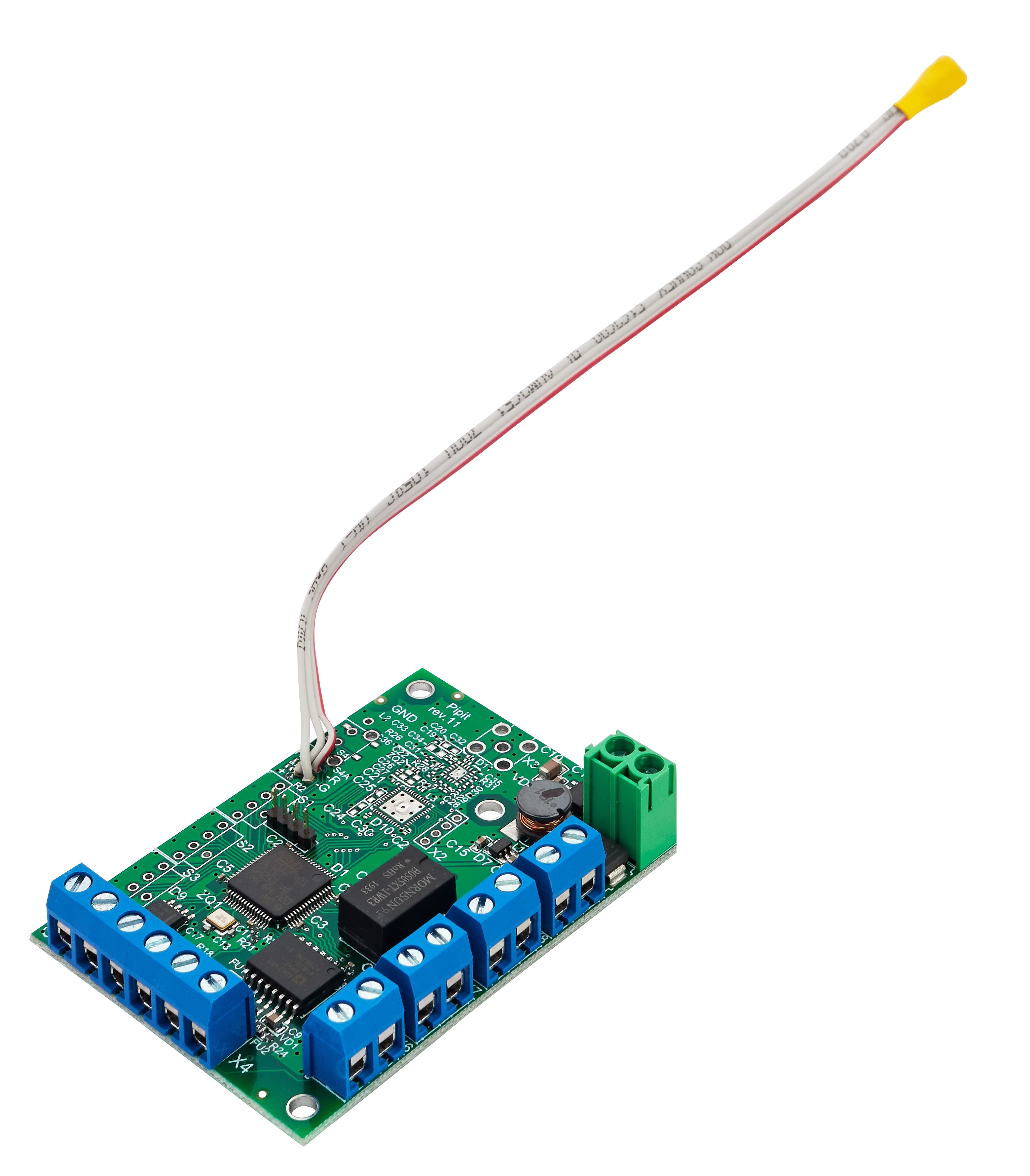

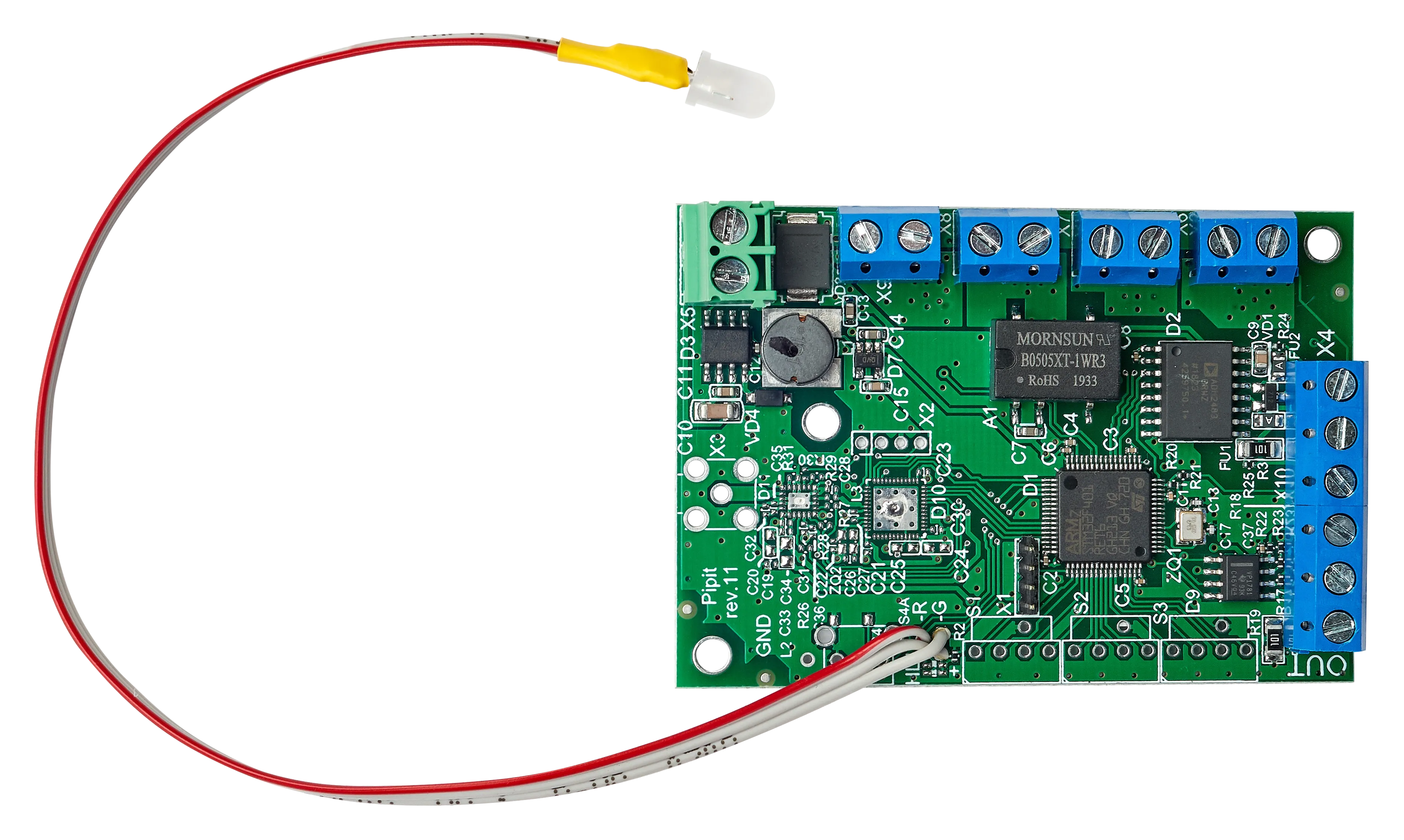

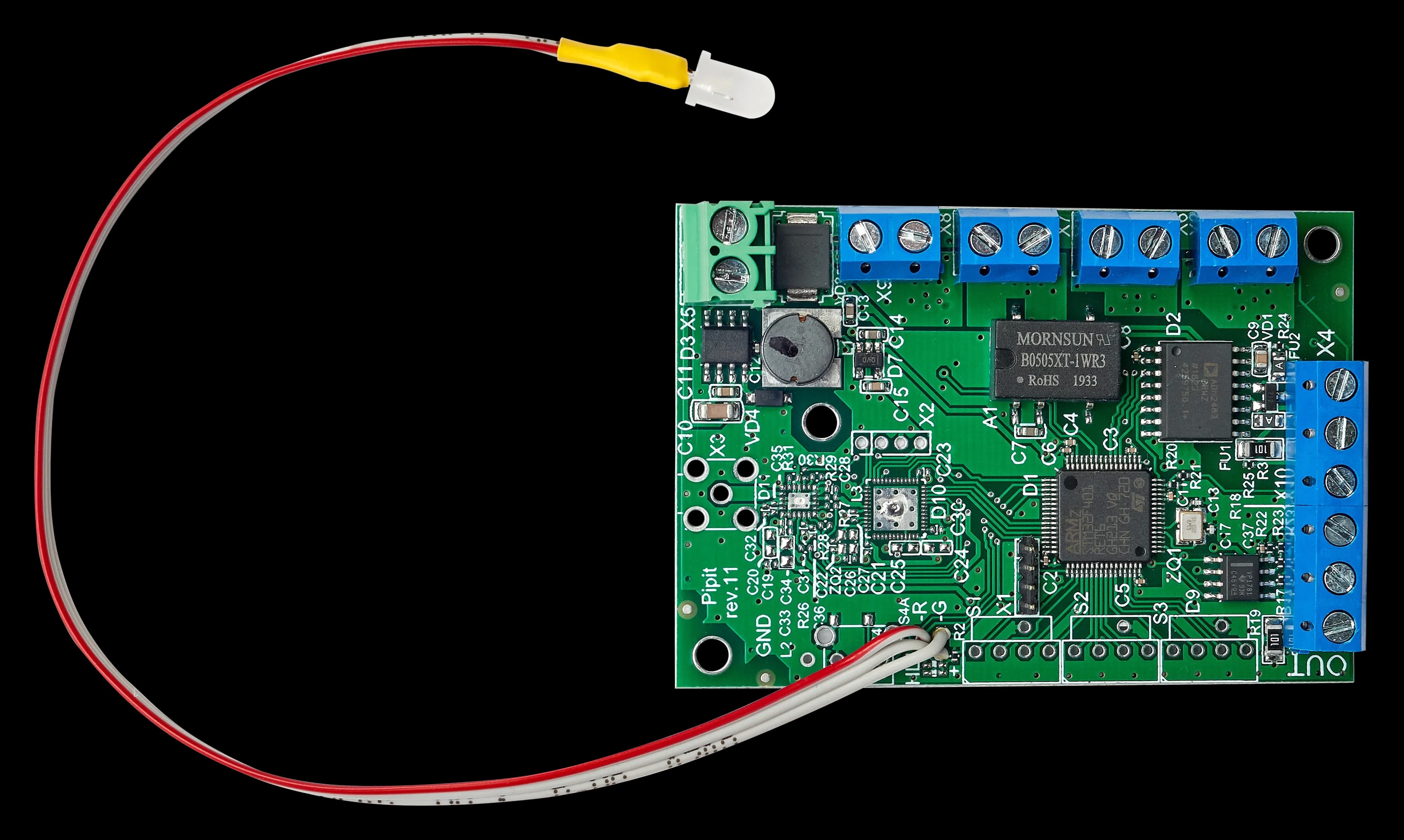

LEDGATE Bare
Frameless 4-channel DMX LED driver board with PWM output, short-circuit protection, RDM support, and flicker-free dimming
LEDGATE Bare is a compact, enclosureless LED driver board designed for direct PWM control of up to 4 LED channels via DMX512 protocol. Developed for seamless integration into third-party equipment or concealed installation environments, it is ideal for use in stage design, light furniture, embedded lighting, or custom architectural builds.
The unit offers precise dimming, flicker-free light output, and supports both 8-bit and 16-bit resolution. Each channel includes independent short-circuit protection, and the device provides a smooth output curve across the entire dimming range.
LEDGATE Bare supports RDM (ANSI E1.20) for remote configuration and monitoring, and includes a restart protection feature for battery-powered scenarios, preventing strobing during undervoltage conditions.
It operates from a 12–24 V DC power source and is equipped with galvanically isolated DMX input for safe, interference-free operation. Its framed PCB format allows for flexible installation into enclosures, recesses, or any custom structure where space and simplicity are critical.
Frameless LED driver board for OEM and concealed installation
4 PWM outputs with short-circuit protection on each channel
Supports DMX512 and RDM (ANSI E1.20) protocols
Selectable 8-bit or 16-bit dimming for smooth control
Flicker-free performance using advanced dimming curve algorithms
Restart protection when operating from battery power
Galvanically isolated DMX port
Designed for integration into LED fixtures, lightboxes, stage props, or furniture
Power supply: 12–24 V DC constant voltage
Compact and lightweight for embedded use in indoor or sheltered areas
- Mechanical:
Housing: no
Dimensions, mm: 70 (L) x 14,6 (H) x 50 (W)
Weight: 0.18 kg
Installation: stage equipment, lamps, etc. - Power & Electrical:
Power supply: 12-24V
Max. current per output: 5 A
Max. input power: 500 W - Environment:
Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: no
Certificates: CE compliant, RoHS
Warranty: 36 months - Control / Data Connections:
Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz - Inputs / Outputs:
DMX ports: 1
DMX connectors: terminal blocks DG306-5.0-03P
Slave ports: 1
Slave connectors: terminal blocks DG306-5.0-03P
Power In: terminal blocks PT_2.5 / 2-5.0-H-1935776
Outputs for driving LEDs:
4 terminals DG306-5.0-02P - Configuration / Indication:
Indicators: LED, for DMX streams
Setting: rotary switches - Package Contents:
LEDGATE Bare
