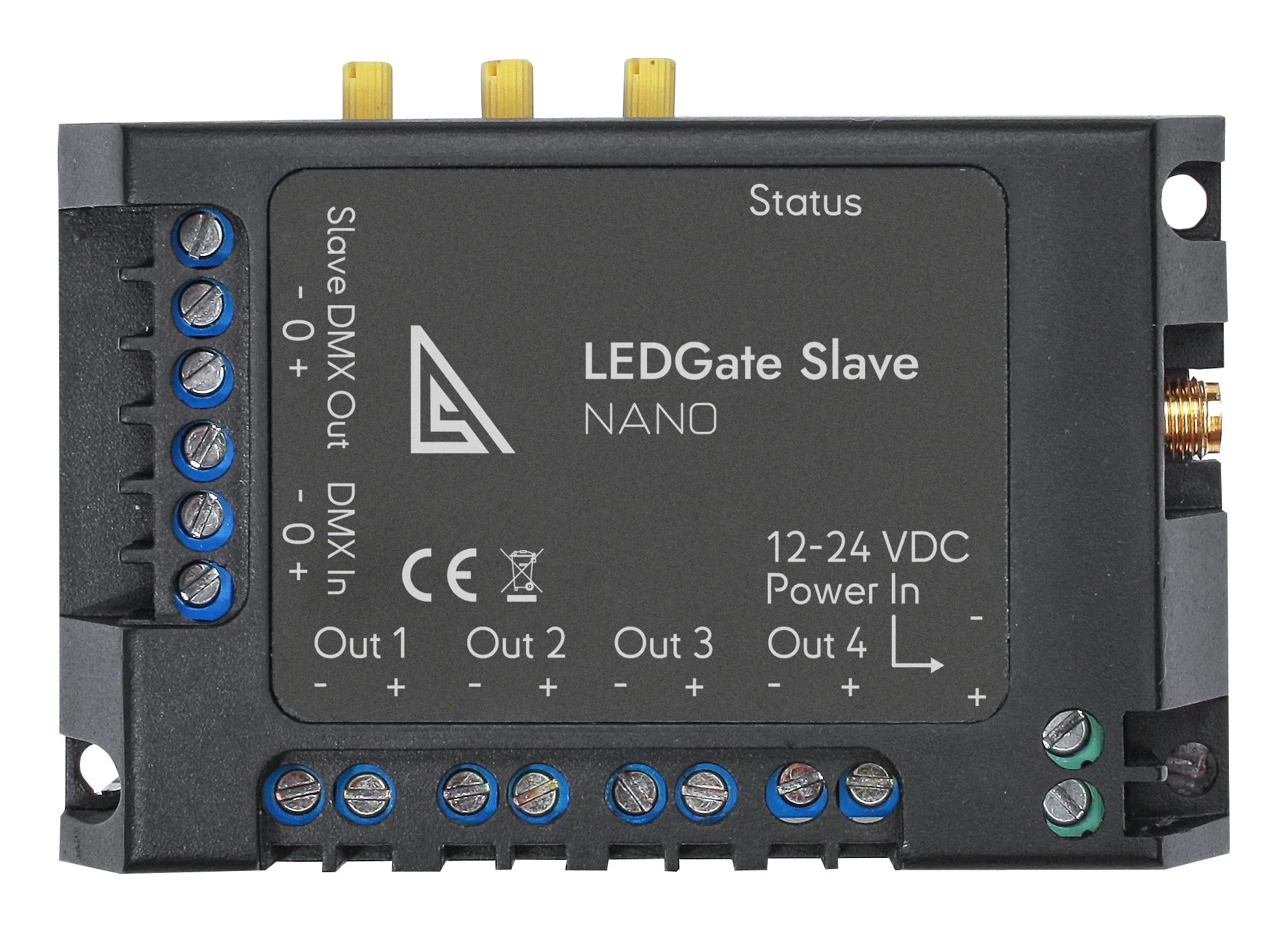

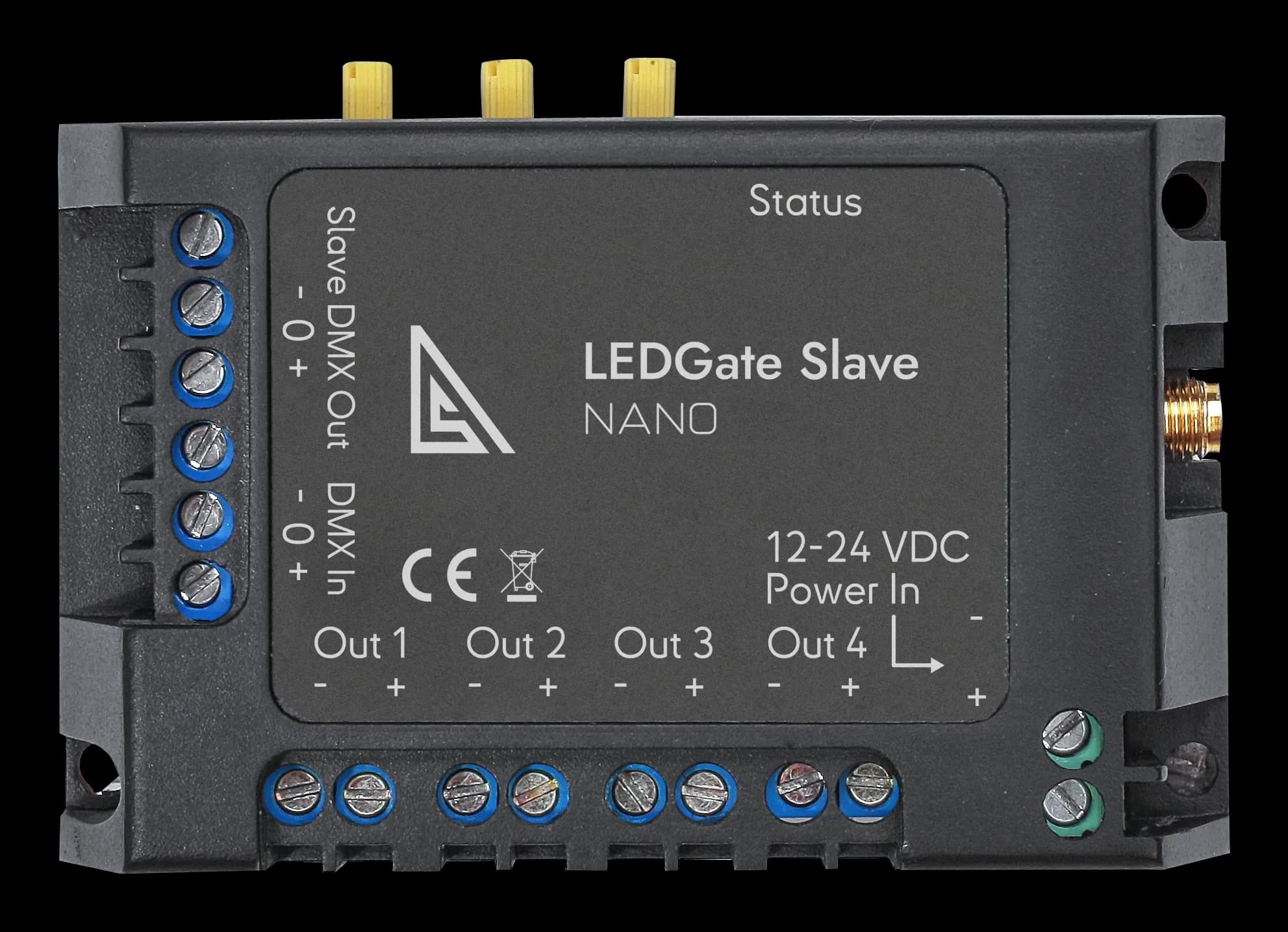

LEDGATE Slave Nano

4-channel PWM expansion driver for LEDGATE Nano, Wireless Nano, and Bare — flicker-free dimming, RDM support, and short-circuit protection in an ultra-compact 12–24V DC module

LEDGATE Slave Nano is a compact PWM LED driver expansion module designed to extend the channel capacity of LEDGATE Nano, Wireless Nano, and Bare devices. Operating over DMX512, it allows seamless integration of additional channels while maintaining precise dimming control and flicker-free operation.

With 4 individually protected PWM outputs, this unit is ideal for powering LED strips, duralight, or driverless LED luminaires in systems that require more output channels than a single controller can provide.

The device supports 8-bit and 16-bit dimming, making it suitable for applications requiring both basic and high-resolution light control. Configuration is possible via rotary switches or through RDM (ANSI E1.20), enabling remote access and system feedback.

Powered from a 12–24 V DC source, the lightweight, housing-free design makes it easy to install in stage sets, props, light furniture, and enclosures. LEDGATE Slave Nano is an ideal OEM component for scalable LED systems.

  • 4 PWM output channels with independent short-circuit protection

    Expands LEDGATE Nano, Wireless Nano, and Bare devices

    Supports DMX512 and RDM (ANSI E1.20) protocols

    Selectable 8-bit or 16-bit resolution for smooth dimming

    Flicker-free output with embedded dimming algorithms

    Configurable via rotary switch or RDM

    Power supply: 12–24 V DC constant voltage

    Compact, lightweight, and frameless for embedded use

    Direct connection to LED strips, duralight, or driverless fixtures

    Ideal for theatrical scenery, OEM integration, and modular LED setups

  • Mechanical:

    Enclosure: surface mounted case
    Material: metal, plastic
    Dimensions, mm: 87(L) x 37(H) x 62(W)
    Weight: 0.18 kg
    Installation: stage equipment, lamps, etc.

  • Power & Electrical:

    Power supply: 12-24 V
    Max. current per output: 5 A
    Max. total current at the outputs: 20 A
    Max. input power: 500 W

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 95%
    IP Rating: IP 20
    Certificates: CE compliant, RoHS
    Warranty: 36 Month

  • Control / Data Connections:

    Supported protocols: DMX512, RDM
    Refresh rate DMX data: 44 Hz

  • Inputs / Outputs:

    DMX ports: 1
    DMX connectors: terminal blocks DG306-5.0-03P
    Slave ports: 1
    Slave connectors: terminal blocks DG306-5.0-03P
    Power In: terminal blocks PT_2.5 / 2-5.0-H-1935776
    Outputs for driving LEDs: 4 terminals DG306-5.0-02P

  • Configuration / Indication:

    Indicators: LEDs

  • Package Contents:

    LEDGATE Slave Nano
