PixelGATE Shield is a high-performance pixel controller designed to convert up to 16 DMX universes into SPI protocol for controlling digital LED strips in pixel-mapped indoor or outdoor installations.The unit supports ArtNet (1, 2, 3, 4) and sACN (Draft, Release) protocols, and is equipped with a 2-port 10/100 Mbps Ethernet switch for chaining multiple devices in large-scale media façade and LED wall systems.With 8 SPI outputs supporting both single-wire and two-wire LED drivers, PixelGATE Shield can address up to 2,730 RGB pixels — making it a perfect solution for real-time video mapping, light animations, and dynamic architectural lighting.It is compatible with a wide variety of LED chipsets, including WS2811, WS2812B, TM1809, UCS1903, UCS2903, INK1003, WS2801, APA102, LPD8806, and more. Power to the LEDs is supplied separately, supporting a wide input range from 5V to 48V DC, allowing it to integrate with nearly any LED system.PixelGATE Shield features a rugged aluminum enclosure rated IP65, designed to withstand outdoor conditions and extreme temperatures. Configuration is done via an intuitive web interface, allowing easy channel assignment and setup of LED types and effects.

large_Splitter Duo Shield4.webp

medium_Splitter Duo Shield4.webp

small_Splitter Duo Shield4.webp

thumbnail_Splitter Duo Shield4.webp

Splitter Duo Shield4.webp

large_Splitter Duo Shield2.webp

medium_Splitter Duo Shield2.webp

small_Splitter Duo Shield2.webp

thumbnail_Splitter Duo Shield2.webp

Splitter Duo Shield2.webp

large_Splitter Duo Shield.webp

medium_Splitter Duo Shield.webp

small_Splitter Duo Shield.webp

thumbnail_Splitter Duo Shield.webp

Splitter Duo Shield.webp

Shield series are carefully crafted “offtrack” devices excellent for any outdoor installations under any weather conditions: from Arctic winters to Sahara’s hottest dusty summers, successfully tested for tropicalization to work in the most humid areas. Extensive installations are easily handled by our trademark devices with 2 Ethernet ports which obviate the need of using Ethernet switches.Natural heat convection and moulded 3mm space effective thick metal case with sealed connectors provide highest ingress protection (IP65). All DMX ports are bidirectional i.e. may be configured as inputs or outputs. All ports are galvanically isolated. UltraStart Technology guarantees ready device in less than 3 seconds after power supply. RDM support. Some devices feature PoE power supply (802.15f). Different wall and clamp mounting options.

Shield

Outdoor Art-Net/sACN to SPI pixel controller with 8 outputs and support for 2,730 RGB pixels — built-in Ethernet switch, IP65 housing, and support for both 1-wire and 2-wire addressable LED types

Mechanical

Power & Electrical

Environment

Control / Data Connections

Inputs / Outputs

Configuration / Indication

Package Contents

PixelGATE Shield

large_Pixel_Gate_Rail Connection.png

medium_Pixel_Gate_Rail Connection.png

small_Pixel_Gate_Rail Connection.png

thumbnail_Pixel_Gate_Rail Connection.png

Pixel_Gate_Rail_Bare Connection.png

large_PixelGate Rail_dev.png

medium_PixelGate Rail_dev.png

small_PixelGate Rail_dev.png

thumbnail_PixelGate Rail_dev.png

PixelGate Rail_dev.png

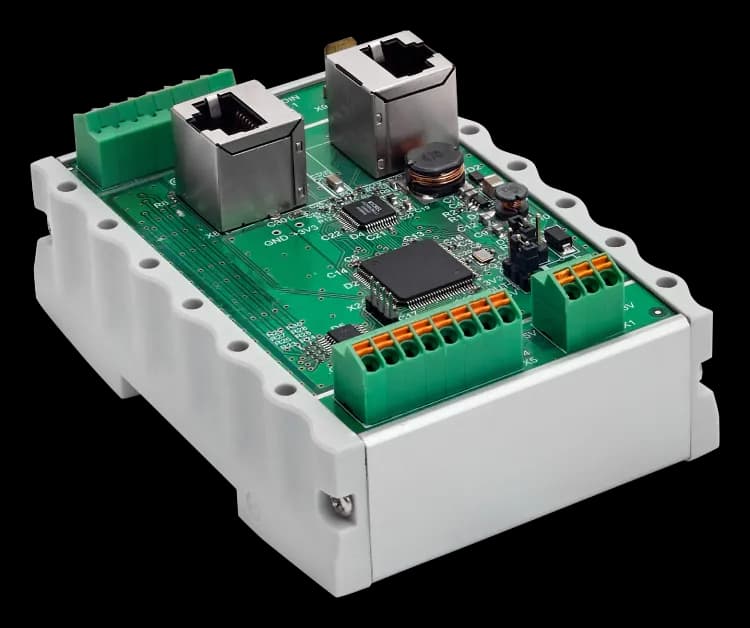

PixelGATE Rail is a high-performance DMX to SPI pixel controller built for professional indoor and sheltered installations. Designed for integration into control cabinets, it converts up to 16 DMX universes into SPI protocol to manage up to 2,730 RGB pixels via 8 independent outputs.The controller supports ArtNet (1, 2, 3, 4) and sACN (Draft, Release) and is compatible with a wide range of addressable LEDs, including WS2811, WS2812B, TM1809, UCS1903, UCS2903, APA102, WS2801, and others. It accommodates both single-wire and dual-wire SPI protocols, allowing for versatile system configurations.With a built-in 2-port 10/100 Mbps Ethernet switch, PixelGATE Rail enables device chaining and simplifies network cabling in rack and cabinet layouts. The output voltage for connected LEDs is supplied separately and supports a wide range from 5 to 48 V DC.DIN rail mountable (4 modules) and IP20-rated, the controller is optimized for protected electrical environments and supports positive and negative temperature operation, making it suitable for long-term industrial or architectural use.All outputs and settings are accessible via an intuitive web interface, which allows easy channel assignment, pixel count setup, and LED type configuration.

large_PixelGate Rail_dev1.webp

medium_PixelGate Rail_dev1.webp

small_PixelGate Rail_dev1.webp

thumbnail_PixelGate Rail_dev1.webp

PixelGate Rail_dev1.webp

large_PixelGate Rail_dev.webp

medium_PixelGate Rail_dev.webp

small_PixelGate Rail_dev.webp

thumbnail_PixelGate Rail_dev.webp

PixelGate Rail_dev.webp

Lightweight and compact RAIL Series are the best choice for fixed cabinet based installations with DIN RAIL mounting available. All the advantages of standard converters, designed in RAIL cases. Space saving enclosures with resistant LaserText engraving. Natural heat convection. All DMX ports are bidirectional i.e. may be configured as inputs or outputs. All ports are galvanically isolated. UltraStart Technology guarantees ready device in less than 3 seconds after power supply. 15EDGV Terminal Blocks provide ultrafast dismount opportunities (UltraLock).

Rail

DIN-rail mounted ArtNet/sACN to SPI pixel controller with 8 outputs and support for up to 2,730 RGB pixels — dual Ethernet ports, wide voltage input, and compact 4-module design for control cabinets and indoor installations

PixelGATE Rail

large_pixelgate bare.png

medium_pixelgate bare.png

small_pixelgate bare.png

thumbnail_pixelgate bare.png

pixelgate bare.png

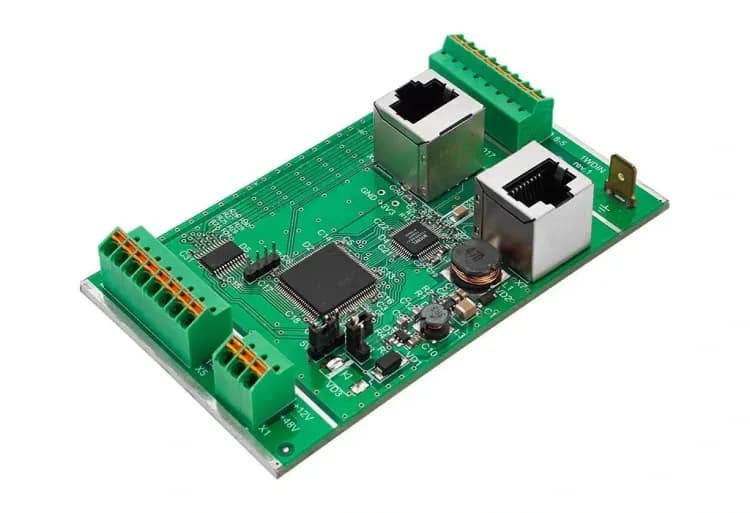

PixelGATE Bare is an OEM SPI pixel controller built for embedded integration into LED systems, fixtures, or concealed installations. Designed for maximum flexibility, it converts up to 16 DMX universes into SPI to control up to 2,730 RGB pixels across 8 independent SPI outputs.It supports both single-wire and two-wire SPI protocols and is compatible with a wide variety of addressable LED drivers, including WS2811, WS2812B, TM1809, UCS1903, UCS2903, WS2801, APA102, LPD8806, and more.The controller communicates via ArtNet (1–4) and sACN (Draft, Release) and features a 2-port 10/100 Mbps Ethernet switch for easy chaining of multiple devices. Output voltage is supplied separately via 5V to 48V DC, ensuring broad compatibility with different LED power systems.With no housing, PixelGATE Bare is ideal for OEM applications and hidden installations within electrical enclosures or custom LED modules. Configuration is handled via a user-friendly web interface for intuitive setup and operation.

large_pixelgate bare.webp

medium_pixelgate bare.webp

small_pixelgate bare.webp

thumbnail_pixelgate bare.webp

pixelgate bare.webp

Performance optimised OEM boards ready for integration into your &nbsp;installations and equipment. Same functionality and advantages as classic DITRA products, cheaper prices and bulk ordering available.

Bare

Frameless ArtNet/sACN to SPI controller with 8 outputs for up to 2,730 RGB pixels — wide voltage input, dual Ethernet ports, and compact OEM design for integration into third-party enclosures or LED systems

PixelGATE Bare






Explore our range of smart lighting control products — from controllers and communication modules to gateways and luminaire nodes. Designed for flexibility, reliability, and integration into modern Smart City systems, our solutions cover every scenario from individual to group control, wired or wireless

PROfessional lighting control hardware
