LEDGATE Rail
DIN rail-mounted LED driver with DMX/RDM input, 4 or 8 PWM outputs, short-circuit protection per channel, and smooth, flicker-free dimming

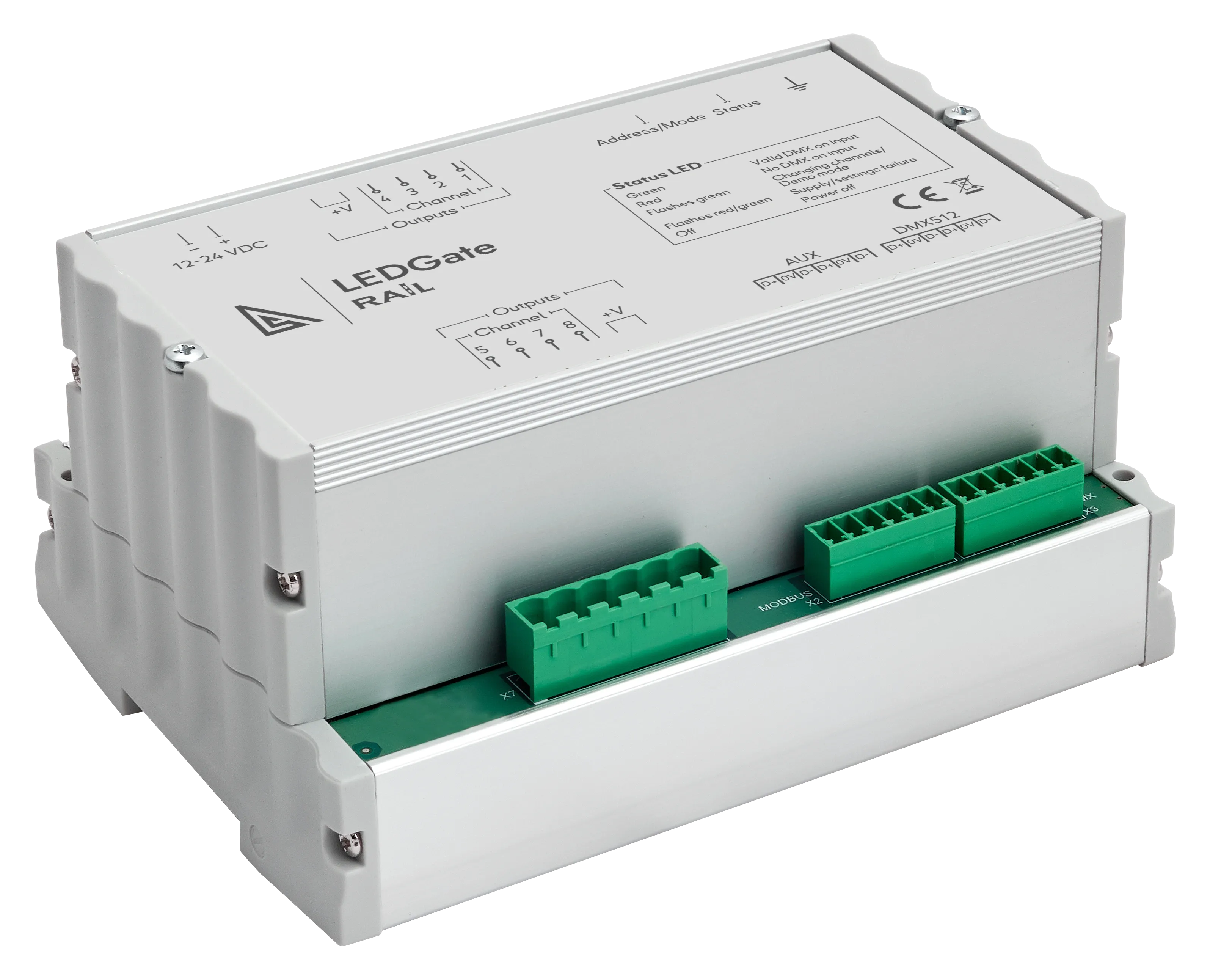

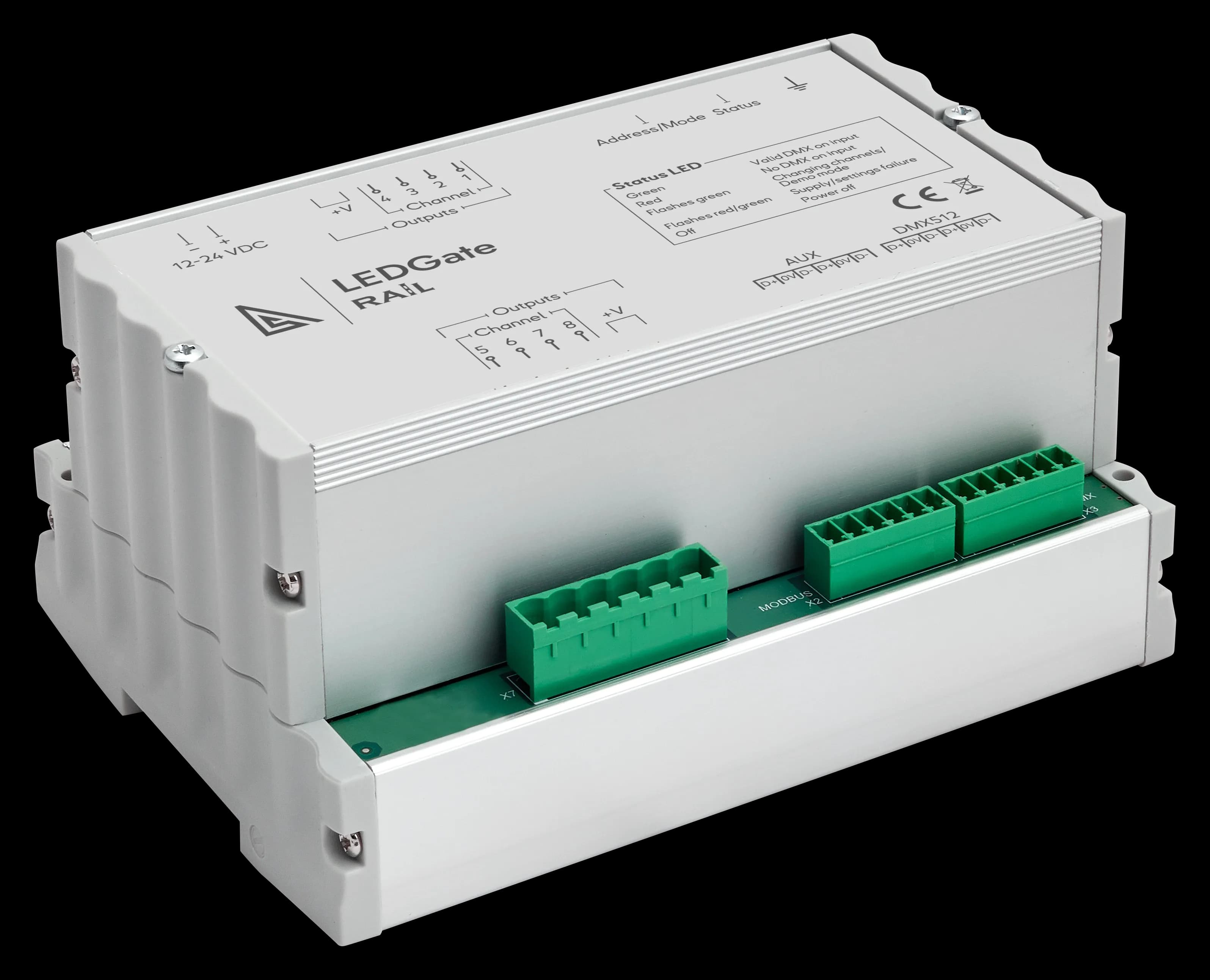

LEDGATE Rail is a compact, high-precision LED driver for DMX512-based lighting control systems, designed to interface directly with low-voltage LED fixtures such as duralight, LED strips, and driverless luminaires. The unit offers either 4 or 8 PWM output channels, each with individual short-circuit protection, and operates from a 12–36 VDC power source.
The device ensures flicker-free dimming across the full range of brightness thanks to embedded smoothing algorithms and supports both 8-bit and 16-bit resolution modes, allowing for seamless, high-fidelity intensity transitions.
LEDGATE Rail features galvanically isolated DMX input, supports RDM (ANSI E1.20) for remote configuration and monitoring, and can be alternatively configured via DIP switches. Additional smart functions include restart protection when operating on battery power, eliminating strobing effects during voltage dips.
The unit is housed in a laser-engraved aluminum enclosure, optimized for DIN rail installation and compact enough to fit into 8 standard modules. Its fanless passive cooling design ensures quiet and reliable performance even in dense control cabinets.
DIN rail LED driver with 4 or 8 independently controlled PWM outputs
Smooth, flicker-free dimming thanks to built-in curve smoothing algorithms
Short-circuit protection on each output channel
Supports DMX512 and RDM (ANSI E1.20) protocols
Selectable 8-bit or 16-bit operation for high-resolution control
Galvanically isolated DMX ports for safe integration
Automatic restart protection for battery-powered systems
Passive cooling — no fans or ventilation required
Laser-engraved aluminum housing for durability and clarity
Power supply: 12–36 VDC, depending on LED configuration
Fits 8 DIN rail modules
Designed for LED strips, pixel bars, driverless luminaires, and LED décor installations
- Mechanical:
Housing: Aluminum case for DIN rail installation
Material: Metal and plastic
Dimensions, mm: 142 (L) × 105 (H) × 75 (W)
Weight: 0.45 kg
Mounting: Power cabinet installation, DIN rail (8 modules) - Power & Electrical:
Power supply: 12–36 V DC
Max current per output channel: 10 A
Max total output current: 40 A
Max power consumption: 1000 W - Environment:
Operating temperature: -40…+70 °C
Storage temperature: -50…+80 °C
Max relative humidity: 95%
IP rating: IP20
Certificates: CE, RoHS compliant
Warranty: 36 months - Control / Data Connections:
Supported protocols: DMX512, RDM (ANSI E1.20)
DMX refresh rate: 44 Hz - Inputs / Outputs:
DMX port: 1
DMX connectors: 15EDGV terminal blocks
LED control channels: 4 or 8 PWM outputs - Configuration / Indication:
Configuration: DIP switches
Indicators: LED indicators - Package Contents:
LEDGATE Rail
Connector kit
