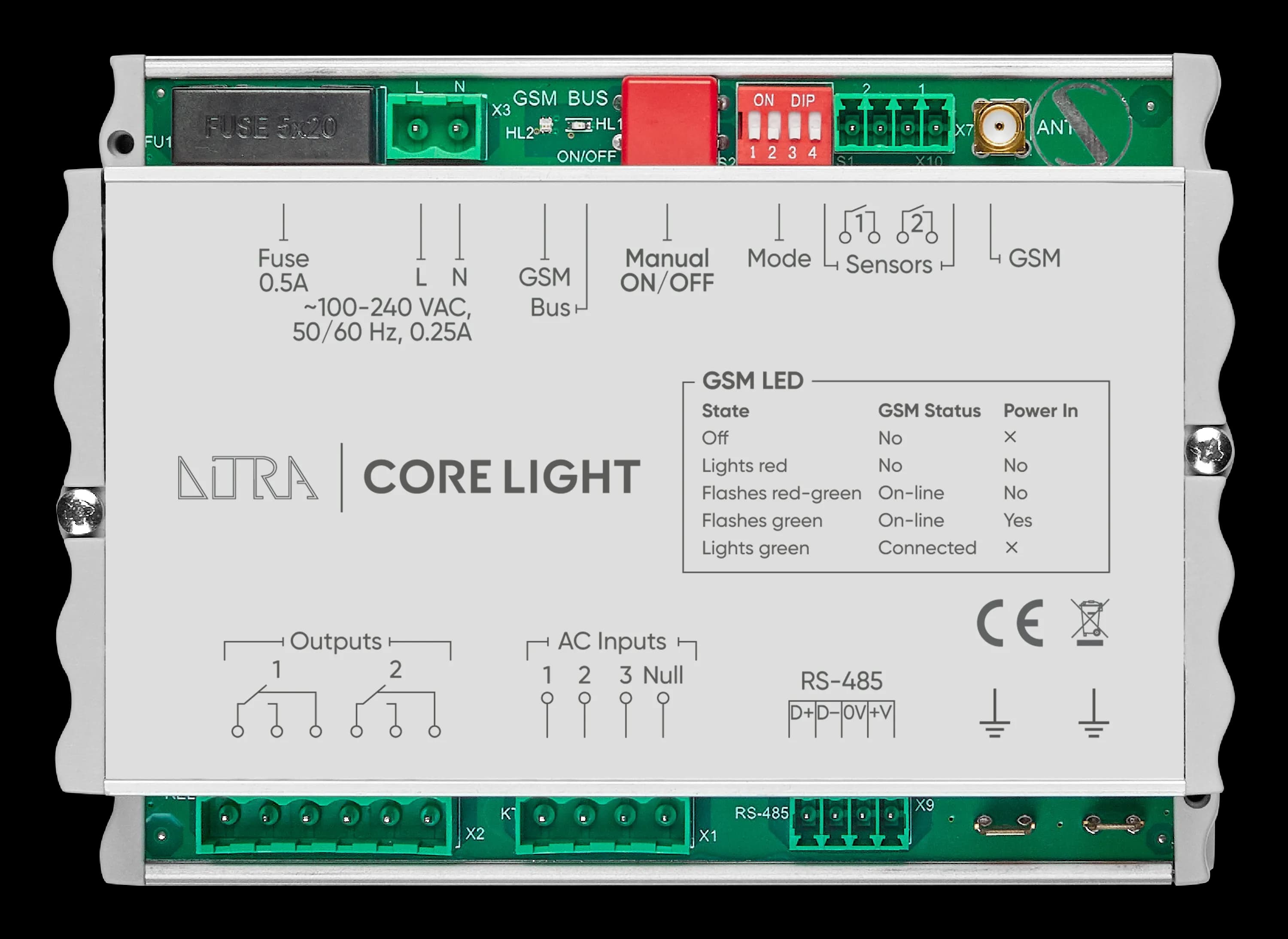

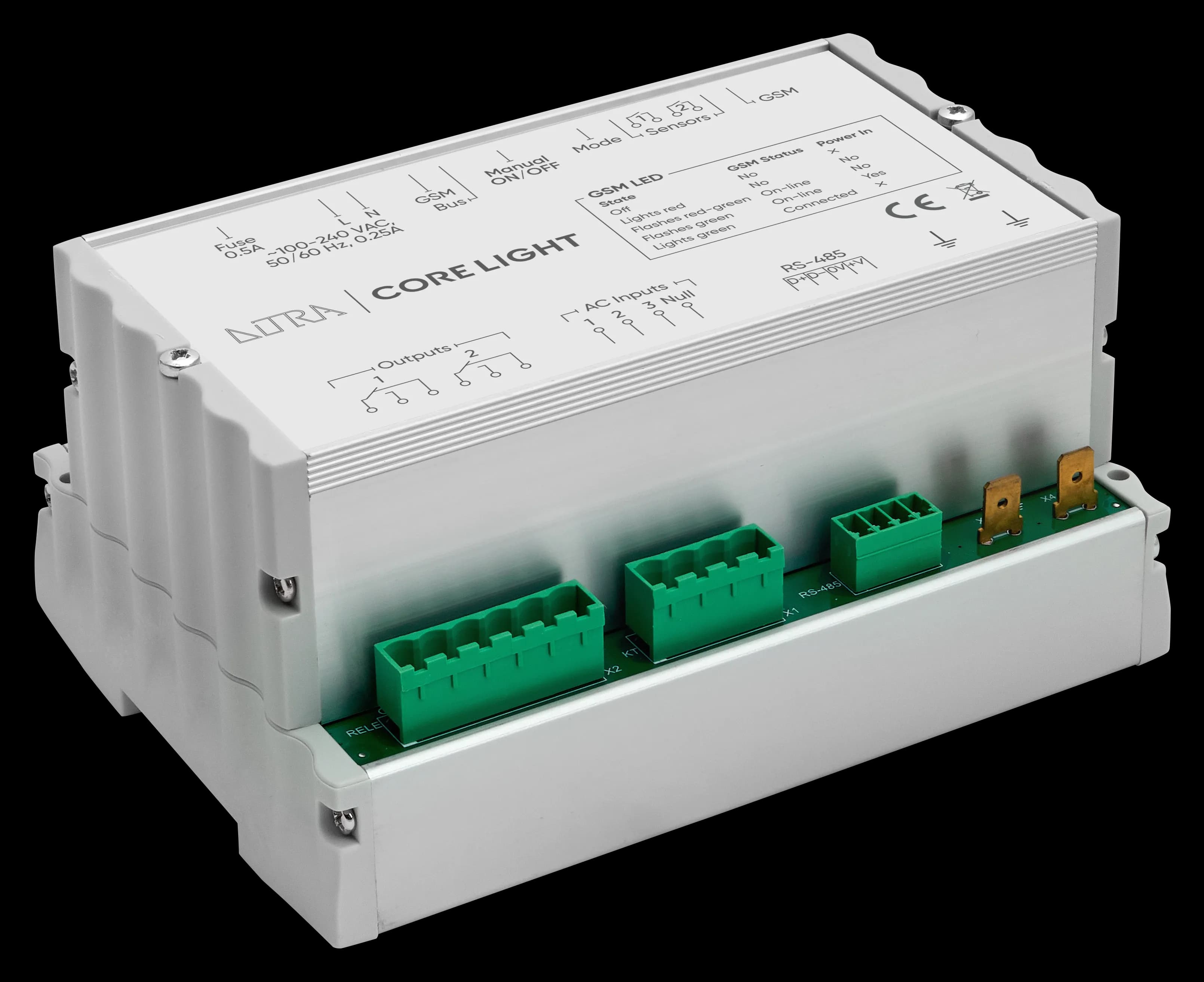

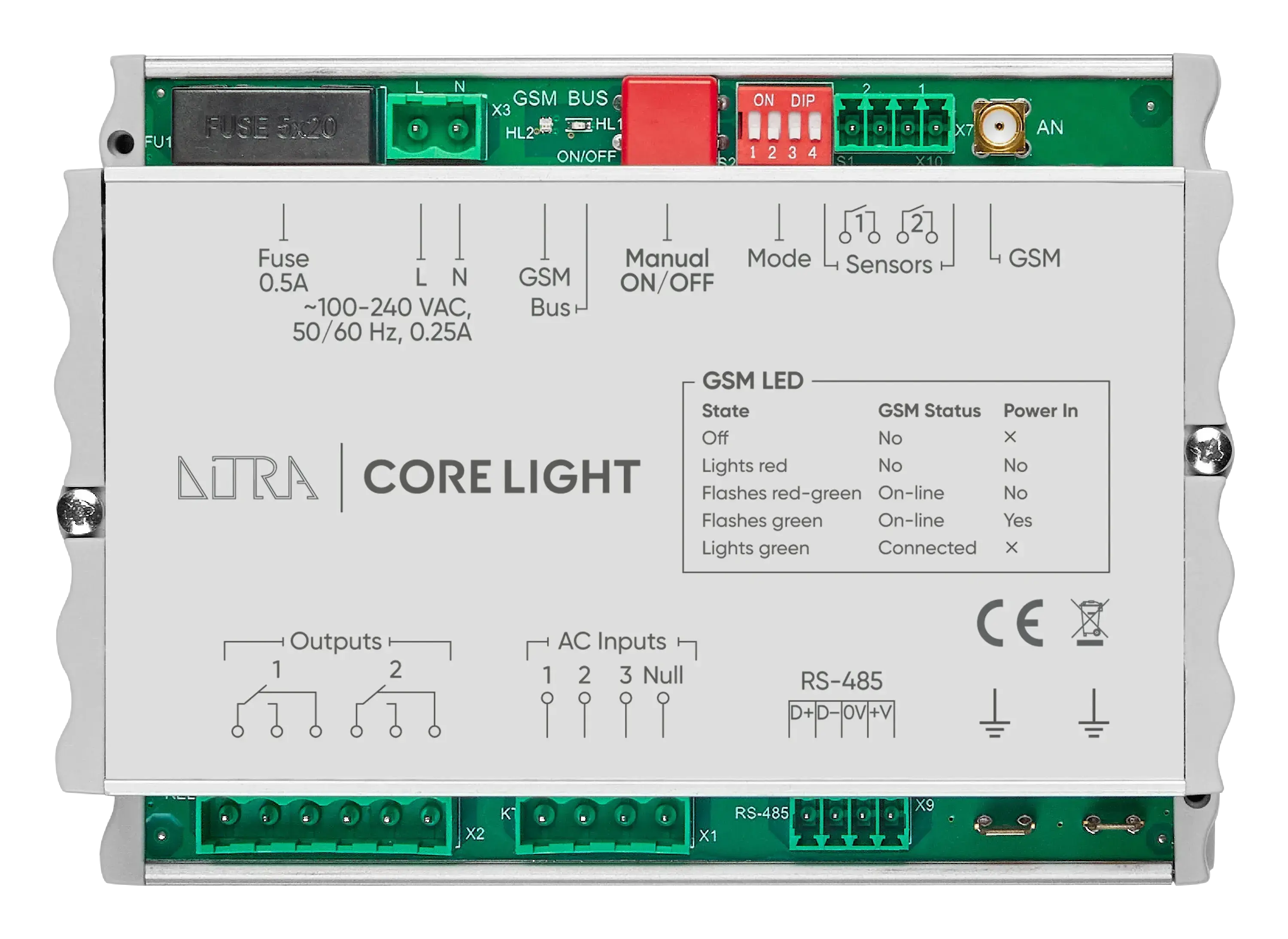

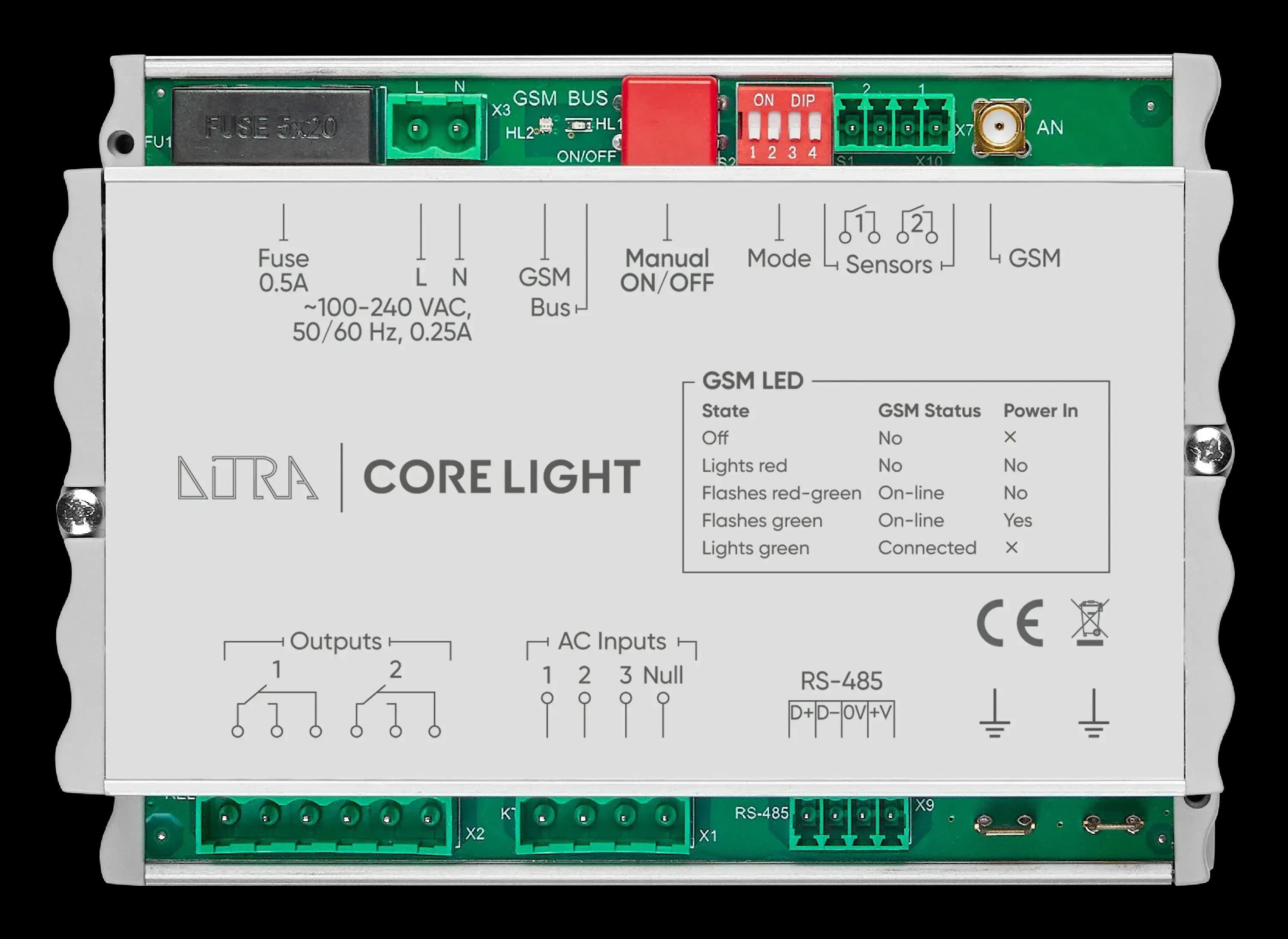

DITRA CORE LIGHT

Small Segment Controller for Street Lighting

The DITRA CORE LIGHT Street Light Controller is intended for remote monitoring and management of street lighting systems.

For two-way communication with external devices and meters, the DITRA CORE LIGHT utilizes RS-485 interfaces. It connects to the DITRA server via a 2G cellular network.

The controller operates on either 110/220 V AC or 9-36 V DC power supply.

Remote configuration is supported through the DITRA control platform, as well as locally via DIP switches on the device.

Designed for installation on a DIN rail, it fits seamlessly into lighting control cabinets.

  • Non-volatile memory for reliable data storage

    Integrated backup power supply ensures uninterrupted operation

    Built-in AC/DC power supply supports flexible input options

    Onboard astronomical clock for automatic scheduling based on sunrise and sunset

    Scenario scheduling and real-time remote control capabilities

    Independent phase control for enhanced flexibility and efficiency

    Powerline-based individual control using DITRA LITELINE technology

    Voltage tolerance up to 305 V for robust performance

    Simplified design for quick and easy installation

    Instant fault detection and alerts for electrical issues

    RS-485 interface for connecting electric meters and additional sensors

  • Mechanical:

    Housing: aluminum DIN mounted case
    Material: metal, plastic
    Dimensions, mm: 142(L) x 74,5(H) x 105(W)
    Mass: 0.45 kg
    Mounting: DIN (8 modules) rail

  • Power & Electrical:

    Input Voltage: ~100-240V 50/60 Hz; –9-36V
    Input Power (max): 5 W
    Mains Fuse: 0.5 A

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 95%
    IP Rating: IP 20
    Certification: CE, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Serial interface: RS-485, 2G
    Radio Channel: GSM 850/900/1800/1900
    Max length of RS-485 line: 1500 m

  • Inputs / Outputs:

    Relay outputs: 2
    Voltage control inputs: 3
    Max voltage and current at outputs: 240 V, 5 A
    Max voltage at inputs: 240 V
    Number of sensor inputs: 2

  • Configuration / Indication:

    Setup: remote via GSM/2G
    Indication: LEDs for GSM and RS-485 activity

  • Package Contents:

    Street Light Controller DITRA CORE LIGHT
    Connector set

Street Light Controller DITRA CORE LIGHT, AC, 2G, 2 relays, 3 inputs, RS
  • : DIT-CO-LIGHT-2G0203X
Street Light Controller DITRA CORE LIGHT, DC, 2G, 2 relays, 3 inputs, RS
  • : DIT-CO-LIGHT-2G0203X-DC
