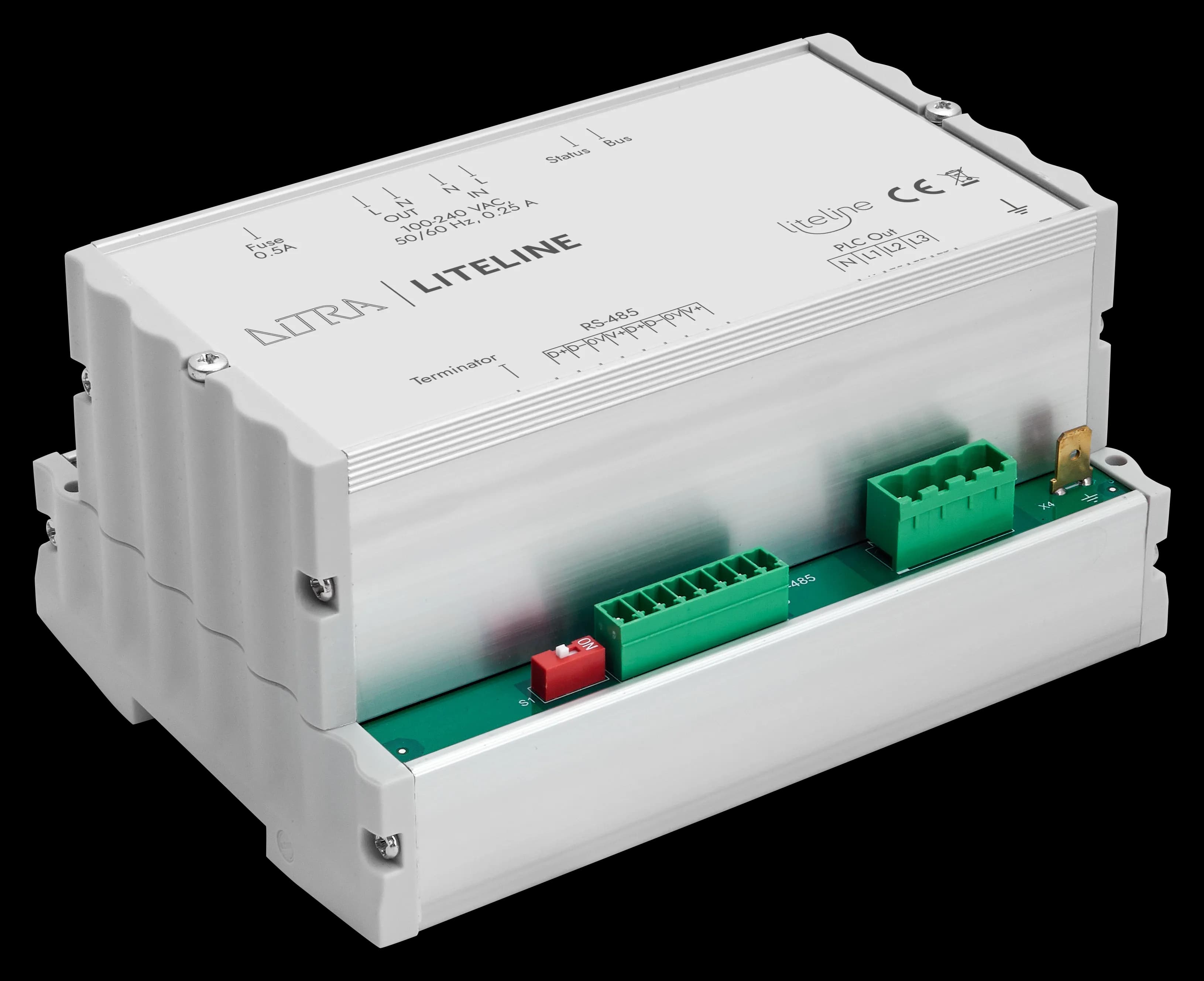

DITRA LiteLINE
PLC (Power Line Communication) Gateway for Street Lighting Control and Management
DITRA LiteLINE – Add-On Module for Remote Control of PLC-Enabled Devices
DITRA LiteLINE is an expansion module designed for remote management of devices equipped with PLC (Power Line Communication) technology.
Utilizing PLC technology, it enables seamless luminaire control and communicates with cabinet controllers via an RS-485 (MODBUS) interface.
The unit operates on a 100-250 V power supply and is configured remotely through DITRA software via cabinet controllers.
Engineered for DIN rail mounting in power supply cabinets, it offers a compact and reliable solution for street lighting management.
Aluminum casing with engraved labeling for durability and reliability
Operates at voltages up to 305 V, ensuring compatibility with various systems
PLC communication with LiteLINE technology for seamless integration
Synchronous transmission across 3 phases for stable and efficient operation
Compliant with CENELEC EN 50065-1 (C) standards for reliable performance
Individual light control and luminaire management for enhanced flexibility
Data collection and transmission capabilities for monitoring and analysis
Functions as a PLC modem, enabling advanced communication features
Remote software updates for simplified maintenance and upgrades
Adaptable for LiteLINE systems to ensure easy integration
Remote control and monitoring via RS-485 (MODBUS) interface
Designed for DIN rail installation in power supply cabinets for quick setup
- Mechanical:
Housing: aluminum DIN mounted case
Material: metal, plastic
Dimensions, mm: 142(L) x 74,5(H) x 105(W)
Mass: 0.85 kg
Mounting: DIN (8 modules) rail - Power & Electrical:
Input Voltage: ~90-250 V, 50/60 Hz
Number of control phases: 1-3
Input Power (max): 5 W
Mains Fuse: 0.5 A - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certification: CE compliant, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Communication interfaces: RS-485, PLC
Max length of RS-485 line: 1500 m
Communication with node: CENELEC EN 50065-1 (band C) - Inputs / Outputs:
Connectors: terminal blocks 2EDGVС, 15EDGVС
- Configuration / Indication:
Setup: remotely via cabinet controllers
Indication: LEDs and RS-485 activity - Package Contents:
DITRA LiteLINE
Connector set
- DITRA LiteLINE, AC, RS
- : DIT-P-EXT-PWR
- DITRA LiteLINE, DC, RS
- : DIT-P-EXT-PWR-DC
