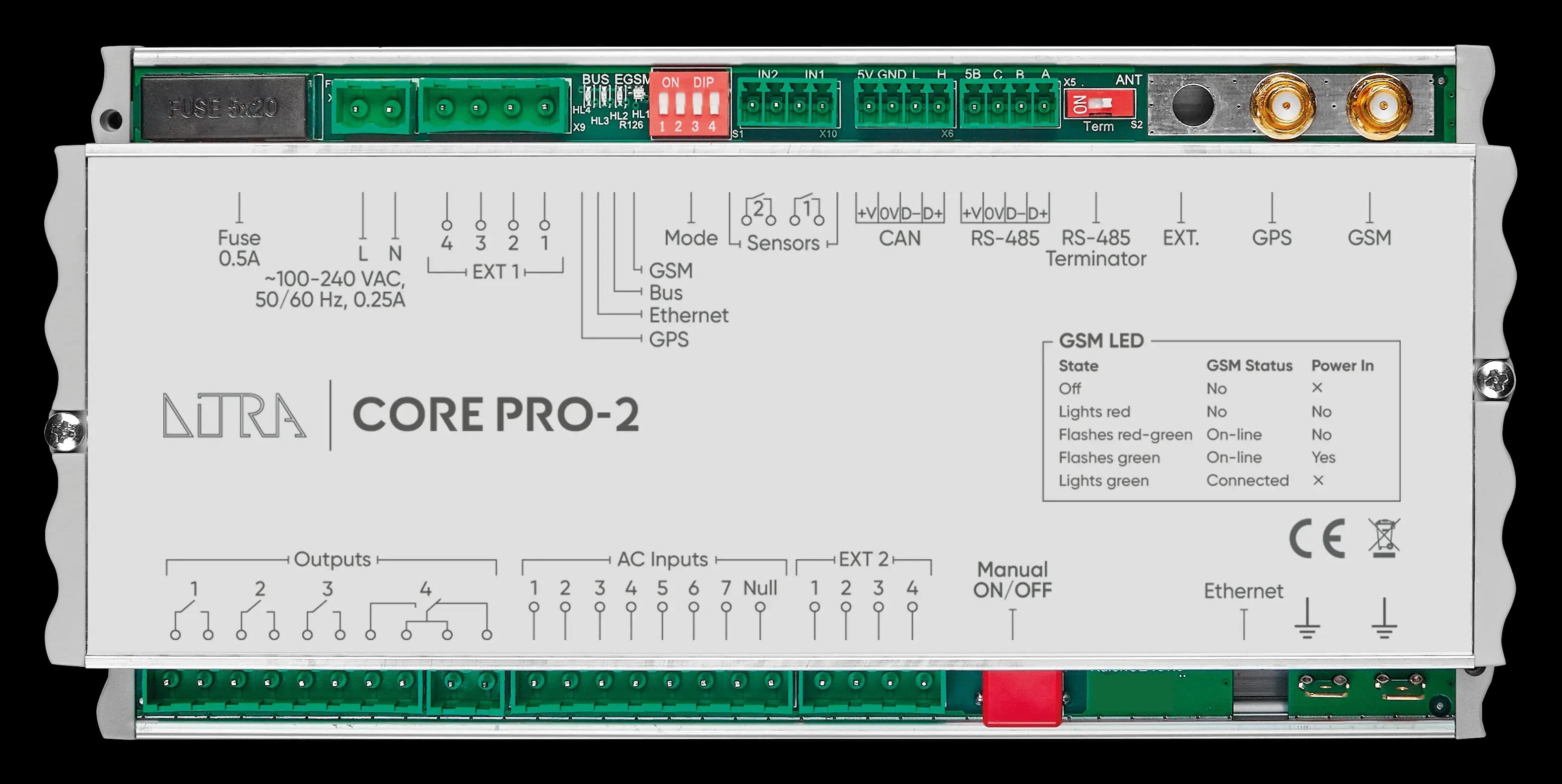

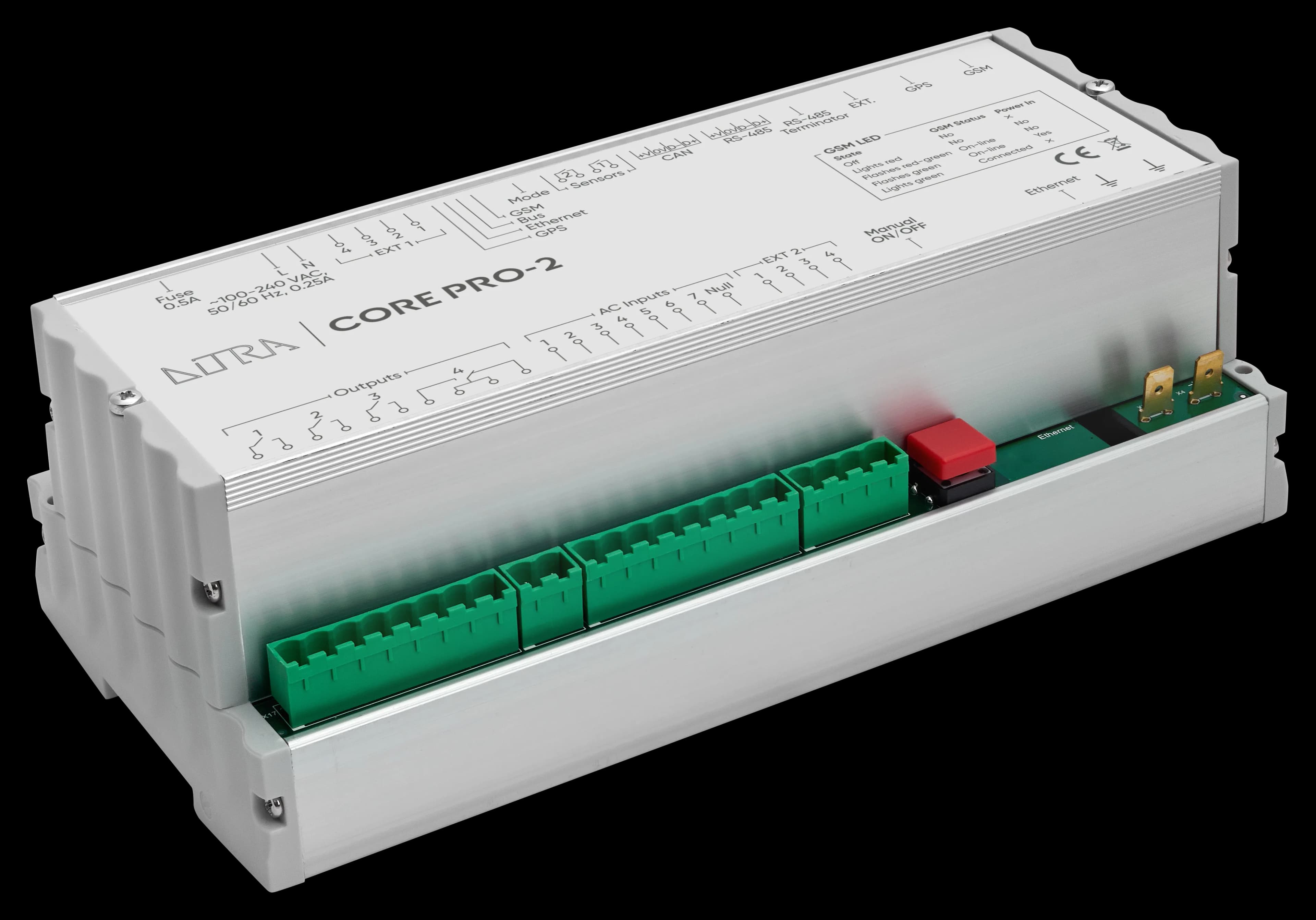

High-Performance Segment Controller for Street Lighting

The DITRA CORE PRO-2 is the central controller of the DITRA control system, designed for remote monitoring and management of all electrical equipment within a lighting control cabinet, including magnetic starters and DITRA system accessories.

The controller supports RS-485 and CAN interfaces for two-way communication with devices and meters. It connects to the DITRA server via 2G/3G/4G cellular networks or a 10/100 Base-TX Ethernet wired connection. A built-in GPS module ensures accurate time synchronization and geo-positioning.

The unit operates on 110/220 V AC or 9–36 V DC power sources.

Configuration can be performed remotely through the DITRA control platform or locally using DIP switches on the device.

Designed for DIN rail mounting, it integrates seamlessly into lighting control cabinets.

  • Scenario scheduling and real-time remote control

    Comprehensive management via integrated 2G/3G/4G modem

    Independent phase control for enhanced flexibility

    RS-485 interface for connecting electric meters and sensors

    Instant fault detection and alert notifications

    Operates with voltages up to 305 V for reliable performance

    Integrated backup power supply for uninterrupted operation

    Built-in AC/DC power supply for versatile power input options

    Non-volatile memory ensures secure data storage

    Onboard GPS and astronomical clock for precise scheduling

    Simplified design for quick and easy installation

  • Mechanical:

    Housing: aluminum DIN mounted case
    Material: metal, plastic
    Dimensions, mm: 212(L) x 74,5(H) x 105(W)
    Mass: 0.85 kg
    Mounting: DIN (12 modules) rail

  • Power & Electrical:

    Input Voltage: ~100-240V 50/60 Hz; –9-36V
    Input Power (max): 5 W
    Mains Fuse: 0.5 A

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 95%
    IP Rating: IP 20
    Certification: CE, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Navigation: GPS
    Serial interface: RS-485, CAN
    Radio Channel: GSM 850/900/1800/1900/
    WCDMA 900/2100

  • Inputs / Outputs:

    Relay outputs: 4
    Voltage control inputs: 7
    Max voltage and current at outputs: 240 V, 5 A
    Max voltage at inputs: 240 V
    Number of sensor inputs: 2
    Connectors: terminal blocks 2EDGVC, 15EDGVС

  • Configuration / Indication:

    Setup: locally via Ethernet; Remote via 2G/3G/4G
    Indication: LEDs for GSM, Ethernet and RS-485 activity

  • Package Contents:

    Street Light Controller DITRA CORE PRO-2

    Connector set

Street Light Controller DITRA CORE PRO-2, AC, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: E
  • : DIT-CO-PRO2-4G0407E
Street Light Controller DITRA CORE PRO-2, AC, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: A
  • : DIT-CO-PRO2-4GA0407E
Street Light Controller DITRA CORE PRO-2, DC, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: E
  • : DIT-CO-PRO2-4G0407E-DC
Street Light Controller DITRA CORE PRO-2, DC, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: A
  • : DIT-CO-PRO2-4GA0407E-DC
