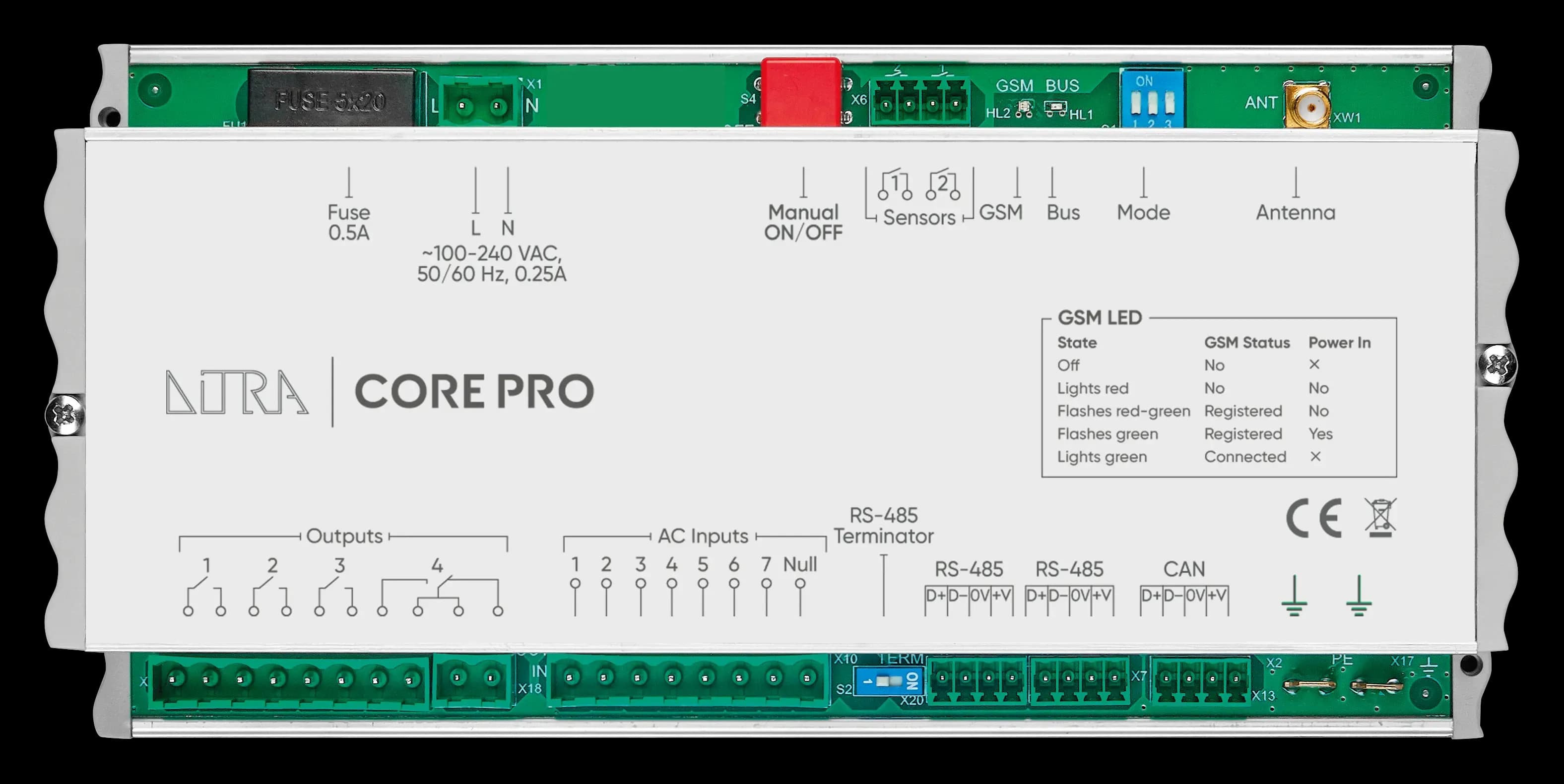

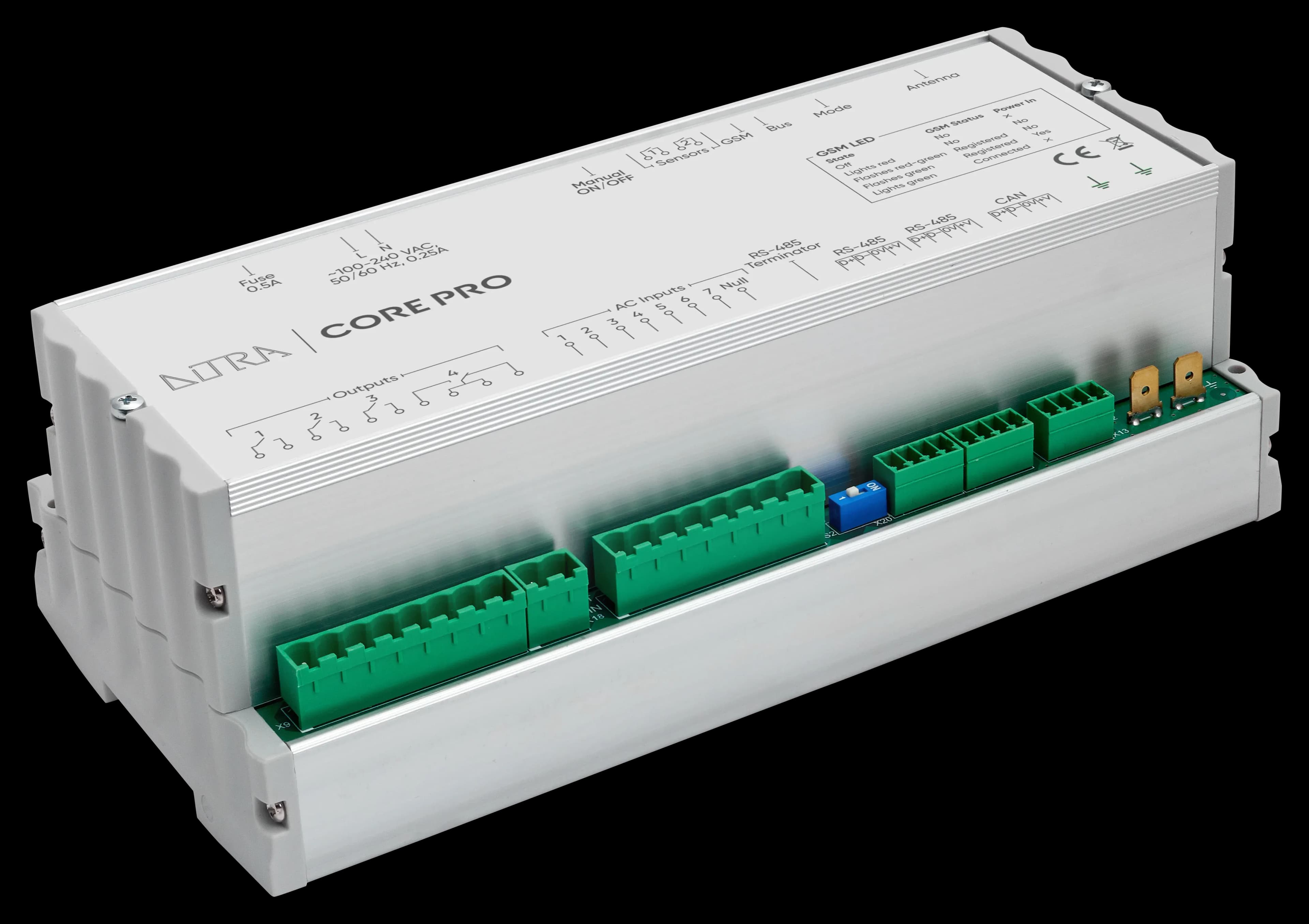

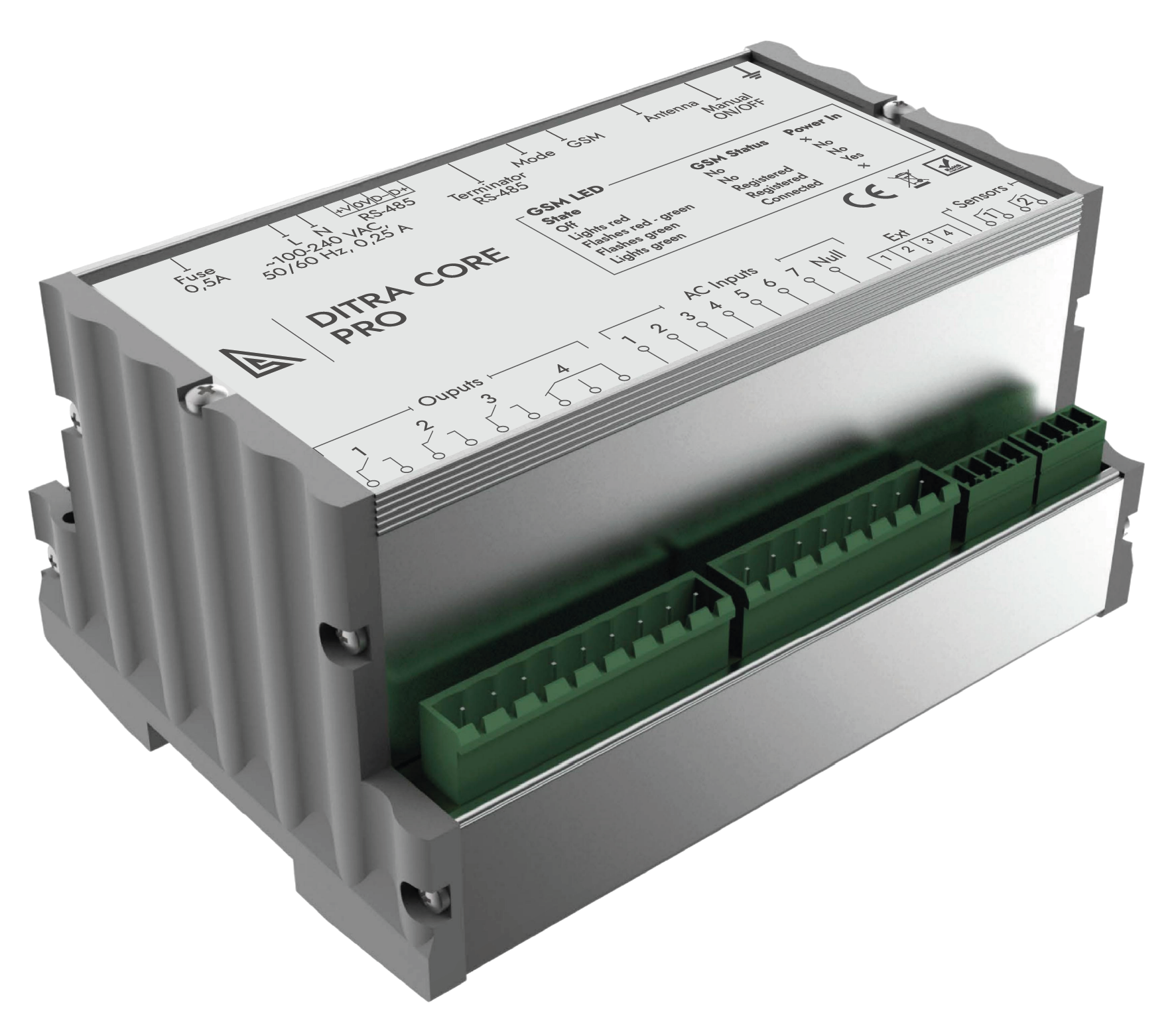

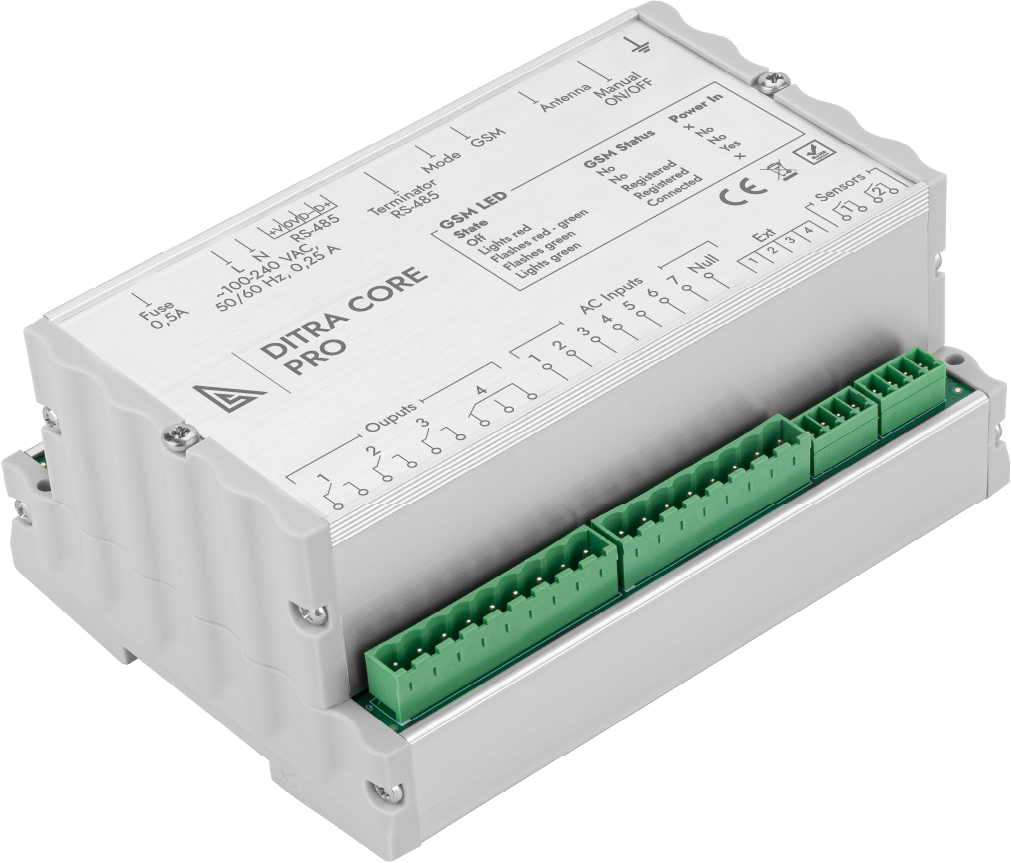

DITRA CORE PRO

Mid-Sized Segment Controller for Street Lighting

Cabinet equipment control — monitors and manages magnetic starters, meters, and compatible devices within lighting control cabinets.
Two-way communication — supports RS-485 and CAN interfaces for data exchange with connected devices and meters.
Cellular connectivity — 2G/4G communication for connection to the DITRA server.
Flexible power supply — operates on 110/220 V AC or 9–36 V DC.
F

Scenario scheduling and real-time remote management

Comprehensive control via integrated GSM/2G/4G modem

Independent phase-by-phase regulation

Individual powerline control using DITRA LiteLine

Connectivity to energy meters and additional sensors through RS-485

Detection and instant notification of electrical faults

Operates under voltages up to 305 V

Integrated backup power supply

Built-in AC/DC power conversion unit

Non-volatile memory for secure data retention

Onboard astronomical timer

User-friendly design for effortless installation

Mechanical: Housing: aluminum DIN mounted case
Material: metal, plastic
Dimensions, mm: 142(L) x 74,5(H) x 105(W)
Mass: 0.65 kg
Mounting: DIN (12 modules) rail
Power & Electrical: Input Voltage: ~100-240V 50/60 Hz; –9-36V
Input Power (max): 5 W
Mains Fuse: 0.5 A
Environment: Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certification: CE, RoHS
Warranty: 36 Month
Interfaces and Protocols: Serial interface: RS-485, CAN, 2G, 4G
Radio Channel: GSM 850/900/1800/1900
Max length of RS-485 line: 1500 m

Inputs / Outputs: Relay outputs: 4
Voltage control inputs: 7
Max voltage and current at outputs: 240 V, 5 A
Max voltage at inputs: 240 V
Number of sensor inputs: 2
Configuration / Indication: Setup: remote via GSM/2G/4G
Indication: LEDs for GSM and RS-485 activity
Package Contents: Street Light Controller DITRA CORE PRO
Connector set
