Architecture + Facade

Architectural Controllers

small_Media Facade category.webp

thumbnail_Media Facade category.webp

Media Facade category.webp

Media Facade Controllers

small_Converters category.png

thumbnail_Converters category.png

Converters category.png

Entertainment

Converters

small_Transceiver category.webp

thumbnail_Transceiver category.webp

Transceiver category.webp

Transcievers

small_Splitter category.webp

thumbnail_Splitter category.webp

Splitter category.webp

Splitters

small_Relay Switcher category.png

thumbnail_Relay Switcher category.png

Relay Switcher category.png

Relay Switches

small_LED driver category.png

thumbnail_LED driver category.png

LED driver category.png

DMX-PWM LED Controllers




SPI LED Pixel Controllers

small_Dimmer category.png

thumbnail_Dimmer category.png

Dimmer category.png

Dimmers

small_Repeater category.png

thumbnail_Repeater category.png

Repeater category.png

Repeaters

large_RadioGATE Shield connection scheme.png

medium_RadioGATE Shield connection scheme.png

small_RadioGATE Shield connection scheme.png

thumbnail_RadioGATE Shield connection scheme.png

RadioGATE Shield connection scheme.png

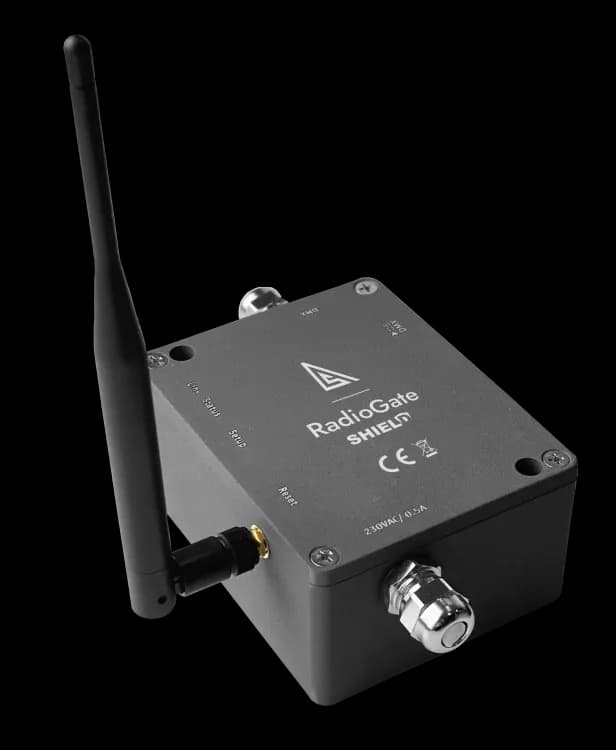

<h2>RadioGATE Shield is a professional wireless transceiver for DMX512 and RDM lighting systems, built for outdoor and complex environments.&nbsp;</h2>Using the advanced beDMX protocol based on Bluetooth 5.0, it ensures stable two-way wireless communication with adaptive frequency hopping in the 2.4 GHz band.It supports reliable wireless operation depending on antenna configuration: &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 150 meters with standard antennas &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 300 meters when both transmitter and receivers use high-gain omnidirectional antennas &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 500 meters when the transmitter uses a high-gain omnidirectional antenna and receivers use directional panel antennas (line of sight).One transmitter antenna can reliably serve up to 20 receivers, ensuring stable performance even in complex setups.RadioGATE Shield offers flexible power input options: 110–220V AC or 12–24V DC. Configuration is quick and easy thanks to intuitive push-button controls right on the device — no special software is needed. The unit also protects connected DMX devices using galvanic isolation, and runs silently with a fanless cooling system.The transceiver is housed in a compact IP66-rated metal enclosure, suitable for mounting on trusses, walls, or brackets. Whether between rooftops, across bridges, or across large venues — RadioGATE Shield delivers stable, wireless DMX control you can trust.

large_RadioGATE Shield dimensions.png

medium_RadioGATE Shield dimensions.png

small_RadioGATE Shield dimensions.png

thumbnail_RadioGATE Shield dimensions.png

RadioGATE Shield dimensions.png






Shield series are carefully crafted “offtrack” devices excellent for any outdoor installations under any weather conditions: from Arctic winters to Sahara’s hottest dusty summers, successfully tested for tropicalization to work in the most humid areas. Extensive installations are easily handled by our trademark devices with 2 Ethernet ports which obviate the need of using Ethernet switches.Natural heat convection and moulded 3mm space effective thick metal case with sealed connectors provide highest ingress protection (IP65). All DMX ports are bidirectional i.e. may be configured as inputs or outputs. All ports are galvanically isolated. UltraStart Technology guarantees ready device in less than 3 seconds after power supply. RDM support. Some devices feature PoE power supply (802.15f). Different wall and clamp mounting options.

Shield

Wireless DMX and RDM transceiver with long-range beDMX protocol and IP66 protection for outdoor lighting control

Mechanical

Power & Electrical

Environment

Control / Data Connections

Inputs / Outputs

Configuration / Indication

Package Contents

RadioGATE Shield

large_RadioGATE Plus Guard connection scheme.png

medium_RadioGATE Plus Guard connection scheme.png

small_RadioGATE Plus Guard connection scheme.png

thumbnail_RadioGATE Plus Guard connection scheme.png

RadioGATE Plus Guard connection scheme.png






RadioGATE Plus Guard is a versatile hybrid DMX converter that combines wireless beDMX transmission and Ethernet-based Art-Net/sACN conversion in a single compact unit. Designed for both fixed and mobile applications, it offers full functionality as a DMX transceiver, Ethernet-to-DMX gateway, signal splitter, and booster, with integrated backup switching for seamless performance in high-stakes environments.Built around DITRA’s beDMX protocol, based on Bluetooth 5.0 in the 2.4 GHz ISM band, the device supports bidirectional DMX and RDM (ANSI E1.20) over wireless channels. Adaptive Frequency Hopping (AFH) at 1600 hops/sec ensures high resistance to interference, enabling stable communication depending on antenna configuration: &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 150 meters with standard antennas &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 300 meters when both transmitter and receivers use high-gain omnidirectional antennas &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 500 meters when the transmitter uses a high-gain omnidirectional antenna and receivers use directional panel antennas (line of sight).Each transmitter antenna can reliably serve up to 20 receivers. The 4-port configuration features two antennas, with each antenna transmitting two DMX streams — ensuring flexibility and stability for professional setups.The integrated 10/100 Mbps Ethernet port provides ArtNet (1–4), sACN, KiNet, and RTTrPL protocol support. The unit automatically manages network fallback — for example, if a cable connection is lost, wireless communication takes over without reconfiguration, making it ideal for touring companies, festivals, or architectural setups requiring redundancy.Available in 2-port and 4-port configurations, each DMX port is optically isolated and individually configurable. Power options include AC (100–315 V), DC (12–24 V), and optional PoE, with galvanic isolation on all ports, surge protection, and ultra-fast boot-up after power loss (UltraStart).Configuration is handled via a web interface, ArtGate Setting utility, or simple two-button setup on the device. All connection settings are saved internally, so once configured, devices automatically reconnect when powered on — no re-pairing needed between events.

large_RadioGATE Plus Guard dimensions.png

medium_RadioGATE Plus Guard dimensions.png

small_RadioGATE Plus Guard dimensions.png

thumbnail_RadioGATE Plus Guard dimensions.png

RadioGATE Plus Guard dimensions.png






Guard series has been specifically designed for adverse environments, hardly accessible and excessively dusty indoor locations. Guard series converters have proved their excellent resistance to mechanical impact and any kind of stage smoke. These series include wireless DMX or ArtNet/sACN/RDM transceivers/receivers, bidirectional DMX to ArtNet/sACN converters, as well as hybrid CrossGates (wireless DMX/ArtNet/sACN transmitter/receivers). Natural heat convection and moulded 3mm space effective thick metal case with reinforced connectors provide high ingress protection (IP44). All ports are bidirectional i.e. may be configured as inputs or outputs. All DMX ports are galvanically isolated. UltraStart Technology guarantees ready device in less than 3 seconds after power supply. Different wall and clamp mounting options. Some devices feature PoE power supply (802.15f).

Guard

Hybrid DMX controller combining wireless beDMX transceiver, Art-Net/sACN to DMX converter, and splitter with up to 4 optically isolated ports, dual power options, and automatic failover

RadioGATE Plus Guard

large_RadioGATE Guard connection scheme.png

medium_RadioGATE Guard connection scheme.png

small_RadioGATE Guard connection scheme.png

thumbnail_RadioGATE Guard connection scheme.png

RadioGATE Guard connection scheme.png






RadioGATE Guard is a compact, professional-grade wireless DMX transceiver built for indoor or semi-protected environments. Designed around DITRA’s proprietary beDMX technology, it enables bidirectional transmission of DMX512 and RDM signals in the 2.4 GHz ISM band, ensuring reliable wireless control without the need for new cabling infrastructure.beDMX offers exceptional resistance to interference via Adaptive Frequency Hopping (AFH), with 1600 hops per second, and supports wireless operation depending on antenna configuration: &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 150 meters with standard antennas &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 300 meters when both transmitter and receivers use high-gain omnidirectional antennas &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 500 meters when the transmitter uses a high-gain omnidirectional antenna and receivers use directional panel antennas (line of sight).One transmitter antenna can reliably serve up to 20 receivers, ensuring stable performance in professional setups. This makes RadioGATE Guard ideal for indoor venues, stage environments, galleries, and control rooms where stable wireless DMX is required.Each device can operate as a transmitter or receiver, and features 1 or 2 coaxial RP-SMA connectors for antenna configuration. DMX ports are fully galvanically isolated and configurable as input or output. The system supports DMX512 and RDM (ANSI E1.20), and can be set up either via a simple two-button interface or an intuitive web-based interface when integrated with Ethernet (<a target="_blank" rel="noopener noreferrer" href="https://ditra-solutions.com/products/RadioGatePlusGuard">RadioGATE Plus Guard </a>variant).Designed for professional use, RadioGATE Guard features rugged IP54-rated metal housing, optional AC or DC power input (110–220V AC or 12–24V DC), Neutrik® XLR connectors, and UltraStart fast recovery after power interruptions. It stores all network settings locally, so once paired, your devices automatically reconnect — no reconfiguration needed between events.

large_RadioGATE Guard dimensions.png

medium_RadioGATE Guard dimensions.png

small_RadioGATE Guard dimensions.png

thumbnail_RadioGATE Guard dimensions.png

RadioGATE Guard dimensions.png






Wireless DMX/RDM transceiver for indoor installations, with bidirectional beDMX transmission, one-button configuration, and up to 500 m range — ideal for rental and fixed systems with no cabling access

RadioGATE Guard

large_RadioGATE Plus Shield connection scheme.png

medium_RadioGATE Plus Shield connection scheme.png

small_RadioGATE Plus Shield connection scheme.png

thumbnail_RadioGATE Plus Shield connection scheme.png

RadioGATE Plus Shield connection scheme.png

RadioGATE Plus Shield - wireless transciever

large_RadioGate-Plus-Shield_dev 2.png

medium_RadioGate-Plus-Shield_dev 2.png

small_RadioGate-Plus-Shield_dev 2.png

thumbnail_RadioGate-Plus-Shield_dev 2.png

RadioGate-Plus-Shield_dev 2.png

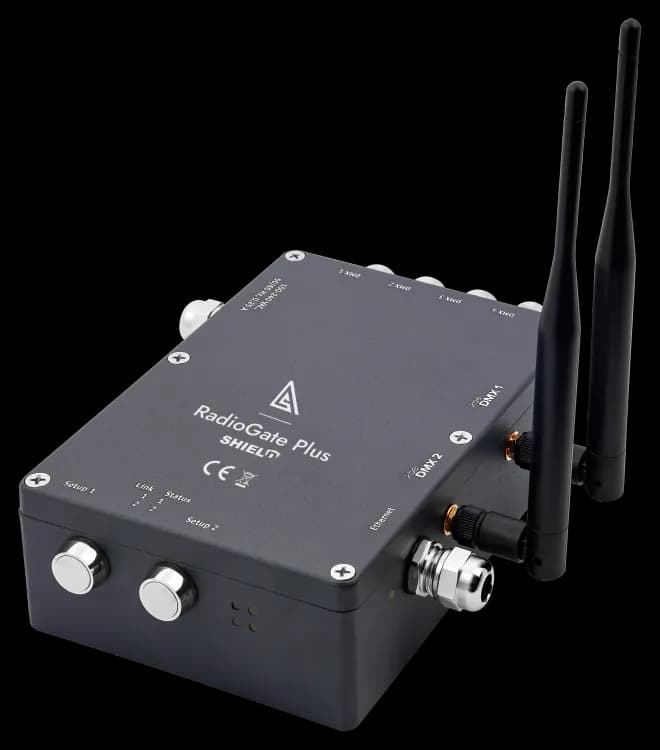

RadioGATE Plus Shield is a powerful all-in-one device for professional lighting control that combines a wireless DMX transceiver, an ArtNet/sACN-to-DMX converter, and a DMX splitter with RDM support. Engineered for outdoor reliability, it offers seamless operation over both radio (beDMX) and Ethernet networks.The unit supports a wide range of industry-standard protocols including DMX512, RDM (ANSI E1.20), ArtNet (1–4), sACN, KiNet (v1, v2), and RTTrPL. It enables multiple signal conversion and routing combinations, both wireless and wired, making it ideal for complex setups where flexibility and redundancy are key.Stable wireless communication is ensured with DITRA’s beDMX protocol, delivering reliable operation depending on antenna configuration: &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 150 meters with standard antennas &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 300 meters when both transmitter and receivers use high-gain omnidirectional antennas &nbsp;&nbsp;&nbsp;&nbsp;•&nbsp;&nbsp;&nbsp;&nbsp;up to 500 meters when the transmitter uses a high-gain omnidirectional antenna and receivers use directional panel antennas (line of sight).Each transmitter antenna can reliably serve up to 20 receivers. In the 4-port configuration, the RadioGATE Plus Shield is equipped with two antennas, where each antenna transmits two DMX streams, ensuring stable performance in large and distributed installations.RadioGATE Plus Shield can be powered via 110–250V AC, 12–24V DC, or Power over Ethernet (PoE, IEEE 802.3af). Its aluminum IP66-rated case ensures durability under extreme conditions. Configuration is simple through a web interface, the ArtGate Setting utility, third-party ArtNet-compatible software, or DITRA’s own tools. The device also supports fixed IPs and profile saving for fast setup and maintenance.&nbsp;Whether you’re building a large-scale architectural facade or managing distributed lighting across buildings or moving structures, RadioGATE Plus Shield provides a smart, flexible, and robust solution.

large_RadioGATE Plus Shield dimensions.png

medium_RadioGATE Plus Shield dimensions.png

small_RadioGATE Plus Shield dimensions.png

thumbnail_RadioGATE Plus Shield dimensions.png

RadioGATE Plus Shield dimensions.png






large_RadioGate-Plus-Shield_dev1 1.webp

medium_RadioGate-Plus-Shield_dev1 1.webp

small_RadioGate-Plus-Shield_dev1 1.webp

thumbnail_RadioGate-Plus-Shield_dev1 1.webp

RadioGate-Plus-Shield_dev1 1.webp






Multifunctional wireless DMX and Ethernet converter with ArtNet, RDM, and PoE support for advanced outdoor lighting systems

RadioGATE Plus Shield






Explore our range of smart lighting control products — from controllers and communication modules to gateways and luminaire nodes. Designed for flexibility, reliability, and integration into modern Smart City systems, our solutions cover every scenario from individual to group control, wired or wireless

PROfessional lighting control hardware
