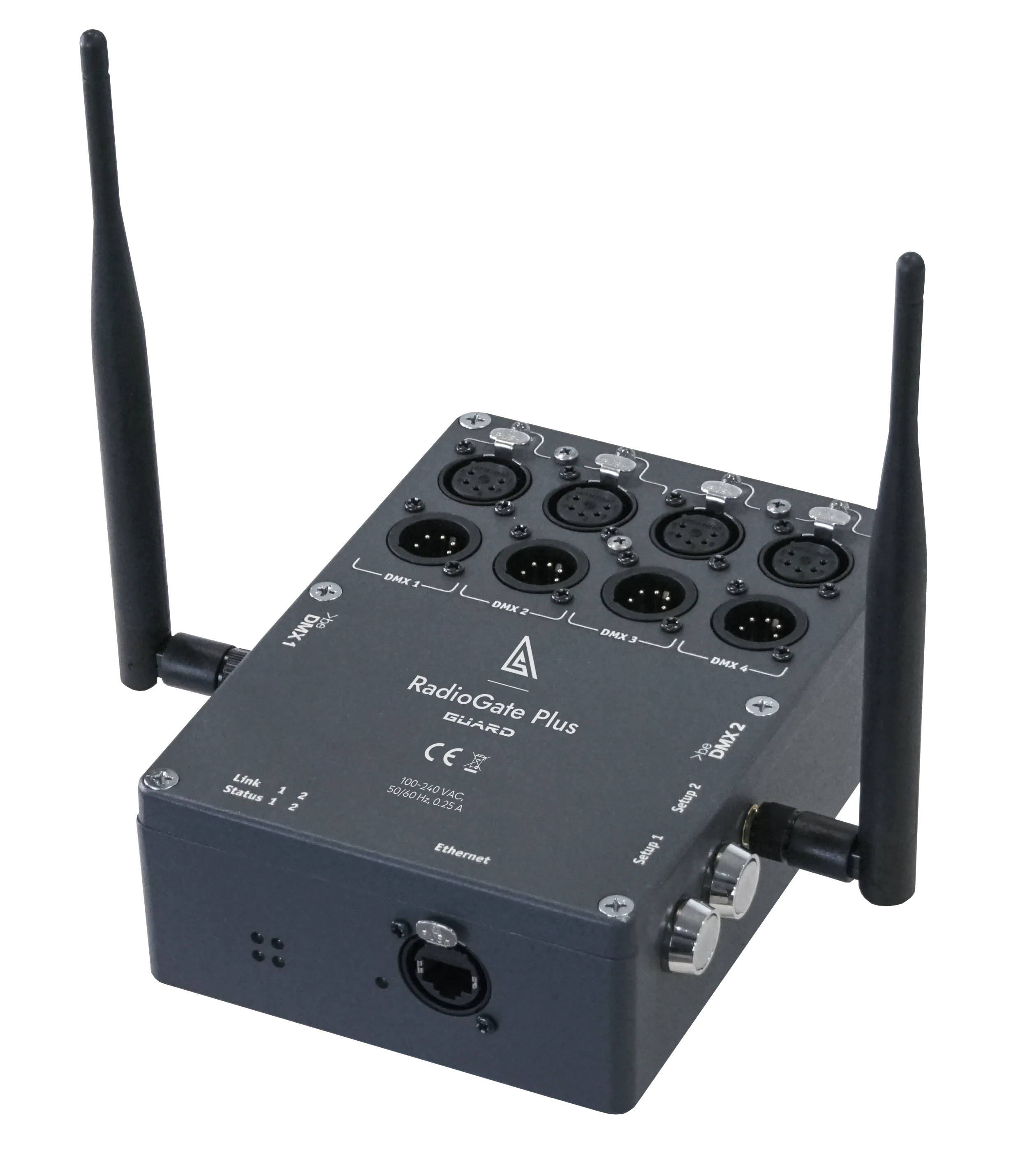

RadioGATE Plus Guard

Hybrid DMX controller combining wireless beDMX transceiver, Art-Net/sACN to DMX converter, and splitter with up to 4 optically isolated ports, dual power options, and automatic failover

RadioGATE Plus Guard is a versatile hybrid DMX converter that combines wireless beDMX transmission and Ethernet-based Art-Net/sACN conversion in a single compact unit. Designed for both fixed and mobile applications, it offers full functionality as a DMX transceiver, Ethernet-to-DMX gateway, signal splitter, and booster, with integrated backup switching for seamless performance in high-stakes environments.

Built around DITRA’s beDMX protocol, based on Bluetooth 5.0 in the 2.4 GHz ISM band, the device supports bidirectional DMX and RDM (ANSI E1.20) over wireless channels. Adaptive Frequency Hopping (AFH) at 1600 hops/sec ensures high

Hybrid device: wireless DMX transceiver, Ethernet-to-DMX converter, and DMX splitter in one

Supports DMX512, RDM (ANSI E1.20), ArtNet (1–4), sACN, KiNet (v1, v2), RTTrPL

Wireless transmission via beDMX protocol (Bluetooth 5.0, 2.4 GHz)

Wireless range: up to 150 m (standard), 300 m (high-gain omni), or 500 m (panel antennas, line of sight)

Each transmitter antenna reliably serves up to 20 receivers; 4-port configuration includes two antennas, each transmitting two DMX streams

2 or 4 optically isolated DMX ports, configurable as input or output

Automatic Ethernet/wireless failover for seamless backup

Adaptive Frequency Hopping (AFH) – 1600 hops/sec for strong interference immunity

Power supply: 100–315 V AC, 12–24 V DC, or optional PoE

Fast recovery after power failure with saved configuration (UltraStart)

IP54-rated rugged metal housing for indoor or protected outdoor use

Neutrik® XLR connectors and RP-SMA antenna ports

Simple two-button or web-based setup

Full galvanic isolation and surge protection on all ports

Designed for professional touring, live shows, and critical installations

Mechanical: Housing: solid case
Material: metal
Dimensions: 181,3 (L) x 59,4 (H) x 130(W)
Mass: 1.2 kg
Mounting: Surface, Truss
Power & Electrical: Input Voltage: 90-250 VAC, 50/60 Hz or 12-24 VDC
Max current consumption: 0.1A
Environment: Operating Temperature: 0...+60°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 54
Certificates: CE compliant, RoHS
Warranty: 36 Month
Control / Data Connections: Supported protocols: DMX512, RDM,
ArtNet I, II, III, IV, sACN draft, release, KiNet v1, v2 RTTrPL sACN draft, release
Data refresh rate: 44 Hz
Transmission range (standard antenna): 150m
Communication protocol: Bluetooth 5.0
RF band: 2.4 GHz

Inputs / Outputs: DMX ports: 2 or 4 isolated: 2-4 XLR(M), 2-4 XLR(F) (5 pins)
Wireless channels: 2
Ethernet ports: 10/100 Base-TX, RJ-45/ EtherCon
Configuration / Indication: Setup: Web interface, buttons
Indication: LEDs for DMX, beDMX and Ethernet activity
Package Contents: RadioGATE Plus Guard
2 antenna 2.4 GHz
