RadioGATE Guard

Wireless DMX/RDM transceiver for indoor installations, with bidirectional beDMX transmission, one-button configuration, and up to 1500 m range — ideal for rental and fixed systems with no cabling access

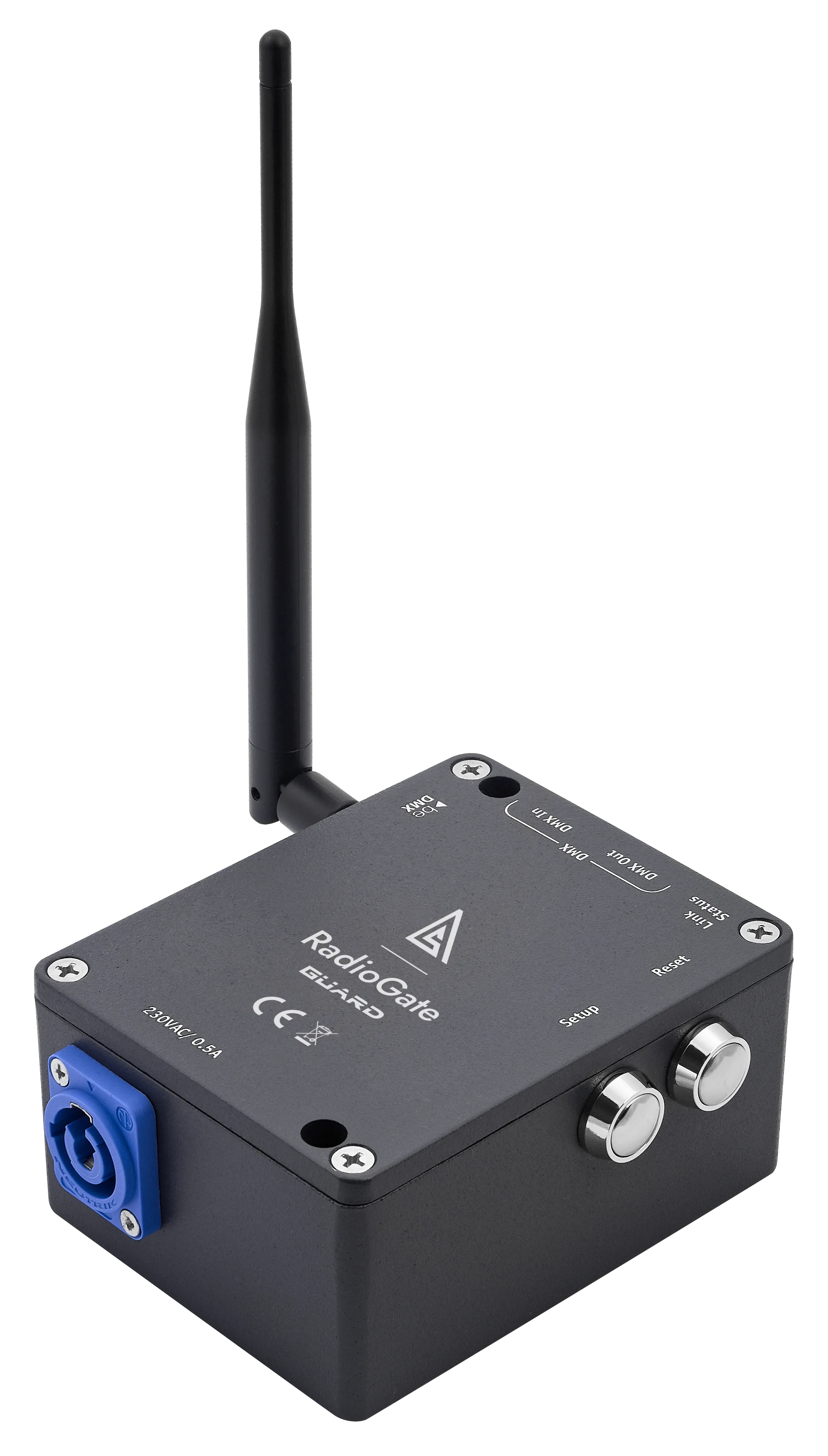

RadioGATE Guard is a compact, professional-grade wireless DMX transceiver built for indoor or semi-protected environments. Designed around DITRA’s proprietary beDMX technology, it enables bidirectional transmission of DMX512 and RDM signals in the 2.4 GHz ISM band, ensuring reliable wireless control without the need for new cabling infrastructure.

beDMX offers exceptional resistance to interference via Adaptive Frequency Hopping (AFH), with 1600 hops per second, and supports a maximum transmission range of up to 1500 meters with high-gain antennas (300 m with standard antennas). This makes RadioGATE Guard ideal for indoor venues, sta

Wireless DMX512 and RDM communication using beDMX protocol

2.4 GHz band with Adaptive Frequency Hopping (1600 hops/sec)

Transmission range up to 1500 m with high-gain antennas

Configurable as transmitter or receiver

1 or 2 DMX ports with full galvanic isolation

RP-SMA antenna connectors with external antenna support

Supports DMX512, RDM (ANSI E1.20)

Simple setup via two-button interface or web GUI (on Ethernet variant)

UltraStart fast power-up with saved pairing settings

Power supply options: 110–220 V AC or 12–24 V DC

IP44-rated duralumin housing for indoor/protected use

Neutrik® XLR metal connectors

Designed for touring and rental applications

Mechanical: Housing: solid case
Material: metal
Dimensions, mm: 125,1(D) x 55,7(H) x 95,8(W)
Mass: 0.85 kg
Mounting: surface, truss
Power & Electrical: Power supply: ~90-250 VAC, 50/60 Hz or 12-24 VDC
Max current consumption: 0.1
Mains Fuse: 0.5 A (VAC modification)
Environment: Operating Temperature: 0...+60°C
Storage Temperature: -50...+70°C
Operating Relative Humidity (max): 95%
IP Rating: IP 44
Certification: CE compliant, RoHS
Warranty: 36 month (return to base)
Control / Data Connections: Supported protocols: DMX512, RDM
DMX data refresh rate: 44 Hz
Transmission range (standard antenna): 100 m
Communication protocol: Bluetooth 5.0, BeDMX
RF band: 2.4 GHz

Inputs / Outputs: Wireless channels: 1
DMX ports: 2 isolated (depends on modification)
Connectors: 2 XLR(M), 2 XLR(F) (5 pins)
Configuration / Indication: Setup: buttons
Indication: LEDs for DMX activity
Package Contents: RadioGATE Guard
1 antenna 2.4 GHz
