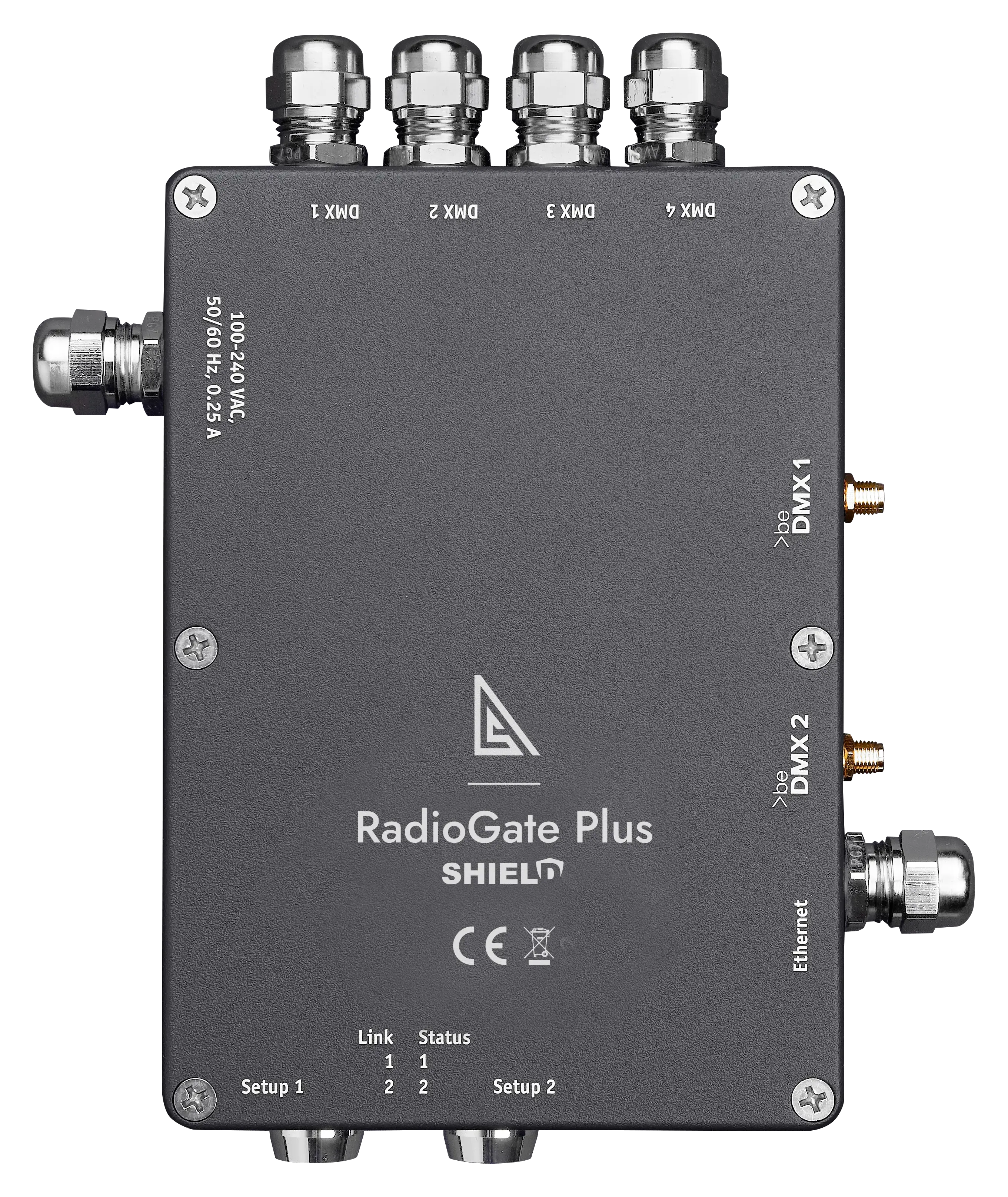

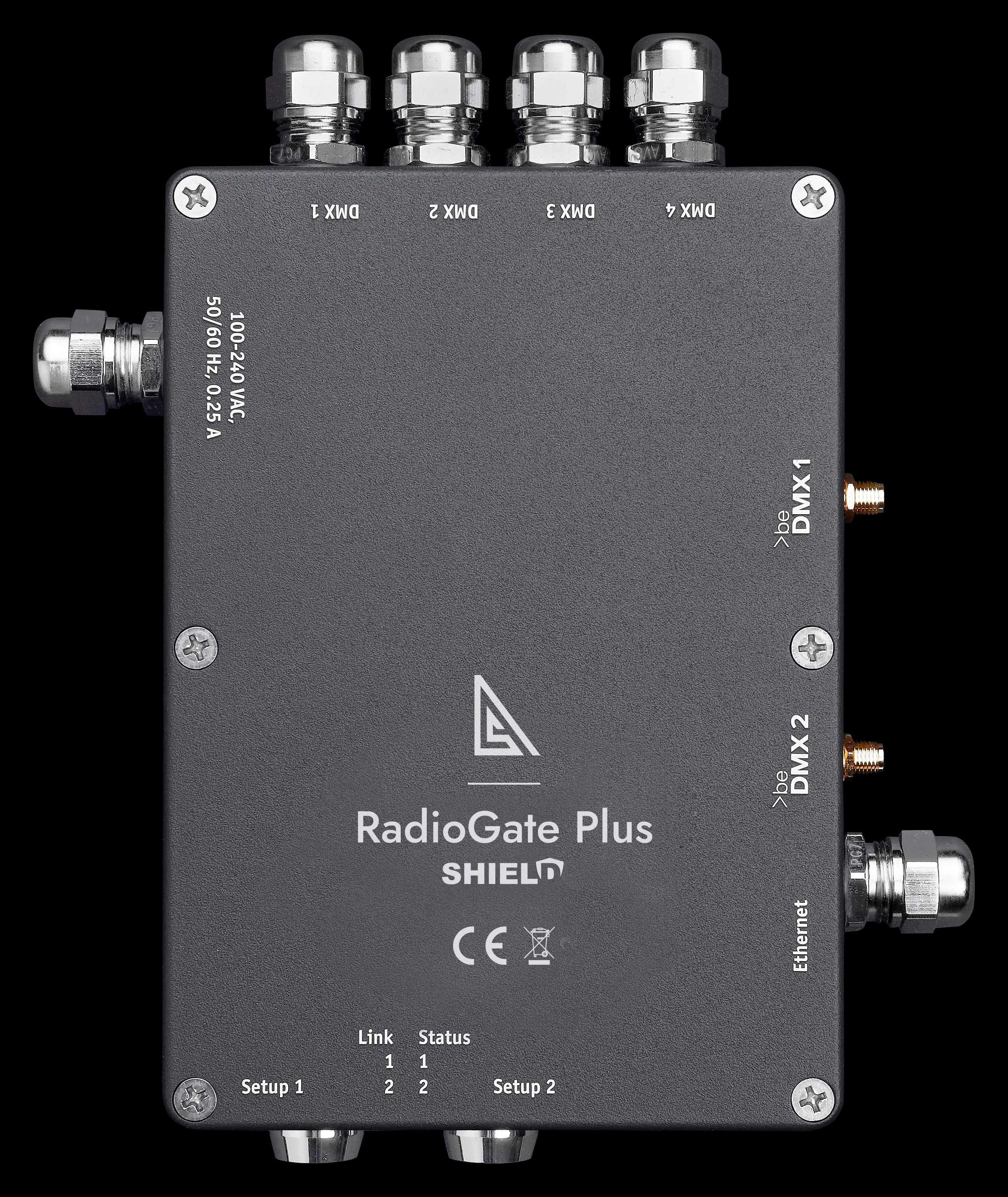

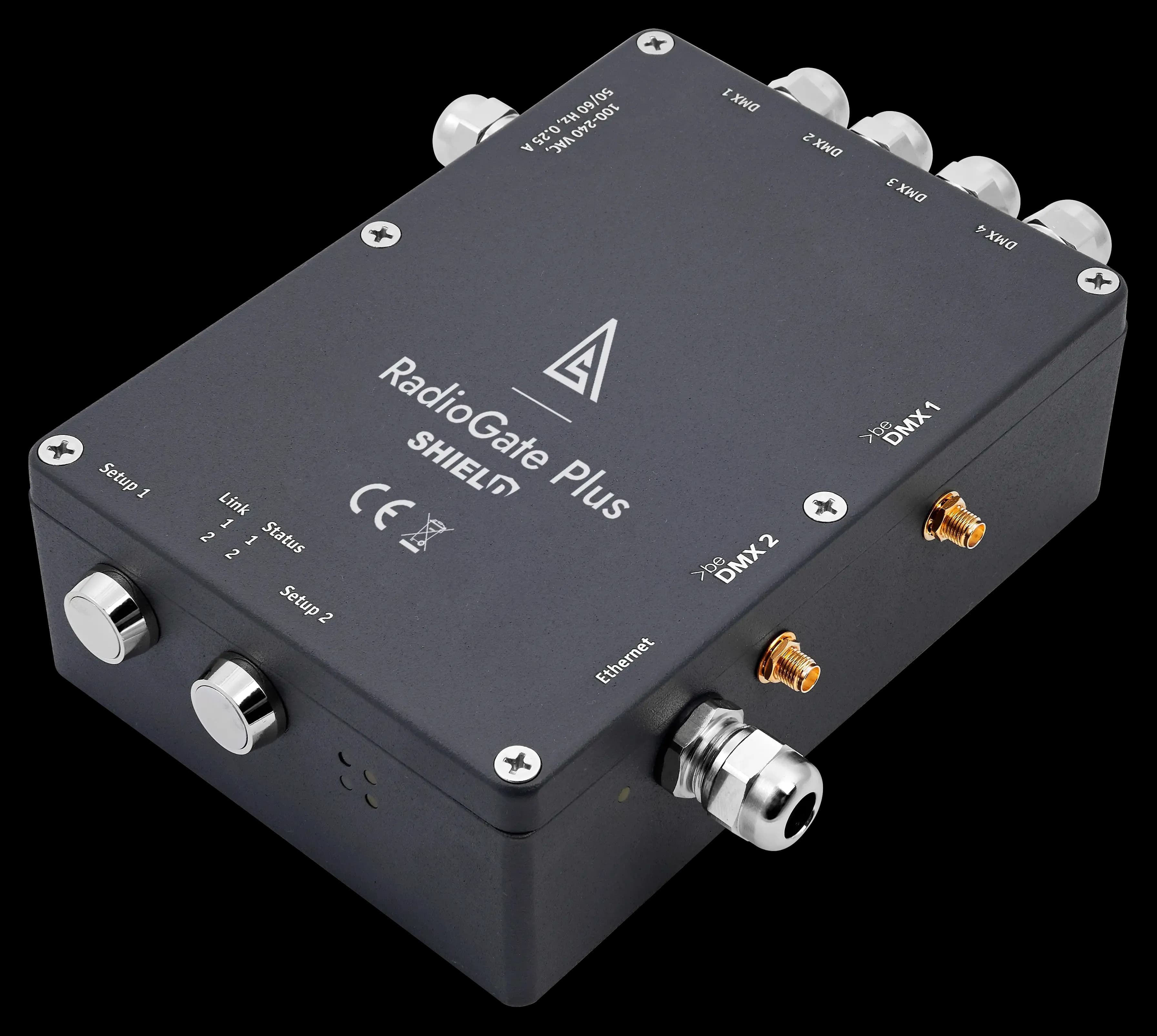

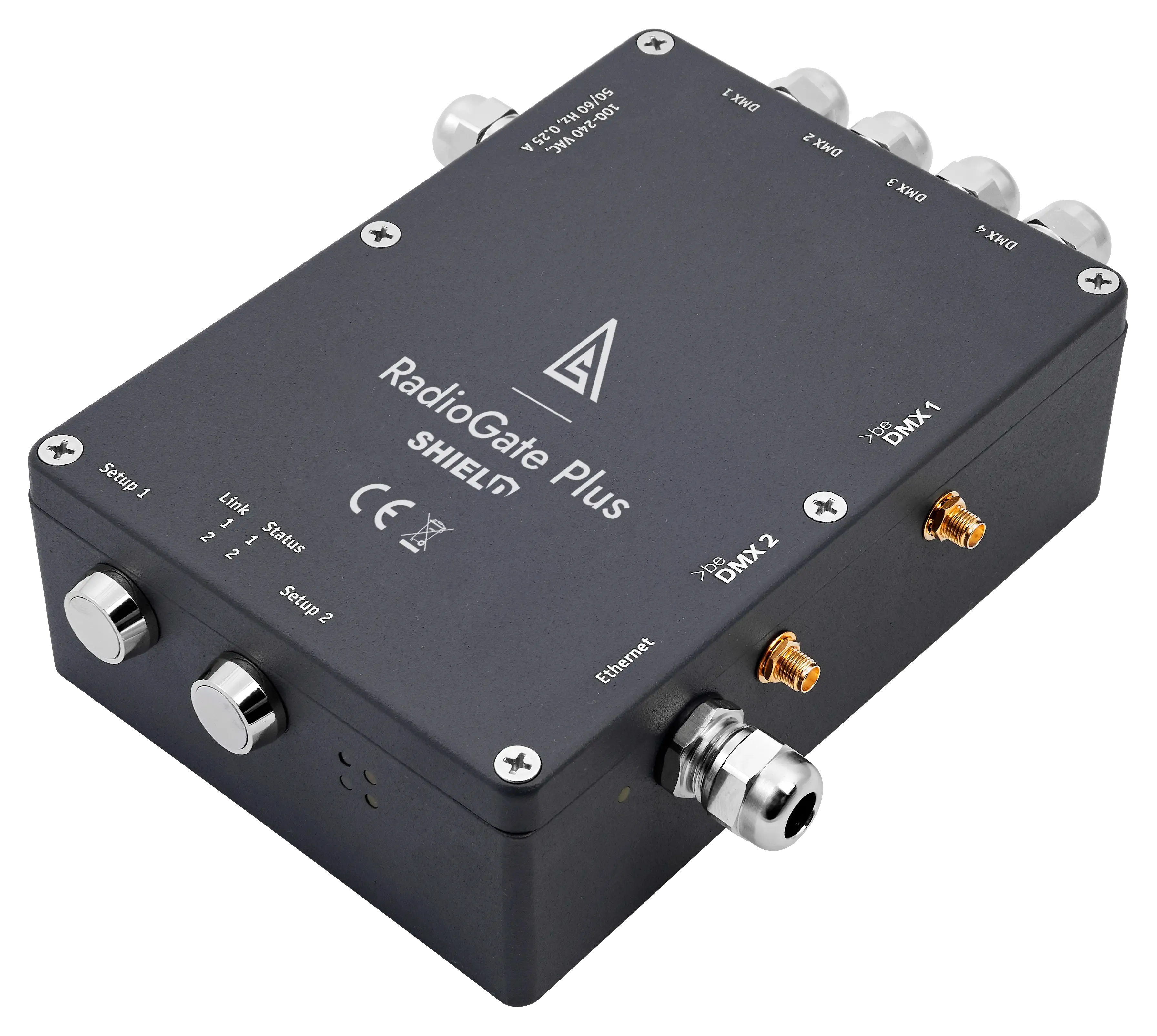

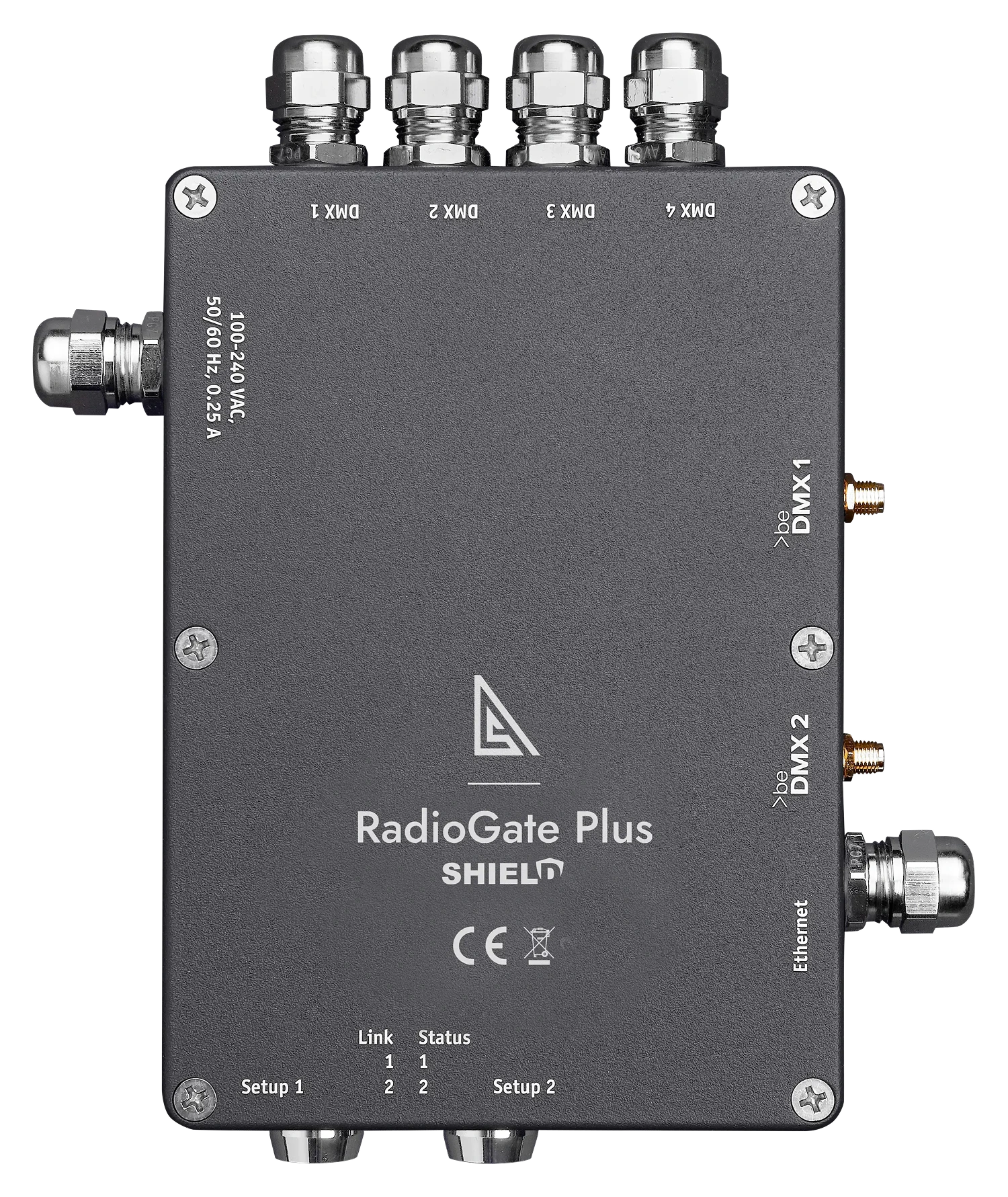

RadioGATE Plus Shield
RadioGATE Plus Shield is a powerful all-in-one device for professional lighting control that combines a wireless DMX transceiver, an ArtNet/sACN-to-DMX converter, and a DMX splitter with RDM support. Engineered for outdoor reliability, it offers seamless operation over both radio (beDMX) and Ethernet networks.
The unit supports a wide range of industry-standard protocols including DMX512, RDM (ANSI E1.20), ArtNet (1–4), sACN, KiNet (v1, v2), and RTTrPL. It enables multiple signal conversion and routing combinations, both wireless and wired, making it ideal for complex setups where flexibility and redundancy are key.
RadioGATE P
DMX512 and RDM (ANSI E1.20) wireless transmission using the beDMX protocol
Supports ArtNet (1 to 4), sACN, KiNet (v1, v2), and RTTrPL over Ethernet
Multiple power options: 110–250V AC, 12–24V DC, or PoE (IEEE 802.3af)
IP66-rated aluminum housing for reliable outdoor use
Integrated DMX splitter and signal booster with galvanic isolation
Supports signal merging modes: HTP, LTP, AUTO, PRIORITY
Intuitive push-button controls and web interface for easy configuration
Saves configuration profiles and supports fixed IP addressing
Silent fanless cooling system with no case openings
Compact design suitable for mounting on trusses, poles, or walls
- Mechanical
Housing: dustproof
Material : metal
Dimensions, mm: 186 (L) x 55,5 (H) x 149 (W)
Weight: 0.85
Mounting: flat surface, clamp- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz or 12-24 V, PoE
Max Power Consumption: 0.1 W
Fuse: 0.5 A (in 100-250V modification)- Environment
Operating temperatures: -40...+70°C
Storage temperatures: -50...+80°C
Max. relative humidity: 100%
IP Rating: IP 66
Certificates: CE compliant, RoHS
Warranty: 36 Months- Control / Data Connections
Supported protocols: DMX512, RDM, ArtNet I, II, III, IV,
sACN draft, release, KiNet v1, v2, RTTrPL
Refresh rate DMX data: 44 Hz
- Inputs / Outputs
DMX ports: 2 or 4
DMX connectors: 2 or 4 XLR (3/5 / etherCON) M,
2 or 4 XLR (3/5 / etherCON) F
Ethernet port: 2 (10/100 Base-TX), PoE
Ethernet connectors: RJ-45 / etherCON
BeDMX ports: 2- Configuration / Indication
Configuration: web interface
Indicators: LED, for DMX and Ethernet- Package Contents
RadioGATE Plus Shield

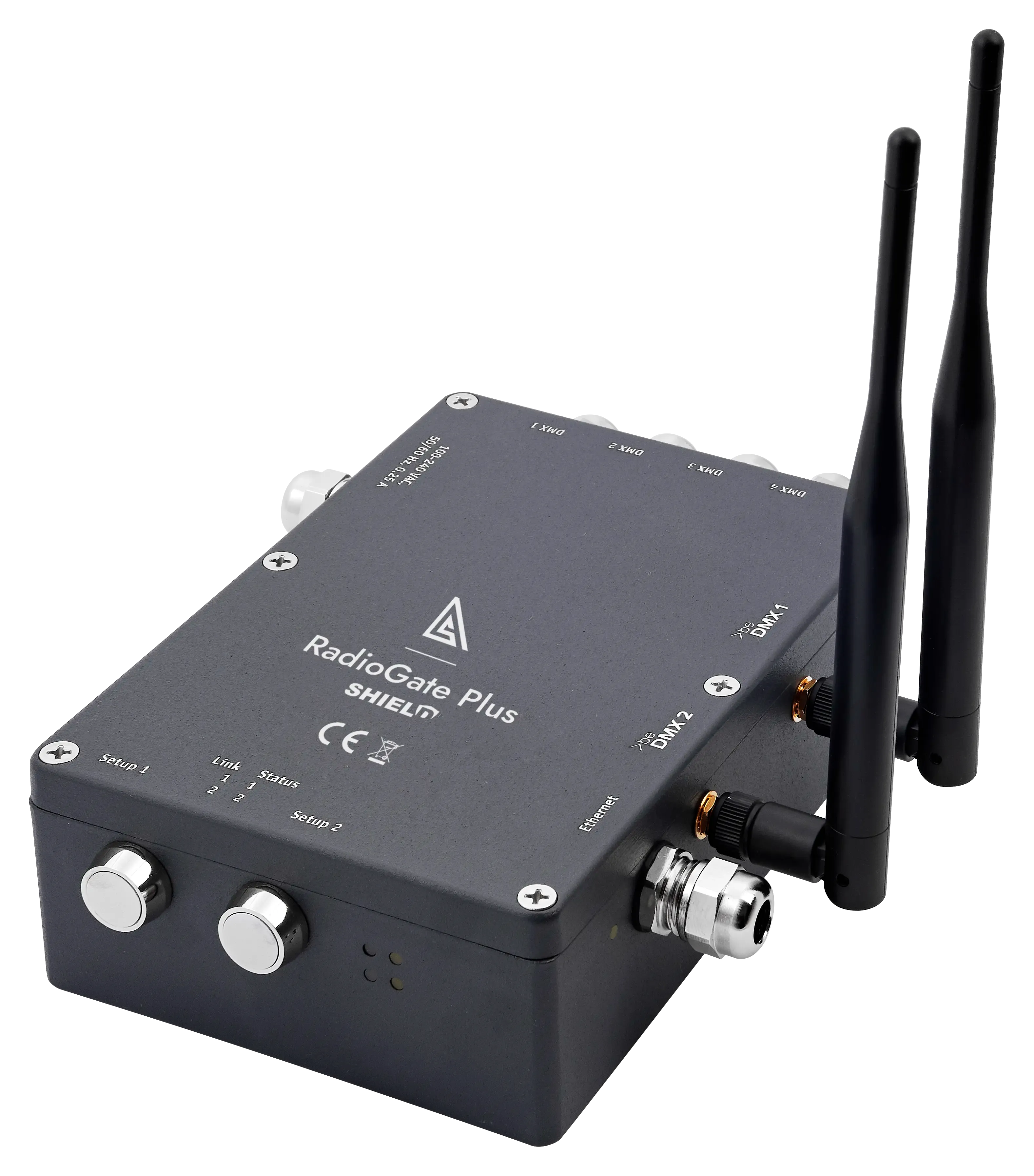

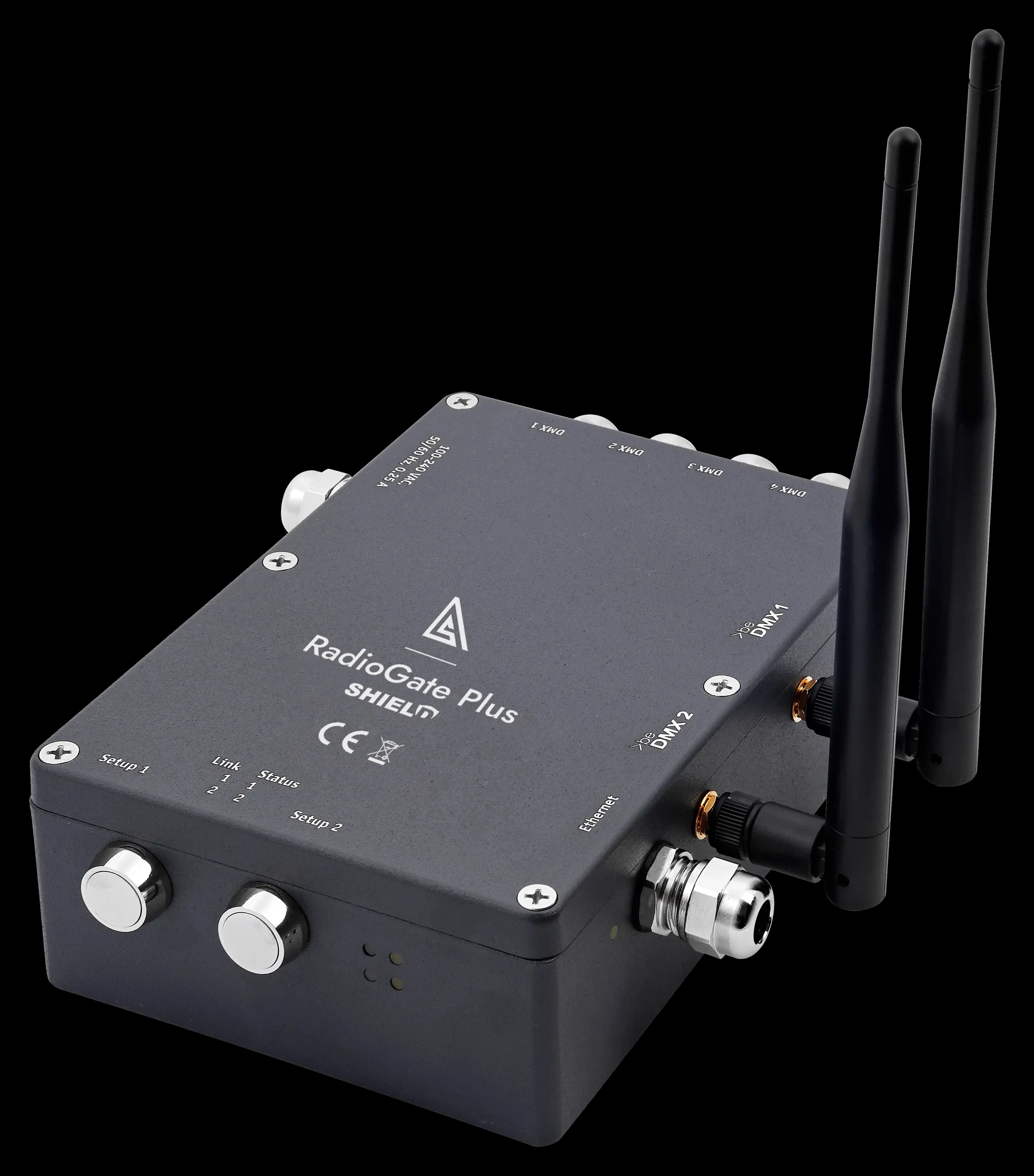

2 antenna 2.4 GHz
