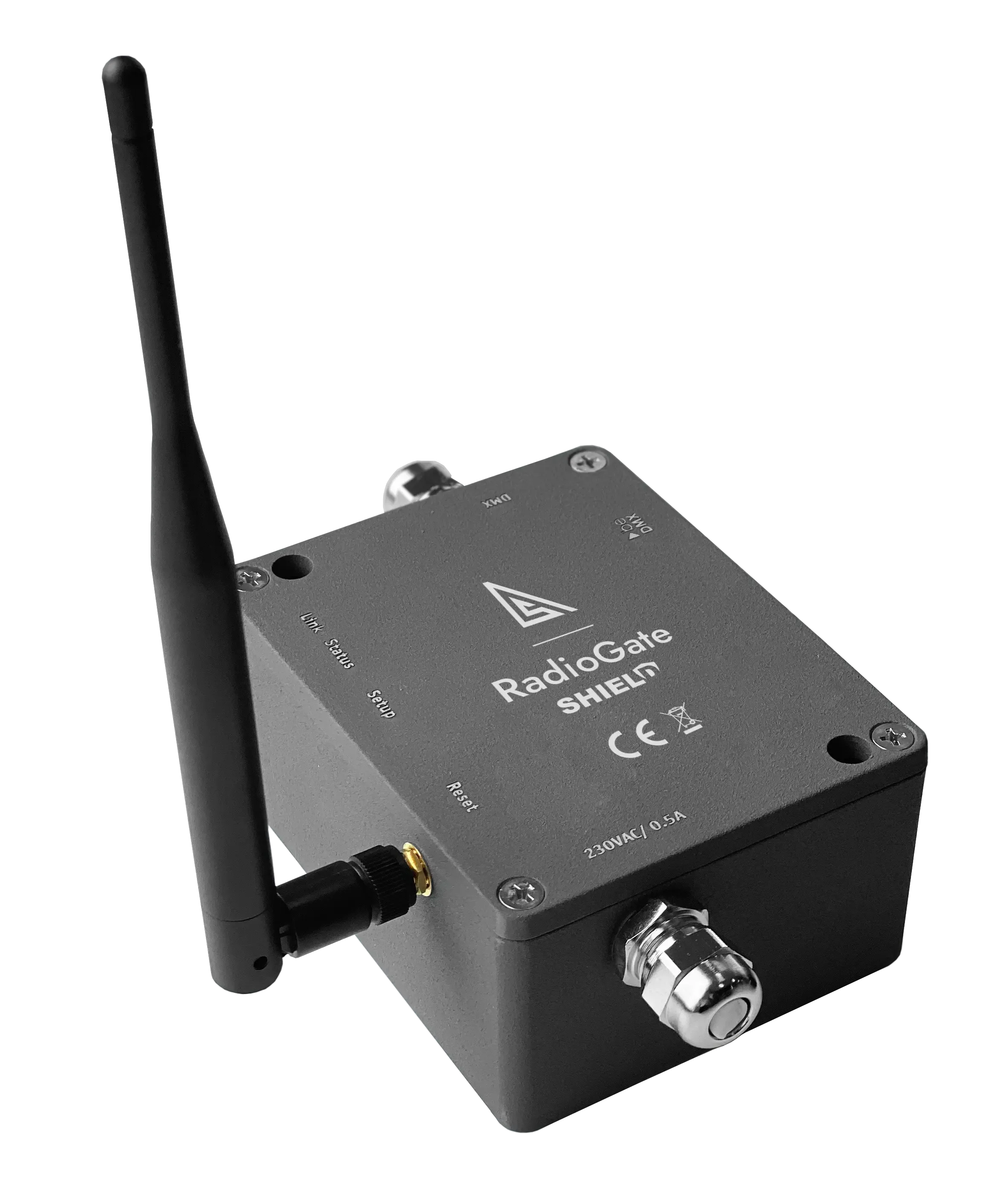

RadioGATE Shield
RadioGATE Shield is a professional wireless transceiver for DMX512 and RDM lighting systems, built for outdoor and complex environments. Using the advanced beDMX protocol based on Bluetooth 5.0, it ensures stable two-way wireless communication with adaptive frequency hopping in the 2.4 GHz band.
It supports reliable wireless operation depending on antenna configuration:
• up to 150 meters with standard antennas
• up to 300 meters when both transmitter and receivers use high-gain omnidirectional antennas
•&nbs
Wireless DMX512 and RDM communication over beDMX (Bluetooth 5)
Wireless range: up to 150 m (standard), 300 m (high-gain omni), or 500 m (panel antennas, line of sight)
One transmitter antenna can reliably serve up to 20 receivers
Dual power support: 110–220V AC or 12–24V DC
IP66-rated aluminum case — dust and water resistant
Simple push-button configuration — no software required
Galvanic isolation for DMX port protection
No fans or vents — silent, maintenance-free operation
Compact design for easy mounting indoors or outdoors
Ideal for rooftops, bridges, moving structures, and long-distance installations
- Mechanical
Housing: dust and moisture resistant
Material: metal
Dimensions, mm: 143 (L) x 55,7 (H) x 95,8 (W)
Weight: 0.85 kg
Installation: flat surface, clamp- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz or 12-24 V
Max Power Consumption: 0.1 W
Fuse: 0.5 A (in the 100-250V version)- Environment
Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 100%
IP Rating: IP 66
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz
Transmission range (standard antenna): 150m
Connection protocol: Bluetooth 5.0
RF band: 2.4GHz
- Inputs / Outputs
DMX ports: 1
DMX connectors: terminal blocks 2EDGVC-5.08-03P,
15EDGVC-3.5-03
BeDMX port: 1- Configuration / Indication
Configuration: buttons, web interface
Indicators: LED for DMX and beDMX- Package Contents
RadioGATE Shield
1 antenna 2.4 GHz
