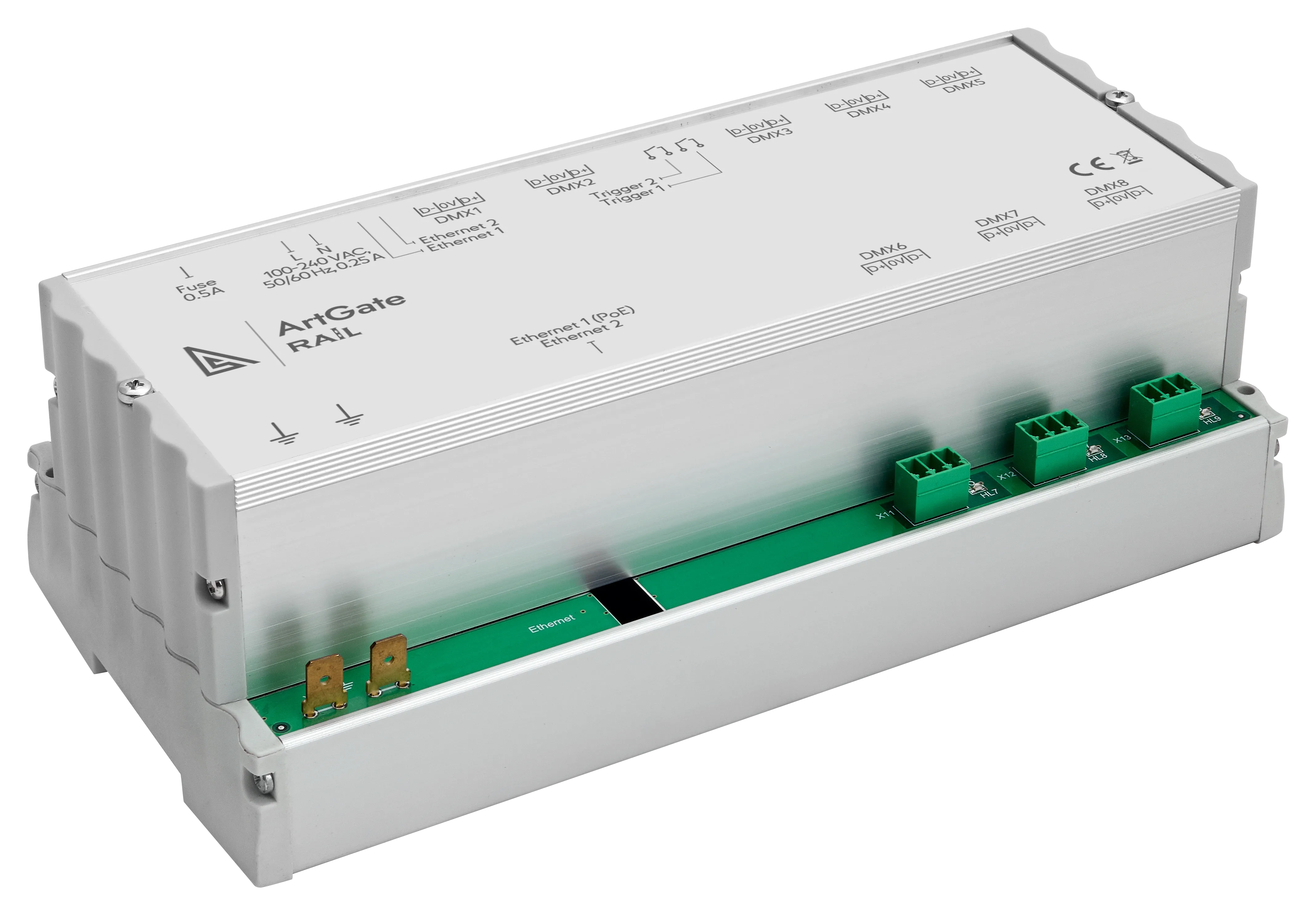

ArtGATE Rail
ArtGATE Rail is a compact, DIN-rail mountable DMX/Ethernet node designed for integration into control cabinets and smart lighting systems. It functions as a bidirectional Art-Net/sACN to DMX converter, splitter, booster, and intelligent merger — ideal for fixed installations where space, reliability, and protocol flexibility are key.
The unit features up to 8 DMX512 ports, each optically isolated and configurable as input or output. It supports full RDM (ANSI E1.20) functionality, ArtNet (I–IV), sACN, KiNet (v1, v2), and RTTrPL protocols for maximum compatibility with professional lighting networks.
Dual RJ45 Ethernet ports ena
Up to 8 optically isolated DMX512 ports, each configurable as input or output
Supports ArtNet (1–4), sACN, KiNet (v1, v2), RTTrPL, and RDM (ANSI E1.20)
Two RJ45 ports with integrated 10/100 Mbps Ethernet switch for cascading
Supports PoE (IEEE 802.3af) and 100–315 V AC input with surge protection
Galvanic isolation on all DMX ports
Trigger inputs for emergency scenarios or system automation
Supports merging modes: HTP, LTP, Auto, Priority
Static scenes stored in non-volatile memory for standalone operation
Fast boot time and master IP recovery
Configuration via web interface, ArtGate Manager, or ArtNet-compatible software
DIN rail mounting (12 modules) for cabinet installation
- Mechanical
Enclosure: DIN rail (12 modules)
Material: metal, plastic
Dimensions, mm: 212 (L) x 75 (H) x 105 (W)
Weight: 0.85 kg
Installation: power supply cabinet- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz, PoE
Max power consumption: 5W
Fuse: 0.5 A- Environment
Operating temperatures: -40 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: IP 20
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM, ArtNet (1,2,3,4),
sACN (Draft, Release), KiNet (v1, v2), RTTrPL
Refresh rate DMX data: 44 Hz
- Inputs / Outputs
DMX ports: 4 or 8
DMX connectors: terminal blocks 2EDGVC-5.08-02P,
15EDGVC-3.5-03
Ethernet port: 1 or 2 (10/100 Base-TX), PoE
Ethernet connectors: 1 or 2 RJ-45
Trigger ports: 2- Configuration / Indication
Configuration: web interface, ArtGate settings
Indicators: LED, for DMX and Ethernet- Package Contents
ArtGATE Rail
Connector set
