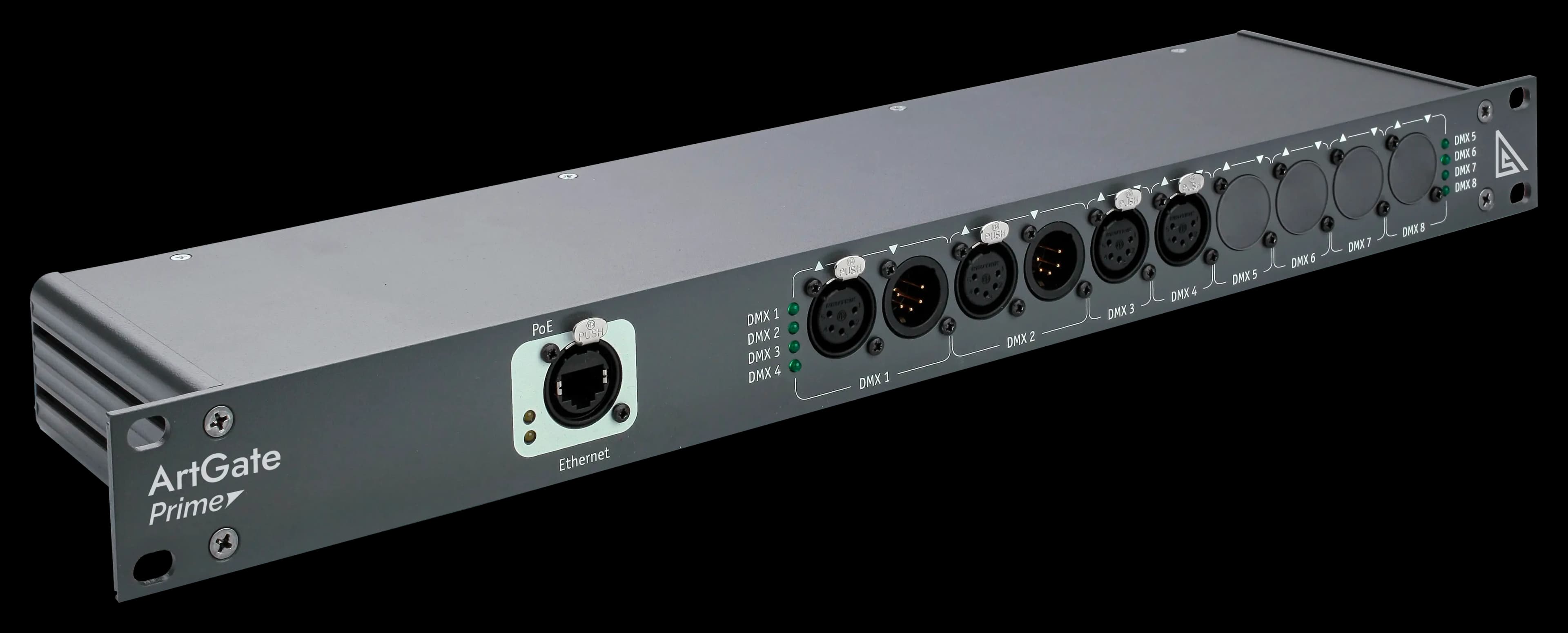

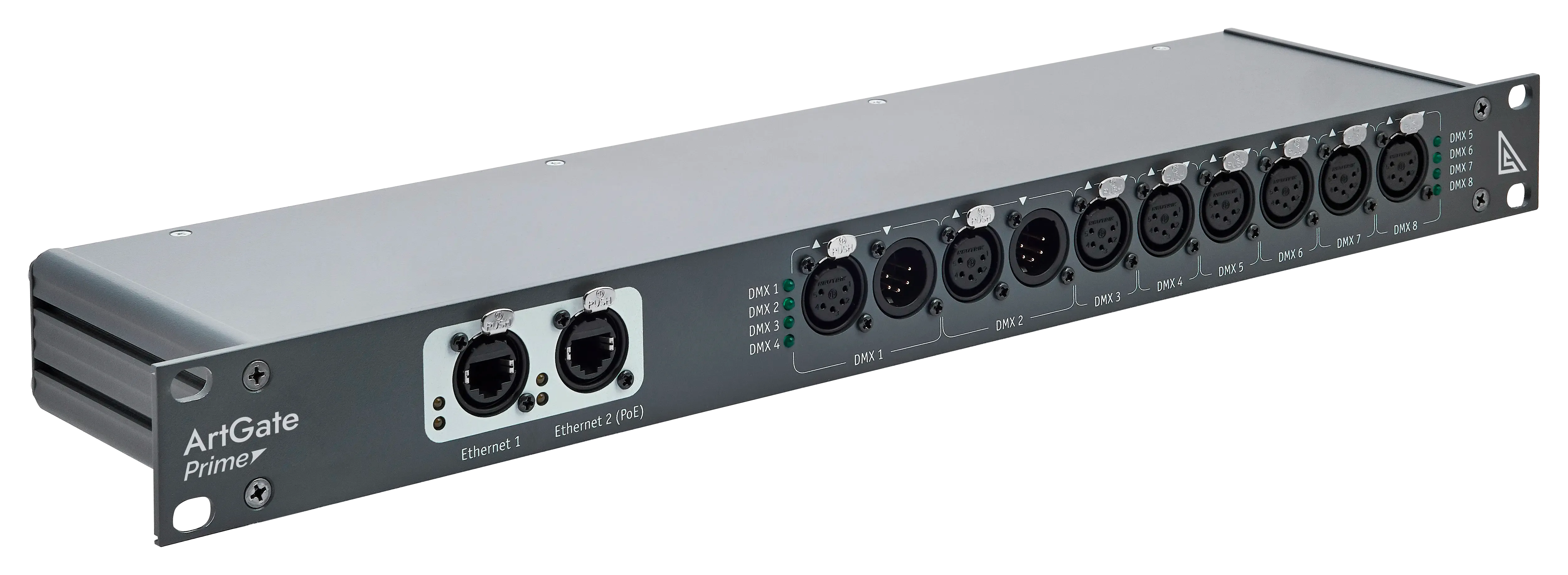

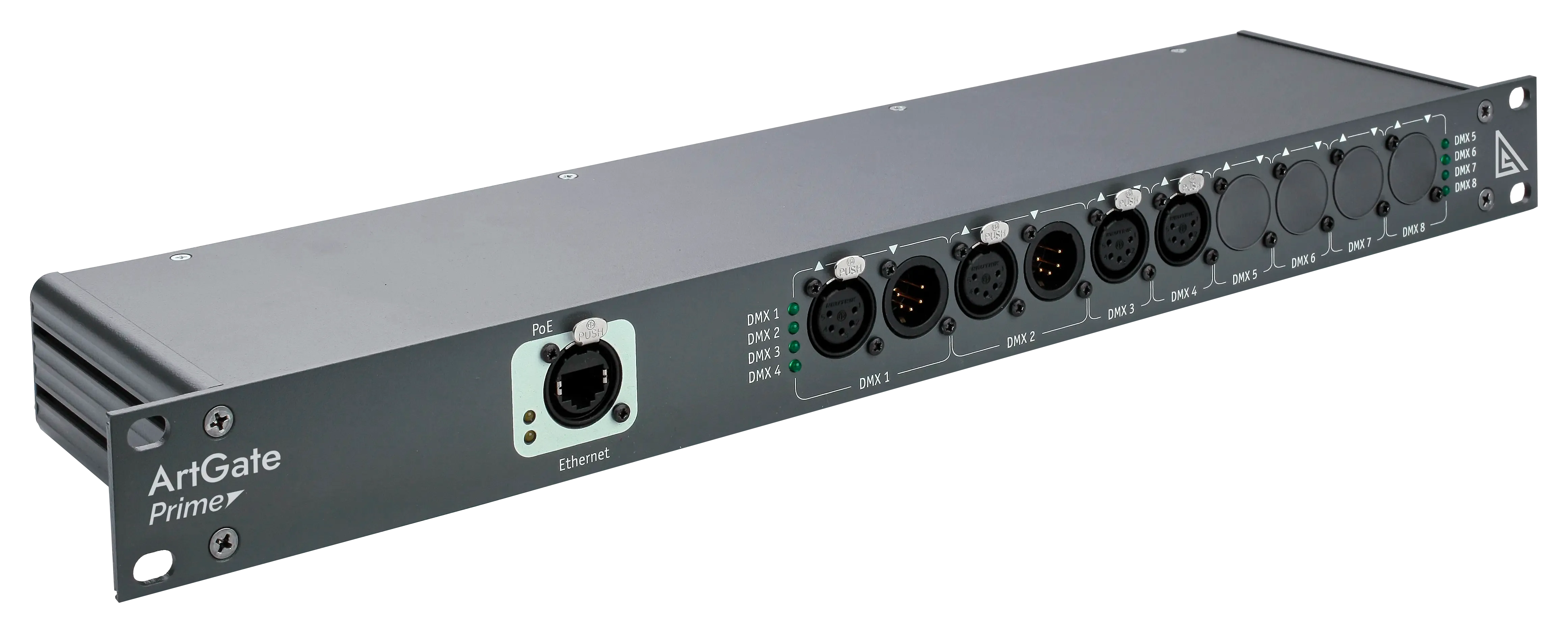

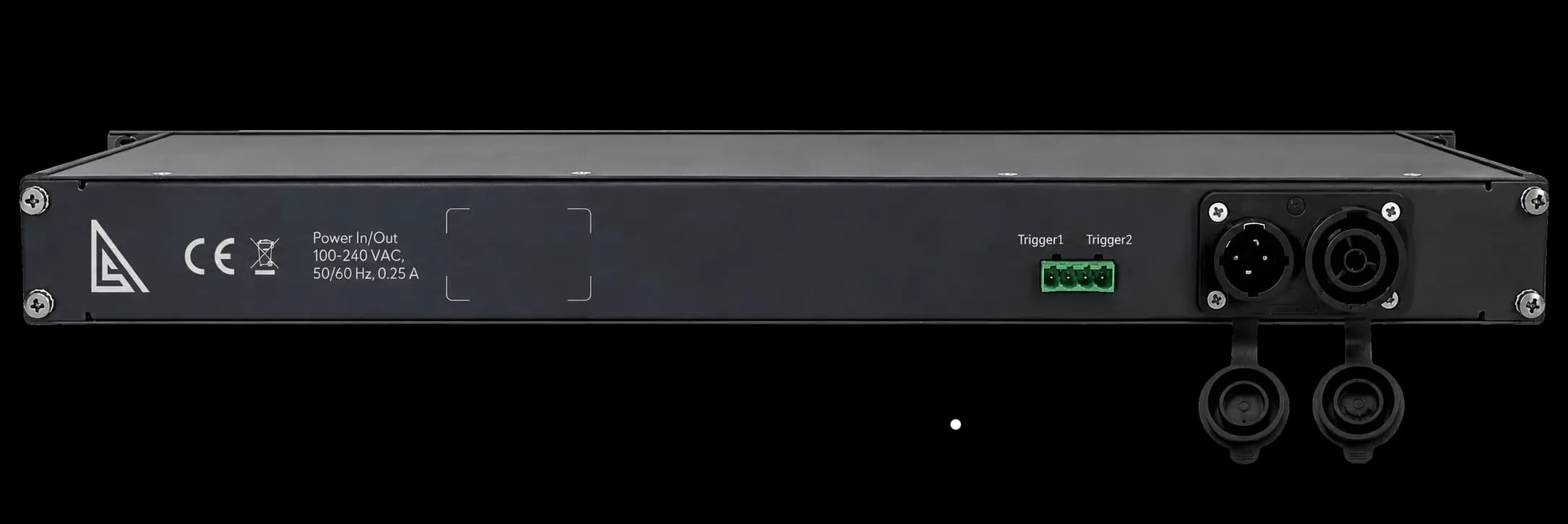

ArtGATE Prime

Rack-mounted bidirectional DMX to Ethernet converter, splitter, and merger with up to 8 ports, RDM support, and full ArtNet/sACN integration

ArtGATE Prime is a professional-grade DMX–ArtNet/sACN converter, splitter, booster, and intelligent signal merger — designed for rack-mounted use in complex lighting control systems. It combines the functions of a high-speed DMX node with advanced data routing, backup, and redundancy features, all within a compact 1U form factor.

Available in 4-port and 8-port configurations, ArtGATE Prime supports DMX512, RDM (ANSI E1.20), ArtNet (I–IV), sACN (Draft & Release), KiNet (v1, v2), and RTTrPL. All DMX ports are optically isolated and fully configurable in both input and output modes. The device can intelligently merge up to four inpu

4 or 8 optically isolated DMX512 ports, including paired M/F connectors

2 Ethernet ports (EtherCON) with internal switch functionality

Support for DMX512, RDM (ANSI E1.20), ArtNet (1–4), sACN, KiNet (v1, v2), RTTrPL

Merges up to 4 input streams from ArtNet, sACN, or DMX for seamless backup

PoE (IEEE 802.3af) and 90–315 V AC power support with surge protection

PowerCON TRUE1 in/out connectors for robust power chaining

Fast reboot after power interruptions for uninterrupted operation

Intuitive web interface, ArtGate Setting, and third-party ArtNet configuration tools

Dual trigger inputs for external events or emergency automation

Rack-mountable 1U housing with laser-etched panel and durable build

Mechanical: Housing: Short 1U Rack
Material: metal
Dimensions, mm: 482,6 (L) x 43,6 (H) x 125,5(W)
Mass: 1.2 kg
Mounting: rack 1 unit
Power & Electrical: Power supply: ~90-277 VAC, 50/60 Hz,
PoE 802.15f mode A, B
Input Power (max): 5 W
Environment: Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: IP 20
Certificates: CE compliant, RoHS
Warranty: 36 months
Control / Data Connections: Supported protocols: DMX512, RDM, ArtNet I, II, III,
IV, sACN draft, release, KiNet v1, v2 , RTTrPL
DMX refresh rate: 44 Hz

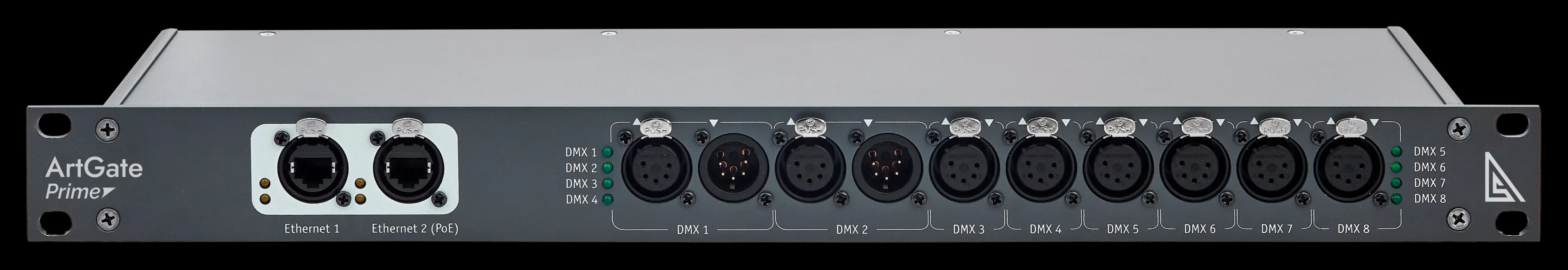

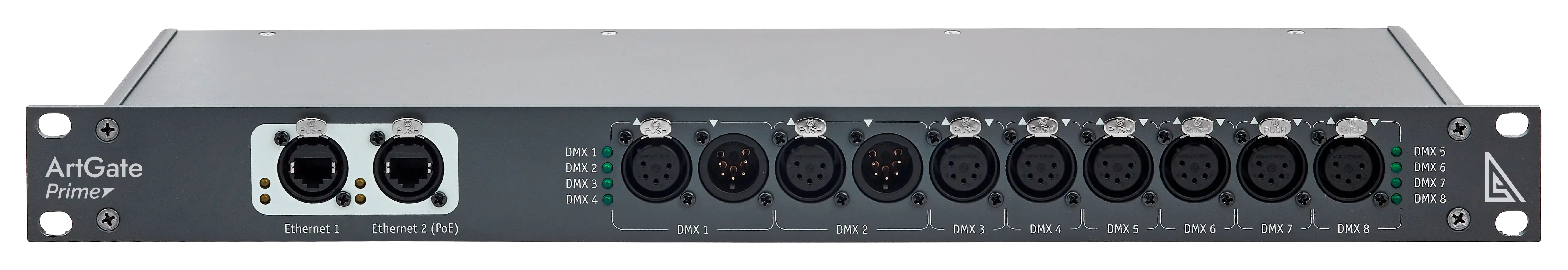

Inputs / Outputs: DMX ports: 4 or 8
DMX connectors: 2 XLR (3/5) M, 8 XLR (3/5) F
Ethernet ports: 2 (10/100 Base-TX), PoE
Ethernet connectors: RJ-45 / etherCON

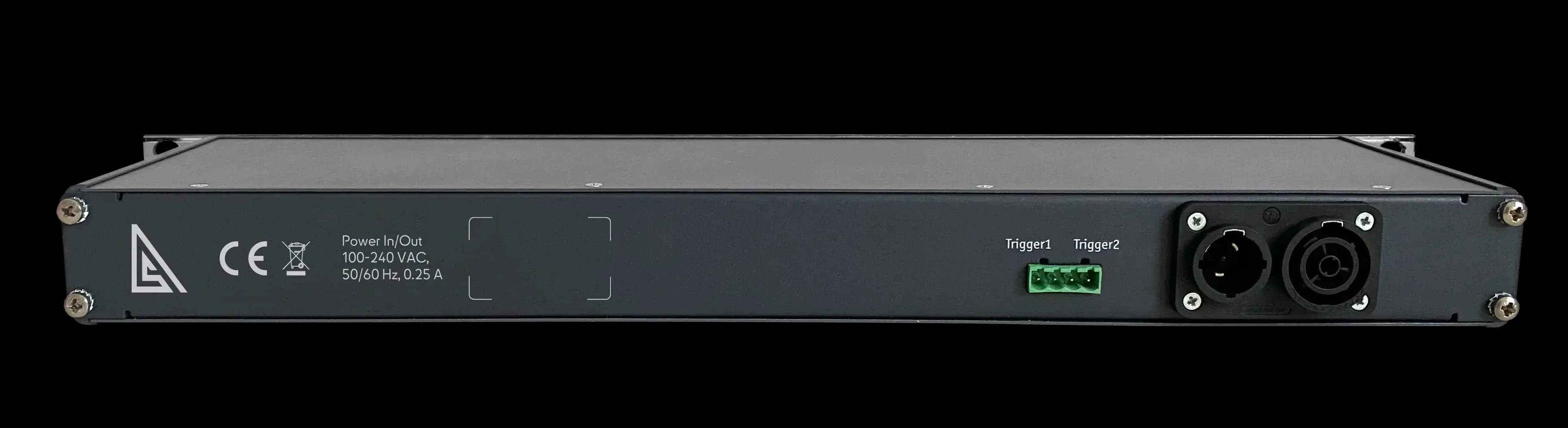

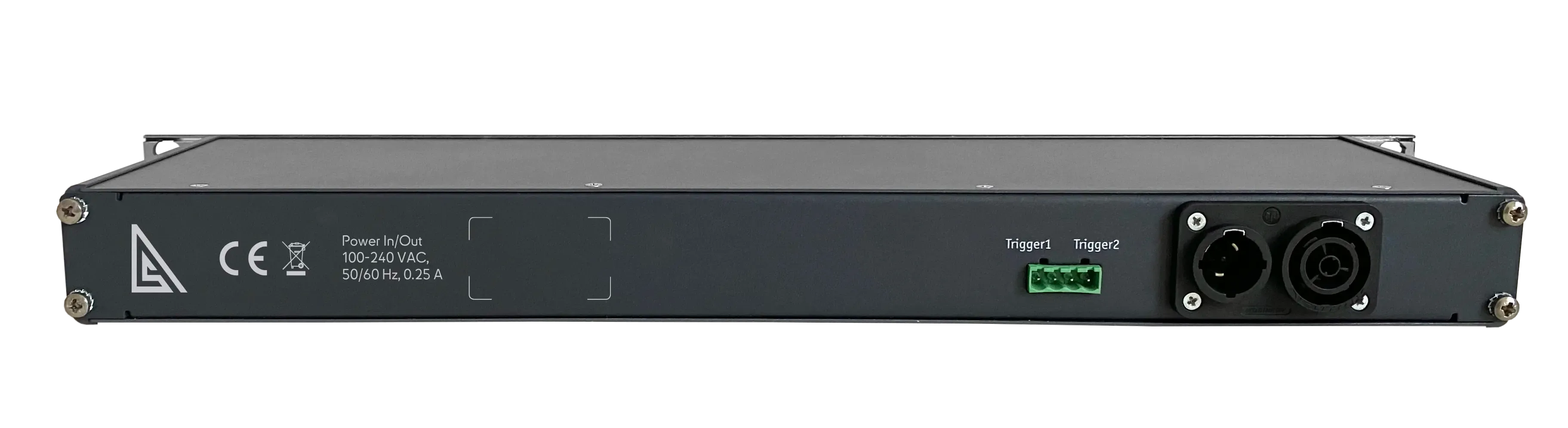

Trigger connectors: terminal block

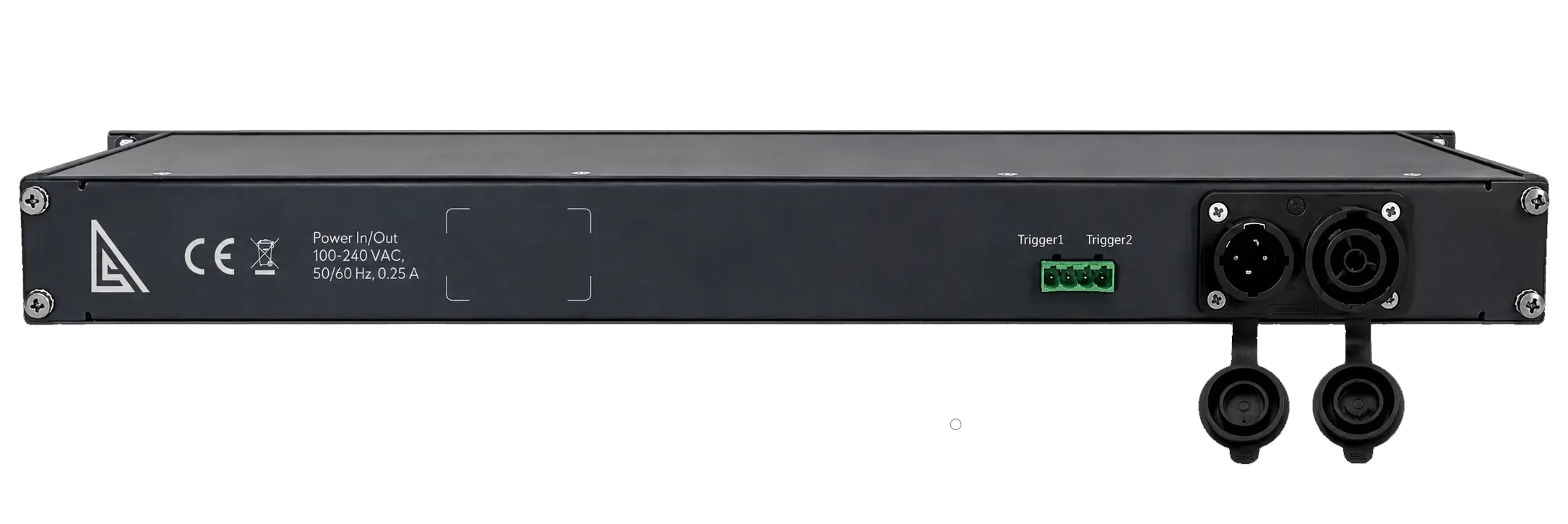

PowerCON ports: 1 (TRUE1)
Configuration / Indication: Configuration: web interface, ArtGate settings
Indicators: LED, for DMX and Ethernet activity
Package Contents: ArtGATE Prime
Terminal blocks
