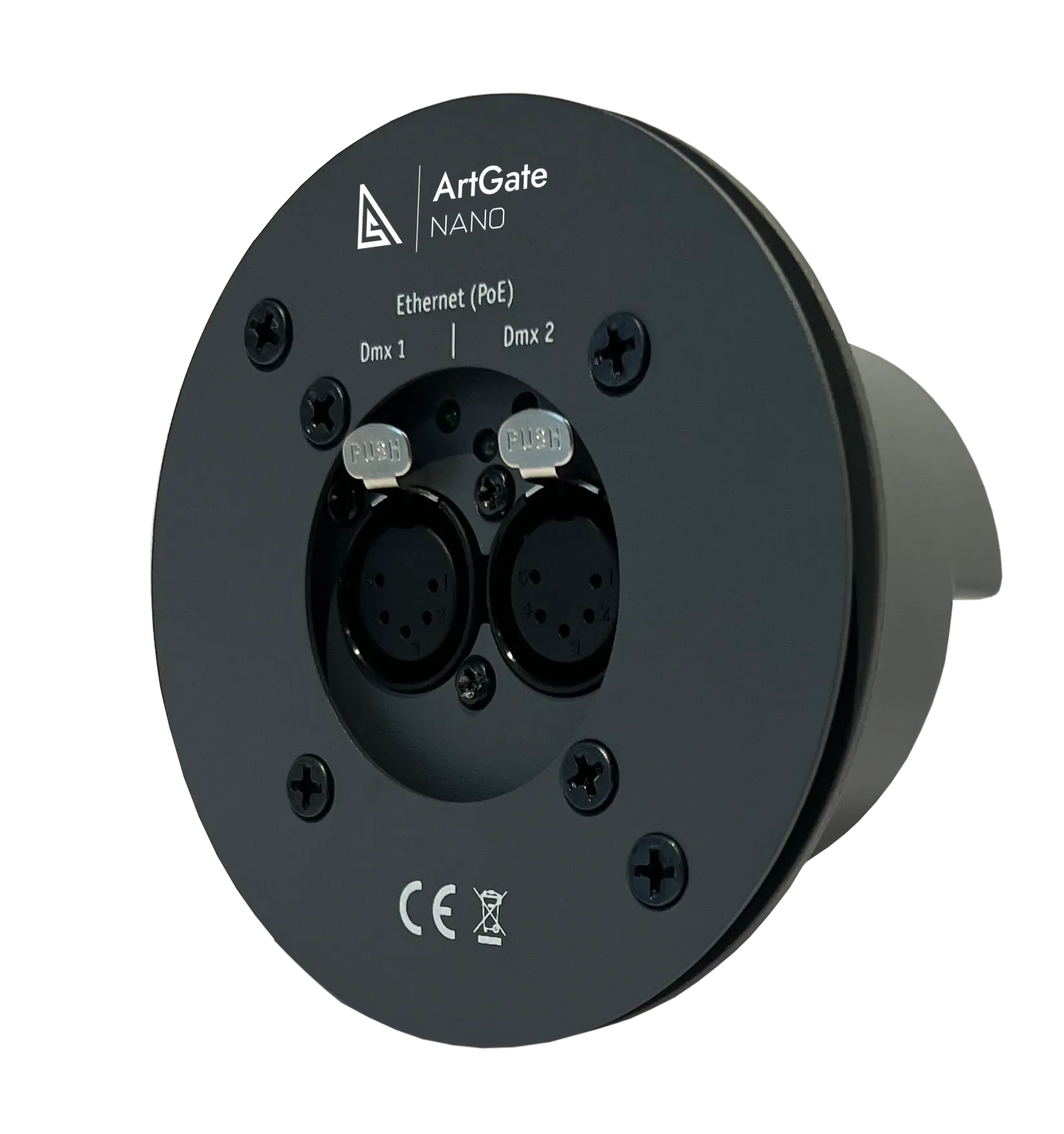

ArtGATE Nano
ArtGATE Nano is a miniature DMX-over-IP converter designed for seamless integration into tight spaces such as wall sockets, lighting fixtures, control panels, or embedded OEM systems. Despite its small size, it provides powerful bidirectional conversion between DMX512 and ArtNet/sACN, offering reliable performance in both input and output modes.
The device is available in 1-port and 2-port versions, with each port being fully optically isolated and software-configurable. ArtGATE Nano supports full RDM (ANSI E1.20), as well as the most common lighting network protocols: ArtNet (1–4), sACN, KiNet (v1, v2), and RTTrPL.
Designed fo
1 or 2 optically isolated DMX512 ports, configurable as input or output
Bidirectional conversion between DMX and ArtNet/sACN
Supports RDM (ANSI E1.20), ArtNet (1–4), sACN, KiNet (v1, v2), RTTrPL
PoE (IEEE 802.3af) powered for cable-free integration
Compact form factor fits wall sockets, control panels, and fixtures
Web-based configuration and support for ArtGate Setting utility
Advanced merging modes: HTP, LTP, AUTO, PRIORITY, OVERLAY, BACKUP, XFade
OEM version available for integration into custom hardware
Master IP support for stable device addressing in complex networks
Designed for indoor or protected installation above zero °C
- Mechanical
Housing: compact
Dimensions, cm: 5,4(6,25) (H) x 9,85 (D)
Weight: 0.1 kg
Installation: sockets, holes for power connectors- Power & Electrical
Power supply: PoE
Max Power Consumption: 1 W- Environment
Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: IP 30
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM, ArtNet (1,2,3,4),
sACN (Draft, Release), KiNet v1, v2 RTTrPL
Refresh rate DMX data: 44 Hz
- Inputs / Outputs
DMX ports: 2
DMX connectors: 2 XLR(5)F
Ethernet ports: 1 (10/100 Base-TX)
Ethernet connectors: Ethernet- Configuration / Indication
Configuration: web interface, ArtGate settings
Indicators: LED, for DMX and Ethernet- Package Contents
