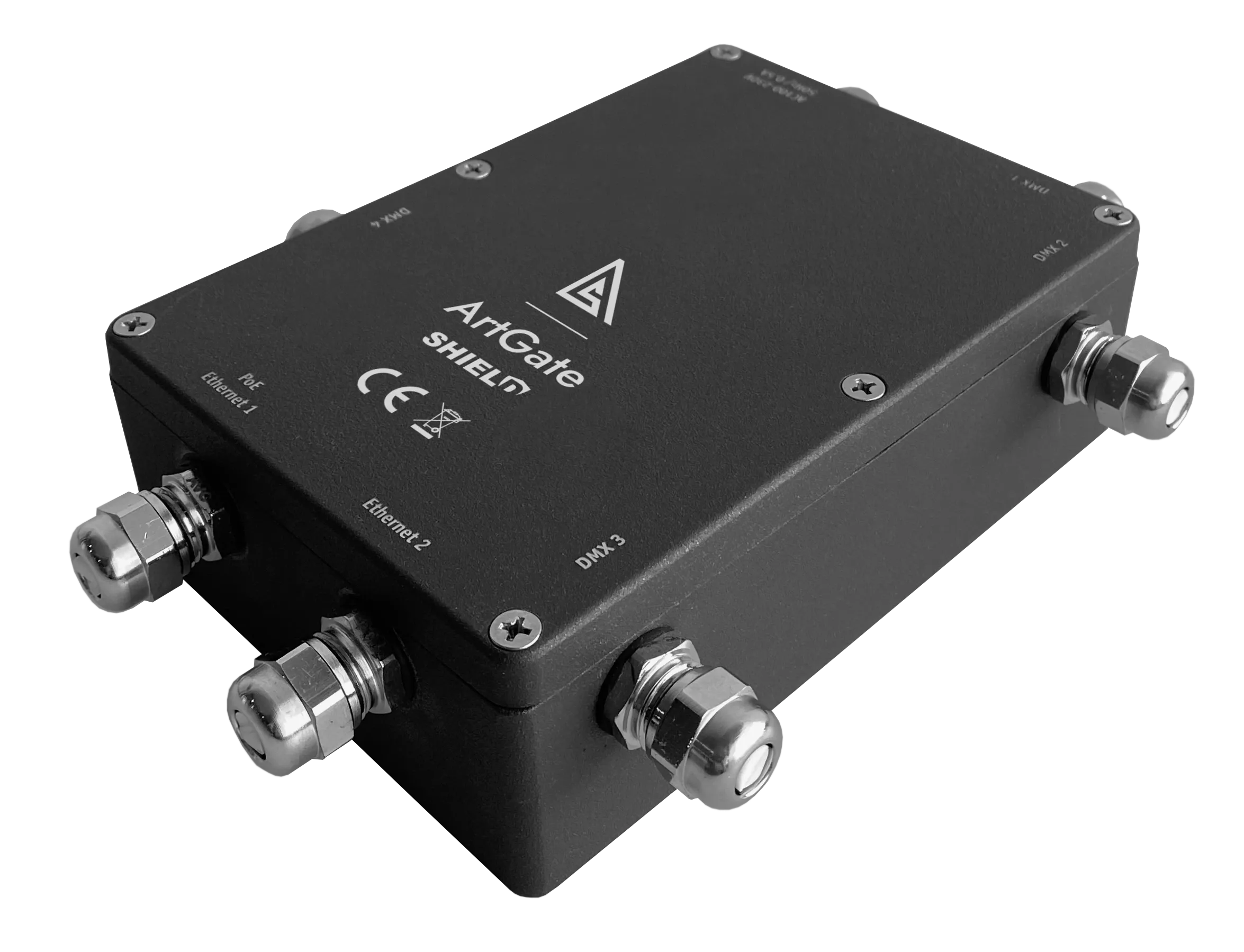

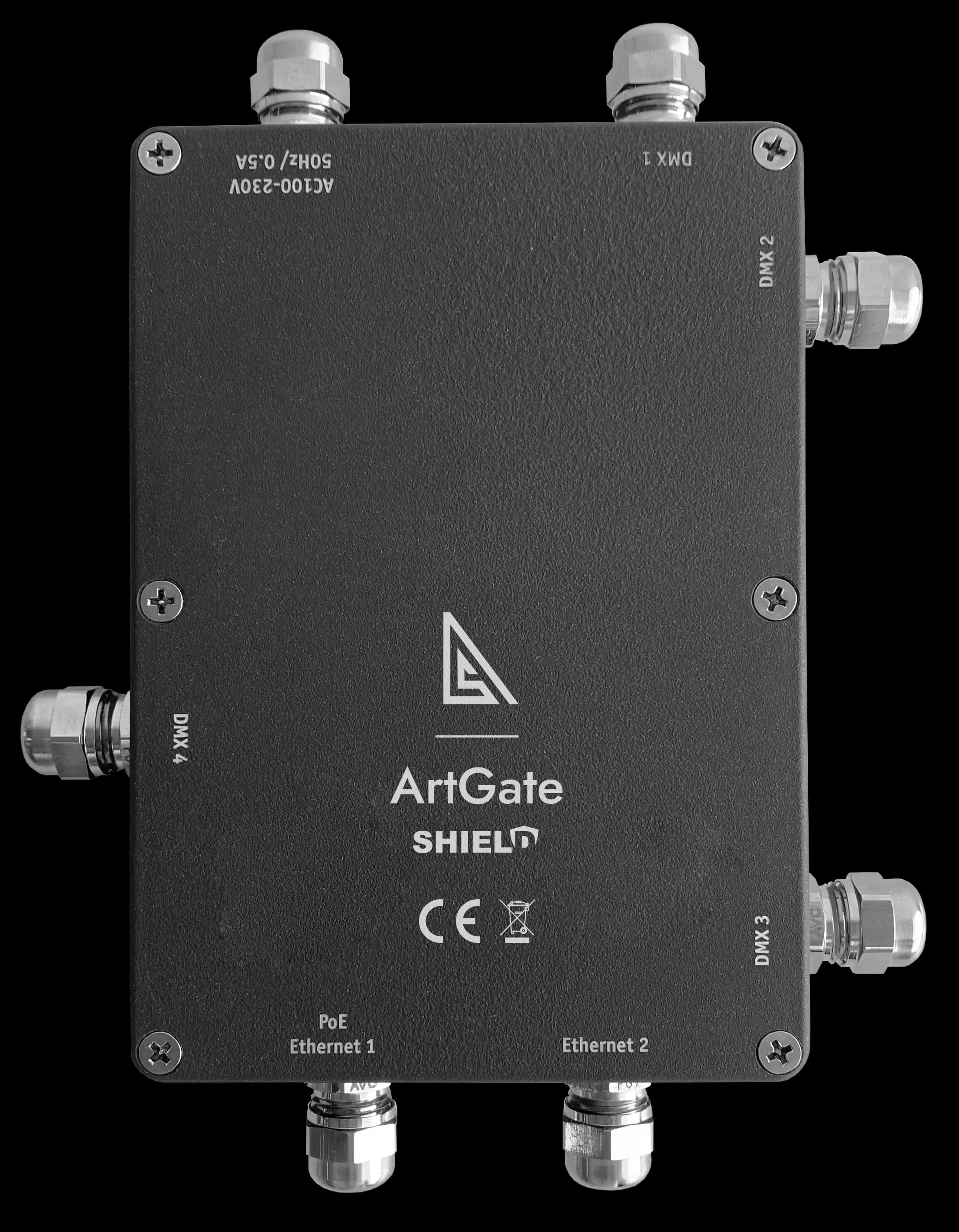

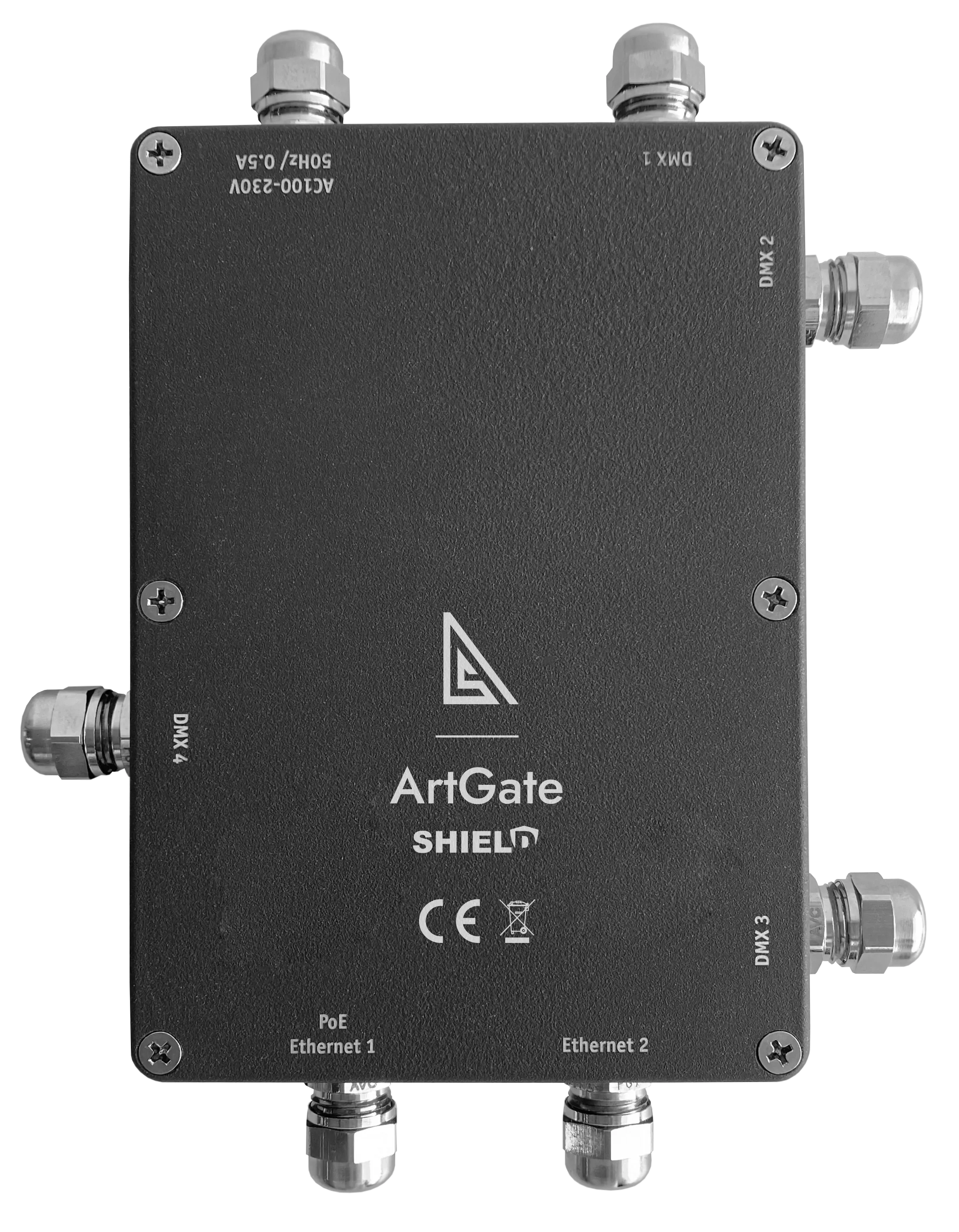

ArtGATE Shield
Outdoor-ready Art-Net/sACN to DMX converter with up to 4 optically isolated DMX ports, dual Ethernet ports, PoE support, and IP66-rated housing
ArtGATE Shield is a rugged, waterproof DMX/Ethernet node built for permanent or temporary outdoor installations.
Designed to convert Ethernet lighting protocols to DMX512, it enables precise control of lighting fixtures across extended networks, even in challenging environmental conditions.
Equipped with up to four optically isolated DMX ports, each port is fully configurable as input or output. ArtGATE Shield supports all major control protocols including ArtNet (I–IV), sACN, RDM (ANSI E1.20), KiNet (v1, v2), and RTTrPL, offering compatibility with nearly any modern lighting system.
Up to 4 optically isolated DMX512 ports, configurable as input or output
Integrated 2-port 10/100 Mbps Ethernet switch for device chaining
Supports ArtNet (1–4), sACN, KiNet (v1, v2), RTTrPL, and RDM (ANSI E1.20)
Power via PoE (IEEE 802.3af) or AC input (100–315 V) with surge protection
Galvanic isolation on all ports to prevent electrical interference
Supports HTP, LTP, Auto, Priority merging and signal management
Records up to 4 static DMX presets for standalone playback or remote contact triggering
Trigger input and master IP functionality for advanced automation
Fanless design for silent operation and maximum durability
Web interface and ArtGate Manager for fast setup and remote access
Compact IP66-rated metal enclosure for reliable outdoor use
- Mechanical
Housing: dust and moisture resistant
Material: metal
Dimensions, mm: 199 (L) x 55,5 (H) x 149 (W)
Weight: 0.85 kg
Installation: flat surface, clamp- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz, PoE
Input Power (max): 5 W
Mains Fuse: 0.5 A- Environment
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP66
Certificates: CE compliant, RoHS
Warranty: 36 Month- Control / Data Connections
Supported protocols: DMX512, RDM,
ArtNet I, II, III, IV, sACN draft, release, KiNet v1, v2
RTTrPL
Refresh rate DMX data: from 44 Hz
- Inputs / Outputs
DMX ports: 2 or 4
DMX connectors: terminal blocks 2EDGVC-5.08-03P,
15EDGVC-3.5-03
Ethernet ports: 2 (10/100 Base-TX), PoE
Ethernet connector: ADC Krone 6048 1 090-00 connectors- Configuration / Indication
Configuration: web interface
Indicators: LED, for DMX and Ethernet- Package Contents
ArtGATE Shield
Terminal Blocks
