ArtGATE Bare
Compact OEM-ready Art-Net/sACN to DMX converter with up to 2 configurable DMX ports, PoE or 5VDC power, and full protocol and merging support

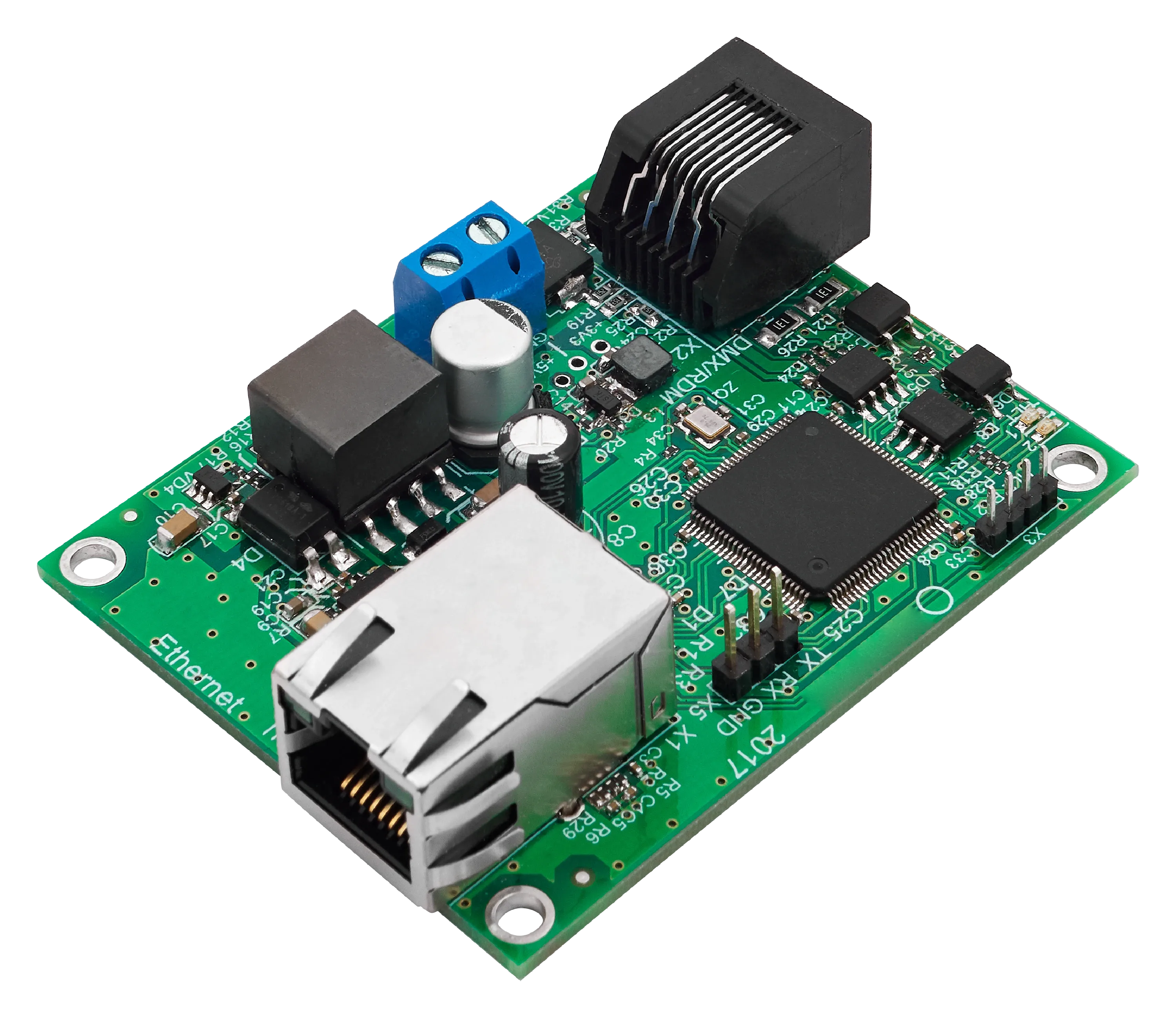

ArtGATE Bare is a lightweight, board-level DMX-over-Ethernet converter designed for seamless integration into stage equipment, lighting fixtures, architectural elements, or custom-built control systems.
It functions as a bidirectional DMX–Ethernet interface, splitter, booster, and intelligent merger — all within an ultra-compact 67 × 54 mm PCB form factor.
The unit supports DMX512, RDM (ANSI E1.20), and full Ethernet-based lighting protocols including ArtNet (1–4), sACN, KiNet (v1, v2), and RTTrPL. Each of the two available DMX ports (via RJ45 or optional XLR5F adapter) is fully conf
Ultra-compact 67 × 54 × 15 mm OEM board design
Up to 2 optically isolated DMX512 ports (via RJ45 or XLR adapter)
Supports bidirectional DMX ↔ ArtNet/sACN conversion
Compatible with ArtNet (1–4), sACN, KiNet (v1, v2), RTTrPL, RDM (E1.20)
PoE (IEEE 802.3af) or +5VDC power input options
Galvanic isolation for all DMX ports
Flexible merging logic: HTP, LTP, Auto, Priority, Backup, Trigger, XFade
Supports loopback of merged data to Ethernet as new universe
Records up to 4 static DMX presets for standalone playback or remote contact triggering.
Fast startup and power failure recovery
Master IP feature for stable device addressing
Web interface and ArtGate utility for configuration
OEM and non-OEM versions available for embedded or external installation
- Mechanical
Housing: No
Dimensions, mm: 67 (L) x 15 (H) x 54 (W)
Weight: 0.05 kg
Installation: stage equipment, lamps, etc- Power & Electrical
Power supply: 5V or PoE
Max Power Consumption: 1W- Environment
Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: no
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM,
ArtNet I, II, III, IV, sACN draft, release, KiNet v1, v2
RTTrPL
Refresh rate DMX data: from 44 Hz
- Inputs / Outputs
DMX ports: 1
DMX connectors: RJ-45
Ethernet ports: 1 (10/100 Base-TX)
Ethernet connectors: RJ-45 / etherCON- Configuration / Indication
Configuration: web interface, ArtGate settings
Indicators: LED, for DMX and Ethernet- Package Contents
ArtGATE Bare
