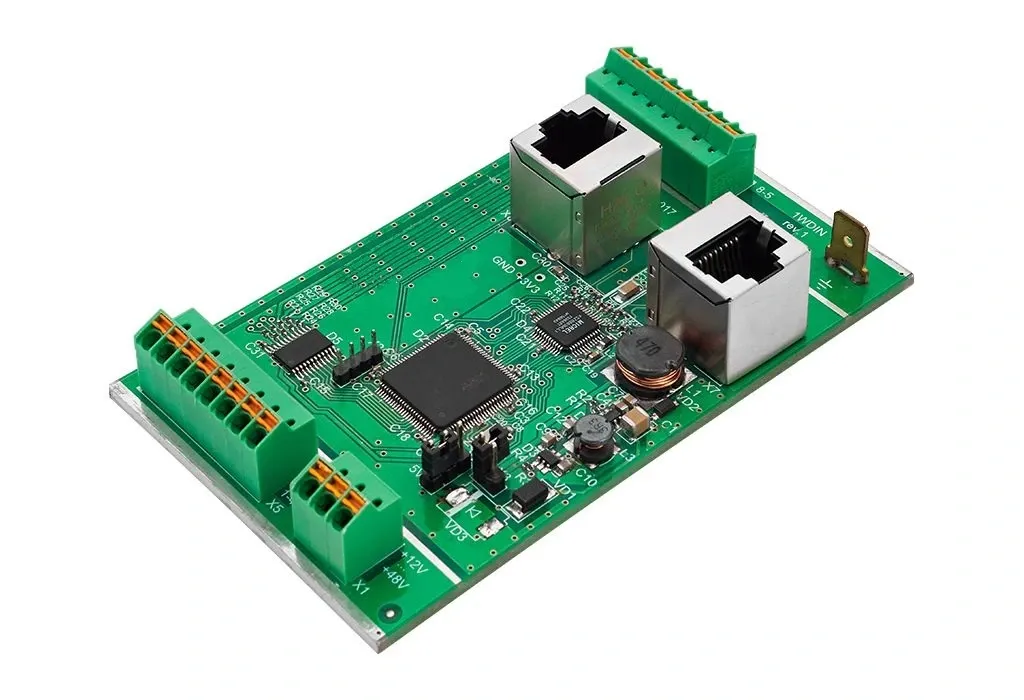

PixelGATE Bare

Frameless ArtNet/sACN to SPI controller with 8 outputs for up to 2,730 RGB pixels — wide voltage input, dual Ethernet ports, and compact OEM design for integration into third-party enclosures or LED systems

PixelGATE Bare is an OEM SPI pixel controller built for embedded integration into LED systems, fixtures, or concealed installations. Designed for maximum flexibility, it converts up to 16 DMX universes into SPI to control up to 2,730 RGB pixels across 8 independent SPI outputs.

It supports both single-wire and two-wire SPI protocols and is compatible with a wide variety of addressable LED drivers, including WS2811, WS2812B, TM1809, UCS1903, UCS2903, WS2801, APA102, LPD8806, and more.

The controller communicates via ArtNet (1–4) and sACN (Draft, Release) and features a 2-port 10/100 Mbps Ethernet switch for easy chaining of mult

Frameless OEM design for integration into third-party LED systems

Converts up to 16 DMX universes into SPI control signals

Supports ArtNet (1, 2, 3, 4) and sACN (Draft, Release) protocols

Controls up to 2,730 RGB pixels across 8 SPI outputs

Compatible with 1-wire and 2-wire LED drivers (e.g. WS2812, APA102)

Built-in 2-port Ethernet switch for daisy-chaining devices

Wide voltage input support from 5V to 48V DC

Compact size ideal for concealed installations

Configured via web interface — no extra software required

Mechanical: Housing: no
Dimensions, mm: 102 (L) x 14 (H) x 62 (W)
Weight: 0.35 kg
Installation: stage equipment, lamps, etc.
Power & Electrical: Power supply: 5-48 V
Max. current per output: 5 A
Max. input power: 500 W
Environment: Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: no
Certificates: CE compliant, RoHS
Warranty: 36 months
Control / Data Connections: Control interface: ArtNet I, II, III, IV / sACN
Channels: 8 SPI
Supported LED strips: WS2812B, WS2811,
APA102, LPD8806, WS2818, WS2812S, UCS1903B,
UCS1909, UCS1909B, UCS1912, UCS1912B, UCS2903,
UCS2903S, UCS2909, UCS2912, INK1002, INK1003,
LX1003, SM16703, WS2813, WS2813A, WS2813B,
WS2813C, WS2813D, TM1803, TM1804, TM1812,
TM1814, TM1829, WS2803, DM413, LPD8803, LPD6803,
LPD6813, LPD1101, UCS5903, UCS6909, UCS6912,
UCS7009, D705, D707, D708 and more

Inputs / Outputs: Ethernet ports: 7 (10/100 Base-TX)
Ethernet connectors: RJ-45, KRONE 6089 1 102-02
Configuration / Indication: Configuration: web interface
Package Contents: PixelGATE Bare
