PixelGATE Rail

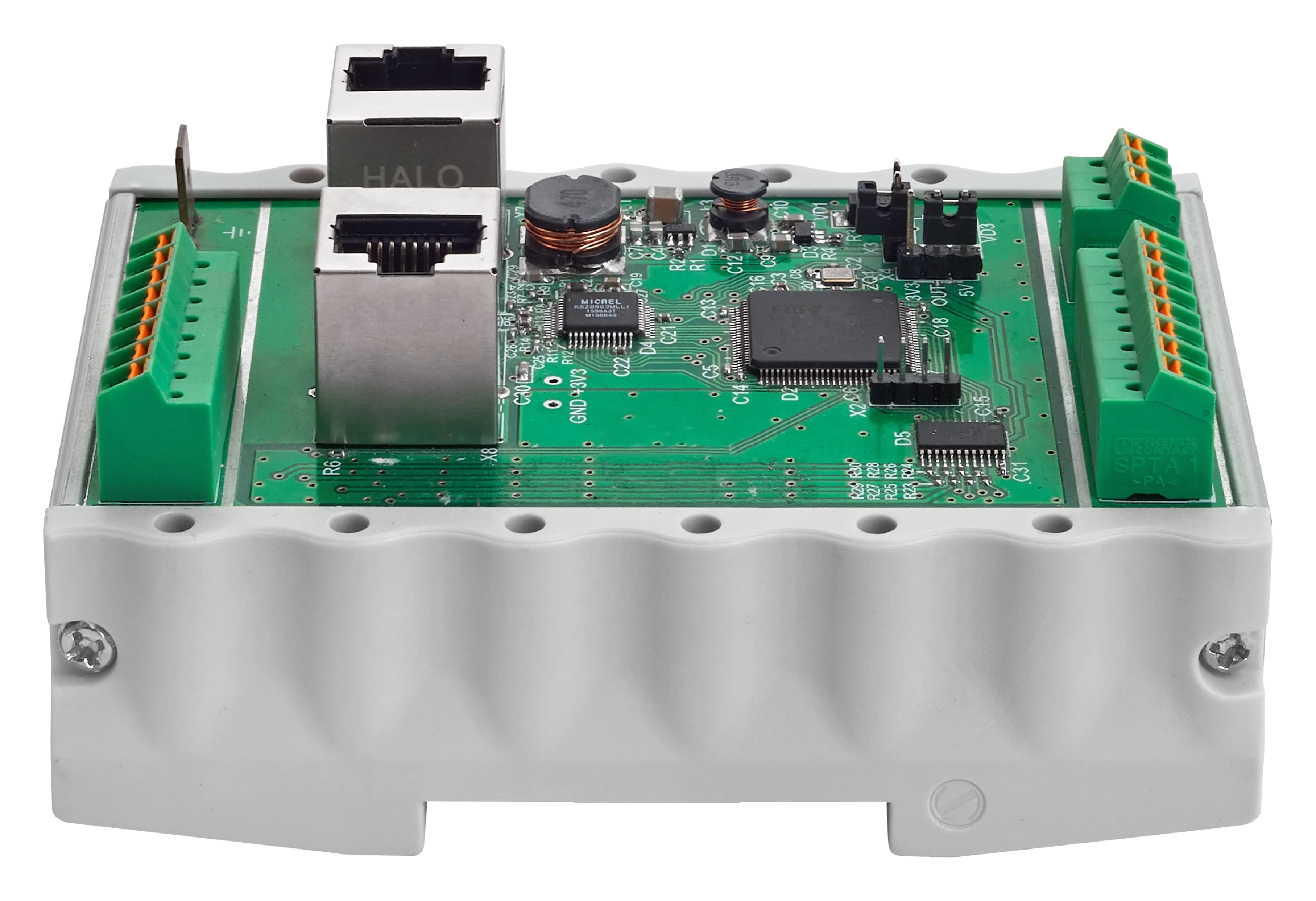

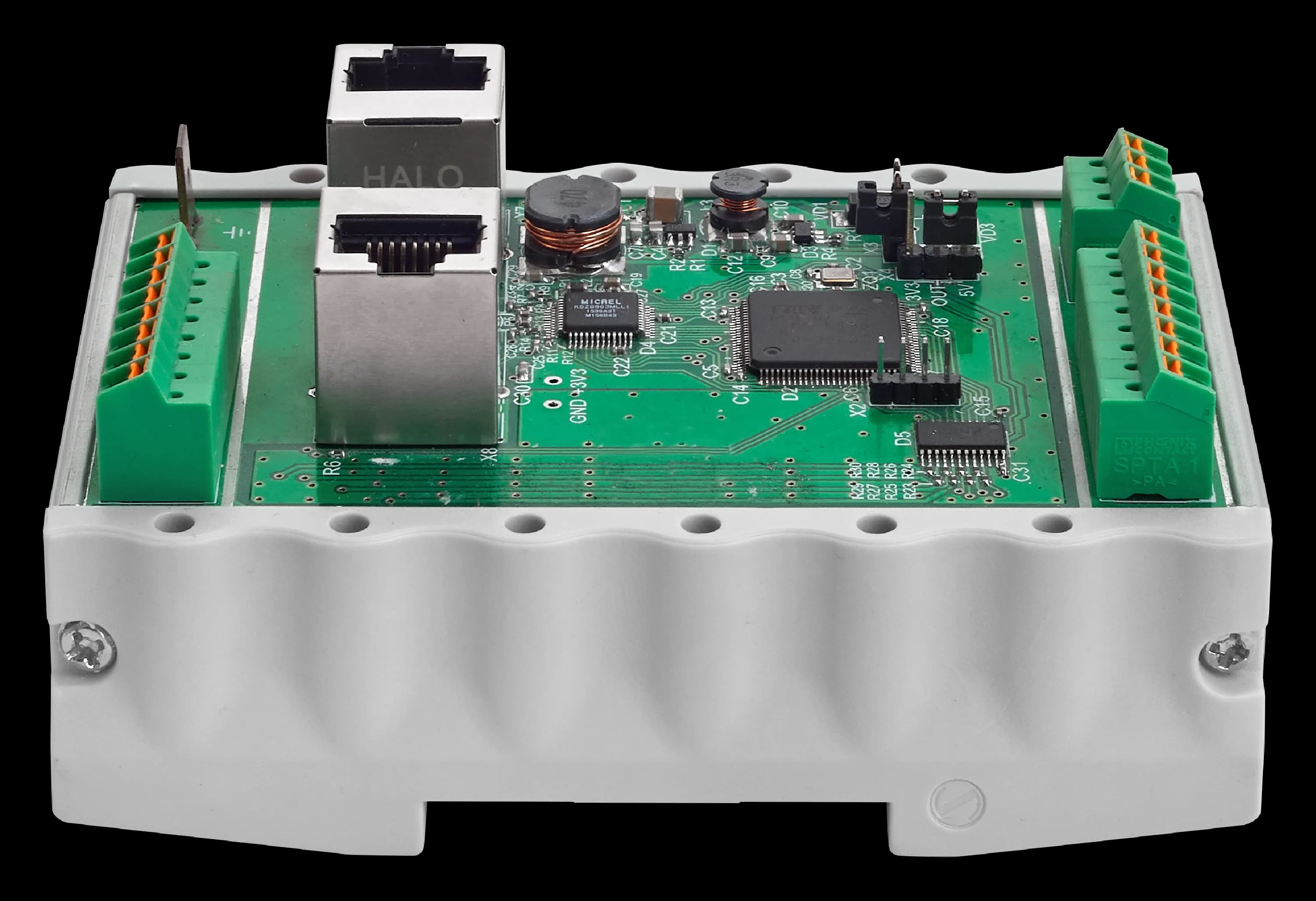

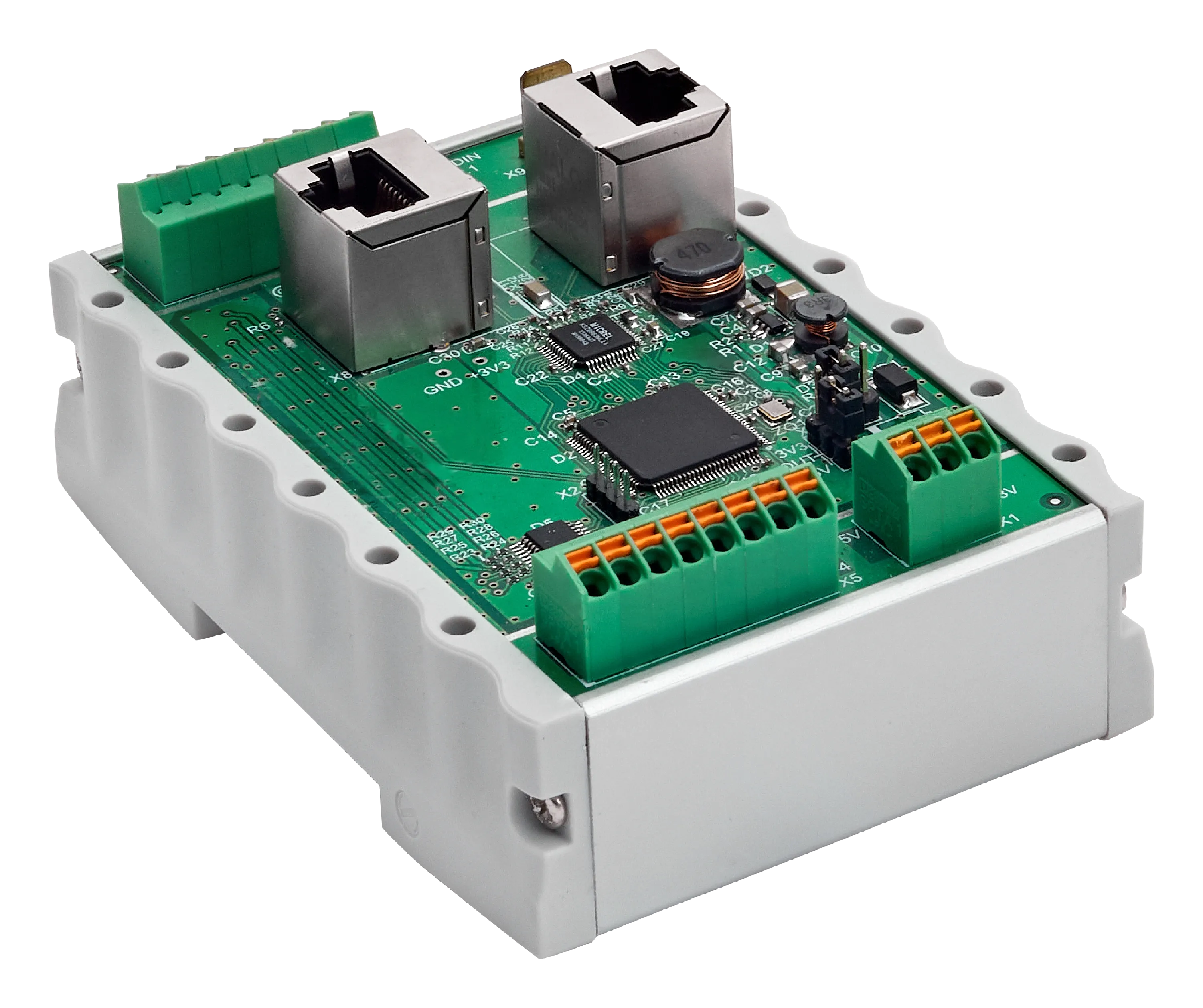

PixelGATE Rail is a high-performance DMX to SPI pixel controller built for professional indoor and sheltered installations. Designed for integration into control cabinets, it converts up to 16 DMX universes into SPI protocol to manage up to 2,730 RGB pixels via 8 independent outputs.
The controller supports ArtNet (1, 2, 3, 4) and sACN (Draft, Release) and is compatible with a wide range of addressable LEDs, including WS2811, WS2812B, TM1809, UCS1903, UCS2903, APA102, WS2801, and others. It accommodates both single-wire and dual-wire SPI protocols, allowing for versatile system configurations.
With a built-in 2-port 10/100 Mbps
DIN rail mountable ArtNet/sACN to SPI controller (4 modules, IP20)
Drives up to 2,730 RGB pixels via 8 configurable SPI outputs
Supports ArtNet (1, 2, 3, 4) and sACN (Draft, Release) protocols
Built-in 2-port Ethernet switch for cascading controllers
Compatible with a wide range of addressable 1-wire and 2-wire LED types
Supports 5V, 12V, 24V, and 48V DC LED power supplies
Permanently laser-etched aluminum housing
Fanless design with natural heat convection
Configurable through a user-friendly web interface
Designed for integration into lighting control cabinets or racks
- Mechanical
Enclosure: DIN rail (4 modules)
Material: metal, plastic
Dimensions, mm: 72 (L) x 50 (H) x 105 (W)
Weight: 0.35 kg
Mounting: DIN rail- Power & Electrical
Power supply: 5-48 V
Fuse: 0.5 A
Max power consumption: 5W- Environment
Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 95%
IP Rating: IP 20
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Control interface: ArtNet I, II, III, IV / sACN
Channels: 8 SPI
- Inputs / Outputs
Ethernet ports: 2 (10/100 Base-TX)
Ethernet connectors: 2 RJ-45 / etherCON
Output control: up to 8, TTL 3 / 5V- Configuration / Indication
Configuration: web interface
- Package Contents
PixelGATE Rail
Connector Set
