Precision Pavement Monitoring Device

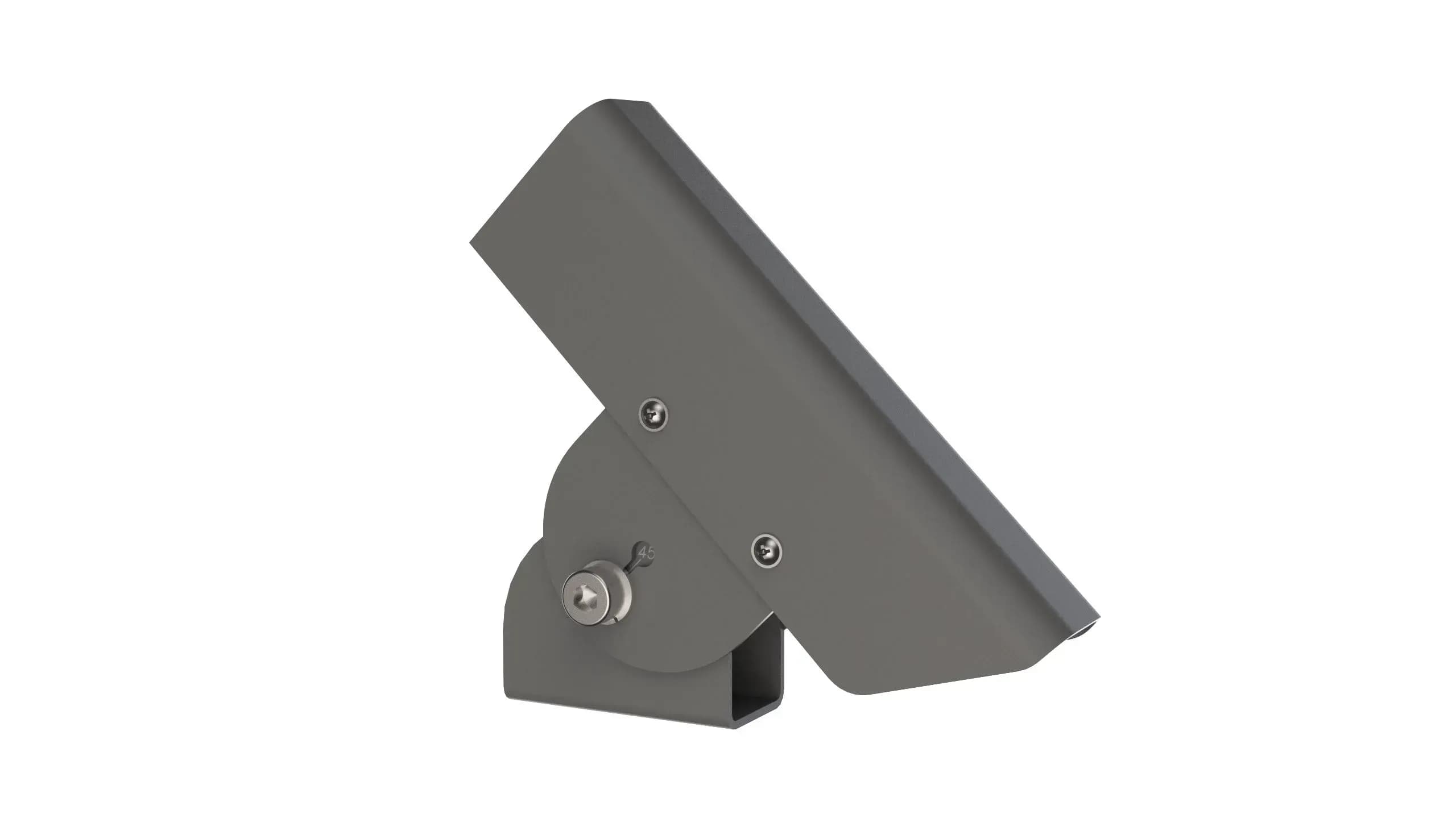

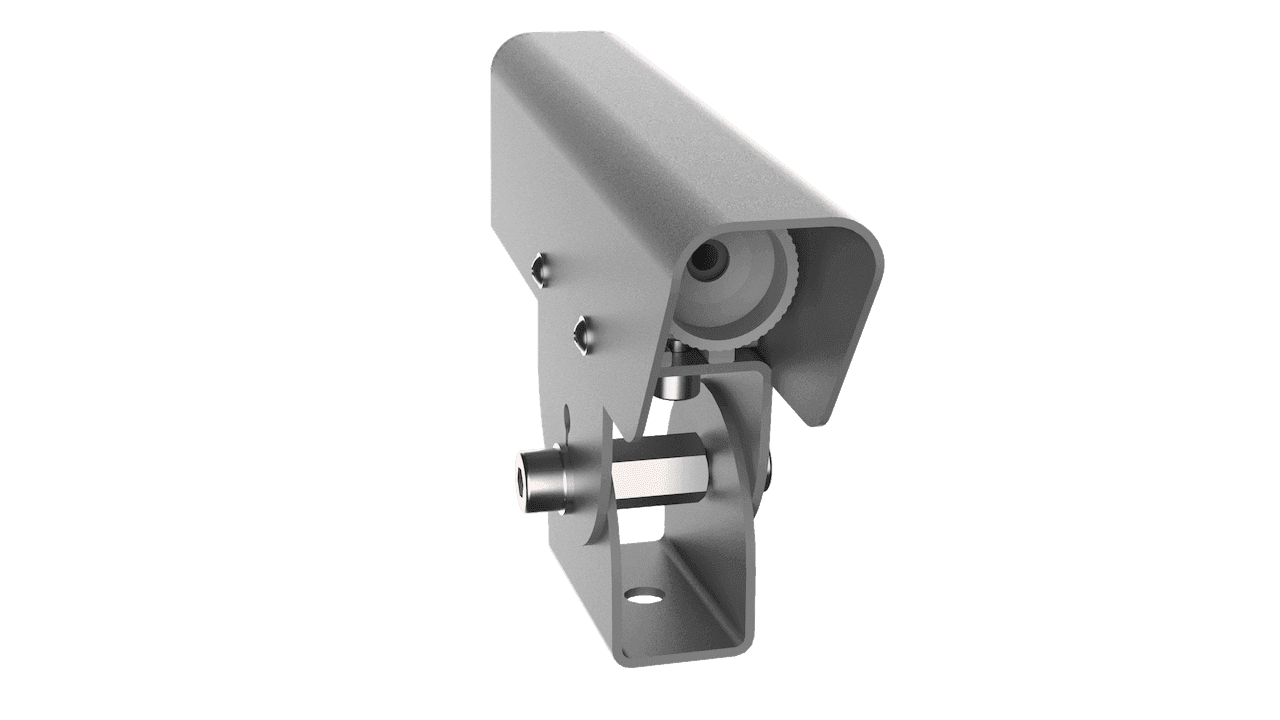

The DITRA IR Temperature Sensor is a specialized device for accurately measuring pavement temperatures. Sensor readings are transmitted to the DITRA server via the Luminance Sensor or cabinet controllers, ensuring seamless integration with smart telemetry systems.

Equipped with an RS-485 (Modbus-RTU) interface, it communicates efficiently with other equipment. The sensor is powered by a 10-48V DC supply and can be remotely configured through the Luminance Sensor or cabinet controllers for convenience.

Designed for lighting pole or flat surface mounting, the DITRA IR Temperature Sensor offers reliable performance and compatibility with third-party telemetry systems, making it ideal for advanced temperature monitoring applications.

  • IP65 Plastic Case – Dust and waterproof for durability

    Remote Software Updates – Ensure optimal performance

    RS-485 Interface – Seamless communication with MODBUS RTU support

    High Accuracy – Reliable remote temperature measurement

  • Mechanical:

    Housing: dustproof
    Material: metal, plastic
    Dimensions, mm: 223,6(D) x 106,5(H) x 48,2(W)
    Mass: 0.15 kg
    Mounting: pole or surface

  • Power & Electrical:

    Input Voltage: –10-48 V
    Input Power (max): 5 W

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Accuracy: 0.1-0.5 degrees Celsius (not over the entire measurement range)
    Operating Relative Humidity (max): 100%
    IP Rating: IP 65
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Serial interface: RS-485 (MODBUS RTU)
    Max length of RS-485 line: 1500 m

  • Inputs / Outputs:

    Connectors: wires or SAC 5P

  • Configuration / Indication:

    Setup: via the Luminance Sensor or cabinet controllers

  • Package Contents:

    IR Temperature Sensor

IR Temperature Sensor, accuracy 0.1°C, wire
  • : DIT-RTS-61-485-W
IR Temperature Sensor, accuracy 0.1°C, SAC 5P
  • : DIT-RTS-61-485-S
IR Temperature Sensor, accuracy 0.5°C, wire
  • : DIT-RTS-65-485-W
IR Temperature Sensor, accuracy 0.5°C, SAC 5P
  • : DIT-RTS-65-485-S
