DITRA Luminance Sensor

DITRA Luminance Sensor

Modbus-RTU/Wireless luminance sensor and camera for tunnel safety monitoring

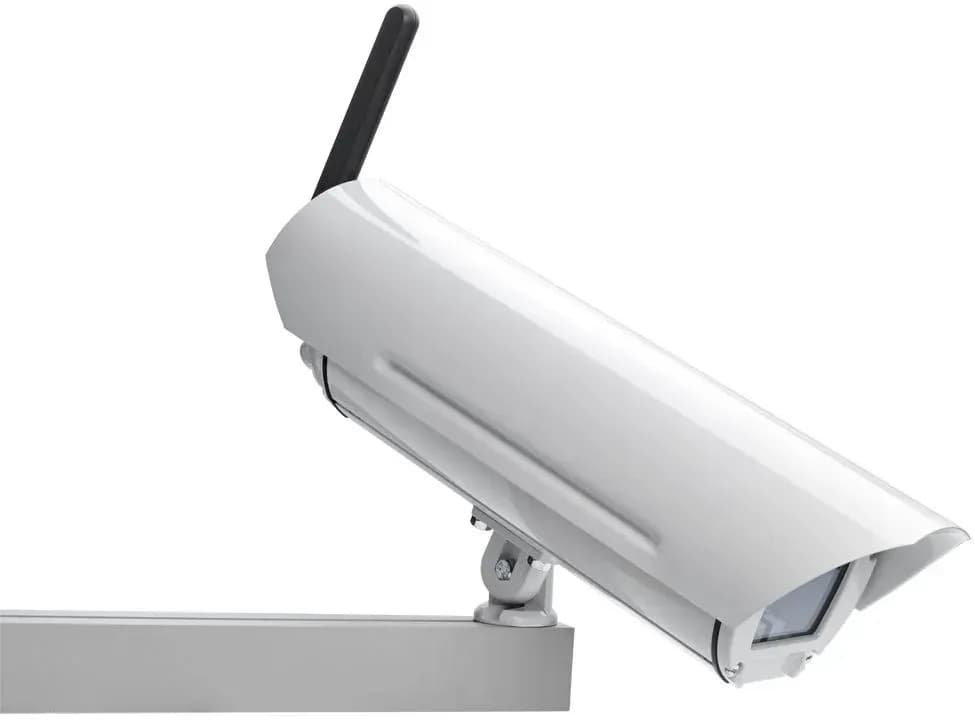

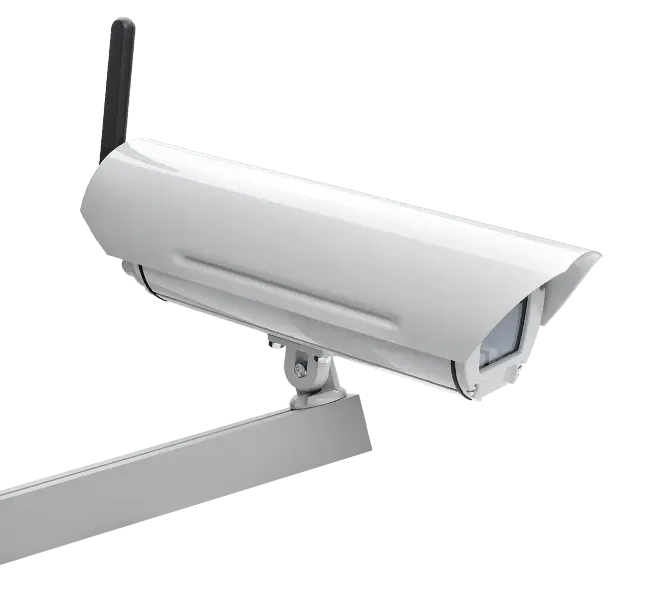

The Luminance Sensor is a multifunctional device that integrates both a sensor and a camera, specifically designed for tunnel lighting management, object surveillance, and high-resolution image transmission to a control center. It can be optionally equipped with a night vision system and a light level sensor. This device ensures safety monitoring and surveillance in dark or hard-to-reach areas within tunnels.

The Luminance Sensor communicates with other systems via the RS-485 (Modbus-RTU) interface, while 2G/3G/4G mobile networks enable interaction with the control system.

The unit operates on a 100-240V power supply.

Configuration can be performed remotely via cellular networks or manually.

Designed for vertical surface installation, the unit features an IP66-rated enclosure, providing protection against dust and moisture.

Key Features

  • • Durable Die-Cast Waterproof Metal Casing

    • Effortless Installation and Programming

    • Integrated Power Supply

    • Built-in 2G/3G/4G Modem

    • Embedded Luminance Sensor

    • Automatic Heated Thermo Cover for All-Weather Operation

    • Scheduled and Manual Image Capture

  • Mechanical:

    Housing: thermo cover
    Material: plastic
    Dimensions, mm: 350(D) x 107(H) x 118(W)
    Mass: 1.8 kg
    Mounting: on a vertical surface,
    (wall, support, bar, etc.)

  • Power & Electrical:

    Input Voltage: ~100-240 V 50/60 Hz
    Input Power (max): 5 W
    Mains Fuse: 0.1 A

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP 65
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Serial interface: RS-485
    Radio Channel: GSM 800/850/900/2100
    Max length of RS-485 line: 1500 m

  • Inputs / Outputs:

    Wireless channels: 1
    Connectors: screw, SAC 5P

  • Optic:

    Camera resolution: 1
    View angle: 30°
    Snap-shooting interval: 5 or 30 sec
    Night mode: in 5 Mpx camera only
    Luminance Meter: in 1.3 Mpx camera only

  • Configuration / Indication:

    Setup: remote via 2G/3G/4G; manual

  • Package Contents:

    Luminance Sensor
    Surface mounting bracket

Luminance Sensor, screw
  • Product Code: DIT-F-5000-T
Luminance Sensor, SAC 5P
  • Product Code: DIT-F-5000-S
