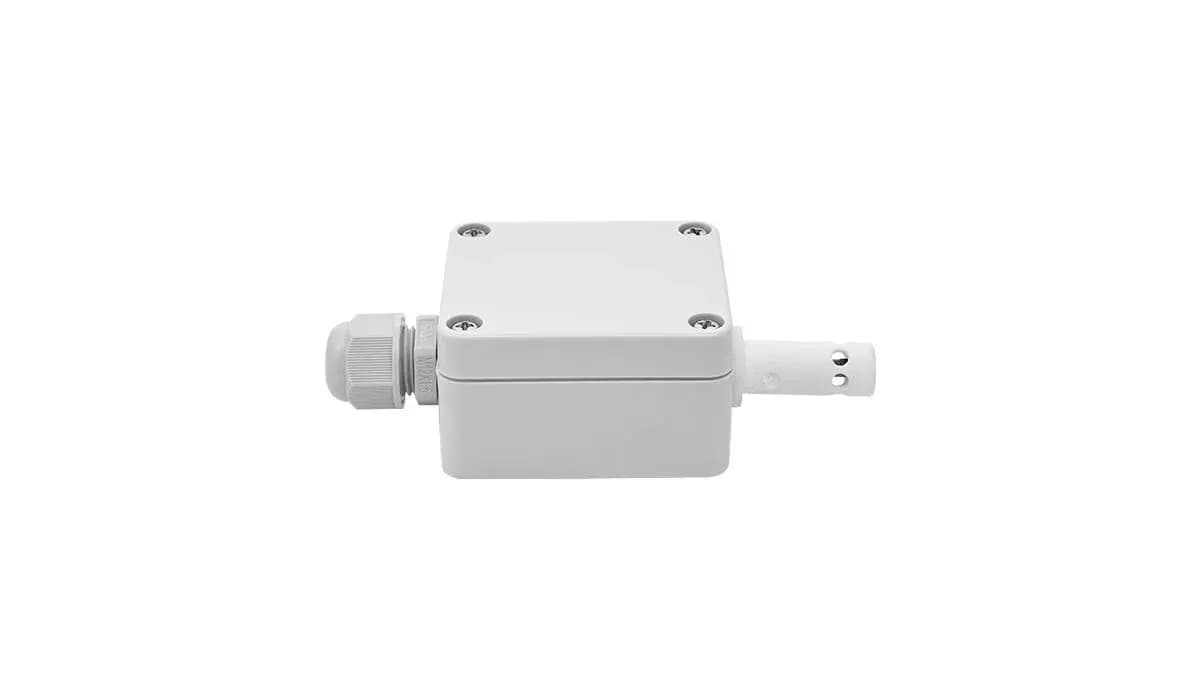

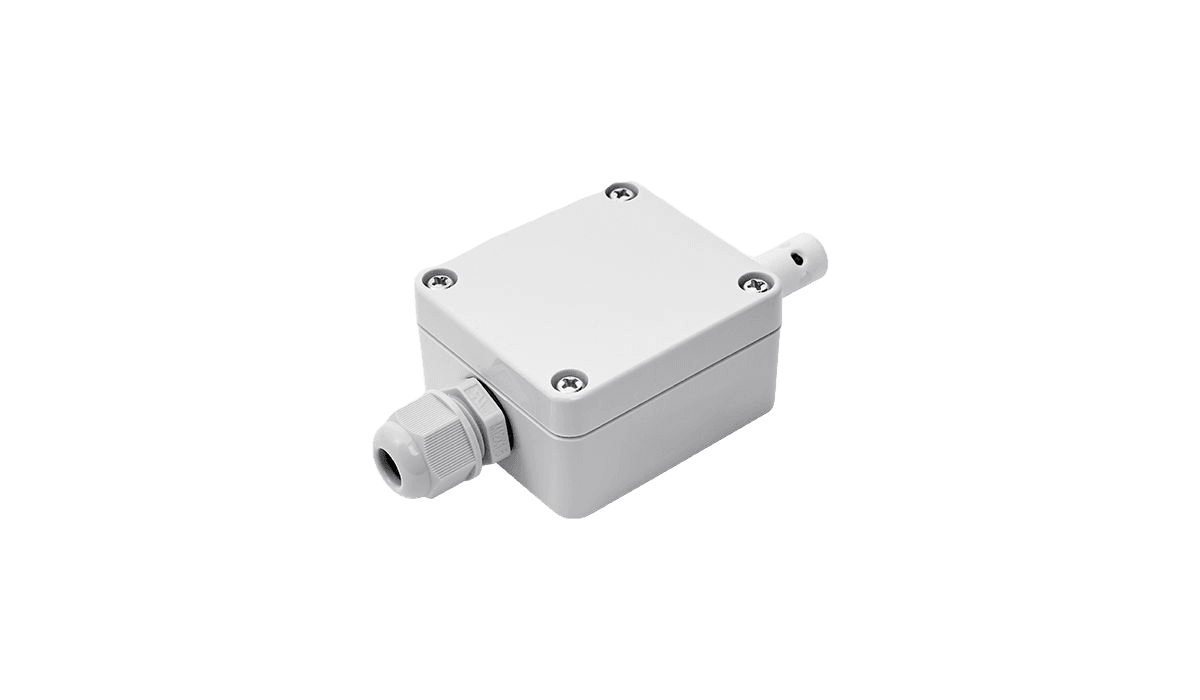

DITRA Meteo Sensor
The Meteo Sensor is designed to measure air temperature, humidity, and atmospheric pressure, transmitting the data to the DITRA control system.
It communicates via the RS-485 (Modbus-RTU) interface, with data transmission facilitated through the Luminance Sensor or cabinet controllers.
The unit operates on a 10-48V DC power supply.
Configuration can be performed remotely through the Luminance Sensor or cabinet controllers.
It can be mounted on any surface using specialized brackets and can also be installed within
• All-in-One Measurement Solution
• Simple and Quick Installation
• Durable Waterproof Plastic Casing
• High-Precision Measurement Performance
- Mechanical
Housing: dustproof
Material: metal, plastic
Dimensions,mm: 111,5(L) x 35(H) x 58(W)
Mass: 0.2 kg
Mounting: pole- Power & Electrical
Input Voltage: –10-48 V
Input Power (max): 5 W- Environment
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 66
Certification: CE compliant, RoHS
Warranty: 36 Month- Interfaces and Protocols
Communication interface: RS-485 (MODBUS RTU)
Max length of RS-485 line: 1500 m
- Inputs / Outputs
Connectors: screw or SAC 5P
- Configuration / Indication
Setup: remote via Luminance Sensor or cabinet controllers
- Package Contents
Meteo Sensor
- Meteo Sensor, screw
- : DIT-M-65-485-T
- Meteo Sensor, SAC 5P
- : DIT-M-65-485-S
