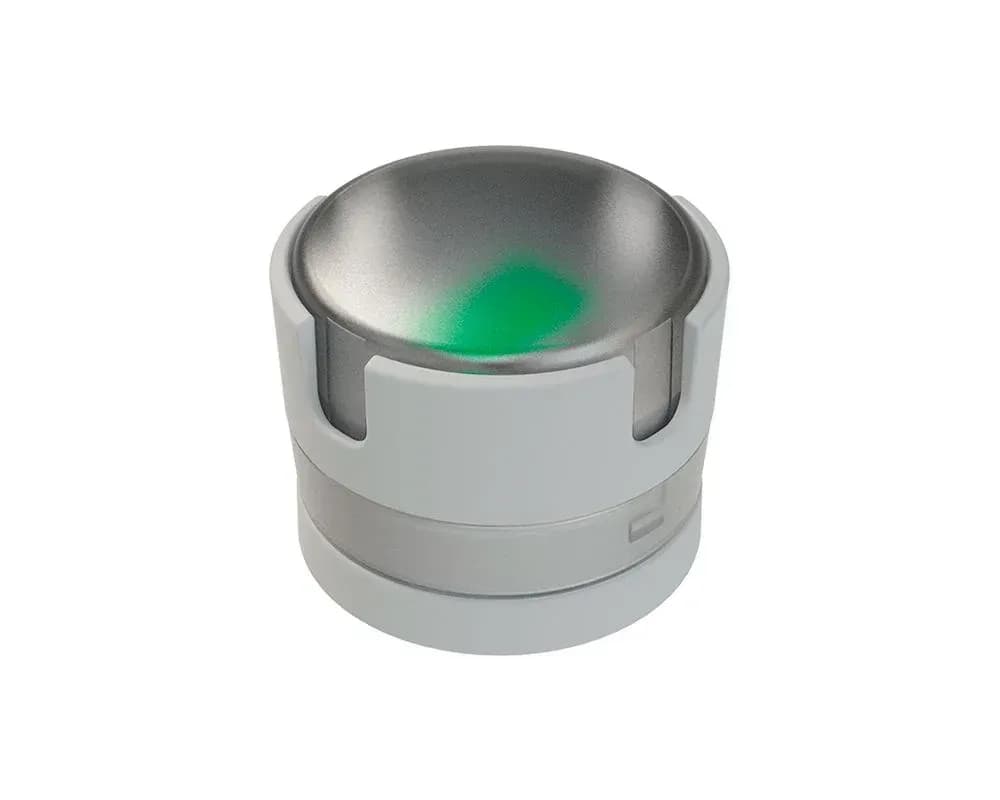

DITRA Smart Microwave Motion Sensor
Advanced Microwave Motion Sensing for Smart Lighting
The MW Motion Sensor is a microwave-based motion detector that emits radio waves and analyzes the reflected signal to detect movement.
It provides real-time motion detection data to luminaire controllers via the DALI protocol, enabling automatic and dynamic lighting adjustments based on occupancy.
Unlike infrared sensors, it can detect motion through glass, plastic, or thin partitions, making it more sensitive and capable of identifying even the smallest movements.
Its configurable detection range allows fine-tuning of sensitivity for different environments and applications, ensuring p
- Seamless Integration: Fully compatible with modern lighting fixtures and smart lighting systems
- Flexible Connection: Quick installation via Zhaga connector or wired interface, minimizing commissioning time and cost
- Robust Design: Compact IP67-rated housing ensures durability and long-term outdoor performance
- Adjustable Detection Range: Configurable detection area and sensitivity to fit different installation heights and environments
- Smart Communication: Uses the DALI 2.0 protocol for intelligent interaction with luminaires and control systems
- Microwave Precision: Detects motion through glass and non-metallic materials with exceptional sensitivity
- Intuitive Configuration: Easily adjustable through DITRA or any other software for precise motion response
- Moving object/human body detection by 24GHz band microwave
- Equipped with optimal algorithms for detecting moving objects and human bodies:
- Detection of movements peculiar to the human body and detection of micro-vibration
- Signal processing to reduce random noise components
- RF Frequency: 24.15 - 24.25 GHz.
- Antenna angle (half width) H plane/V plane ±40°/±55°.
- Maximum pedestrian detection range (distance directly in front of the sensor) 20m.
- Mechanical:
Housing: protected
Material: plastic

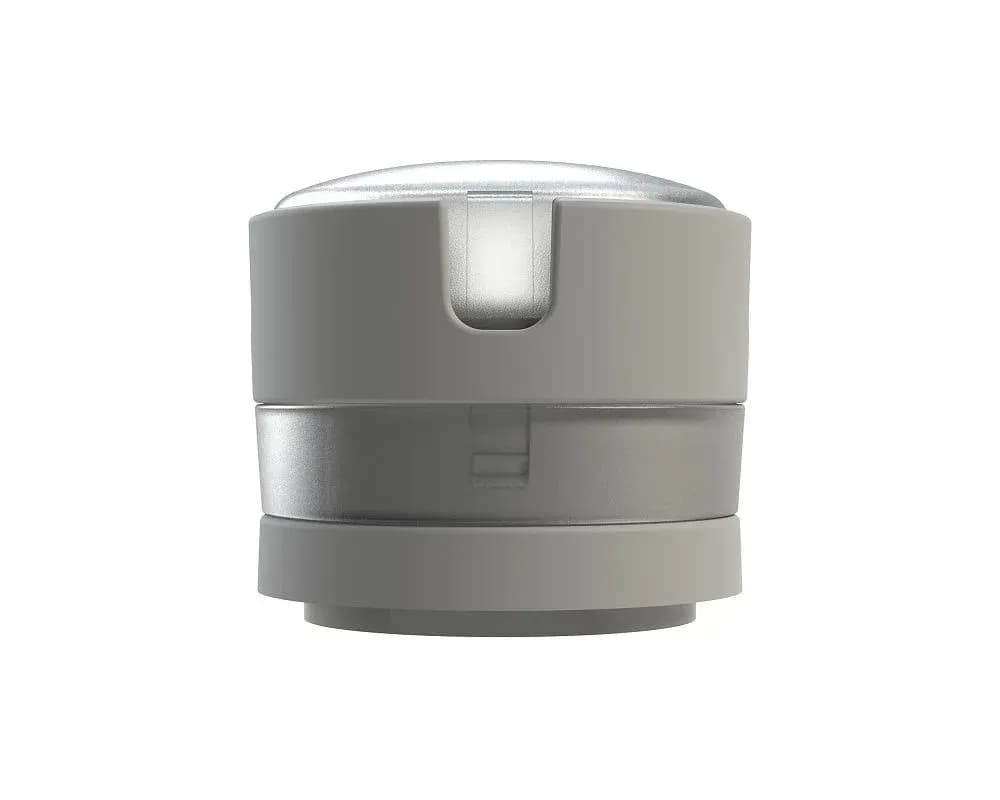

Dimensions,mm: 49(D) x 47,5(41,8)(H)
Mass: 0.1 kg

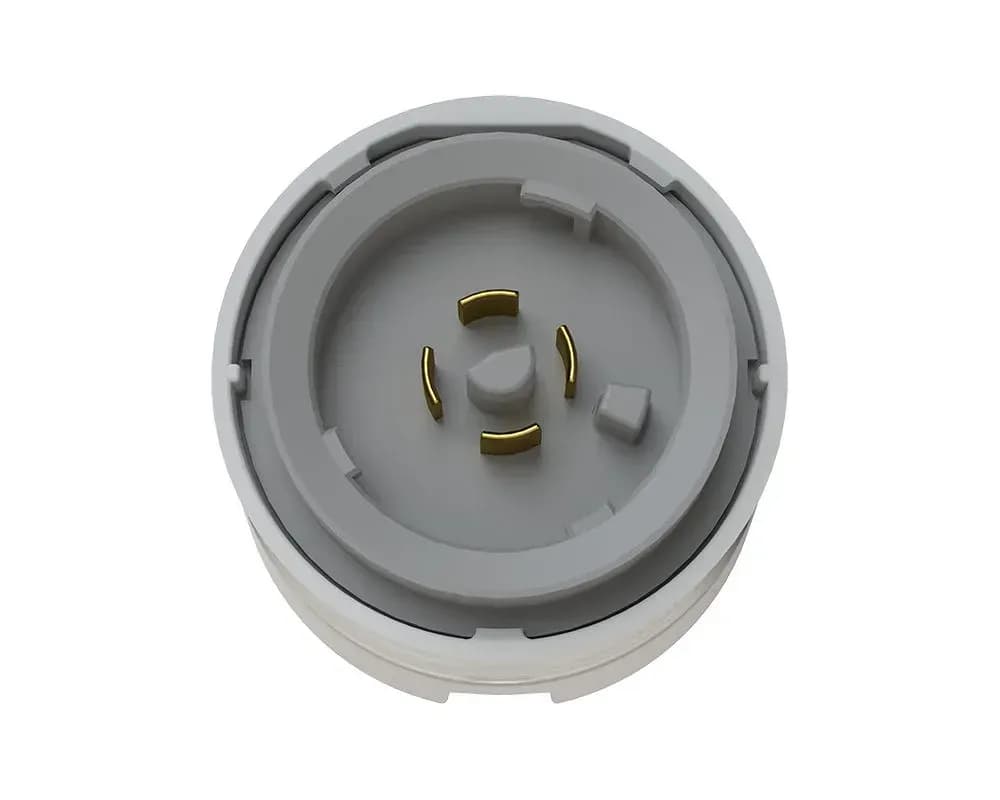

Mounting: Zhaga-type socket- Power & Electrical:
Input Voltage: –12-30 V DC
Input Power (max): 3 W- Environment
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 67
Certification: CB, CE, RoHS, EMC, LVD, RED, RoHS
Warranty: 5 Years- Interfaces and Protocols
Communication interface: DALI 2.0
- Inputs / Outputs
Connectors: DALI "+", DALI "-", 12-24VDC
- Configuration / Indication
Setup: Remotely using DITRA sofrware
- Package Contents
Smart Microwave Motion Sensor
Device passport
