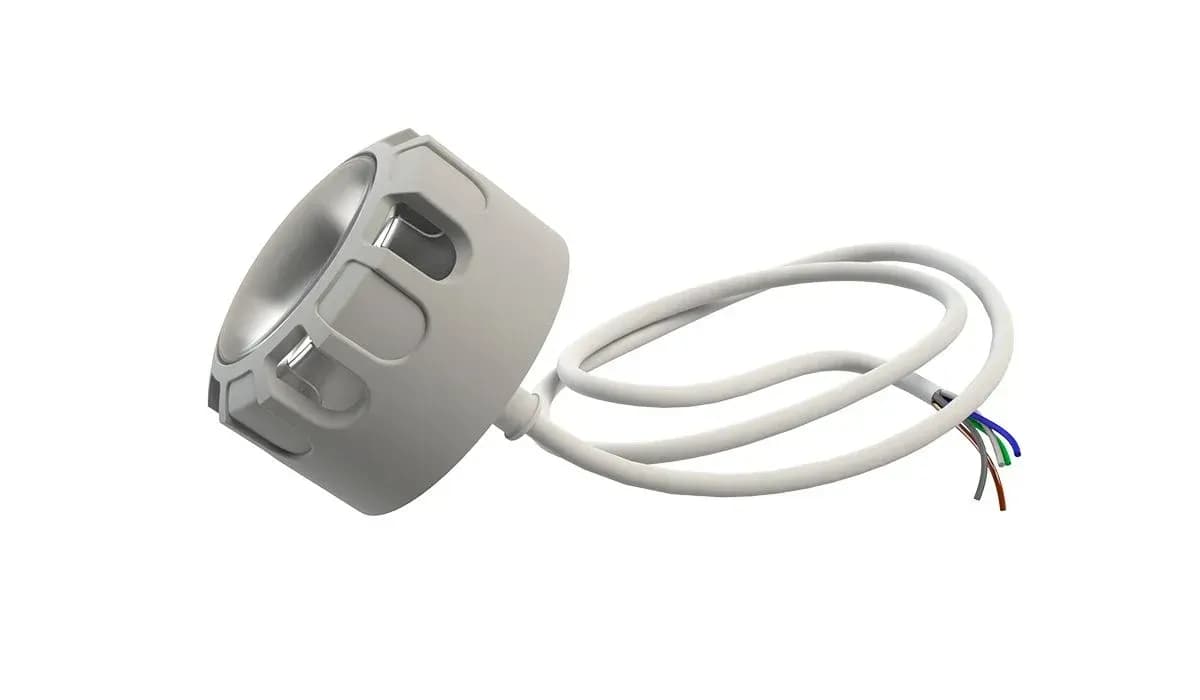

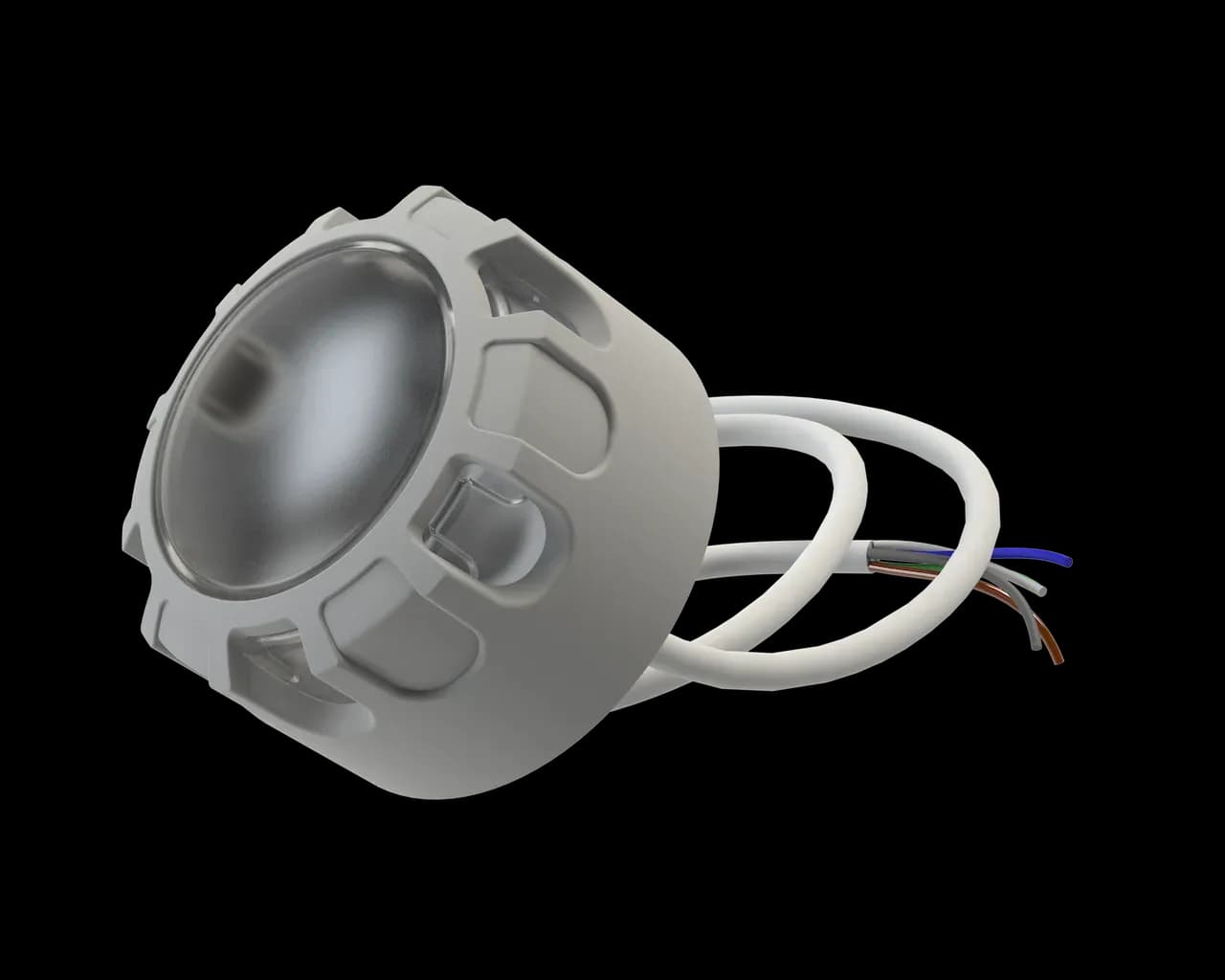

DITRA Wire Daylight Sensor
Modbus-RTU/Wireless Ambient Light Sensor with Wired Connectivity
The Wire Daylight Sensor is a specialized ambient light intensity sensor designed to optimize daylight levels and activate pre-configured lighting scenarios when visibility is reduced due to smog, fog, or smoke.
Data exchange is carried out via the RS-485 (Modbus-RTU) interface, with some versions also supporting wireless communication via mobile networks. The device is equipped with a GPS receiver for precise location-based adjustments.
The unit operates on an AC power supply ranging from 100-250V and can be configured remotely via the control system. It features LED indicators for status monitoring.
Designed for luminaire integration via wired connection, the sensor is housed in an IP66-rated enclosure, ensuring protection against dust and water.
• Versions Available with Open Wire Connections
• IP66-Rated Waterproof Enclosure
• Integrated GPS Receiver
• RS-485 (Modbus-RTU) Interface for Reliable Communication
• Optional GSM Interface for Wireless Connectivity
- Mechanical:
Housing: solid case
Material: plastic
Dimensions, mm: 87(D) x 91,3(69,3)(H)
Mass: 0.2 kg
Mounting: luminaire case, pillar, e.t.c - Power & Electrical:
Input Voltage: ~100-250 V, 50/60 Hz
Input Power (max): 5 W
Max load Power: 1000 W - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 66
Certification: CE compliant, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Navigation: GPS
Interface: RS-485
Radio Channel: GSM 850/900/1800/1900 (optional) - Inputs / Outputs:
Connectors: wires
Sensors: embedded light sensor - Configuration / Indication:
Setup: remote via software
Indication: LED - Package Contents:
Wire Daylight Sensor
- Wire Daylight Sensor, RS
- : DIT-DSR-W-10
- Wire Daylight Sensor, GSM, RS
- : DIT-DSR-W-11
