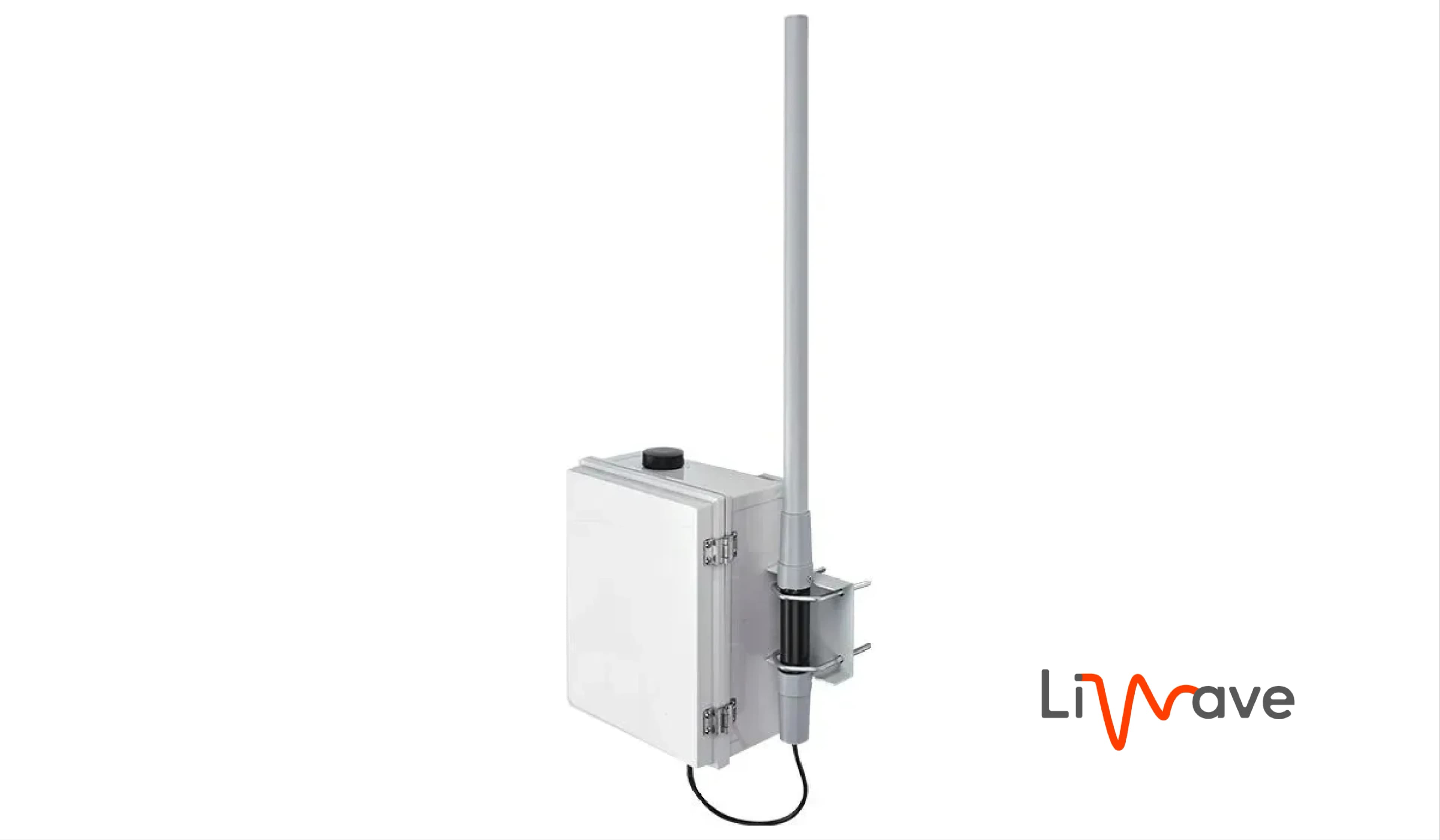

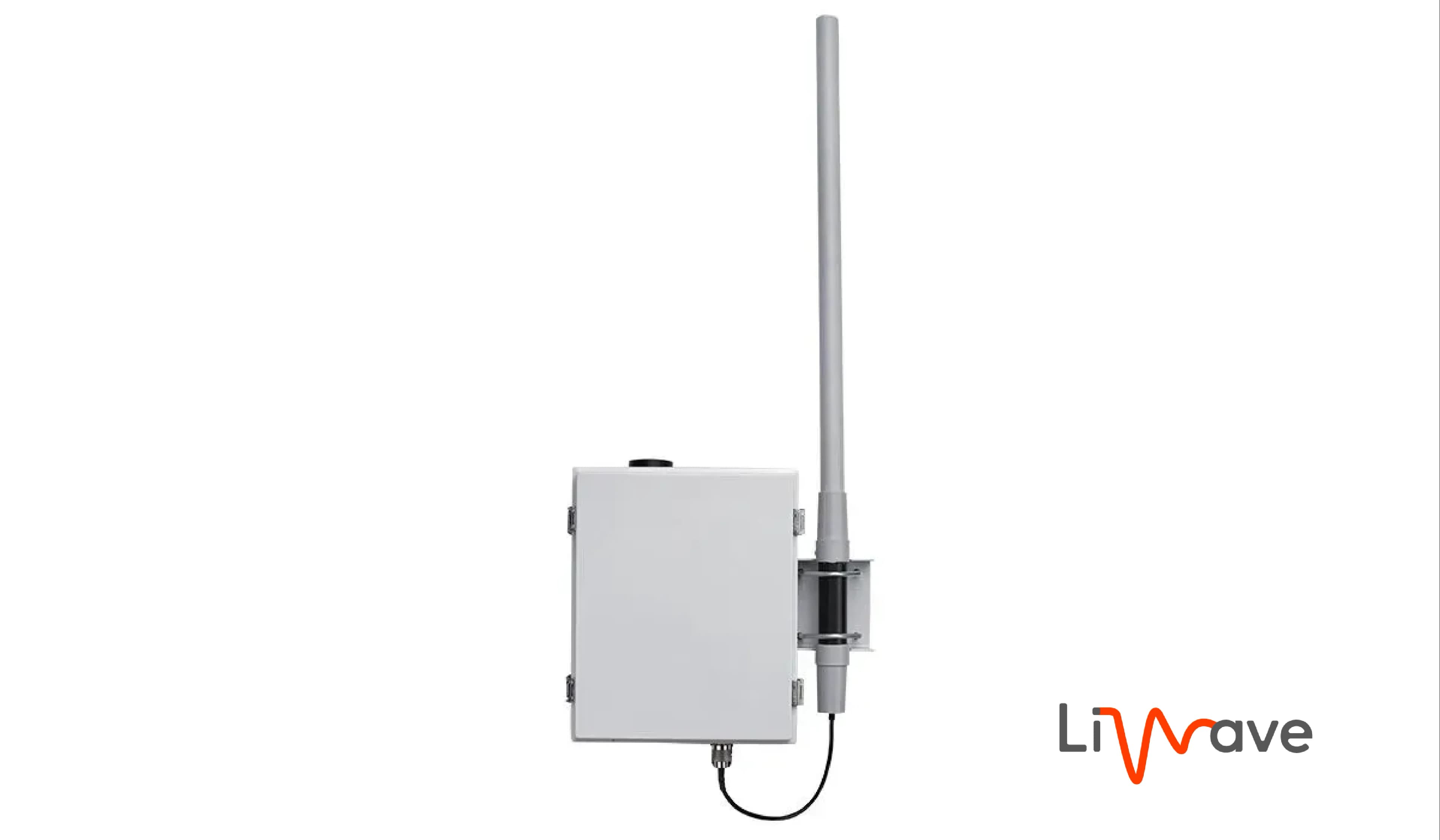

DITRA LiWAVE Base Station

Advanced IoT Gateway for Wireless Street Lighting and Long-Range Control

The DITRA LiWAVE Base Station is designed for individual remote control of luminaires equipped with LiWAVE Nodes via radio communication. It enables monitoring of luminaire status and energy consumption while providing precise control and diagnostics.

Operating on the 868/915 MHz radio frequency, it supports communication with up to 1000 LiWAVE Nodes at distances of up to 5 km, depending on terrain and building density.

Data exchange with the DITRA  server is performed through either a 2G/3G/4G mobile network or a wired Ethernet connection.

The unit is configured remotely via DITRA software, ensuring easy setup and management.

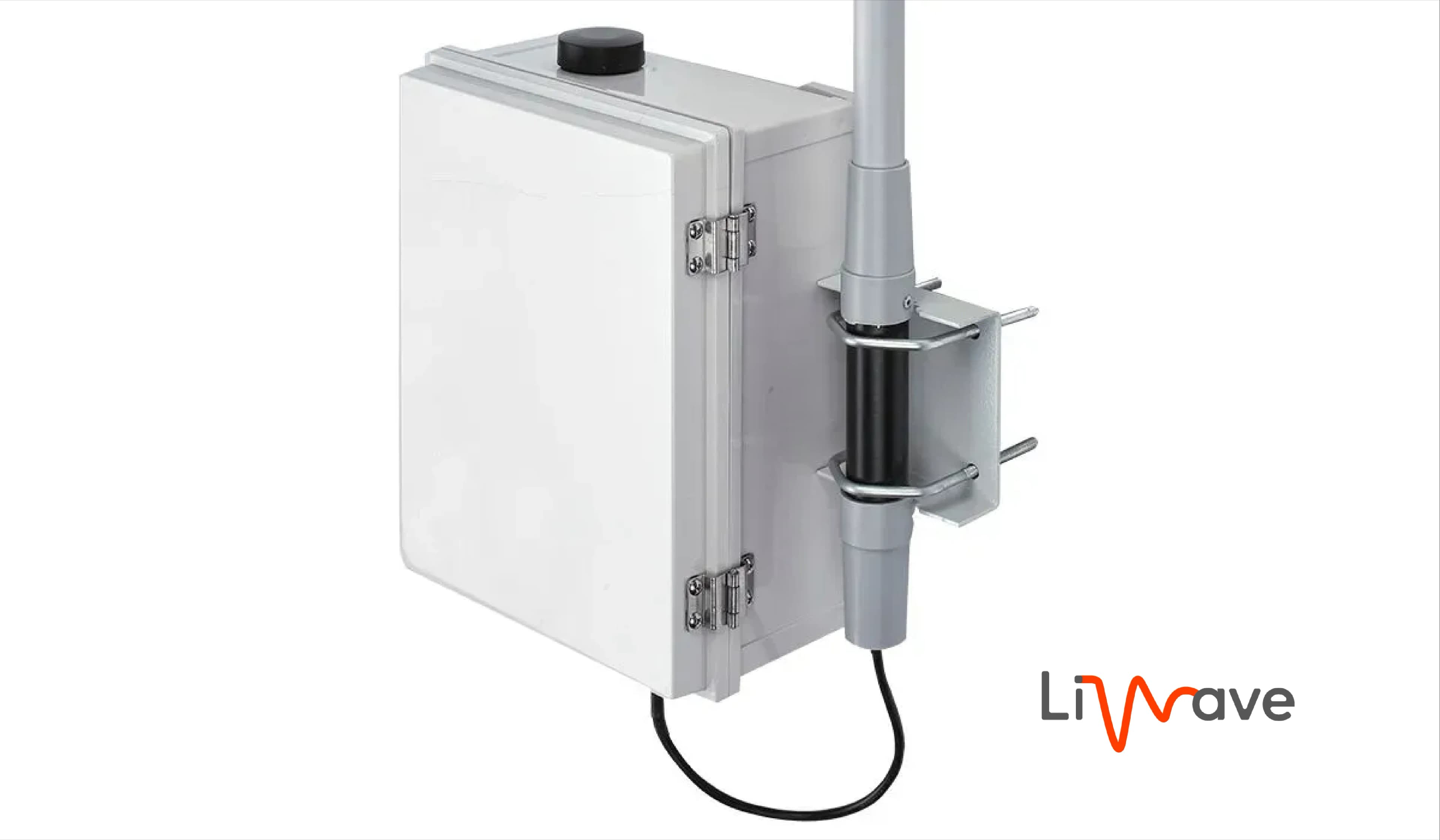

Built for pole or surface mounting, the DITRA LiWAVE Base Station features an IP66-rated enclosure, offering dust and water resistance for reliable outdoor performance.

  • Long-range communication up to 5 km

    Compact design for easy deployment

    Operates on license-free radio frequencies for seamless LiWAVE communication

    Supports Ethernet connectivity for reliable data exchange

    Functions independently of other wireless networks

    Built to withstand harsh climates with an IP66-rated enclosure

    Integrates wireless lighting networks into IoT software platforms

  • Mechanical:

    Housing: plastic case
    Material: metal, plastic
    Dimensions, mm: 302,6(L) x 321,3(828,3)(H) x 172,1(W)
    Mass: 7 kg
    Mounting: pole or wall

  • Power & Electrical:

    Input Voltage: ~100-240 VAC, 50/60 Hz
    Input Power (max): 10 W

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP 66
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Navigation: GPS
    Serial interface: RS-485, CAN
    Radio Channel: GSM 850/900/1800/1900
    Lan: Ethernet 10/100 Base-TX
    LiTouch communication: ISM band 868/915 MHz

  • Inputs / Outputs:

    Ethernet port: 1
    868/915 MHz Antenna input: 1

  • Configuration / Indication:

    Setup: locally via Ethernet; remote via 2G/3G/4G
    Indication: LEDs for GSM, Ethernet, RS-485 and LiWAVE activity

  • Package Contents:

    LiWAVE Base Station

LiWAVE Base Station, 2G/3G/4G, RS, Ethernet, GPS, 868 MHz, Region: E
  • : DIT-BSF
LiWAVE Base Station, 2G/3G/4G, RS, Ethernet, GPS, 915 MHz, Region: A
  • : DIT-BSF-A
